NS-2A Checking TPS SBEC & MAP Power Alarm & Fuel Pressure

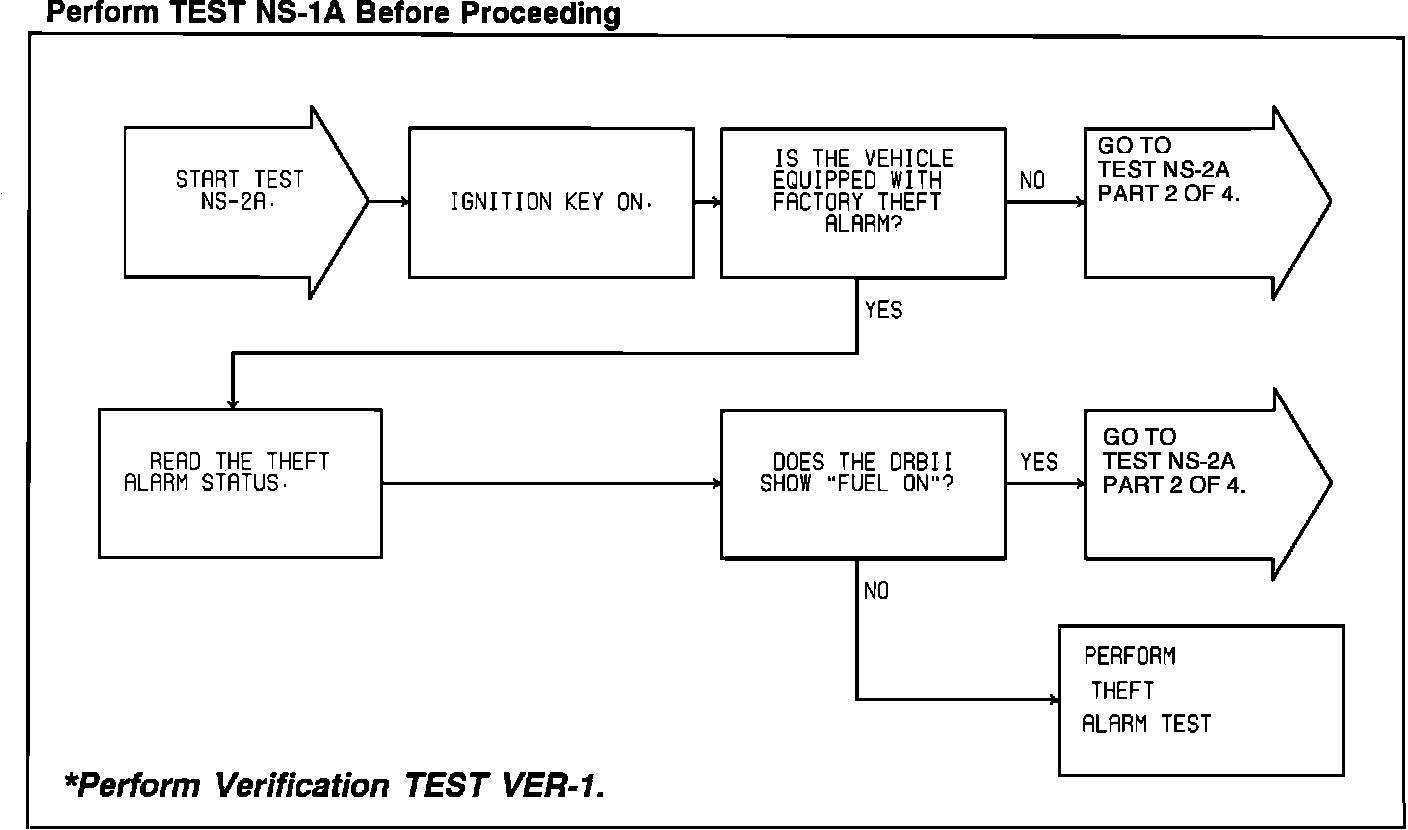

Test NS-2A - TPS, Power To Engine Controller And MAP, Theft Alarm Status, And Fuel Pressure:

Test NS-2A - TPS, Power To Engine Controller And MAP, Theft Alarm Status, And Fuel Pressure:

Test NS-2A - TPS, Power To Engine Controller And MAP, Theft Alarm Status, And Fuel Pressure:

Test NS-2A - TPS, Power To Engine Controller And MAP, Theft Alarm Status, And Fuel Pressure:

Test NS-2A - TPS, Power To Engine Controller And MAP, Theft Alarm Status, And Fuel Pressure:

Test NS-2A - TPS, Power To Engine Controller And MAP, Theft Alarm Status, And Fuel Pressure:

Test NS-2A - TPS, Power To Engine Controller And MAP, Theft Alarm Status, And Fuel Pressure:

Test NS-2A - TPS, Power To Engine Controller And MAP, Theft Alarm Status, And Fuel Pressure:
