Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
No Start Test
>>
No Start (NS) Tests
>>
NS-12B Checking Idle Speed Motor Operation
NS-12B Checking Idle Speed Motor Operation

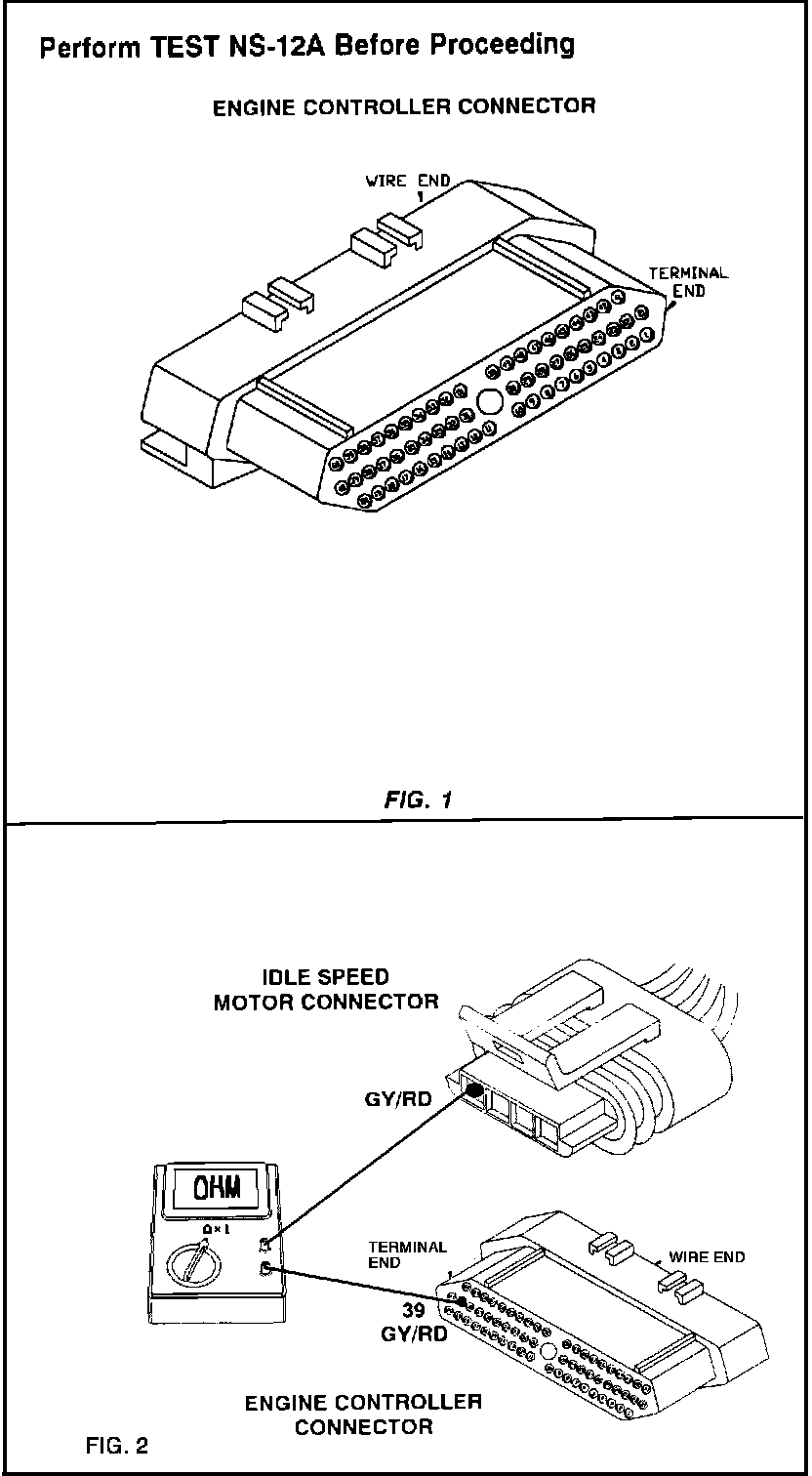

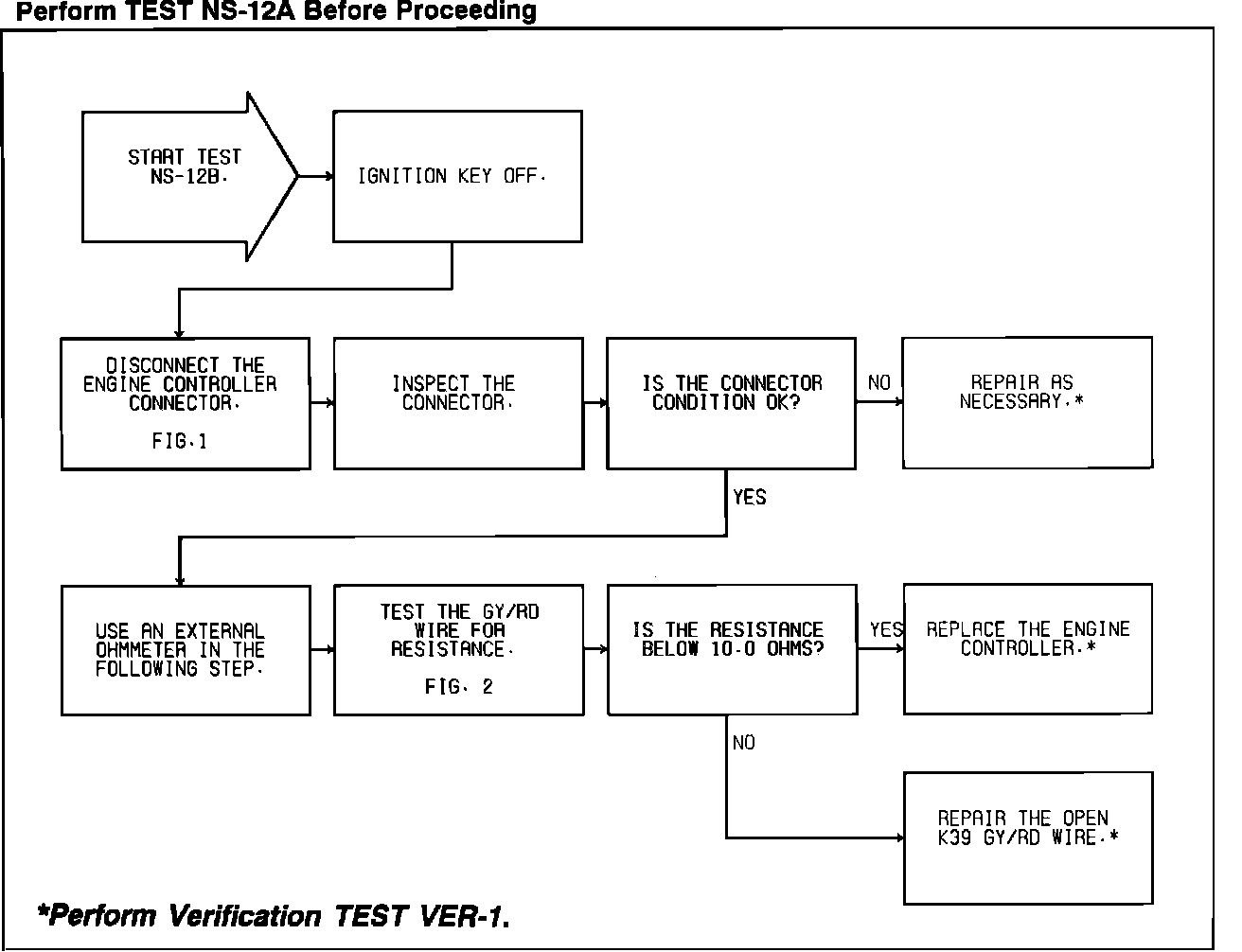

Test NS-12B - Checking Idle Speed Motor Operation:
Test NS-12B - Checking Idle Speed Motor Operation:
