Connector Locations

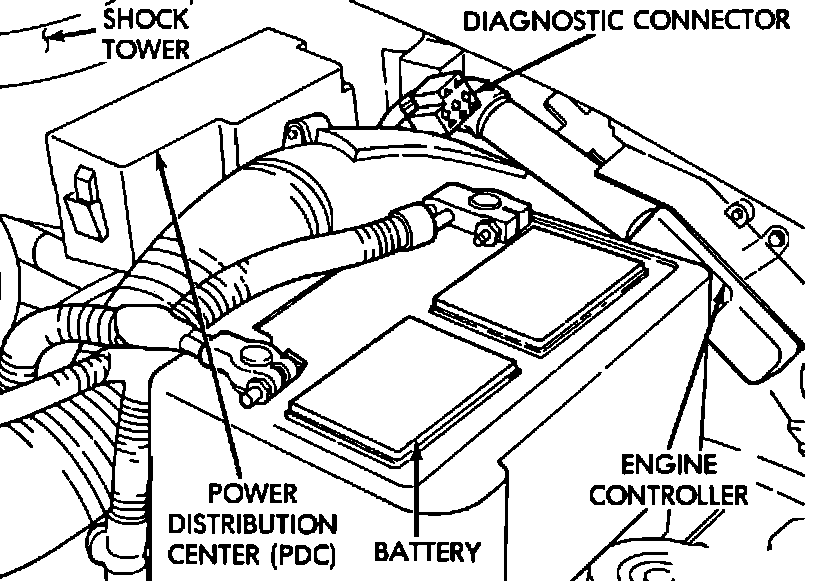

Diagnostic Connector Location:




The diagnostic connector is located next to the power distribution center.
