Home >> Chrysler >> 1991 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Locations

Turn Signals: Locations

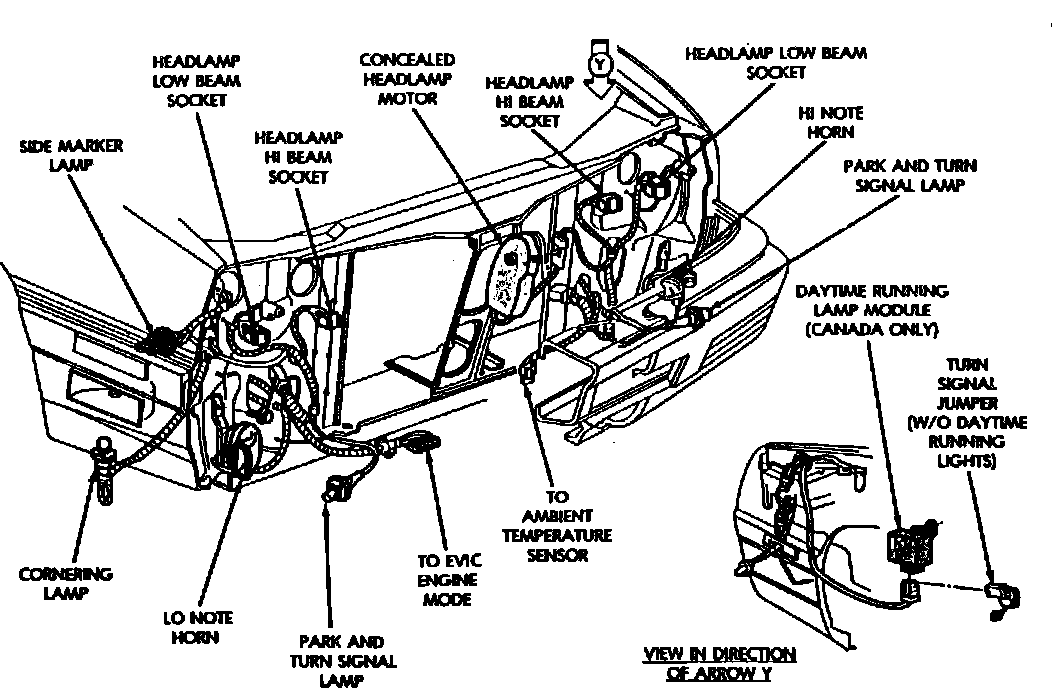

Turn Signal Jumper (Models Less Daytime Running Lights)

Front End Components:




In Front Of LH Front Corner Of Engine Compartment
