Home >> Chrysler >> 1991 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Turn Signals >> Turn & Hazard Flasher - Part 2

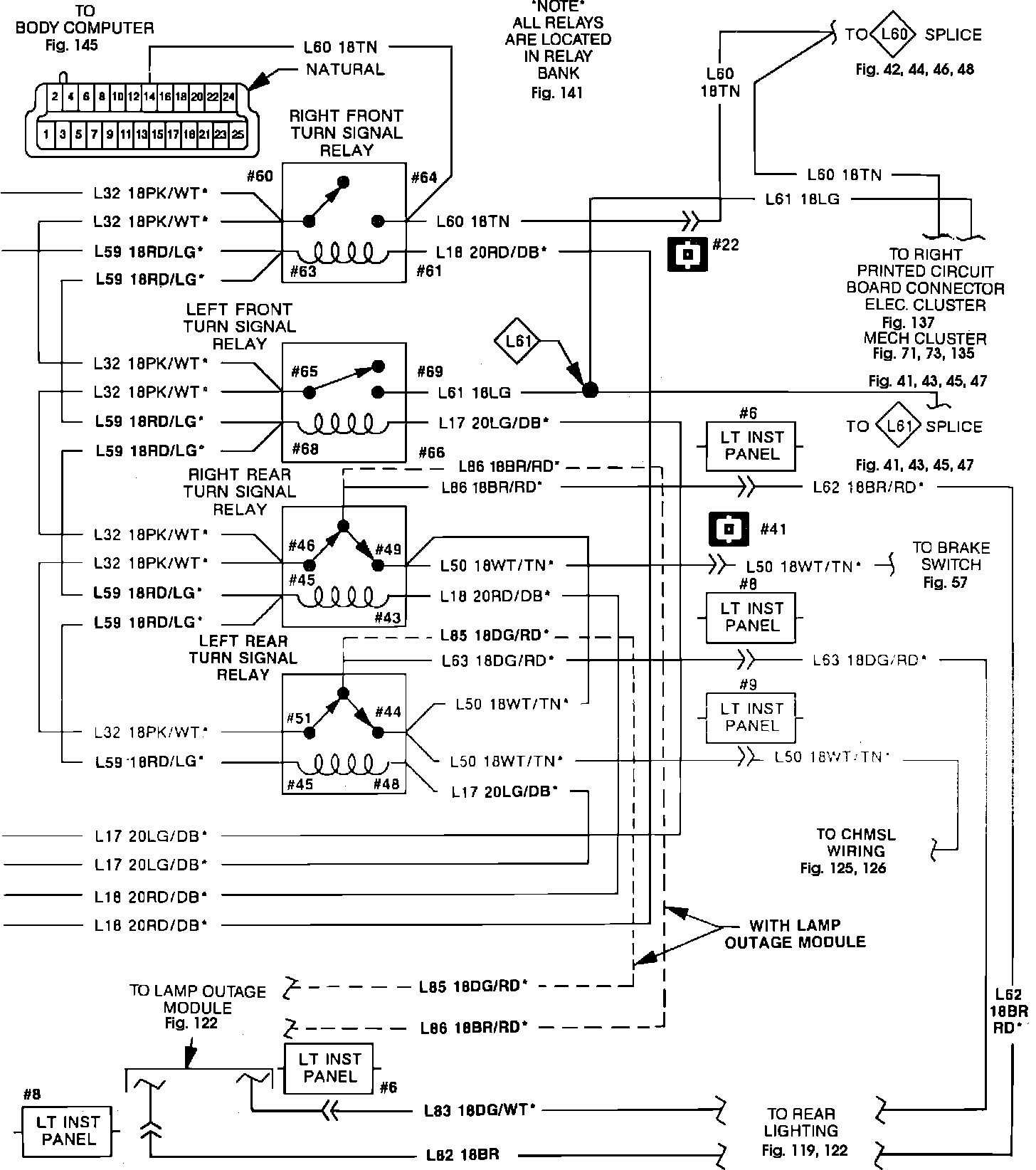

Turn & Hazard Flasher - Part 2

Turn & Hazard Flasher - Part 2:
