Home >> Chrysler >> 1991 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Warning Chime >> Evic >> Part 2 of 2

Part 2 of 2

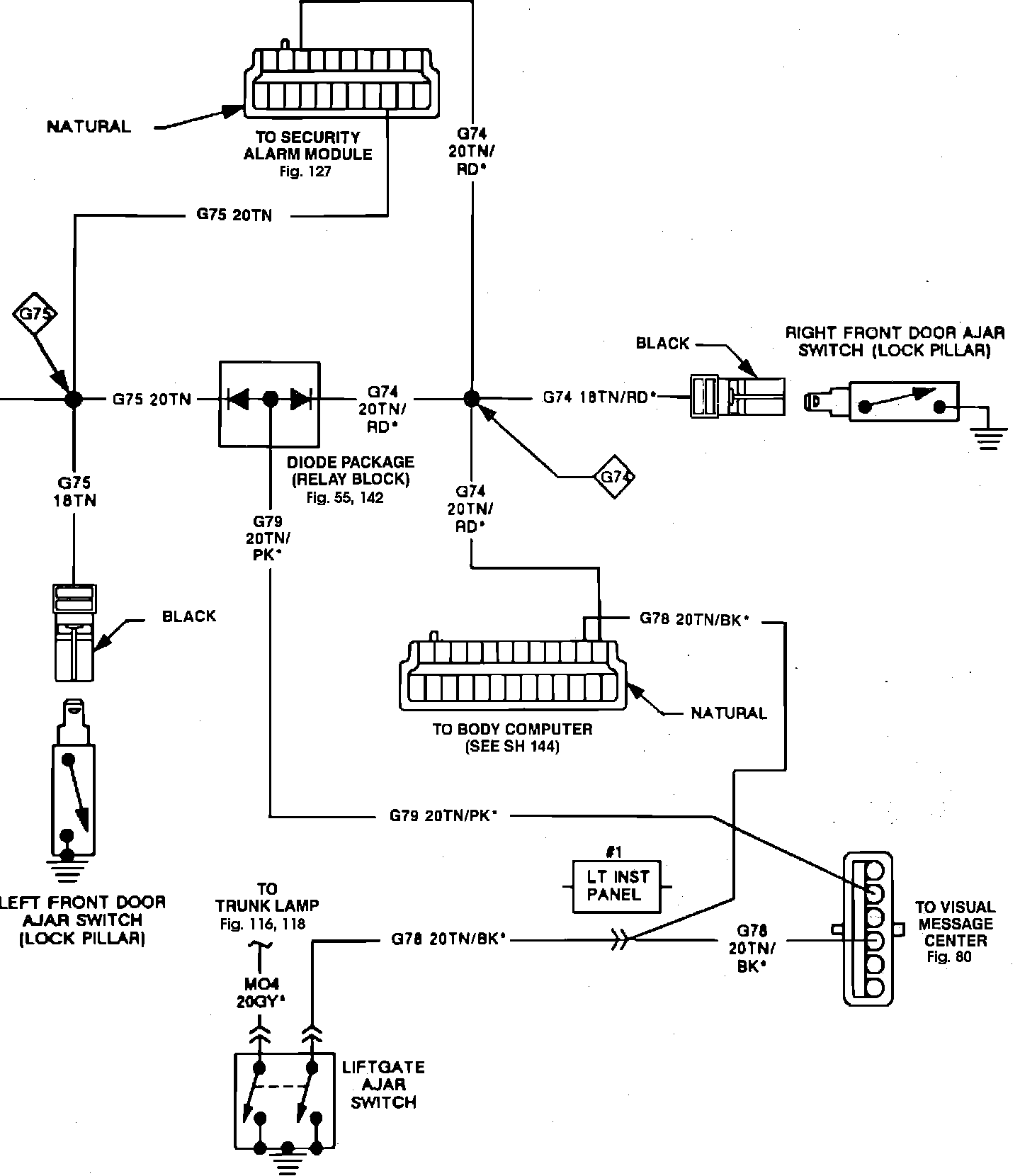

Door, Liftgate Ajar & Seatbelt Warning System (With EVIC):
