Trim Panel: Service and Repair

interior Mouldings, Panels, And Trim Covers:

COWL PANEL TRIM AND SCUFF PLATES
1. Open front door.
2. Remove screw holding trim panel to cowl forward of the front door opening.
3. Remove screws holding scuff plate to door sill.
4. Separate cowl panel trim and scuff plate from vehicle.
5. Reverse the preceding operation for installation.

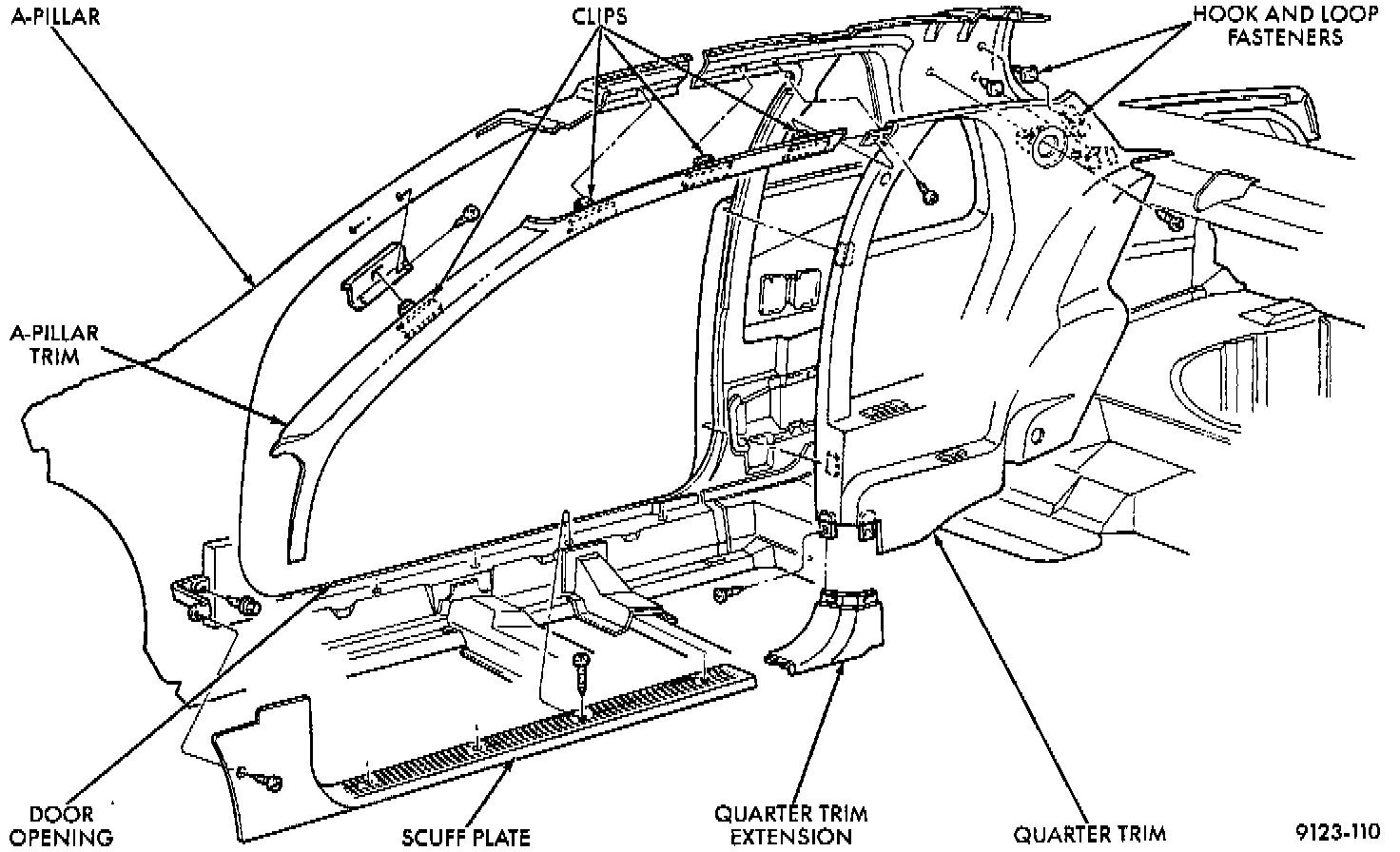

A-PILLAR AND ROOF RAIL MOULDINGS
1. Open front door.
2. Disengage clips holding A-pillar moulding to roof rail above door opening.
3. Slide A-pillar moulding upward and pull rearward to separate moulding from A-pillar.
4. Reverse the preceding operation for installation.

QUARTER TRIM PANEL
1. Remove A-pillar moulding and scuff plate as necessary.
2. Remove front shoulder harness turning loop cover. Remove bolt holding turning loop to quarter panel.
3. Remove bolt holding rear shoulder harness anchor to floor.
4. Remove rear seat cushion and back.
5. Remove screw holding quarter trim to roof rail.
6. Remove quarter trim extension panel. Remove screws holding quarter trim panel to wheelhouse kickup.
7. Remove rear reading lamp. Remove screw holding quarter trim to roof from lamp opening.
8. Pull trim panel forward and separate from vehicle.
4. Reverse the preceding operation for installation.

Quarter Trim Extension And Shelf Trim Panels:

QUARTER EXTENSION TRIM PANEL
1. Remove quarter trim panel.
2. Disengage clips holding expansion trim panel to shelf panel.
3. Separate trim panel from vehicle.
4. Reverse the preceding operation for installation.

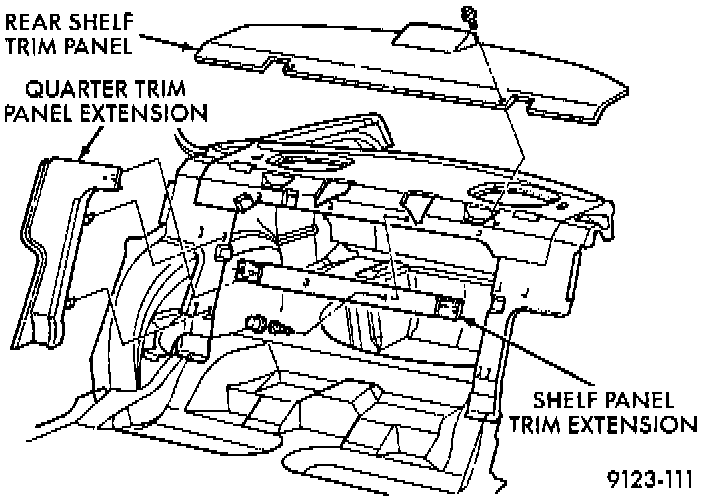

REAR SHELF TRIM PANEL
1. Remove one quarter trim panel.
2. Remove center high mounted stop lamp cover. Refer to Group 8L, Lamps for instructions.
3. Disengage screws holding trim to shelf panel and separate trim from vehicle.
4. Reverse the preceding operation for installation.
