Home >> Chrysler >> 1991 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-46A Intermittent Test For Idle Motor Circuits

DR-46A Intermittent Test For Idle Motor Circuits

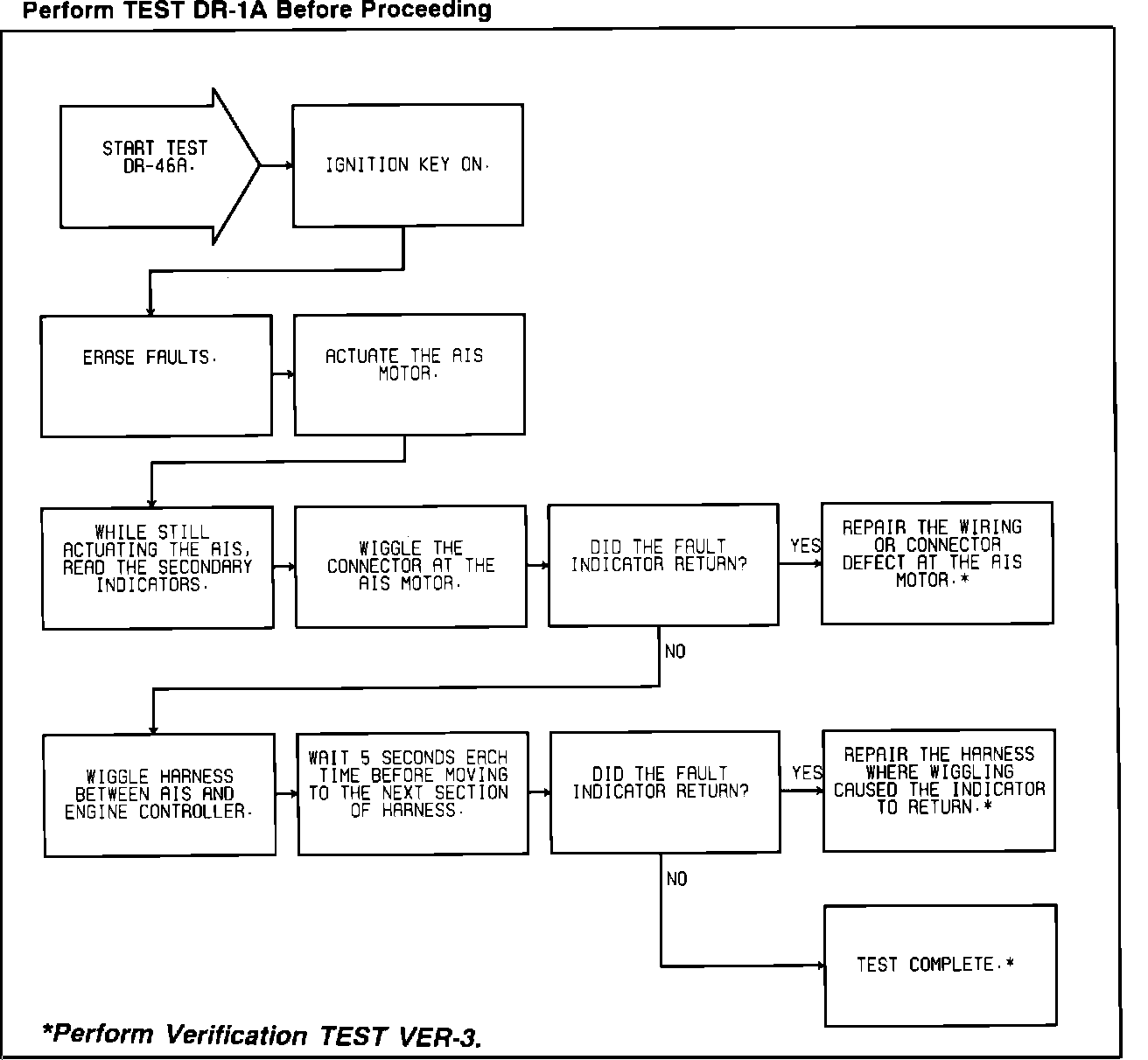

Test DR-46A - Intermittent Test For Idle Motor Circuits:
