DR-44A Intermittent Test For Relays & Solenoids

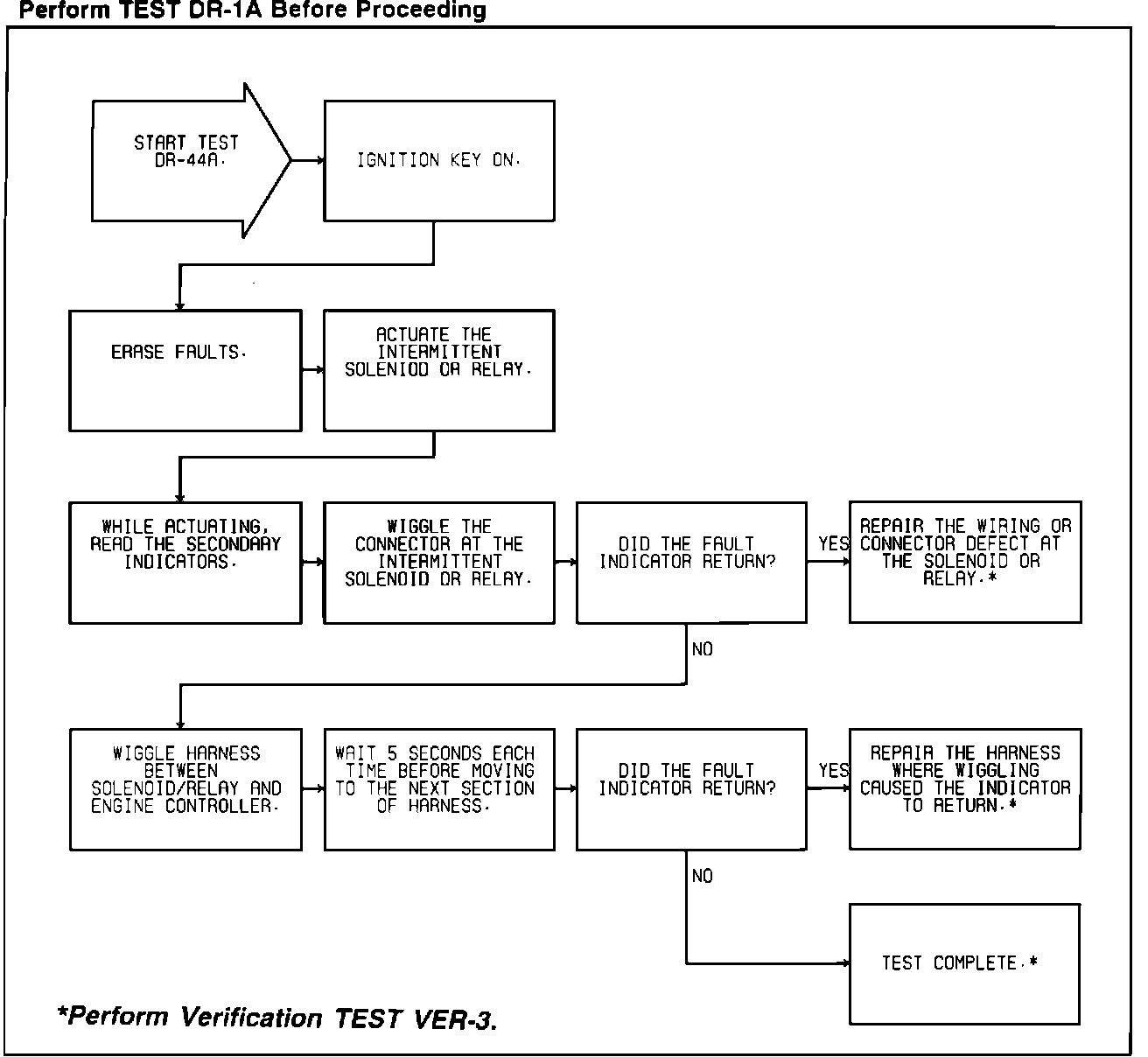

Test DR-44A - Intermittent Test For Solenoids And Relays:
