DR-37A Checking Oxygen Sensor Switching
DR-37A Checking Oxygen Sensor Switching

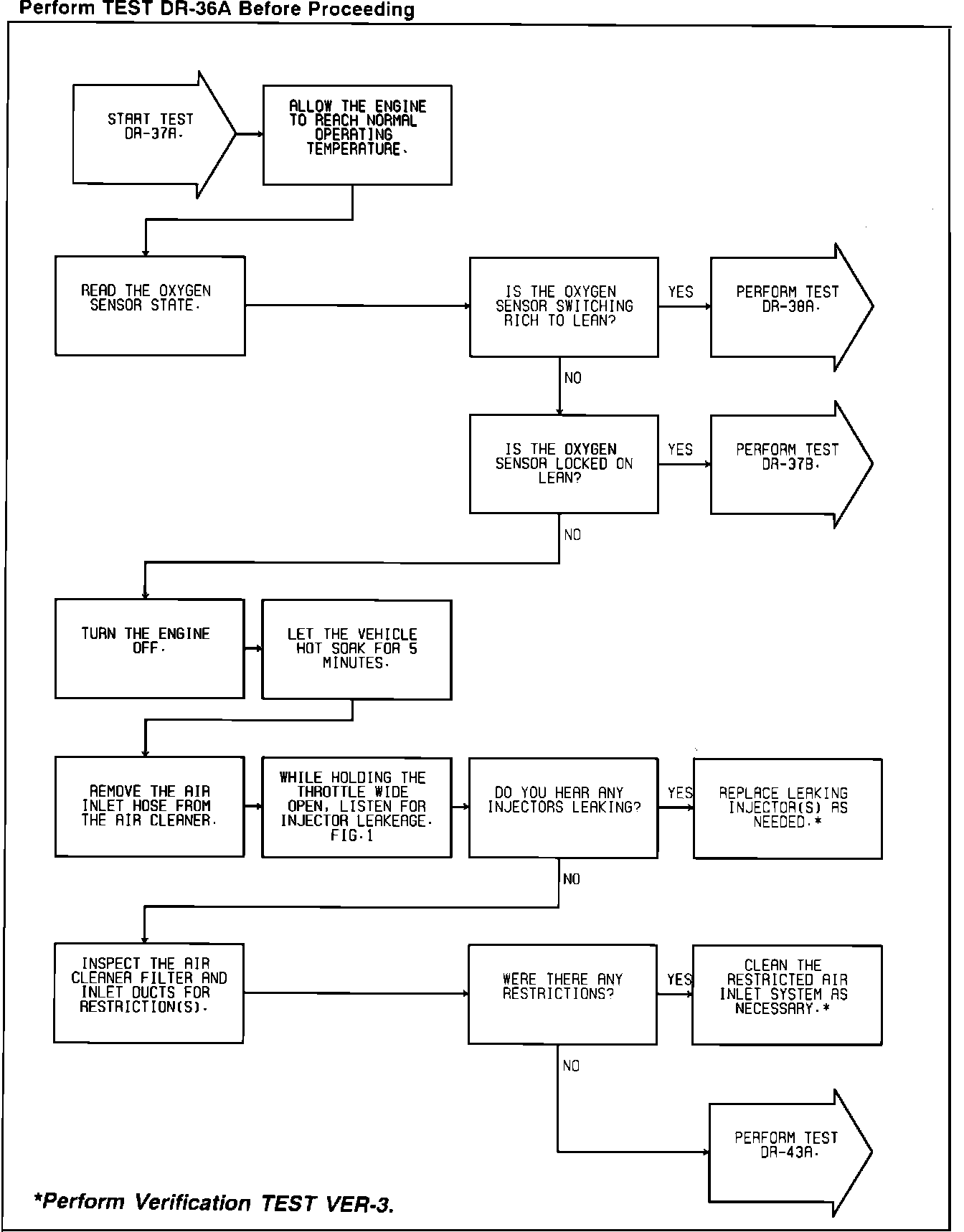

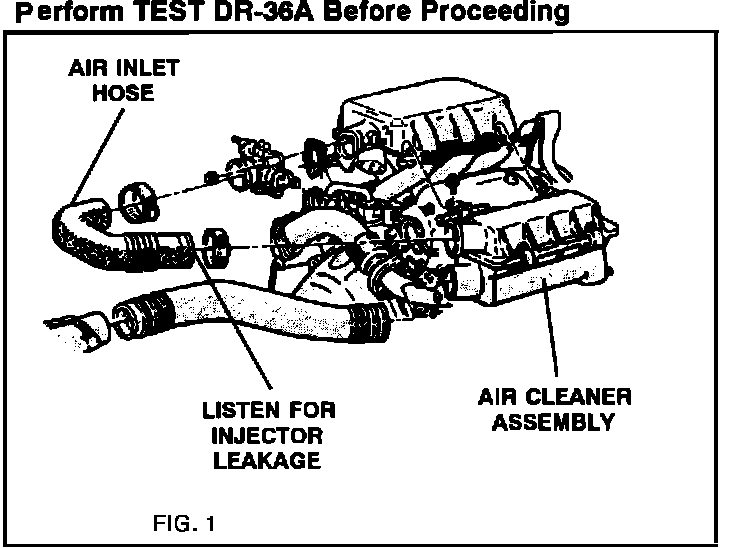

Test DR-37A - Checking Oxygen Sensor Switching:
Test DR-37A - Checking Oxygen Sensor Switching:
