Home >> Chrysler >> 1991 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-31B Repairing "No SYNC Pick-Up Signal" Fault

DR-31B Repairing "No SYNC Pick-Up Signal" Fault

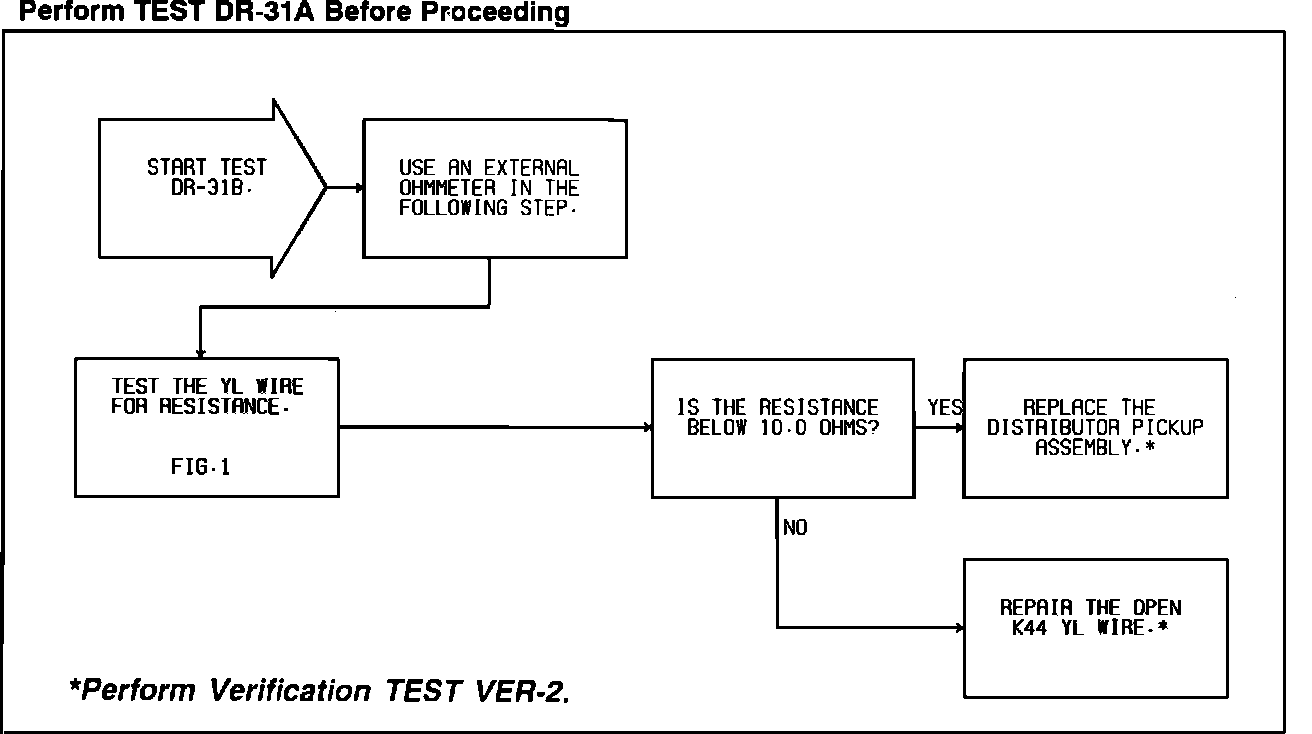

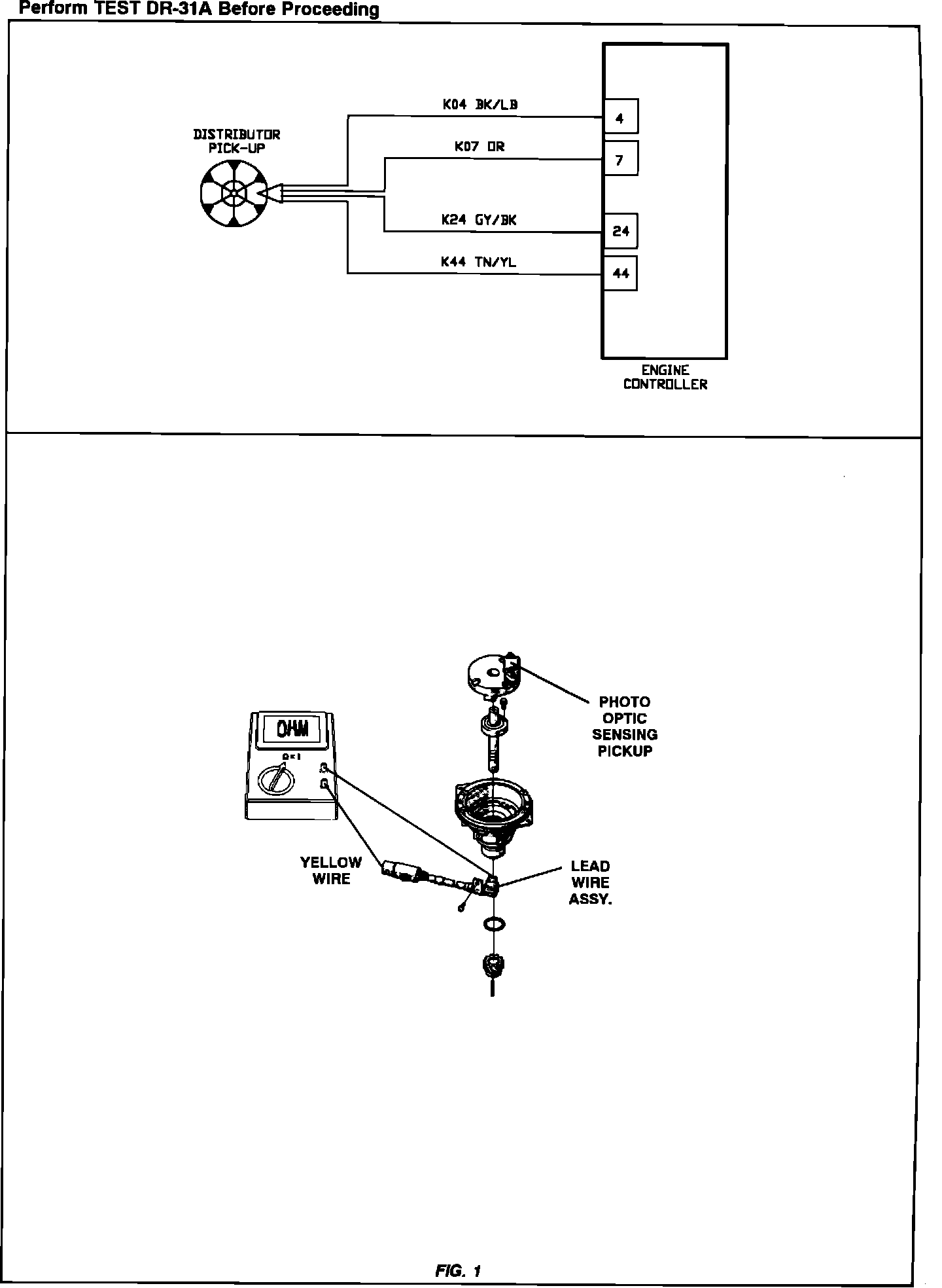

Test DR-31B - "No SYNC Pickup Signal":



Test DR-31B - "No SYNC Pickup Signal":
