Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Driveability (DR) Tests
>>
DR-22A Repairing "EGR System Failure" Fault
>>
Part 3 of 5
Part 3 of 5

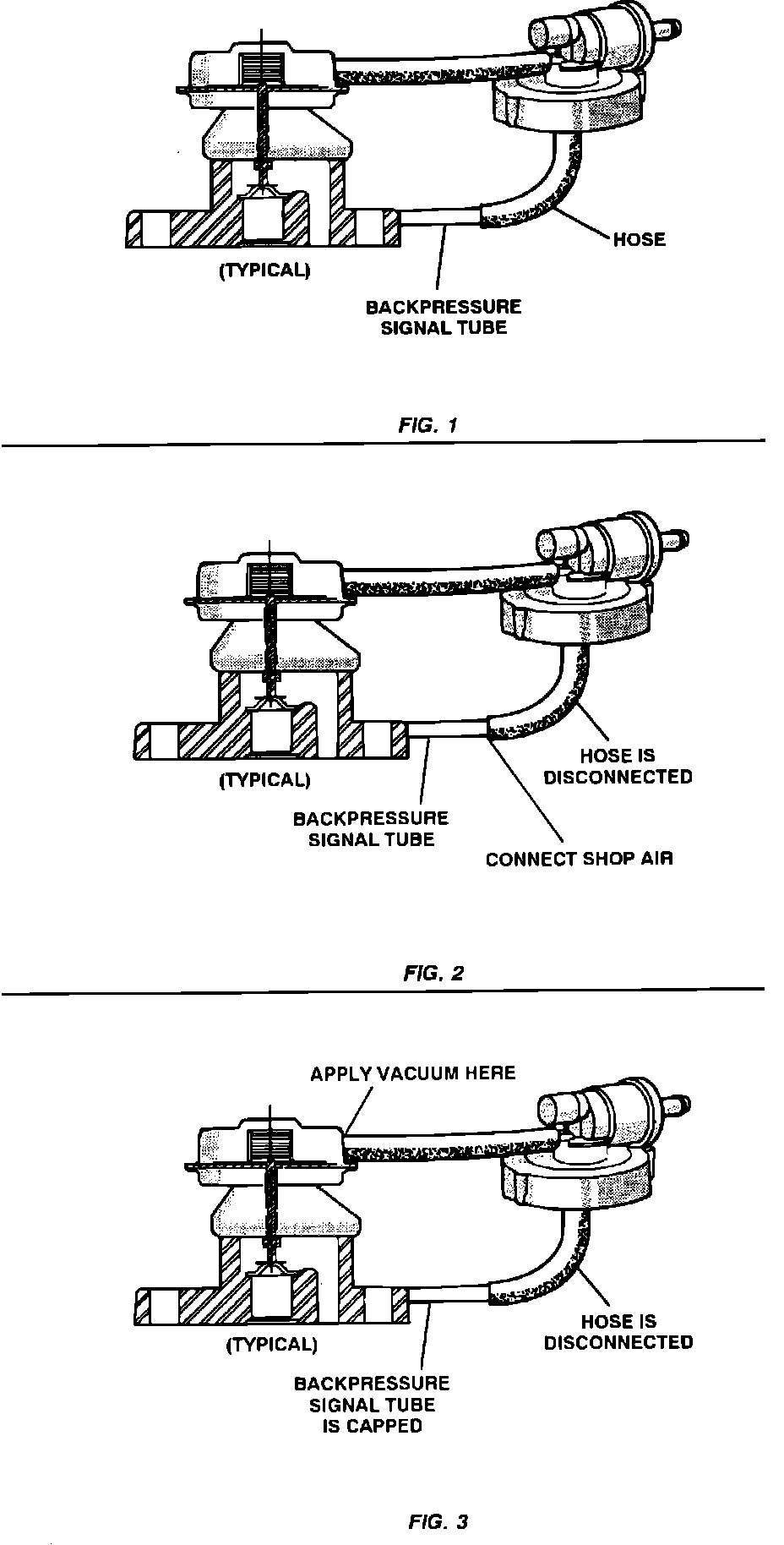

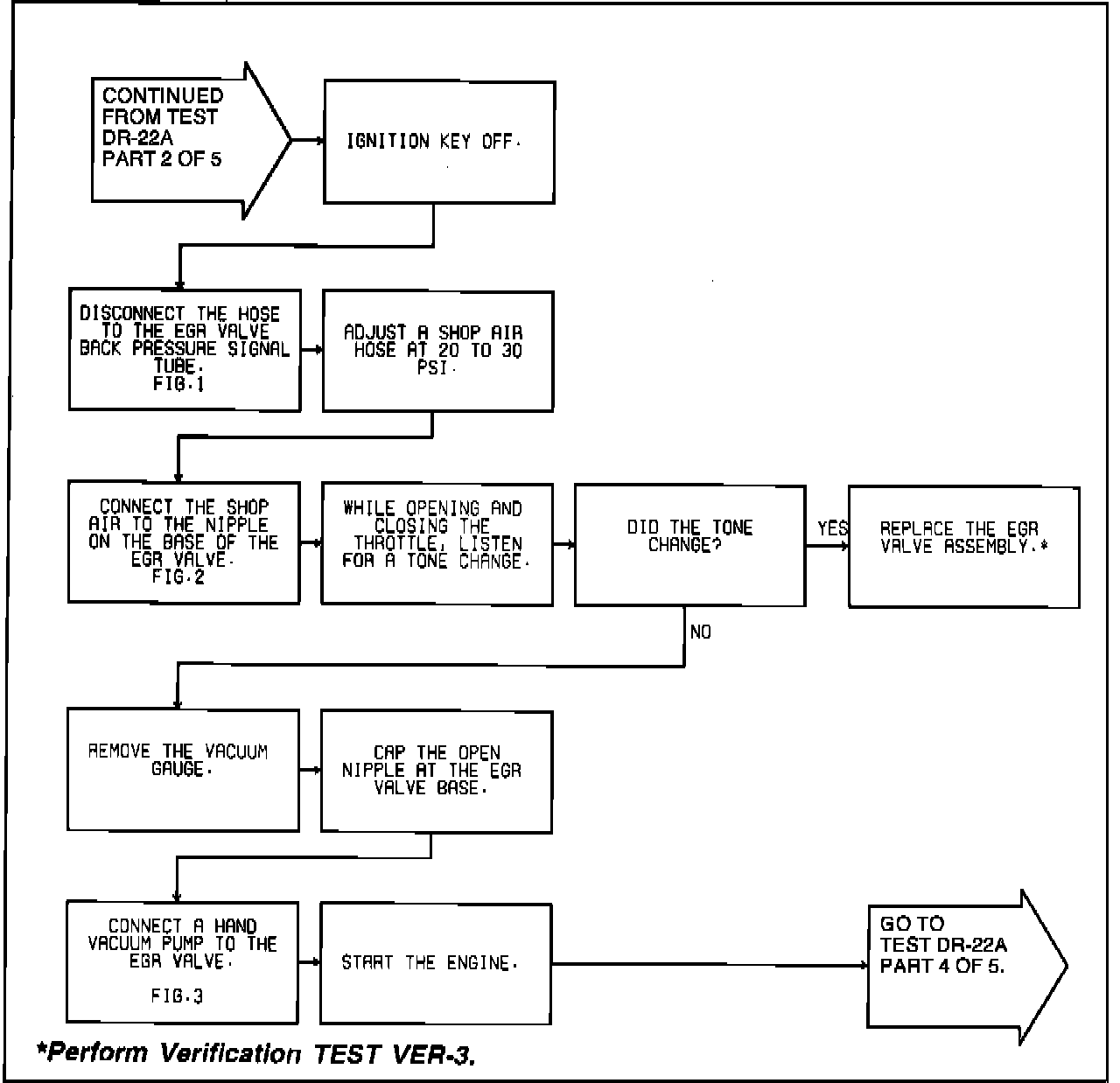

Test DR-22A - "EGR System Failure":
"EGR System Failure":
