Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Driveability (DR) Tests
>>
DR-19D Repairing "Injector #3 Control Circuit" Fault
DR-19D Repairing "Injector #3 Control Circuit" Fault

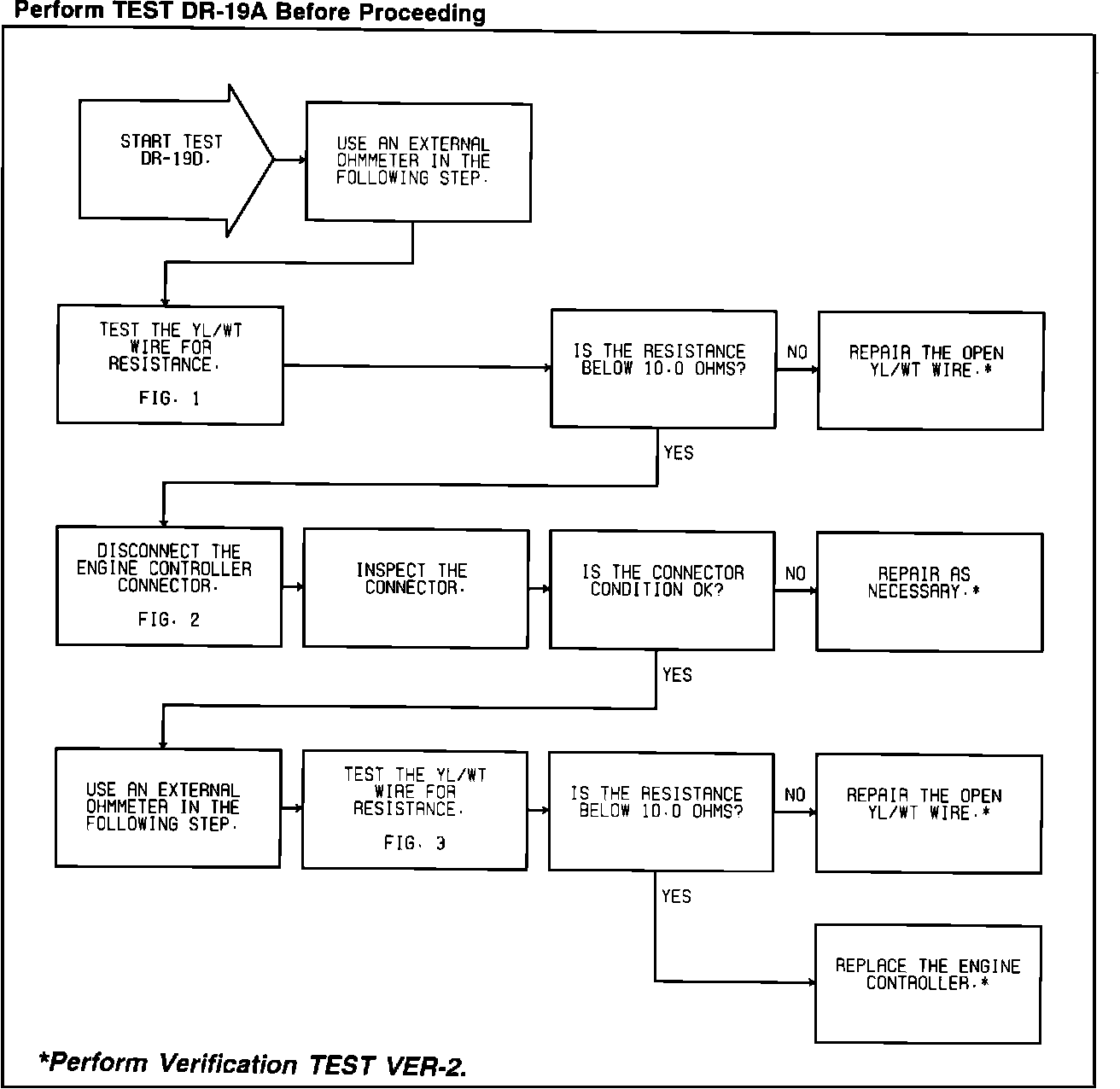

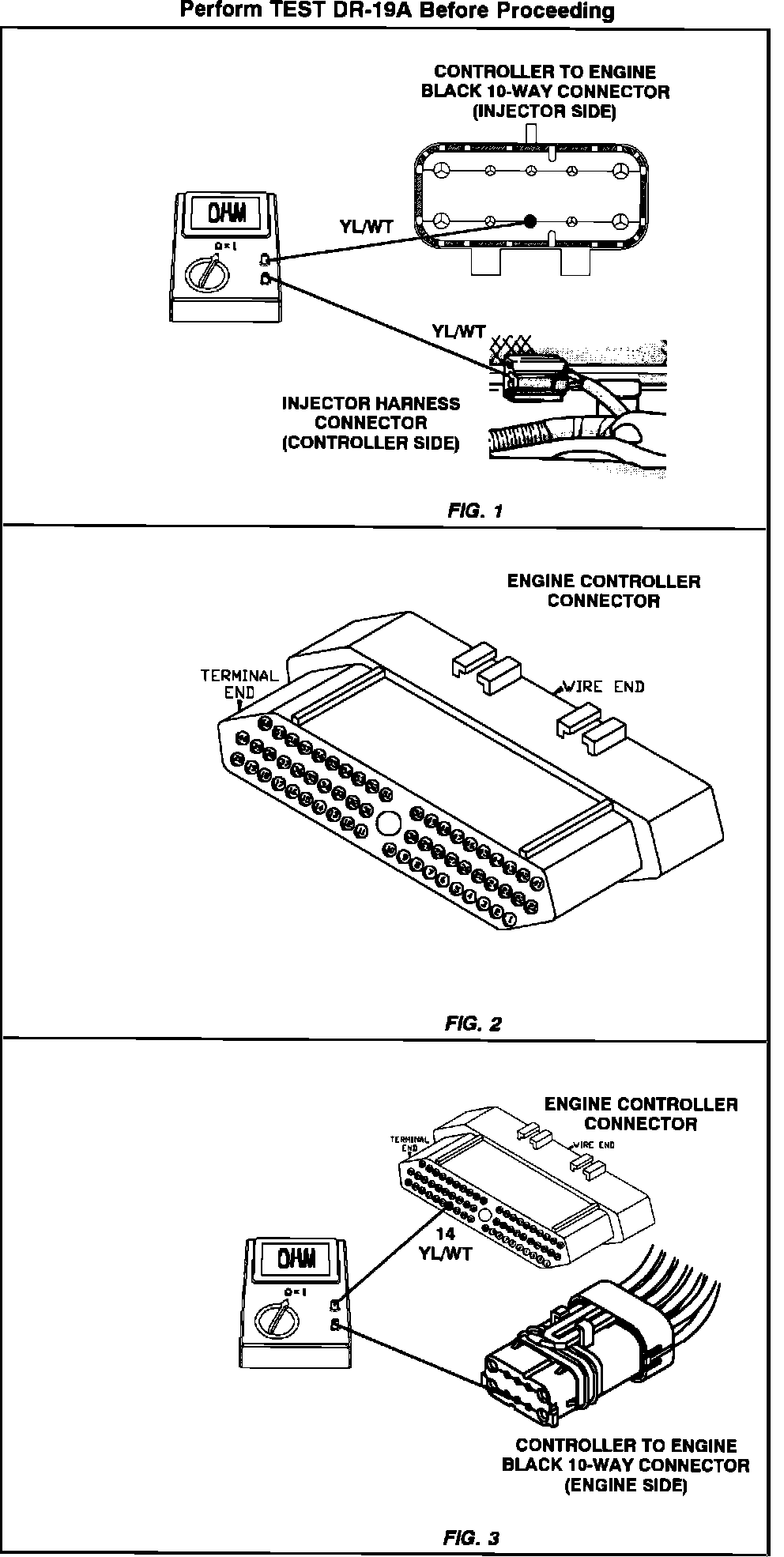

Test DR-19D - "Injector #3 Control Circuit":
Test DR-19D - "Injector #3 Control Circuit":
