DR-19B Repairing "Injector #3 Control Circuit" Fault
DR-19B Repairing "Injector #3 Control Circuit" Fault

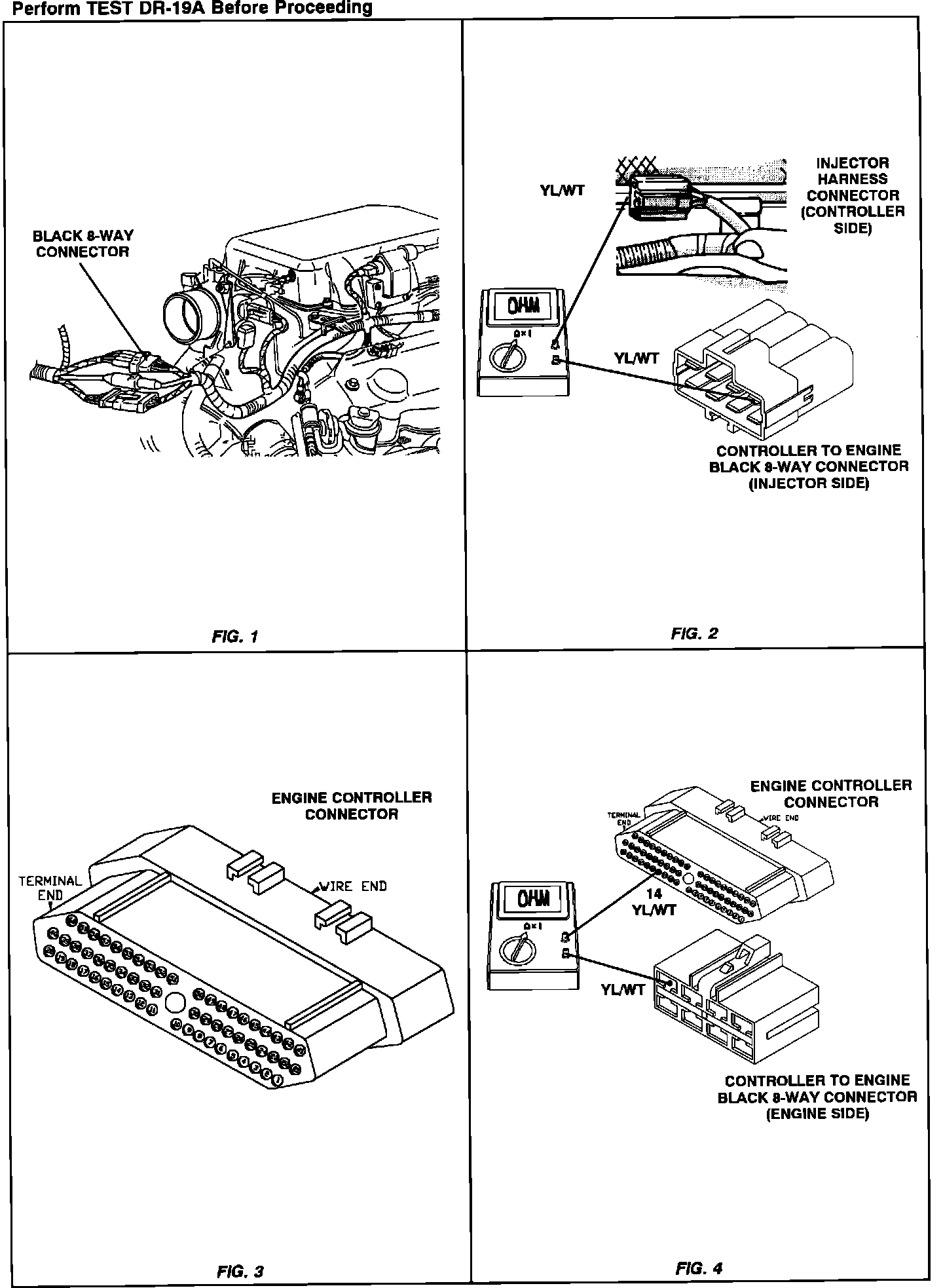

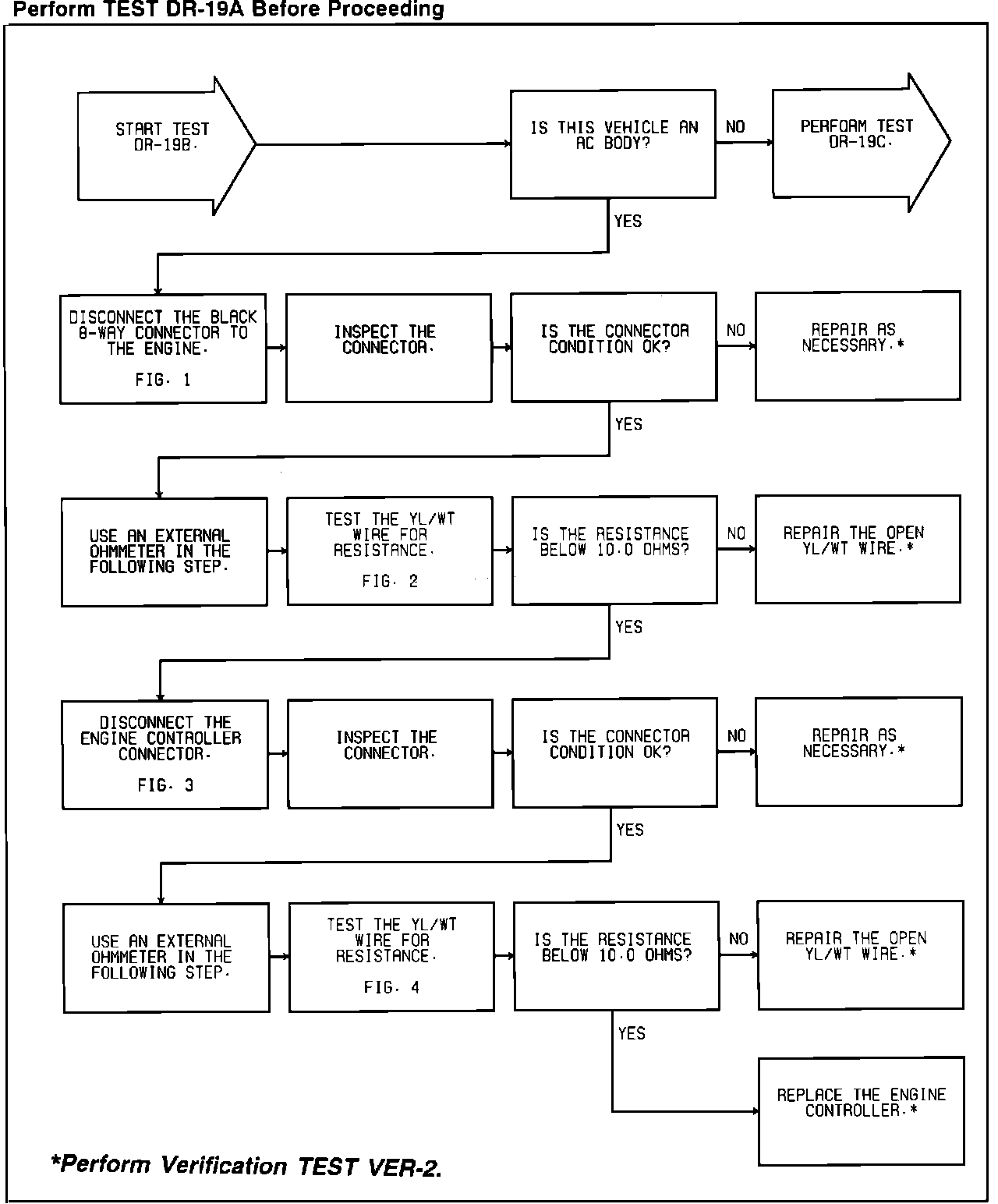

Test DR-19B - "Injector #3 Control Circuit":
Test DR-19B - "Injector #3 Control Circuit":
