DR-17C Repairing "Injector #2 Control Circuit" Fault
DR-17C Repairing "Injector #2 Control Circuit" Fault

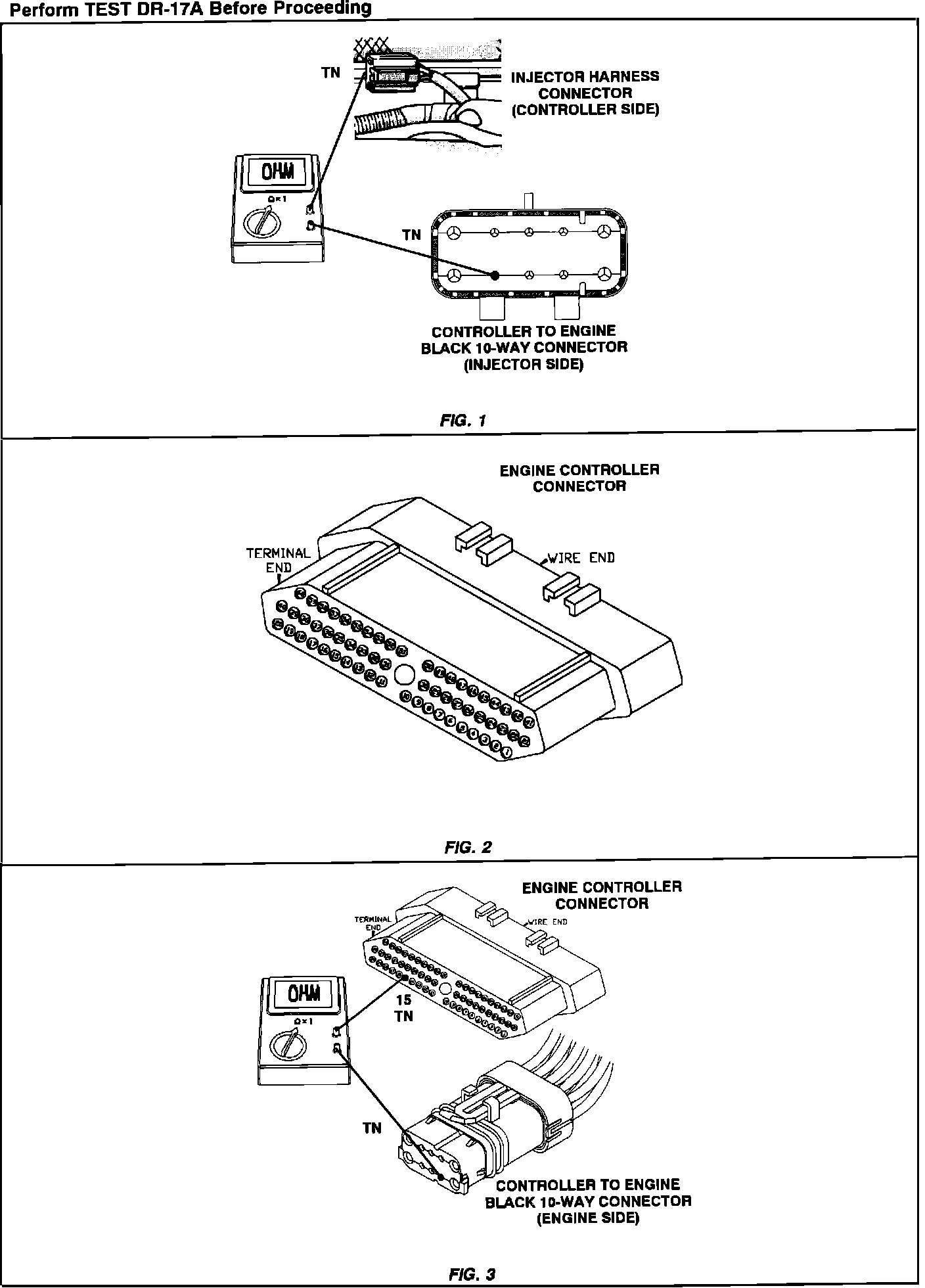

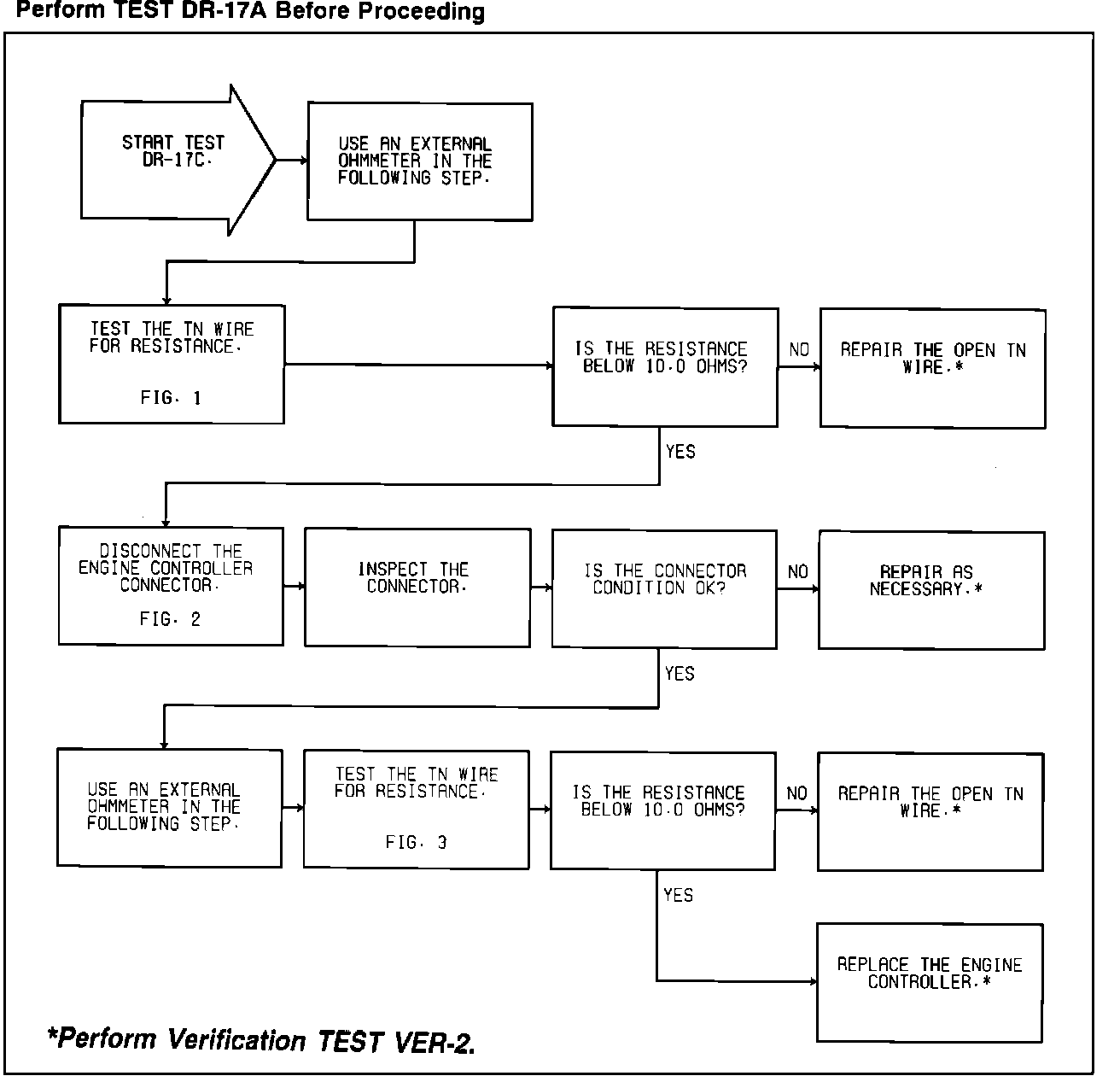

Test DR-17C - "Injector #2 Control Circuit":
Test DR-17C - "Injector #2 Control Circuit":
