DR-15D Repairing "Injector #1 Control Circuit" Fault
DR-15D Repairing "Injector #1 Control Circuit" Fault

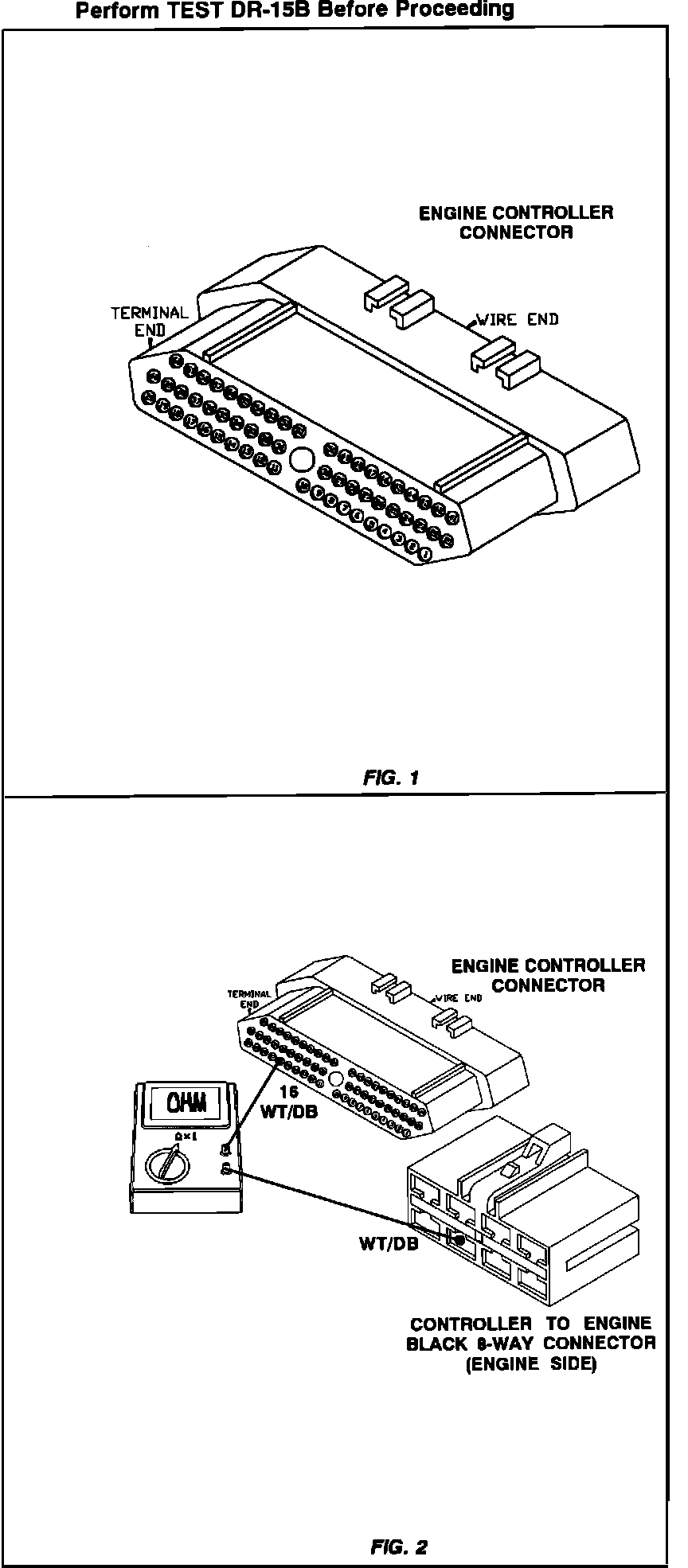

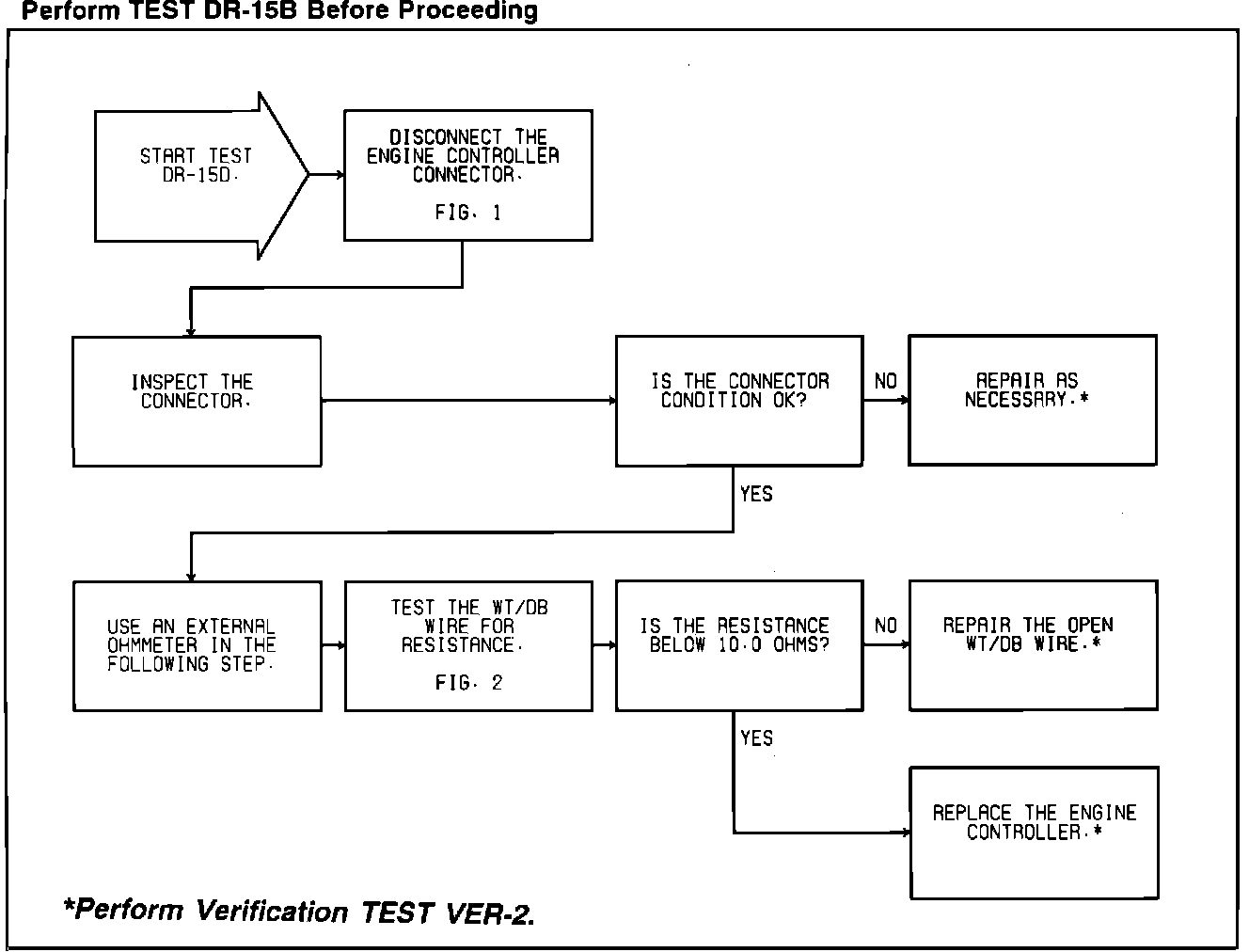

Test DR-15D - "Injector #1 Control Circuit":
Test DR-15D - "Injector #1 Control Circuit":
