DR-15C Repairing "Injector #1 Control Circuit" Fault
DR-15C Repairing "Injector #1 Control Circuit" Fault

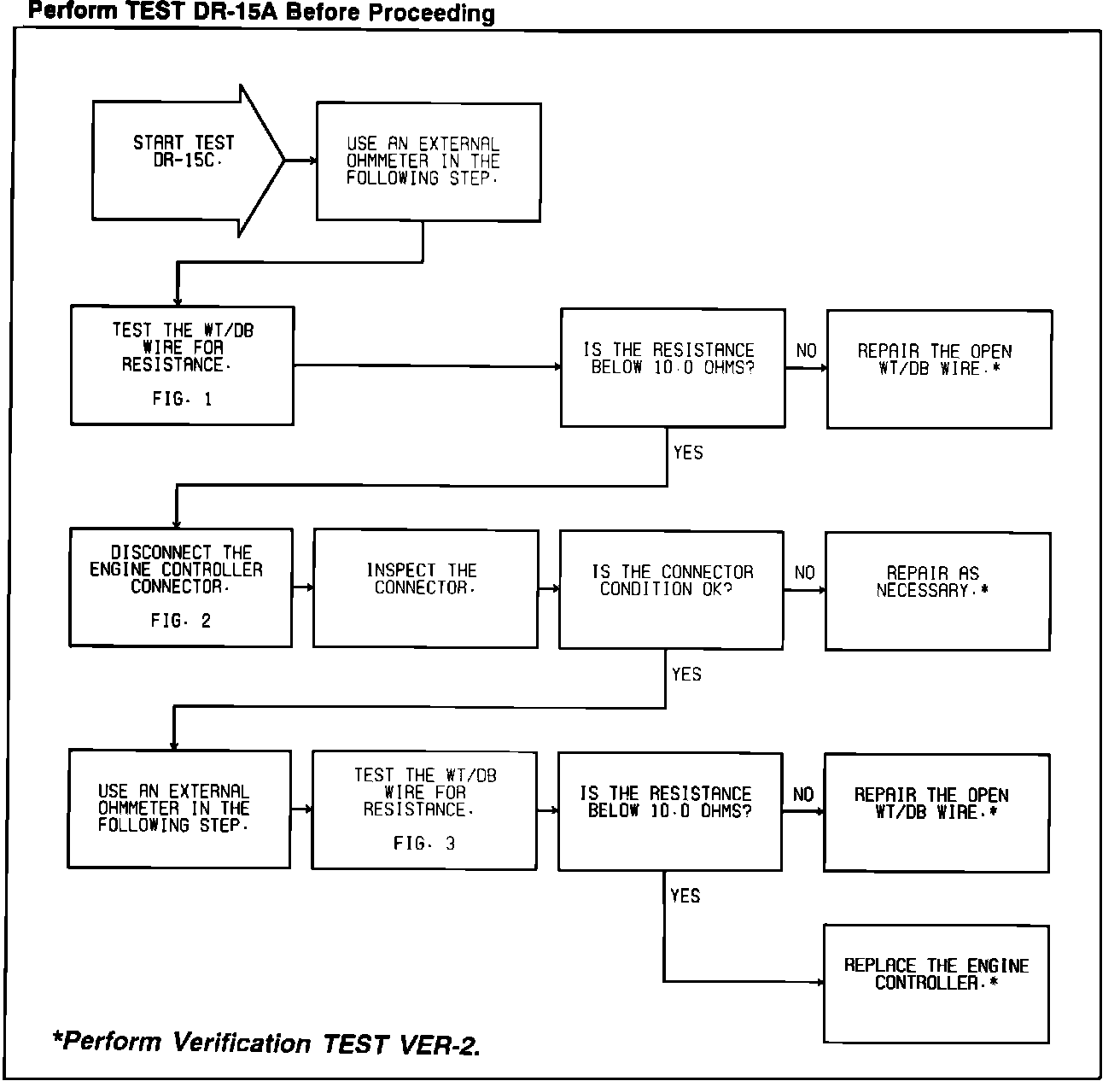

Test DR-15C - "Injector #1 Control Circuit":
Test DR-15C - "Injector #1 Control Circuit":
