Home >> Chrysler >> 1991 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Body Control Module >> Illuminated Entry System >> 63A Diagnosing R/F Door Illuminated Entry Circuit

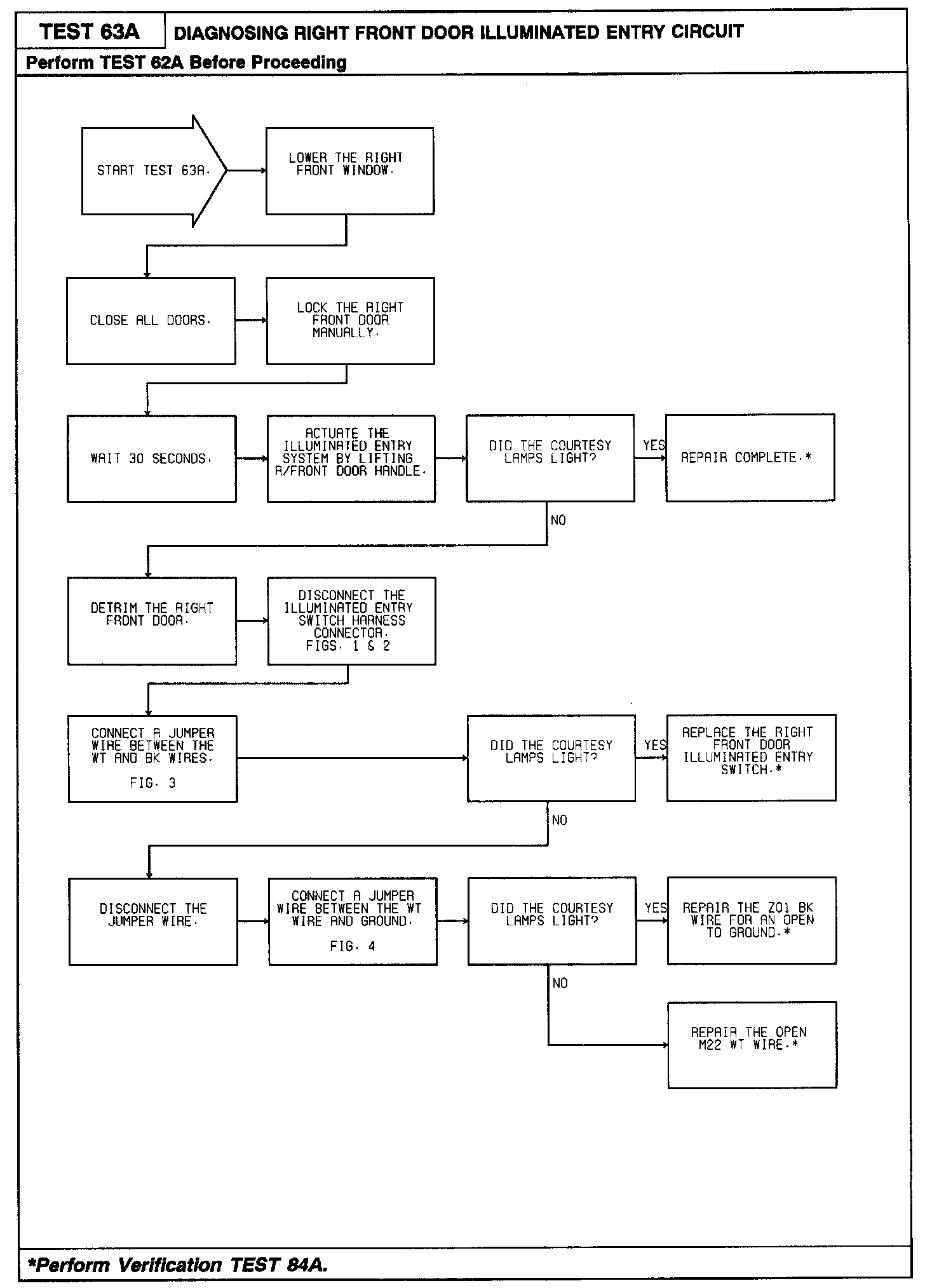

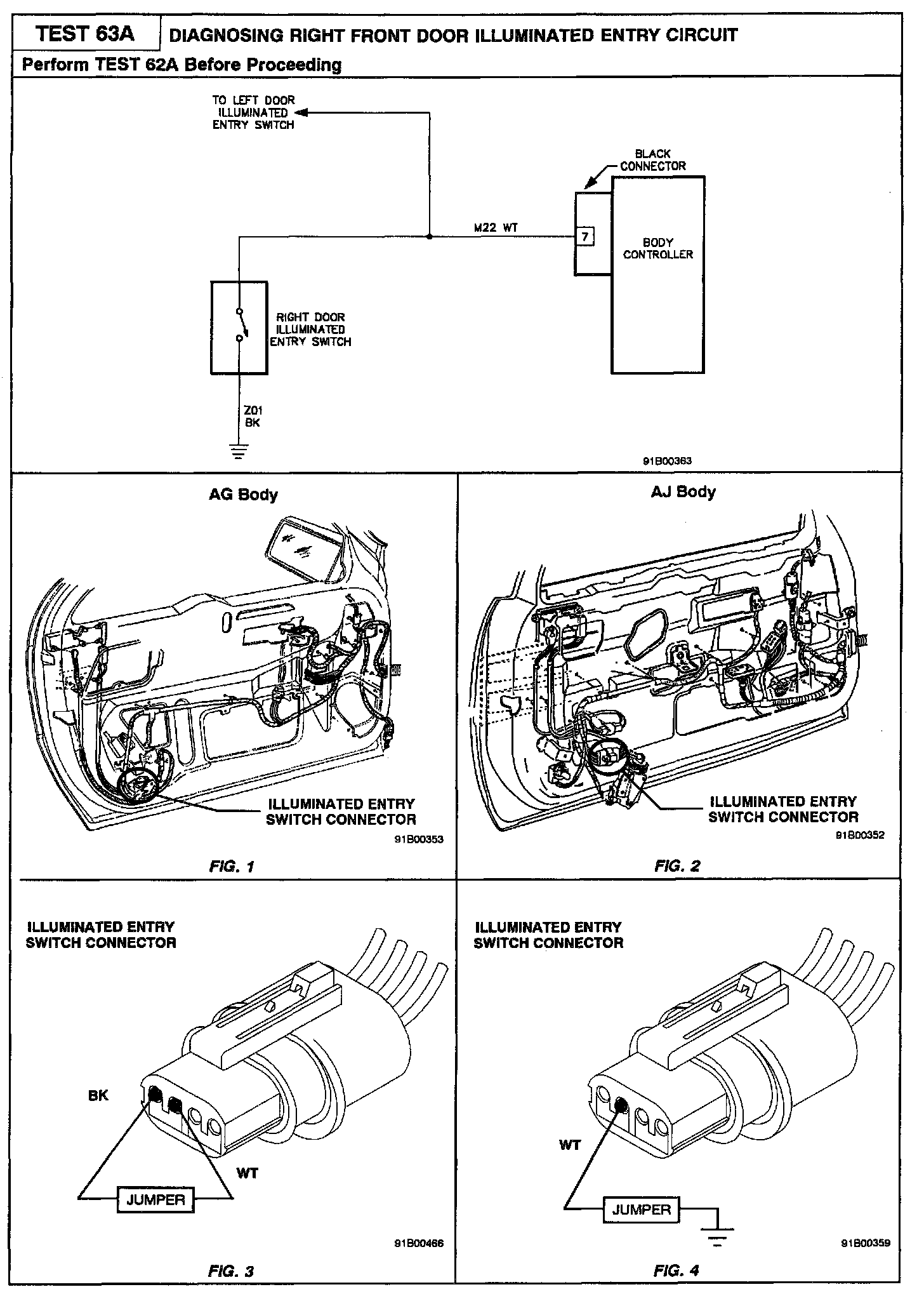

63A Diagnosing R/F Door Illuminated Entry Circuit
