Home >> Chrysler >> 1991 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Body Control Module >> Compass/Temperature Module >> 73C Checking the Temp Sensor & Terminals For Shorts

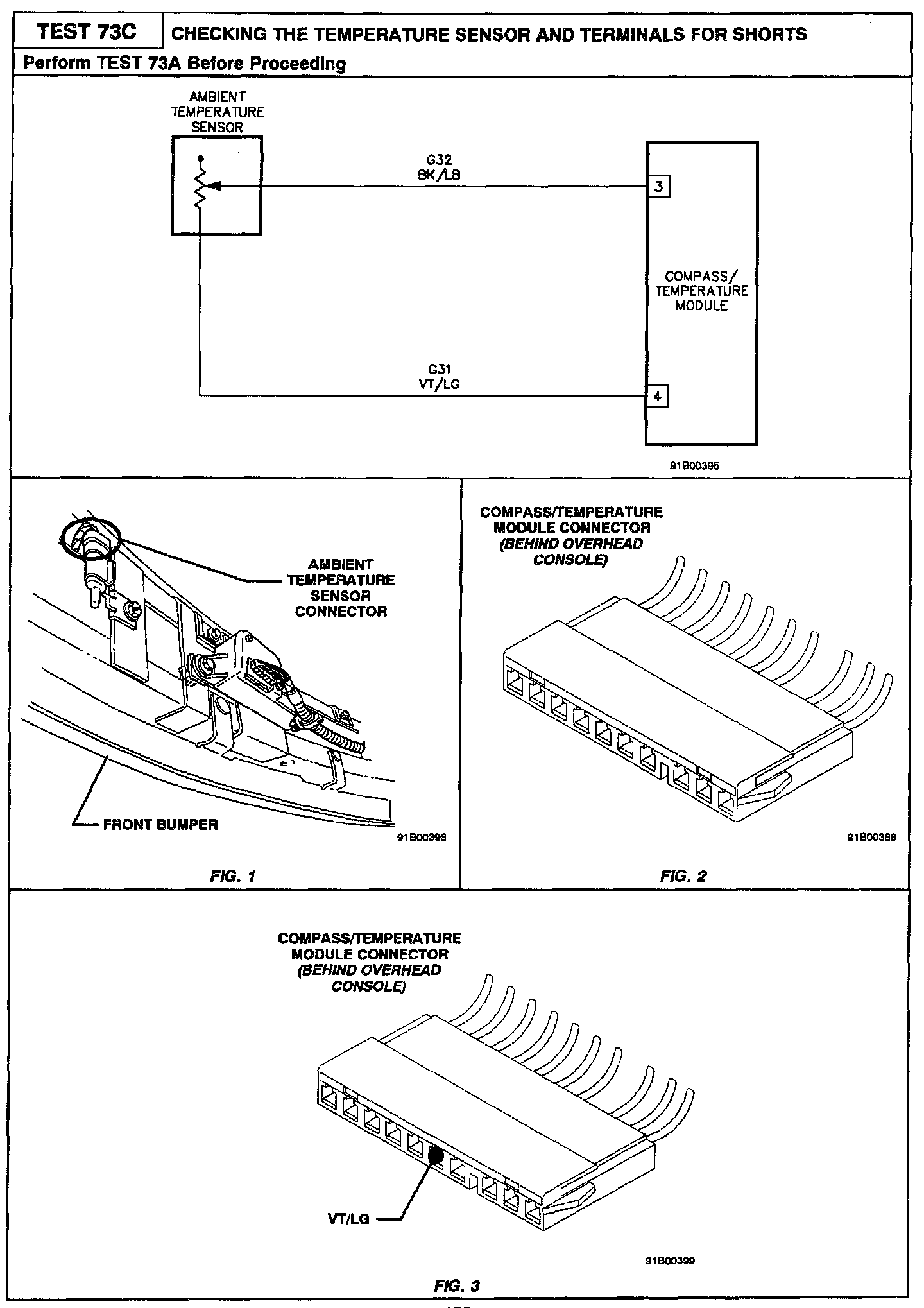

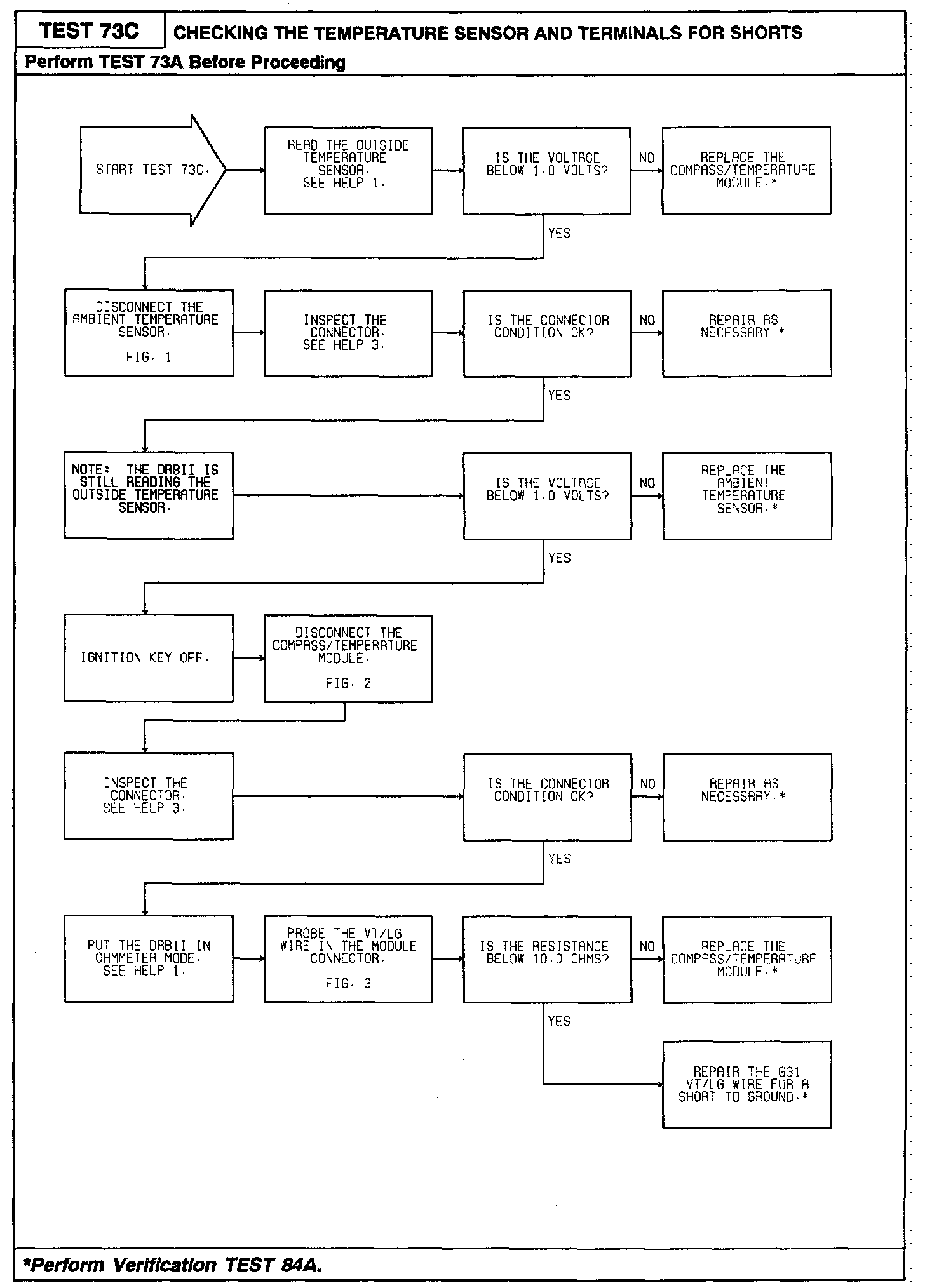

73C Checking the Temp Sensor & Terminals For Shorts
