Test 8A

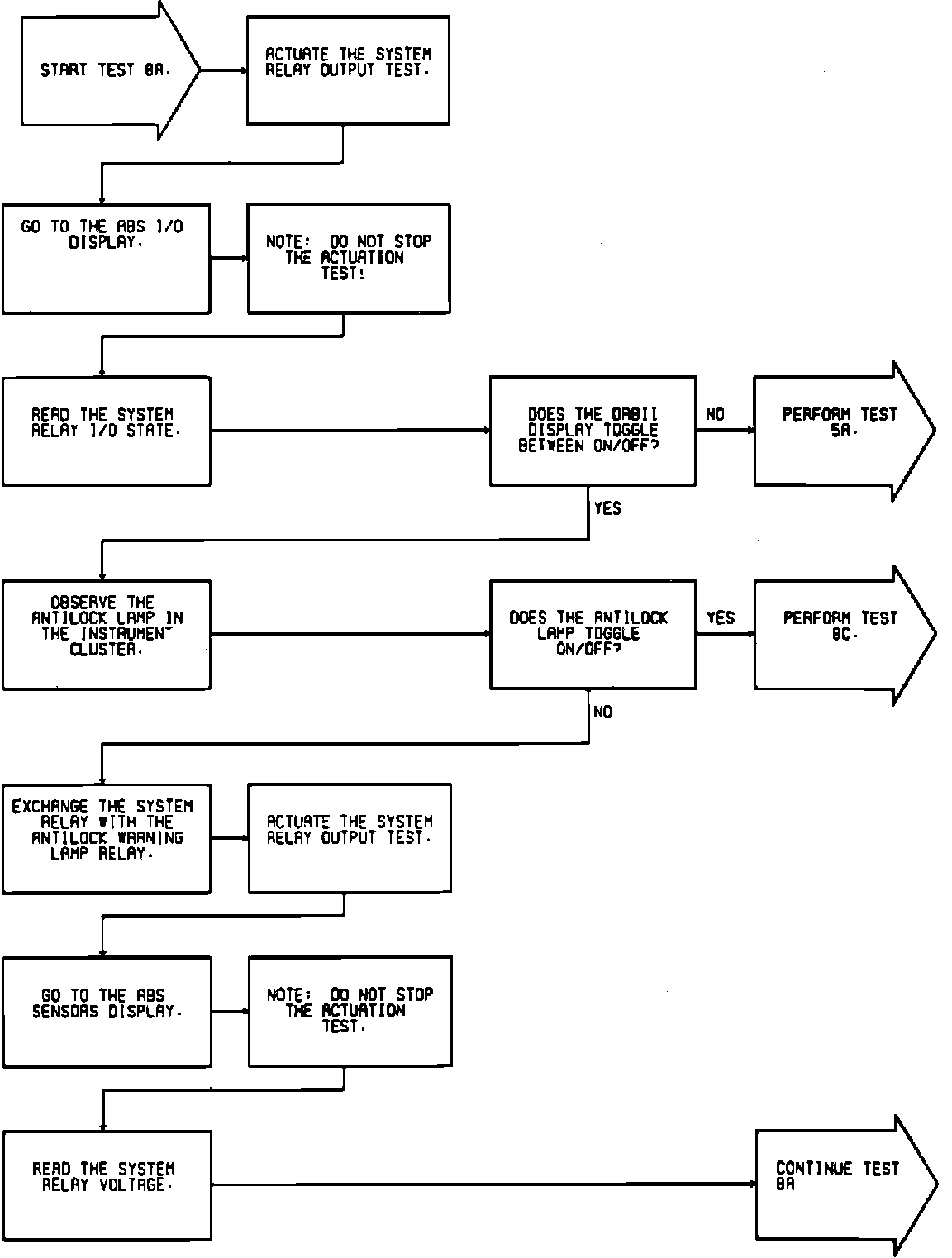

Fig. 23 Test 8A--Anti-Lock Lamp Relay Fault (Part 1 Of 2):

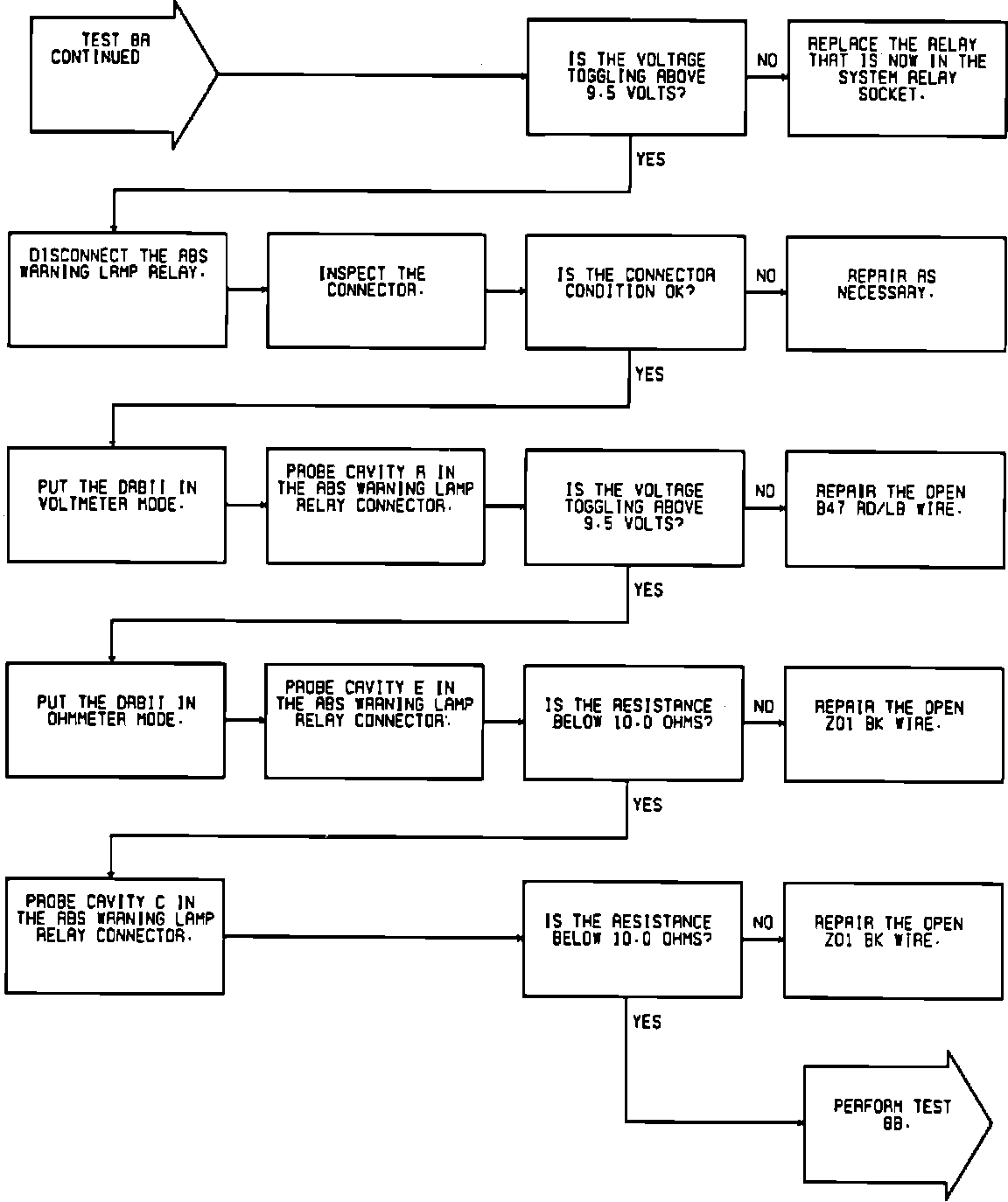

Fig. 23 Test 8A--Anti-Lock Lamp Relay Fault (Part 2 Of 2):
