Wiper Motor: Adjustments

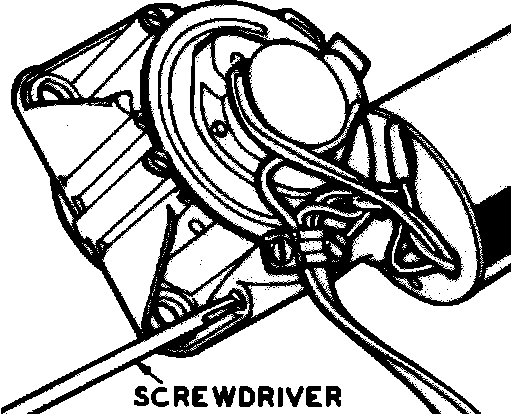

Fig. 12 Endplay Adjustment:

NOTE: Most windshield wiper motors have a provision to adjust the armature shaft endplay by turning the adjustment screw in until it bottoms and backing off 1/16 turn. This adjustment can be made without removing the wiper motor from the vehicle.
