Symptom Related Diagnostic Procedures

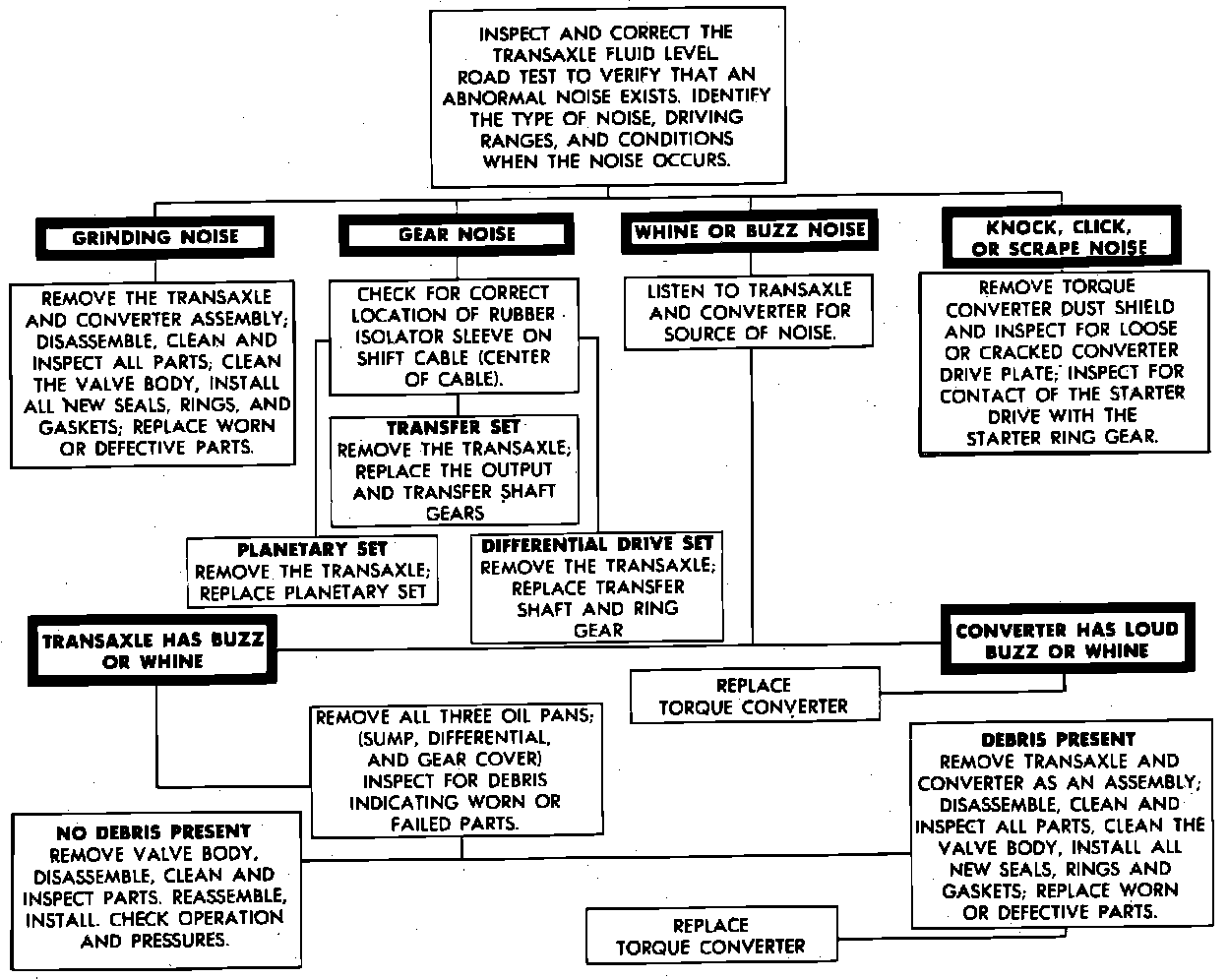

Fig. 2 Abnormal Noise Diagnosis Chart. A-604 Transaxle:

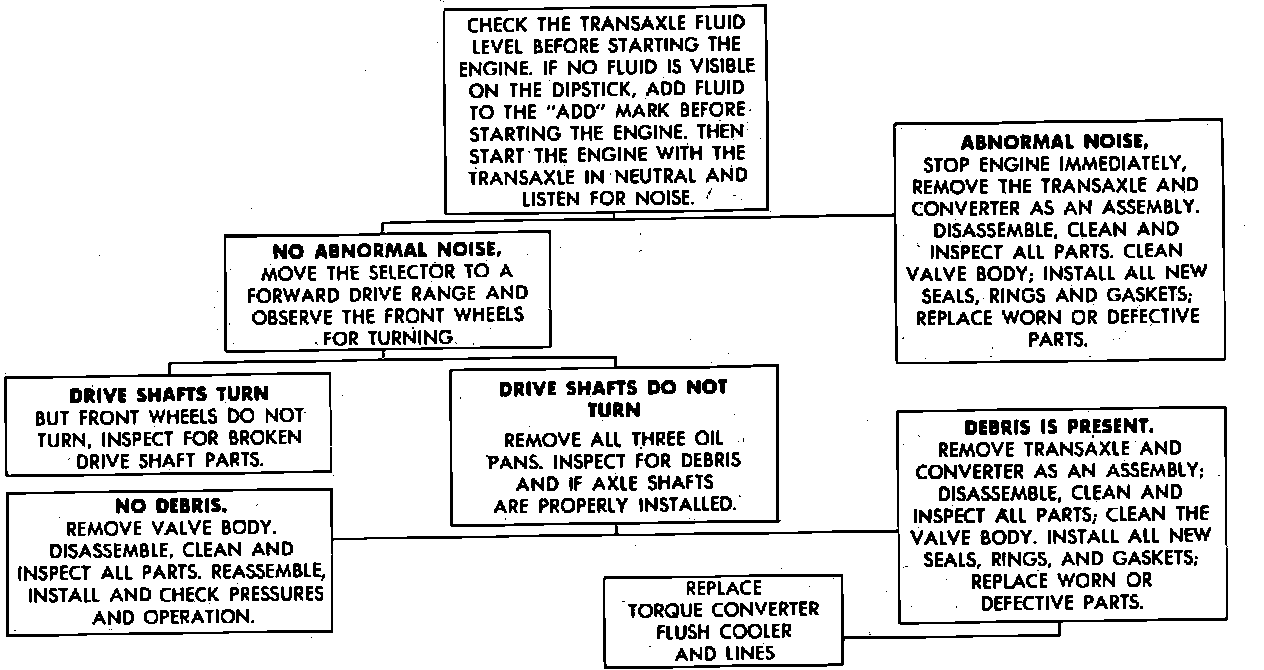

Fig. 3 Vehicle Will Not Move Diagnosis Chart. A-604 Transaxle:

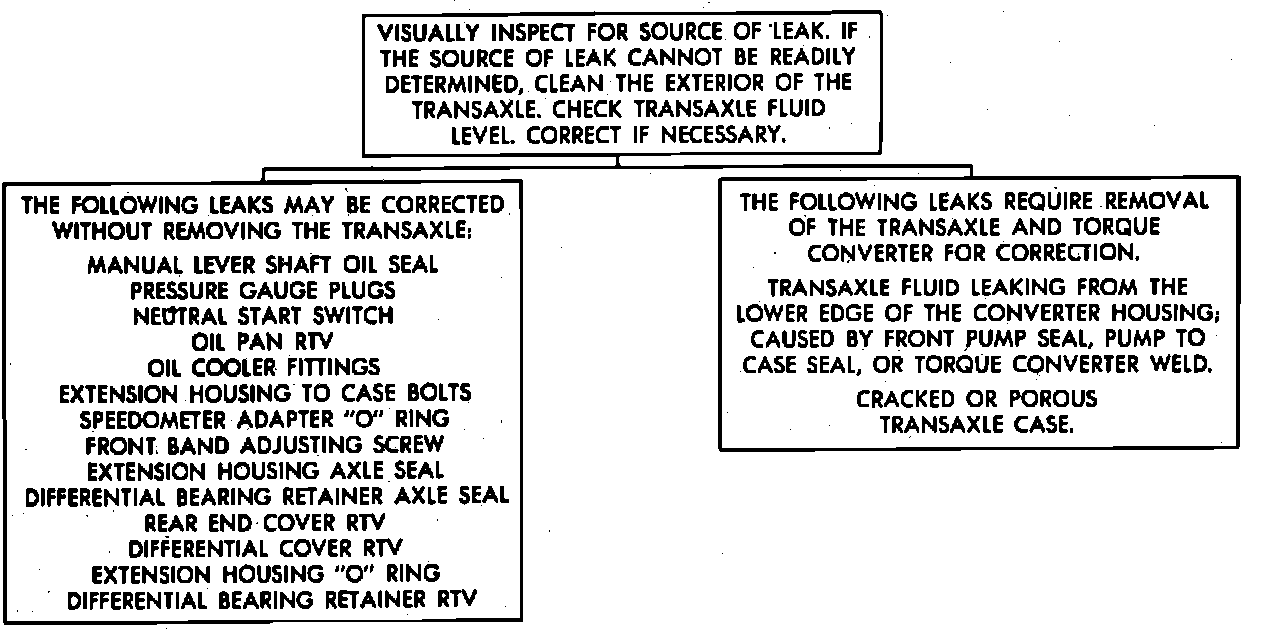

Fig. 4 Fluid Leak Diagnosis. A-604 Transaxle:

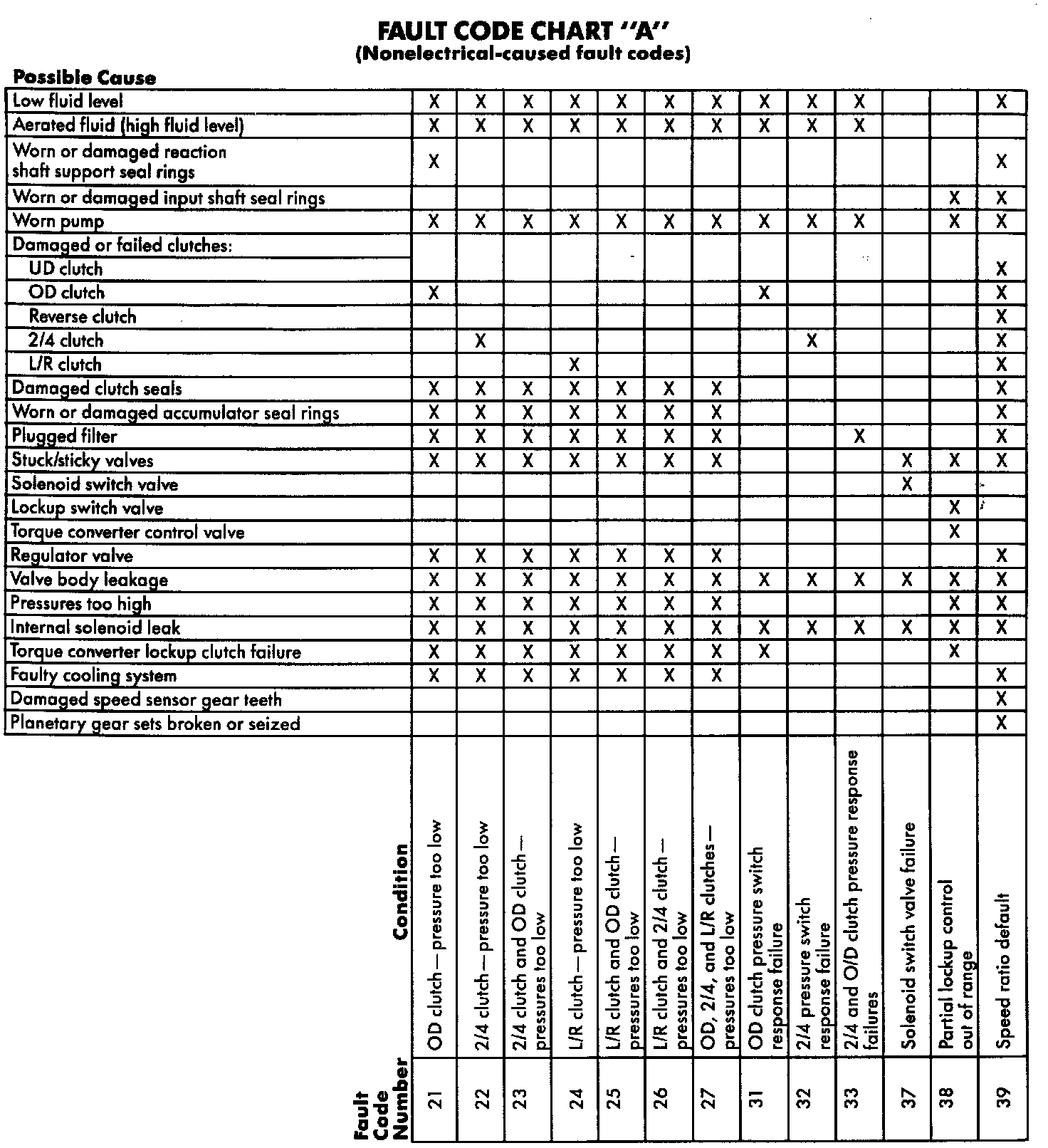

Fault Chart A:

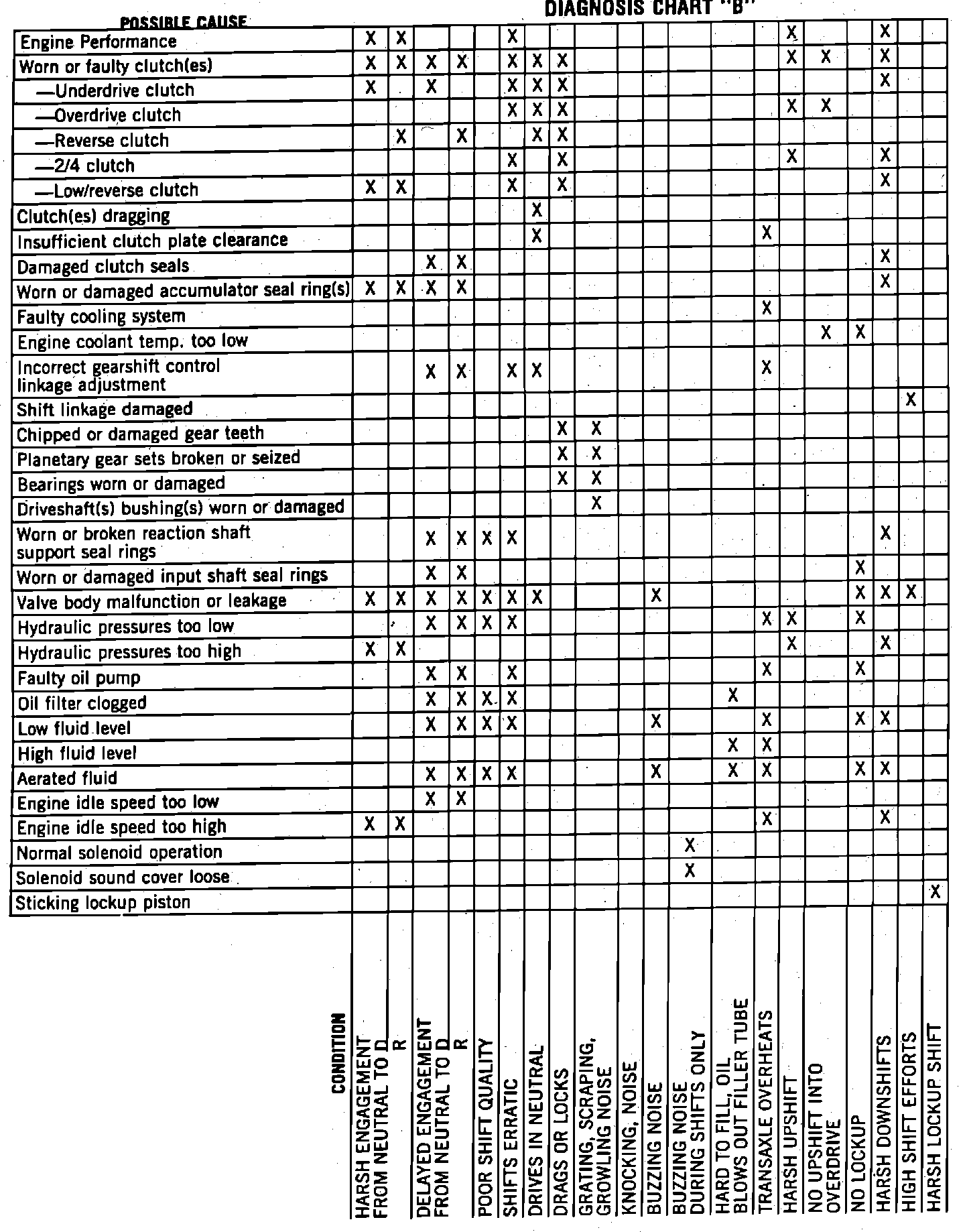

Fig. 5 Symptom Diagnosis Chart. A-604 Transaxle:

Before attempting any repair on the A-604 EAT, general engine performance, transmission fluid level and shift linkage must first be checked and adjusted if necessary. For specific symptom diagnosis, refer to Figs. 2, 3, 4 and 5.
