Remains Low, Compressor Does Not Pump
Remains Low, Compressor Does Not Pump

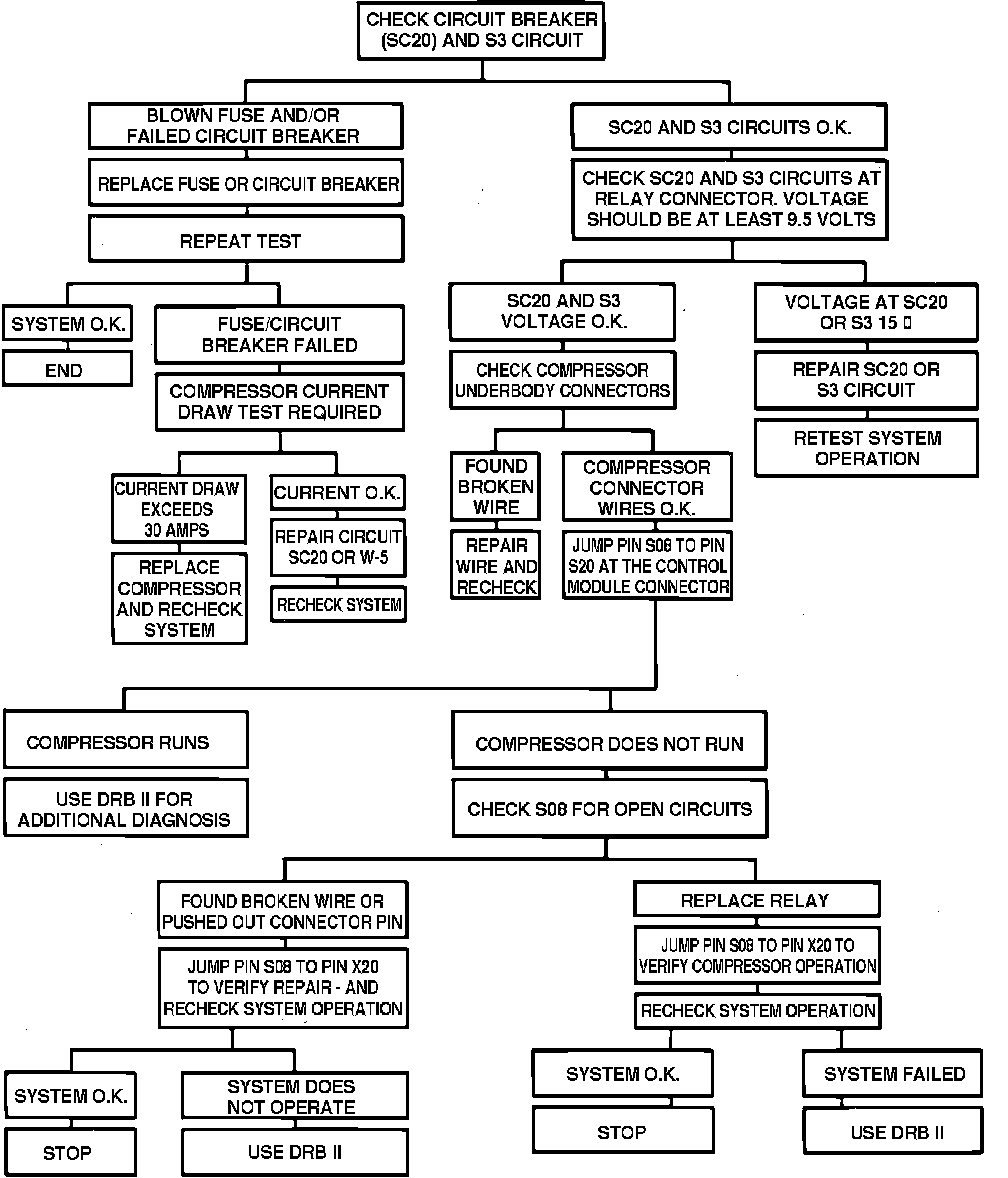

Fig. 8 Troubleshooting. Vehicle Remains Low, Compressor Does Fig. 8 Vehicle Remains Low, Compressor Does Not Pump:
