New Yorker V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
Computers and Control Systems: Locations

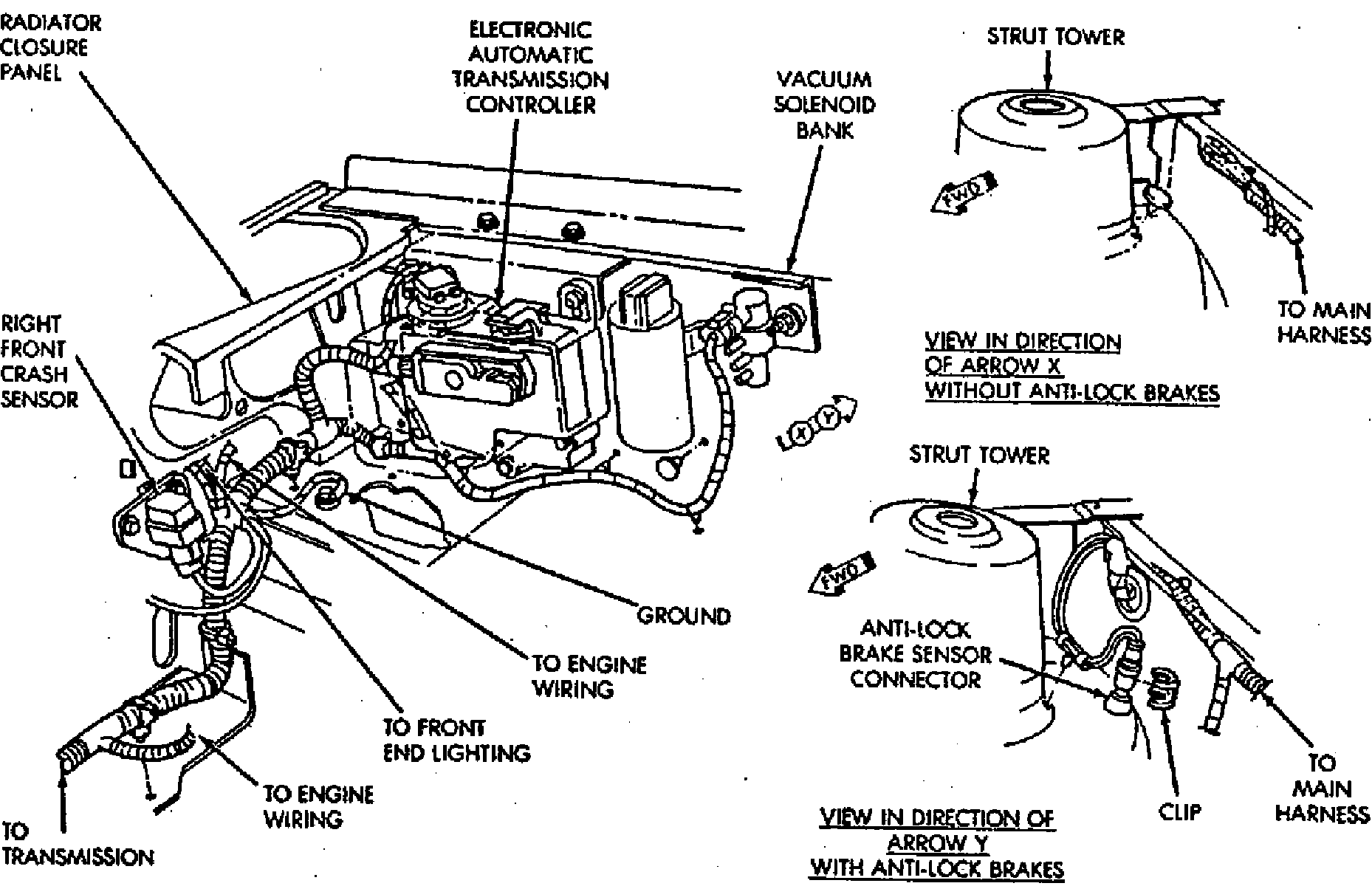

RH Engine Compartment Components.:
On RH Fender Apron
Applicable to: 1990 V6-181/3.0L & V6-202/3.3L
