Rear Dust Boot Replacement

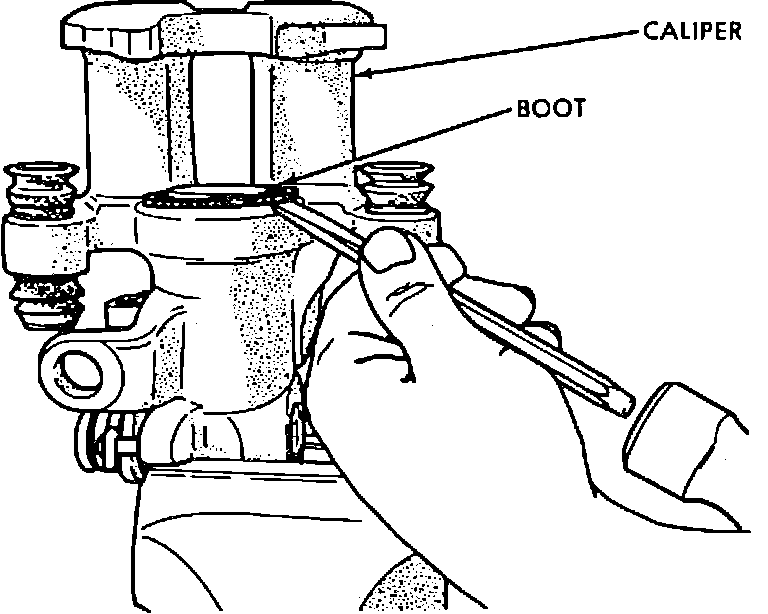

Fig. 8 Removing Dust Boot:

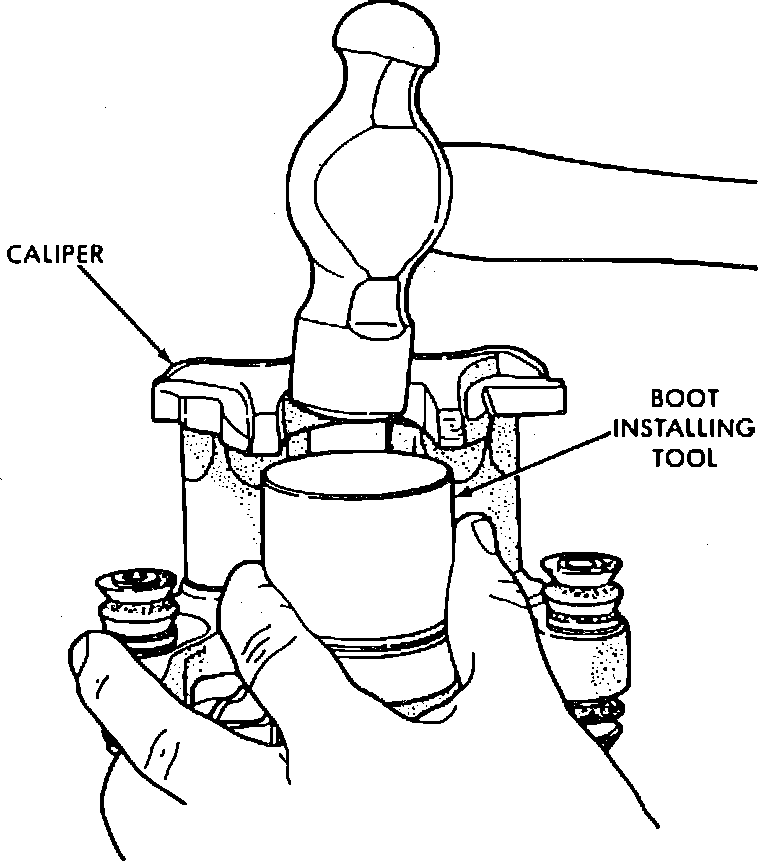

Fig. 9 Dust Boot Installation:

1. Clean area around dust boot with suitable solvent.
2. Remove dust boot from caliper and piston grooves.
3. Clean piston and caliper grooves, then coat new boot with clean brake fluid.
4. Place boot over piston and into piston groove, then position in counterbore of caliper.
5. Using suitable tools, drive dust boot into counterbore.
