Sunroof / Moonroof Cable: Service and Repair

Drive Cables:

DRIVE CABLES
Removal
1. Position sunroof to maximum vent position.
2. Remove headliner, wind deflector, mechanism covers, glass panel, side glass adjustment brackets, motor and gear, drive cables, locators.

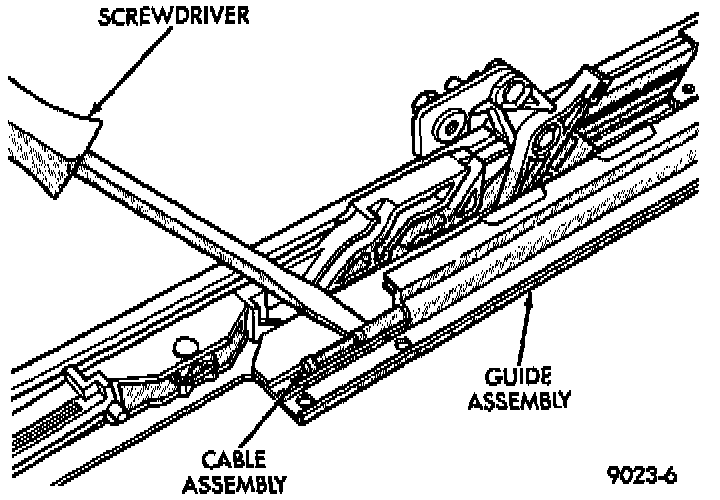

3. Lift cable out of cable retainer and pull forward.

Installation
1. Replace cables as removed.
2. Check that sunroof is in maximum vent position by manually pushing mechanism forward on both sides (this procedure aligns the drive cables). Replace drive cables, locators.
3. Position motor upwards so that the gear engages between drive cables.
4. Complete installation of motor and drive gear.
5. Complete installation in the reverse of removal.
