Sun Shade: Service and Repair

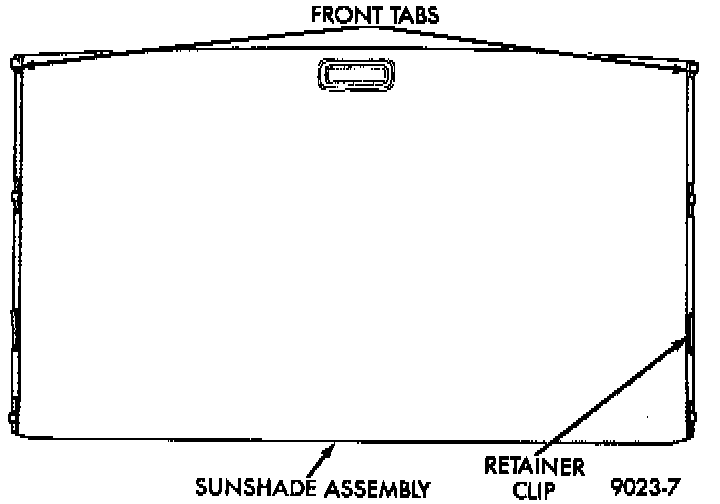

Sunshade Assembly:

1. Remove wind deflector, mechanism, covers, and glass panel.
2. Position system to full rearward position.
3. Slide sunshade panel full forward (this releases the front tabs out of track assembly).
4. Pull rear retainer clip inboard and lift sunshade out.
5. For installation reverse above procedure.
