DR-29 Checking MAP Calibrations

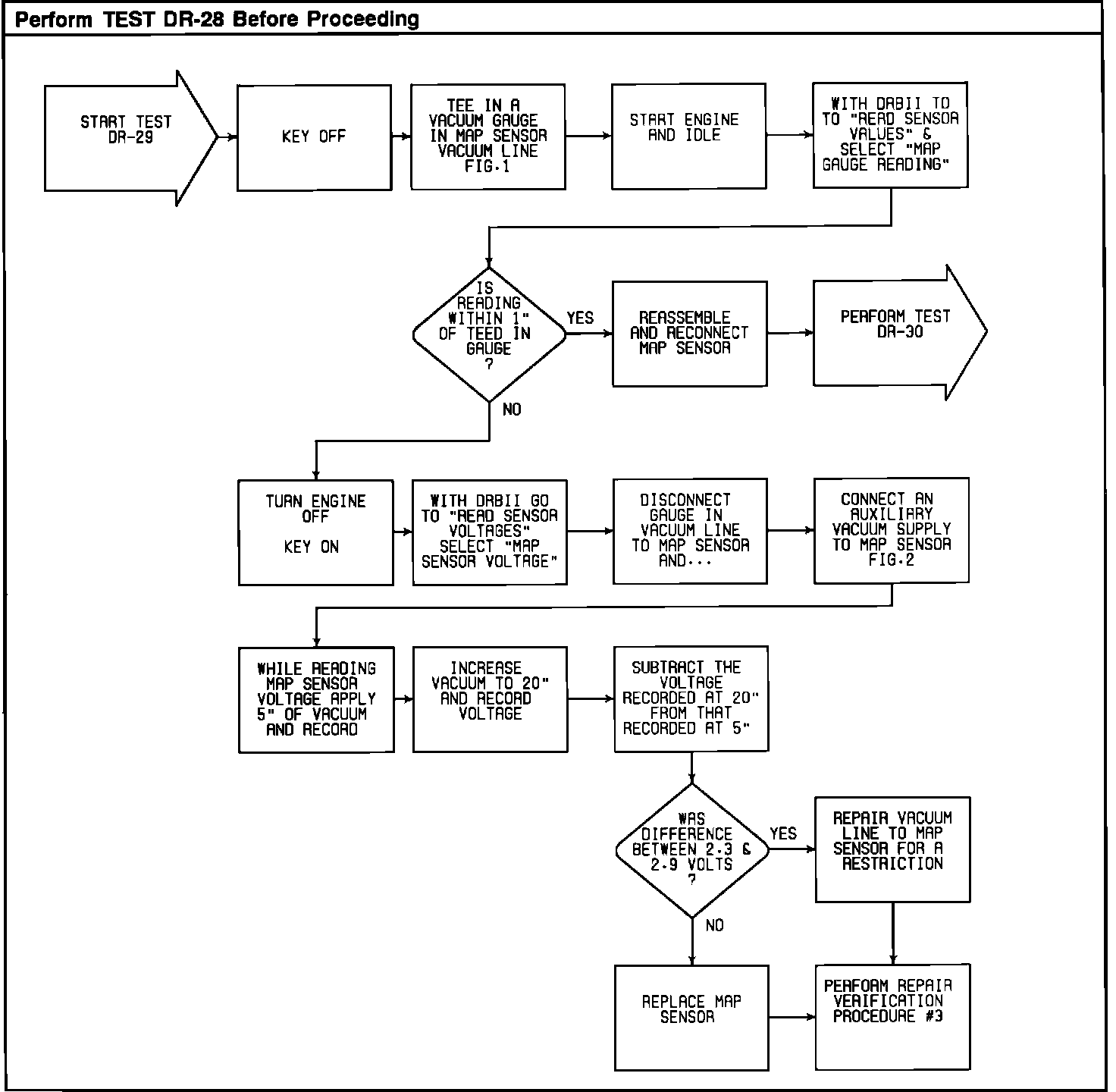

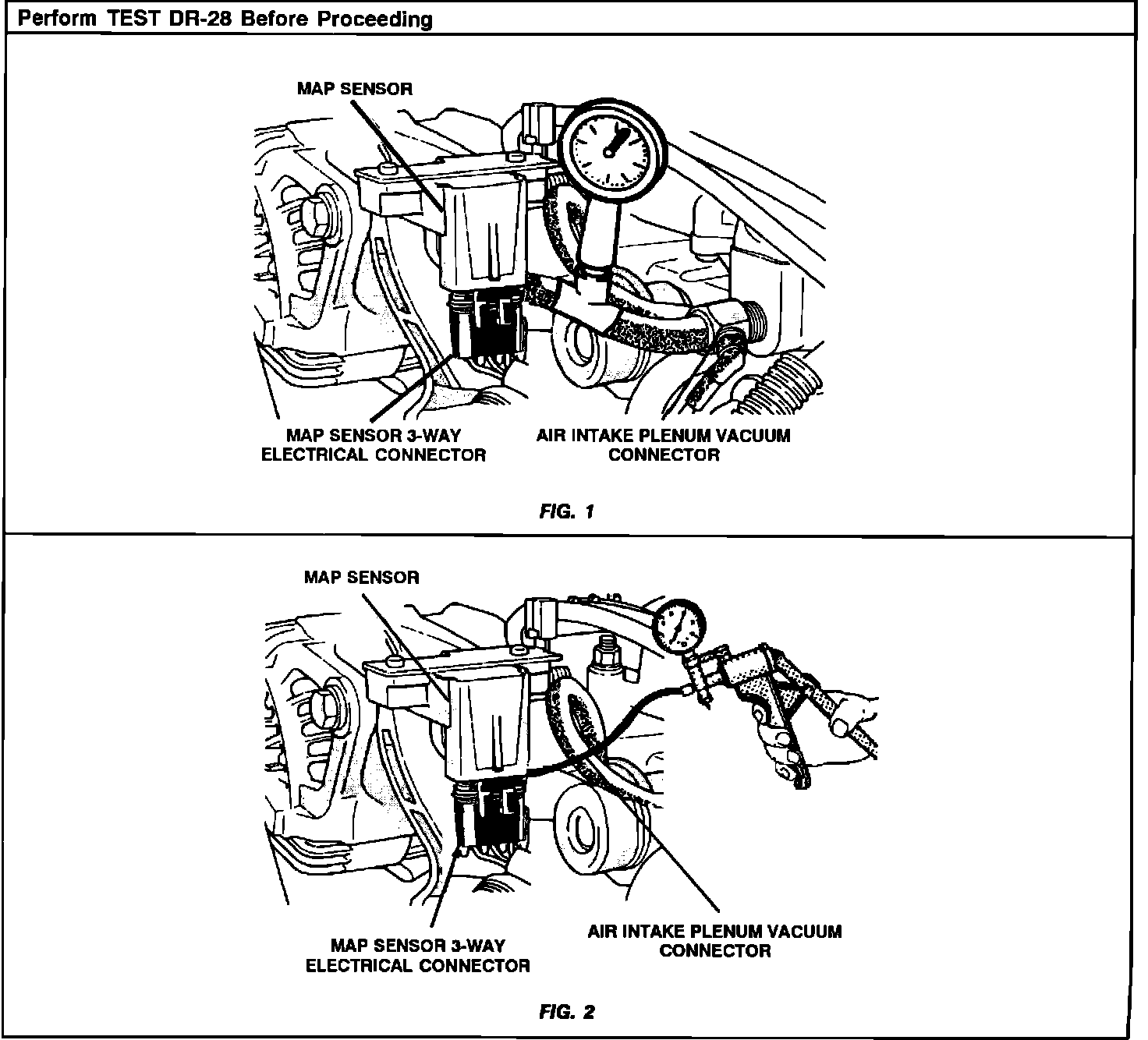

Test DR-29 - Checking MAP Calibrations:



Test DR-29 - Checking MAP Calibrations:
