Test 9A

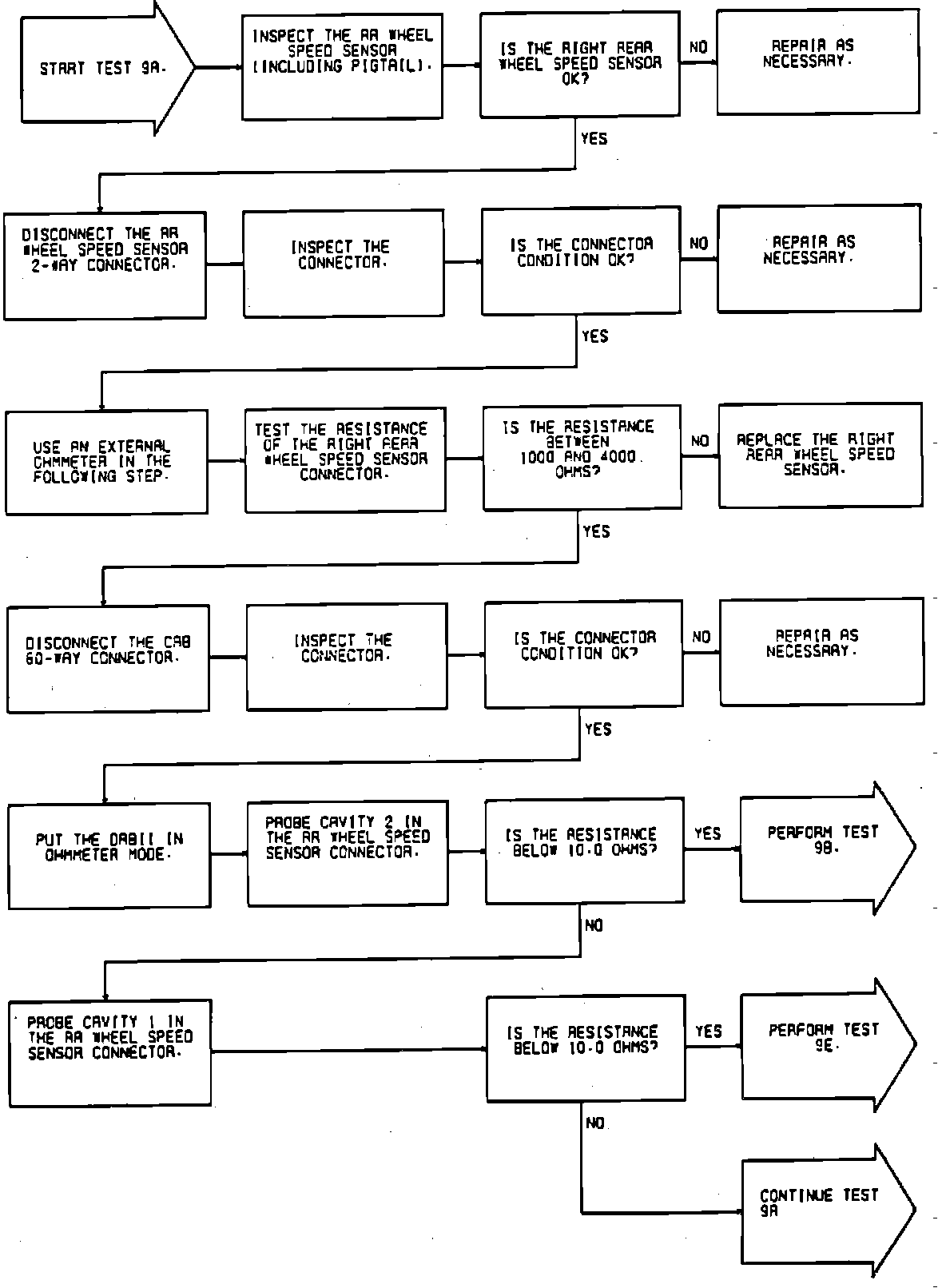

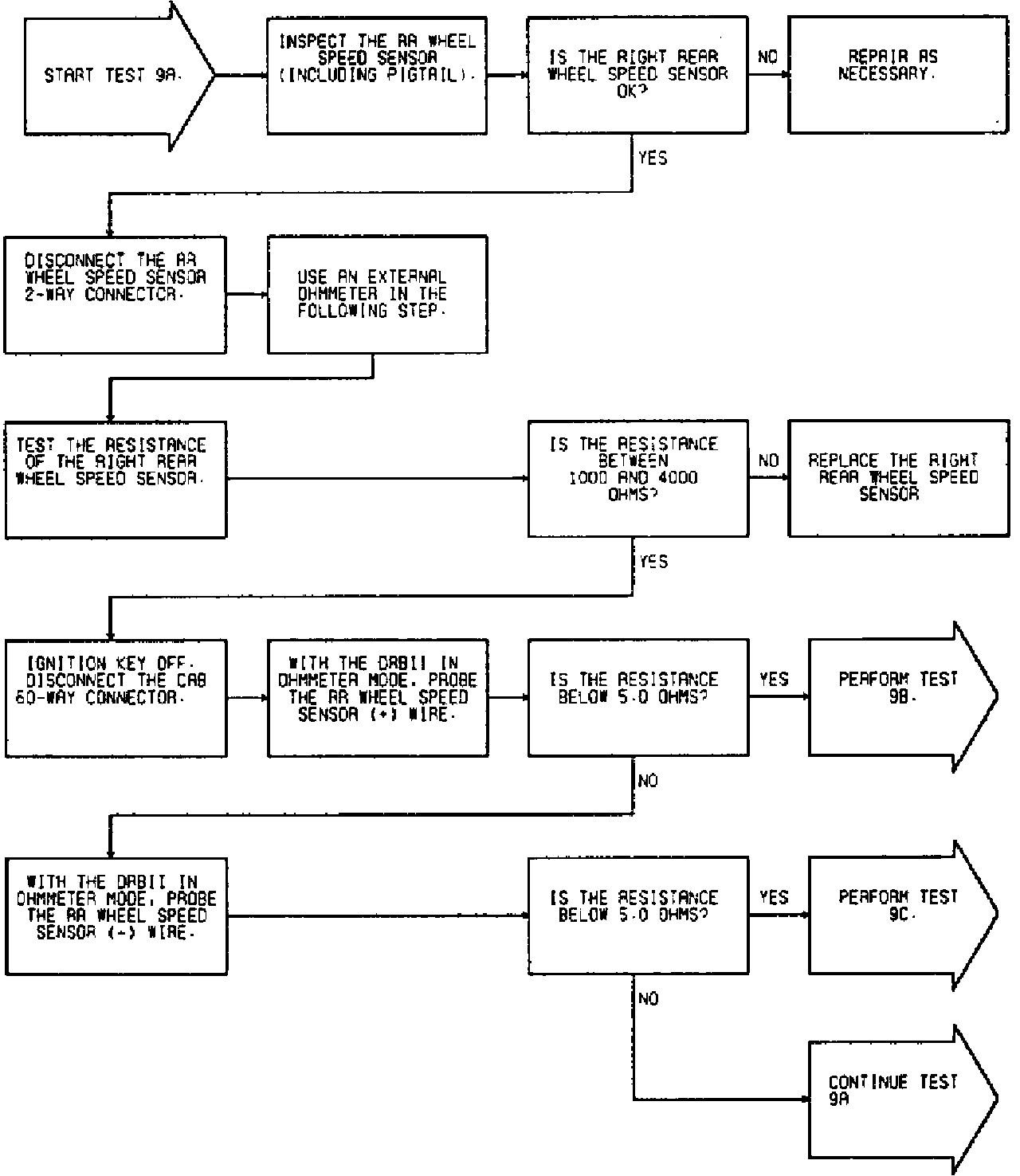

Fig. 61 Test 9A--Right Rear Continuity Fault (Part 1 Of 2):

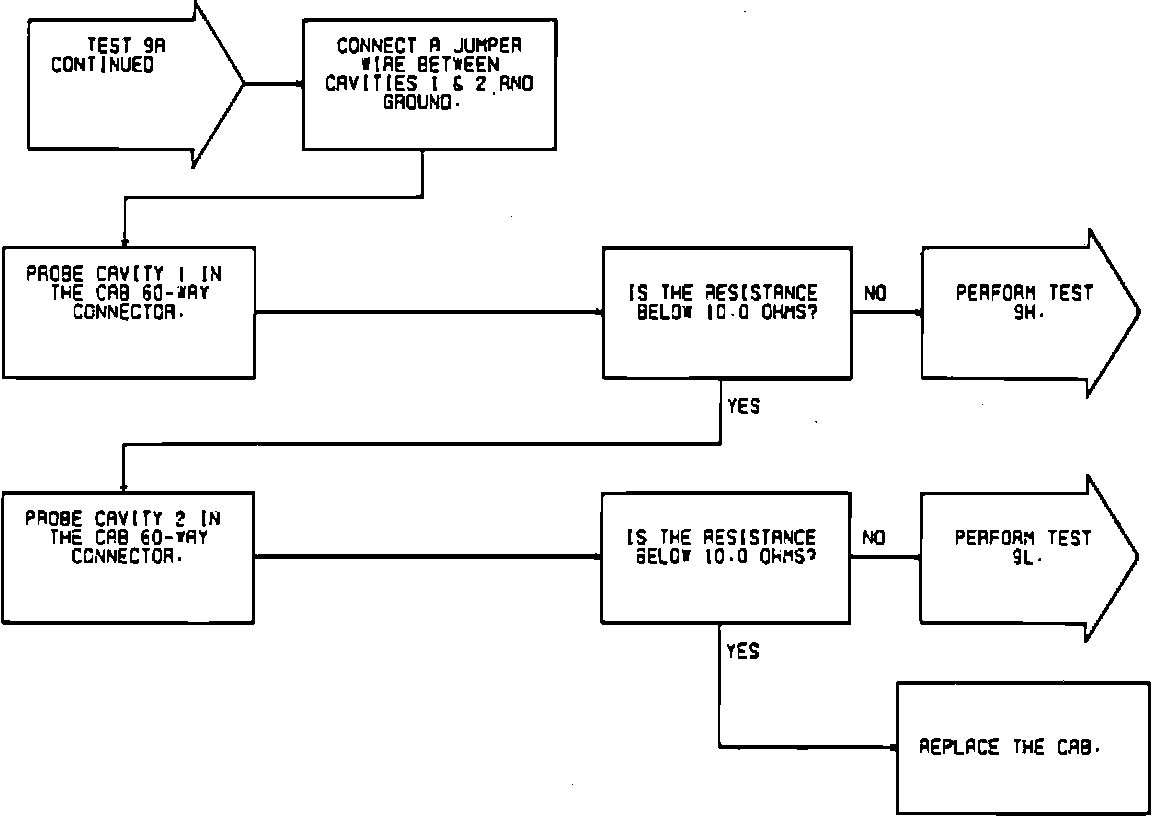

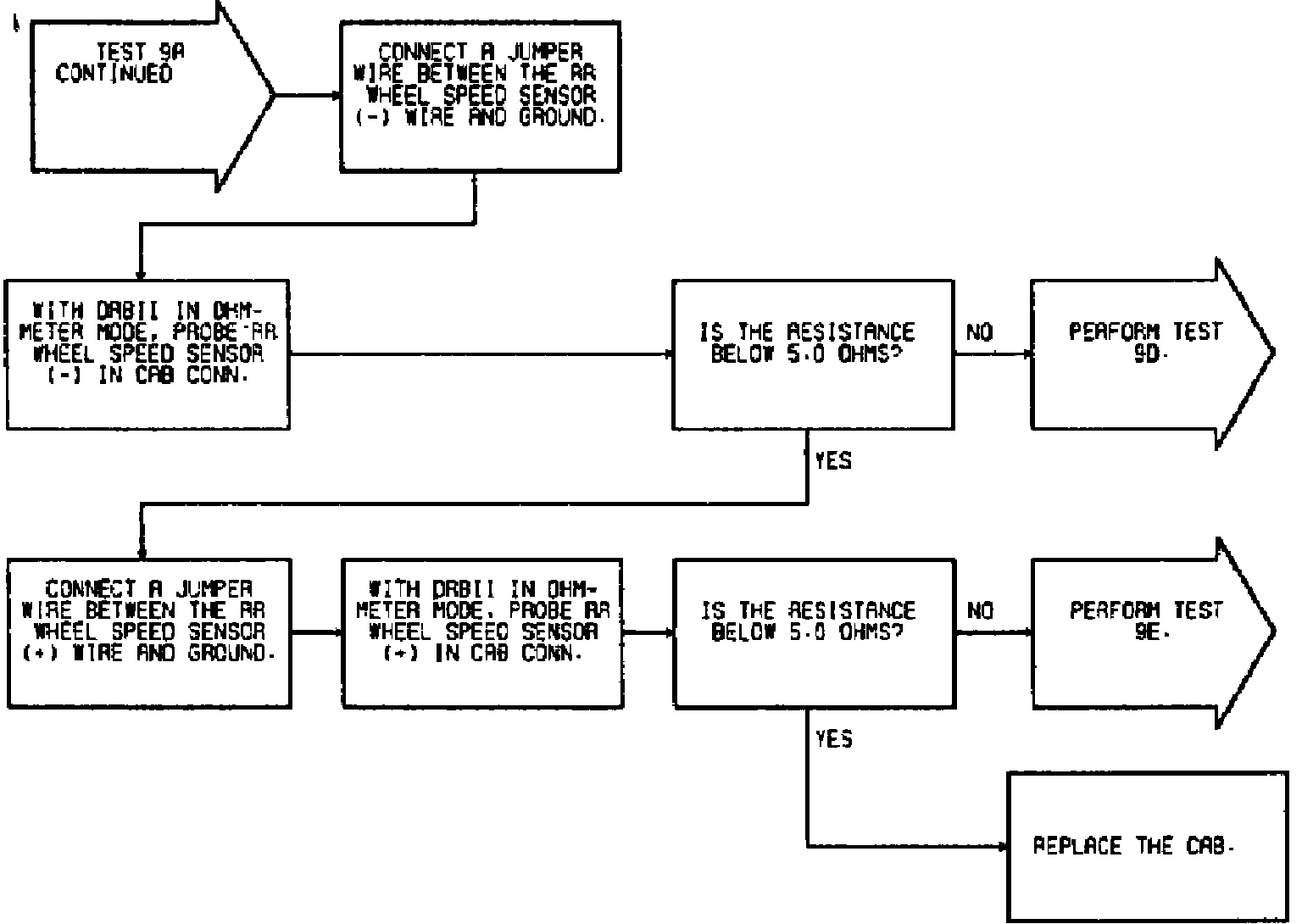

Fig. 61 Test 9A--Right Rear Continuity Fault (Part 2 Of 2):

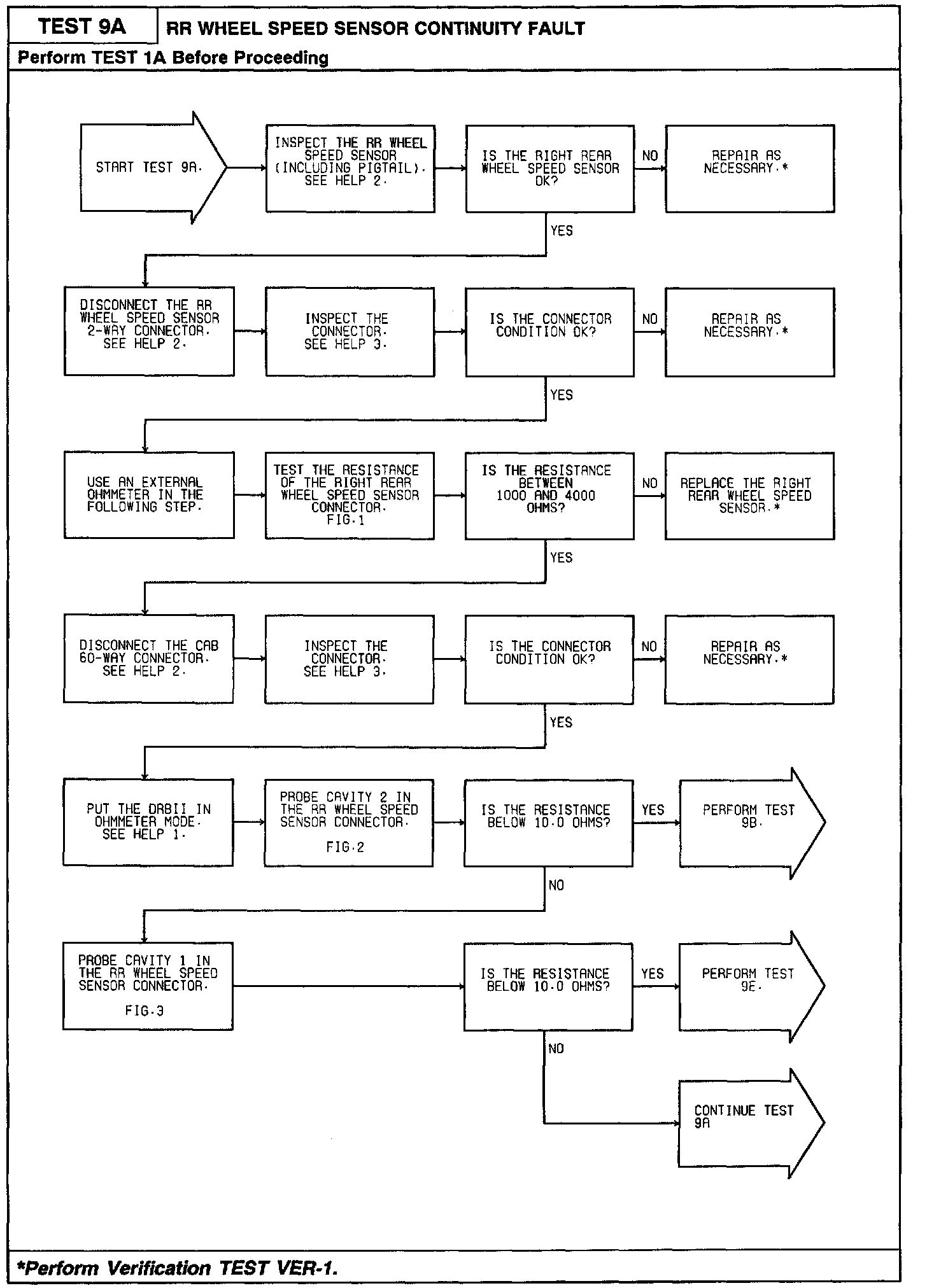

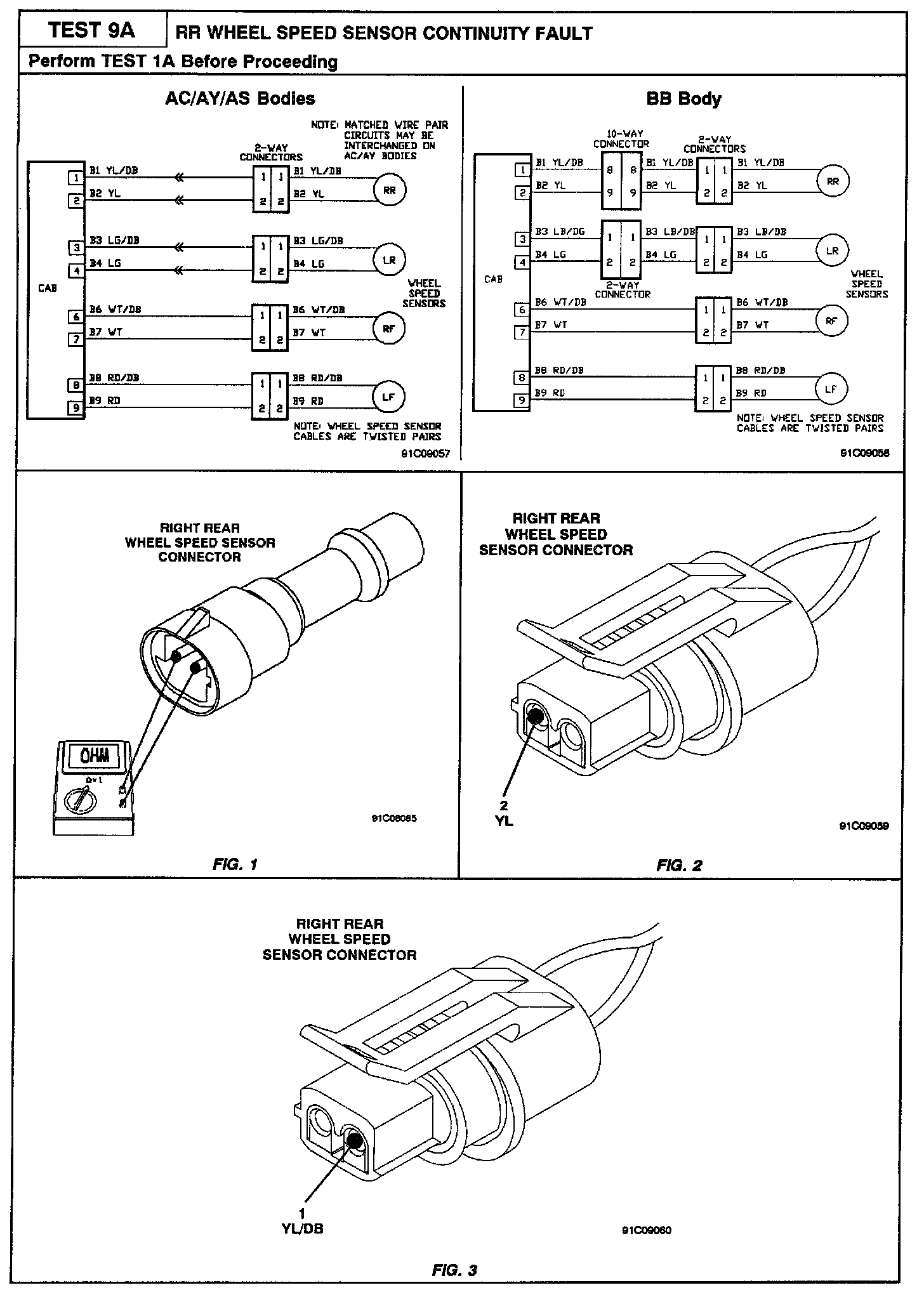

Fig. 62 Test 9A--Right Rear Wheel Speed Sensor Continuity Fault (Part 1 Of 2):

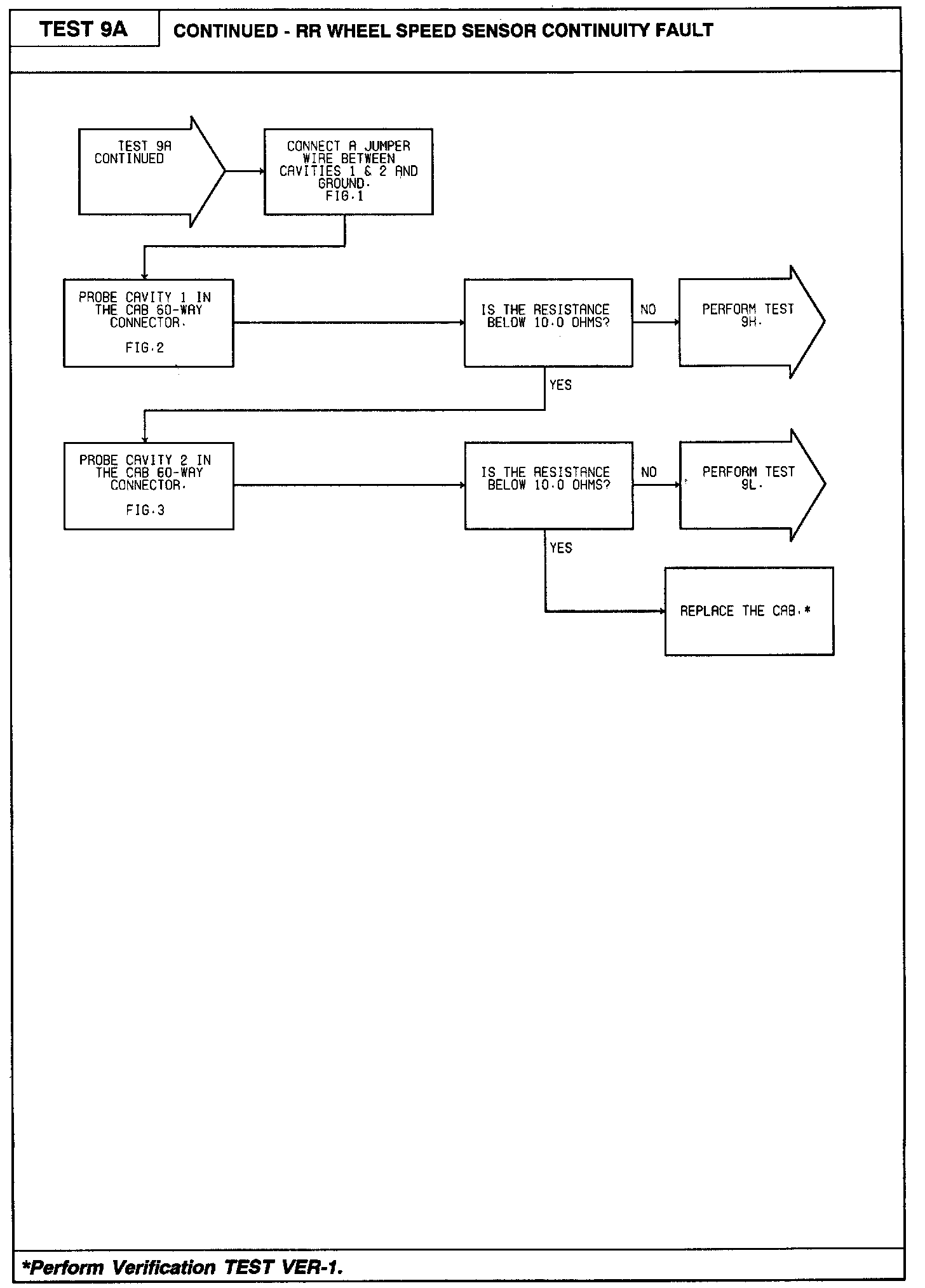

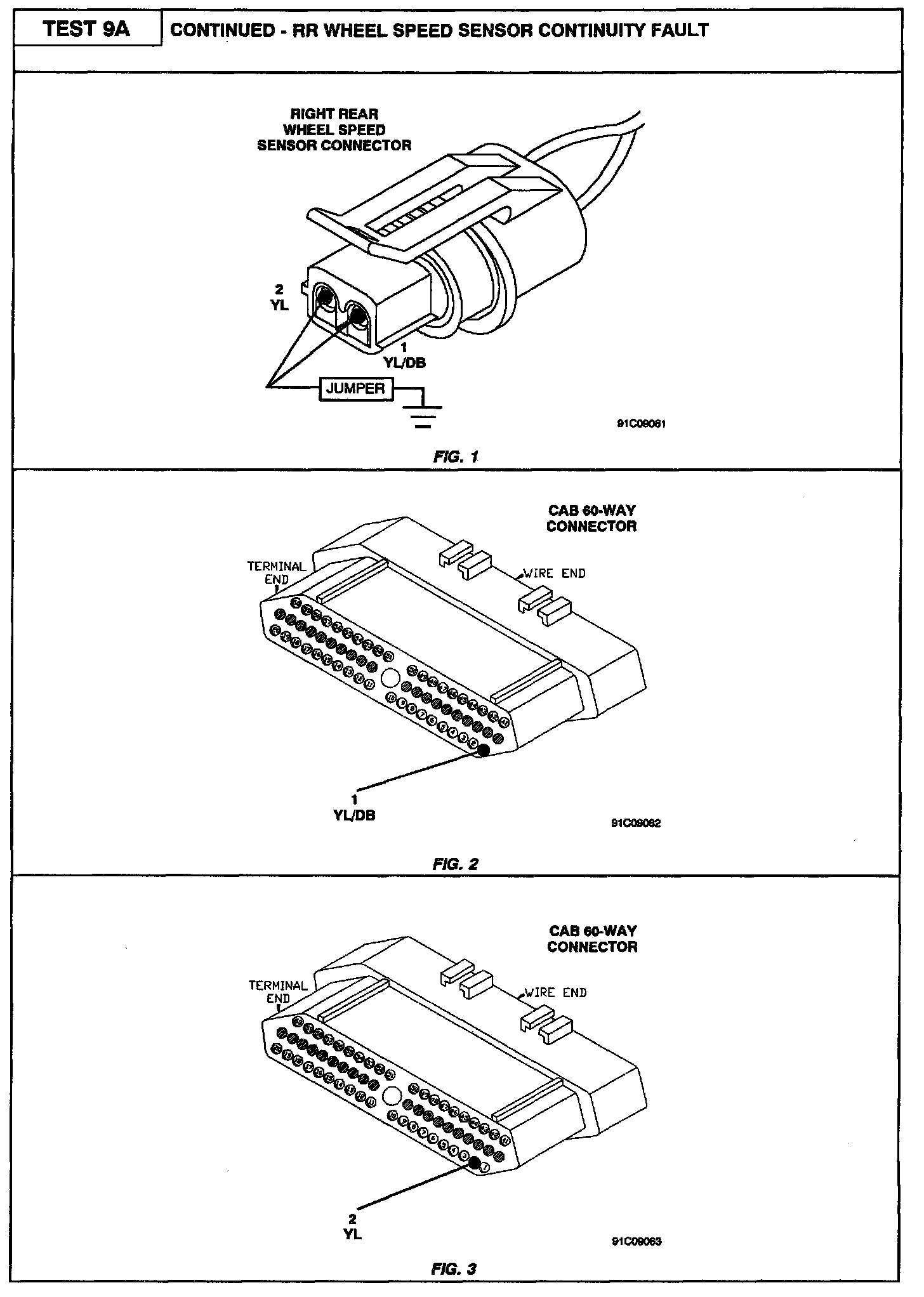

Fig. 62 Test 9A--Right Rear Wheel Speed Sensor Continuity Fault (Part 2 Of 2):

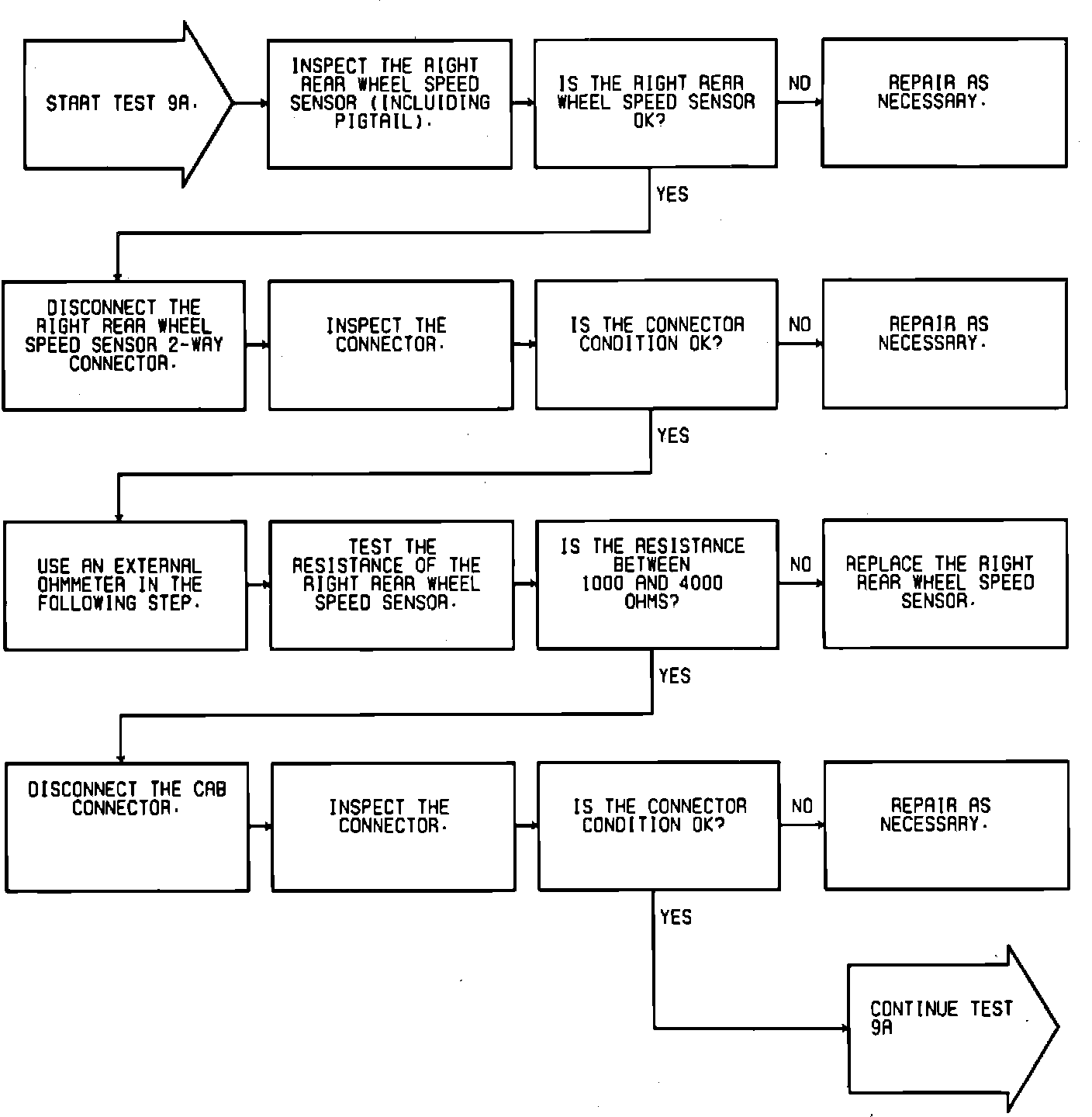

Fig. 117 Test 9A Part 1 Of 2:

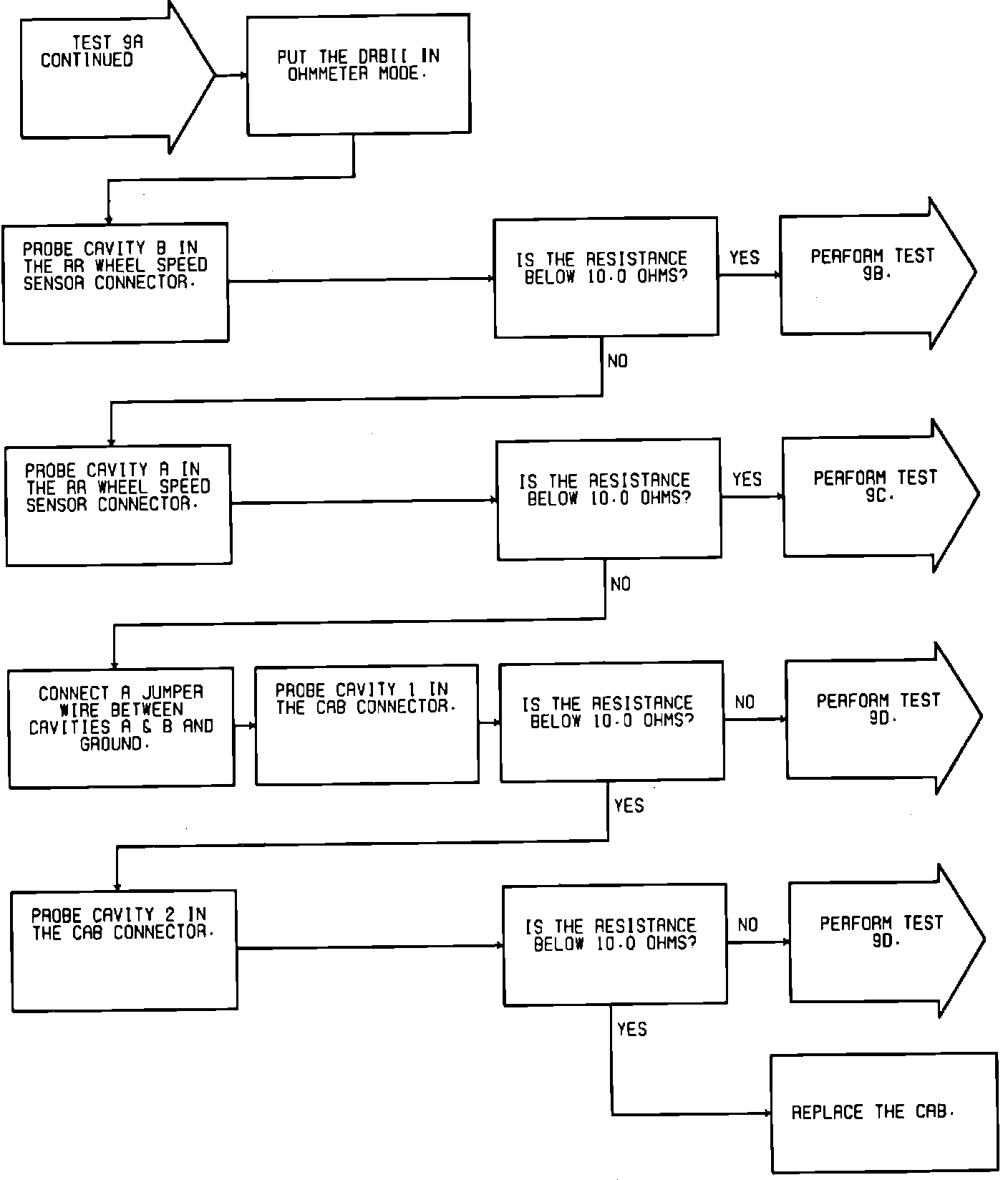

Fig. 117 Test 9A Part 2 Of 2:
