Home >> Chrysler >> 1990 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Diagnostic Charts (By Test or Chart Number) >> Test 8 - Boost Pressure Fault >> Test 8C

Test 8C

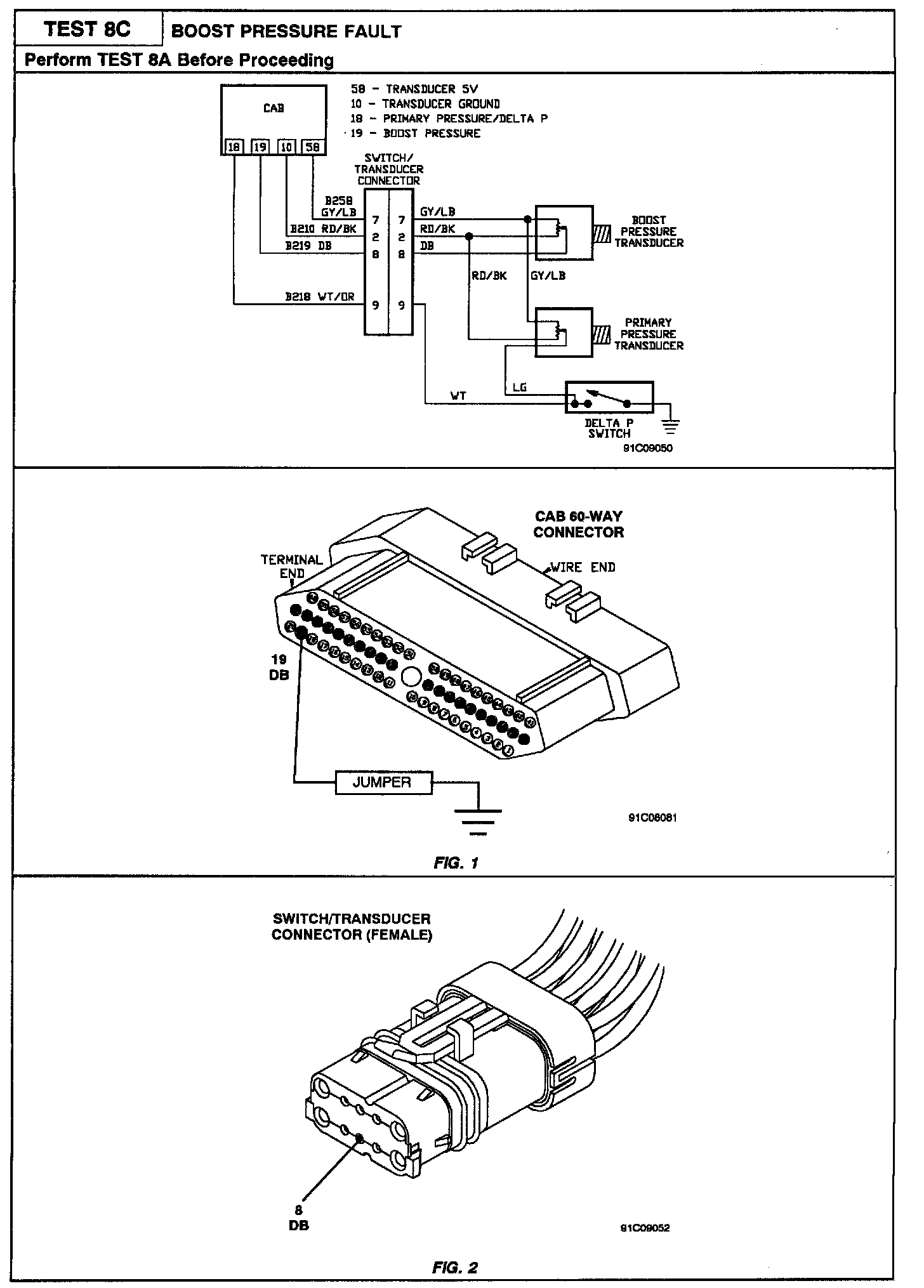

Fig. 57 Test 8C--Boost Pressure Fault:

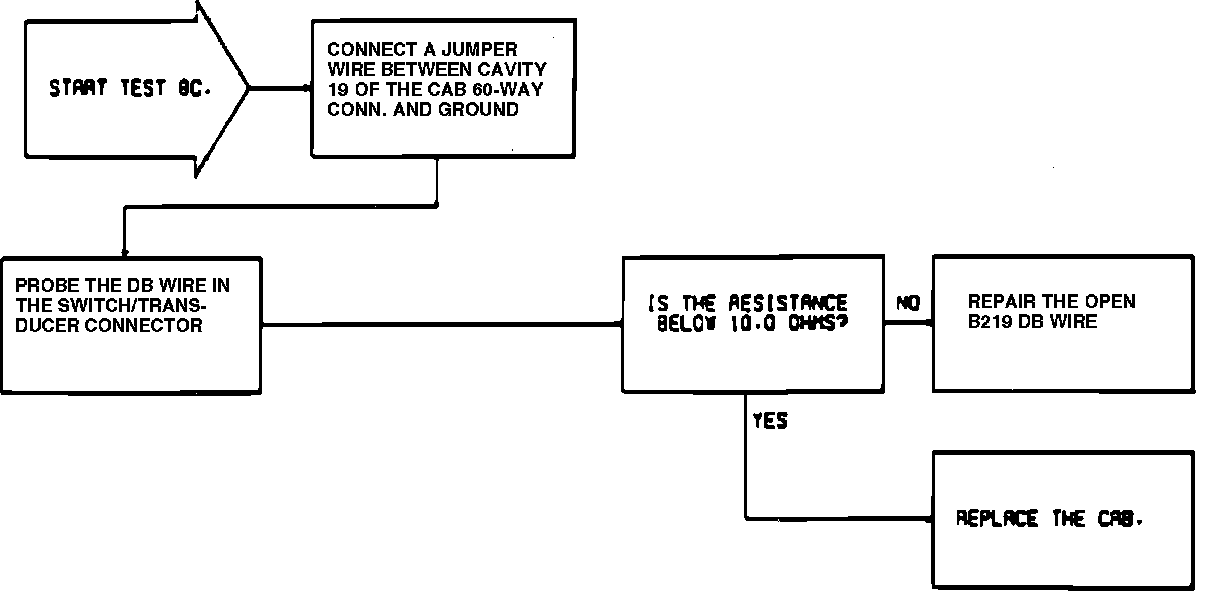

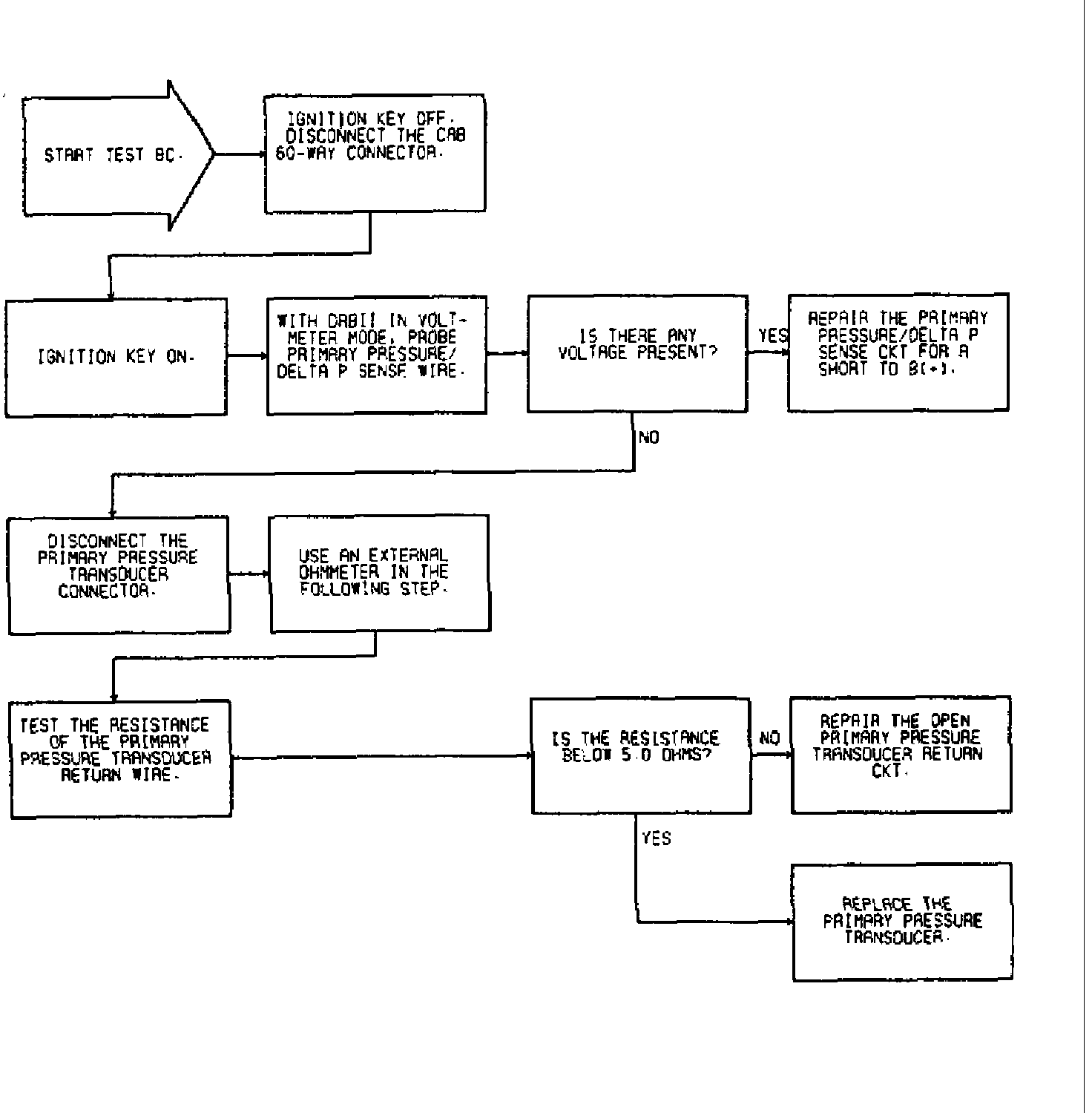

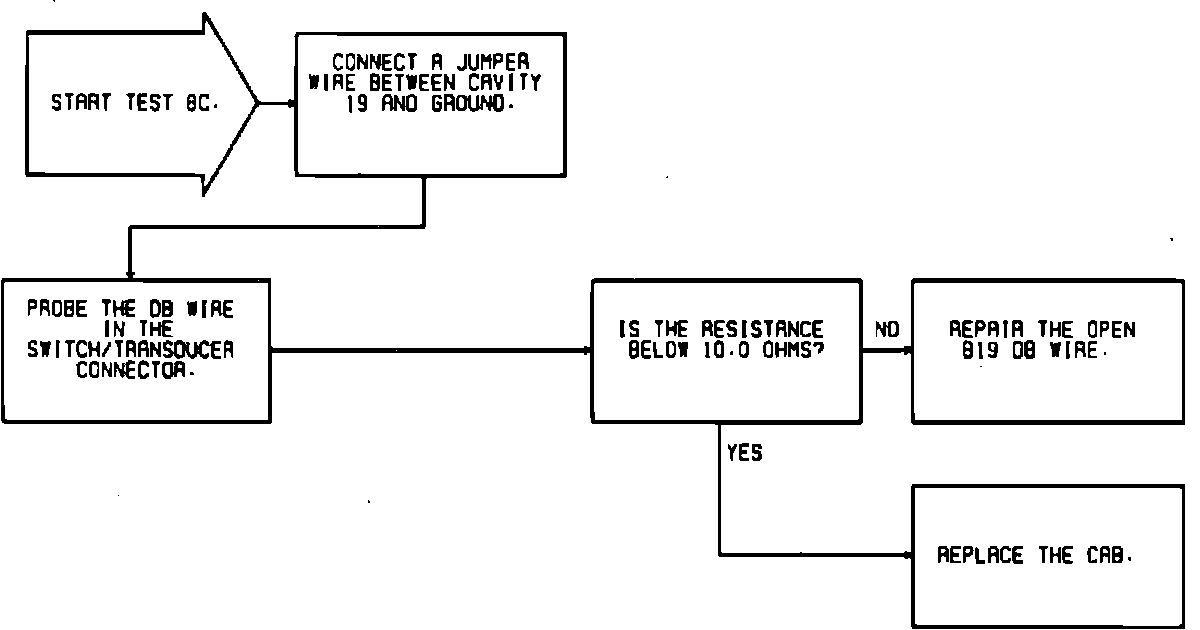

Fig. 115 Test 8C:

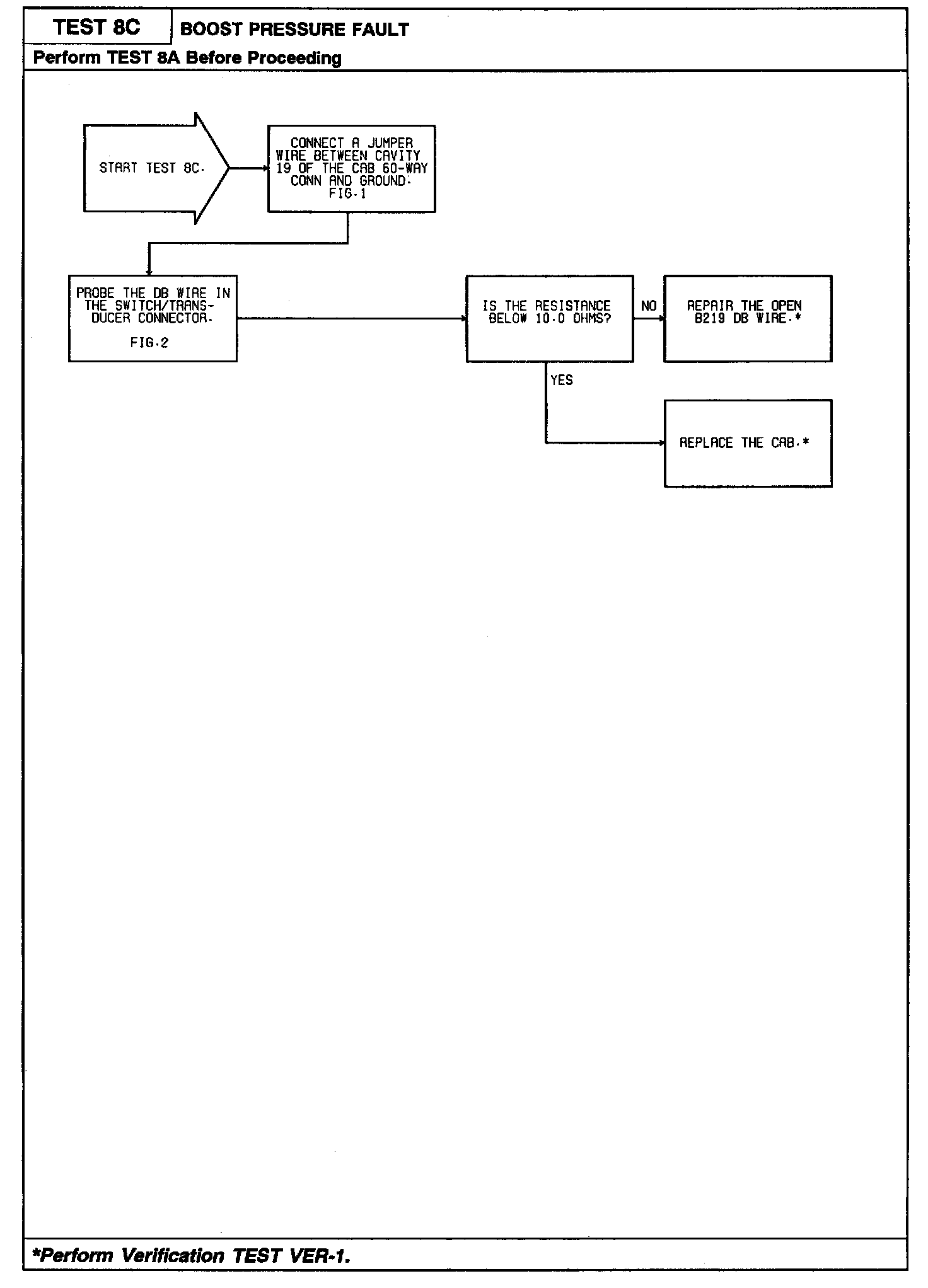

Fig. 58 Test 8C--Boost Pressure Fault:
