Test 8B

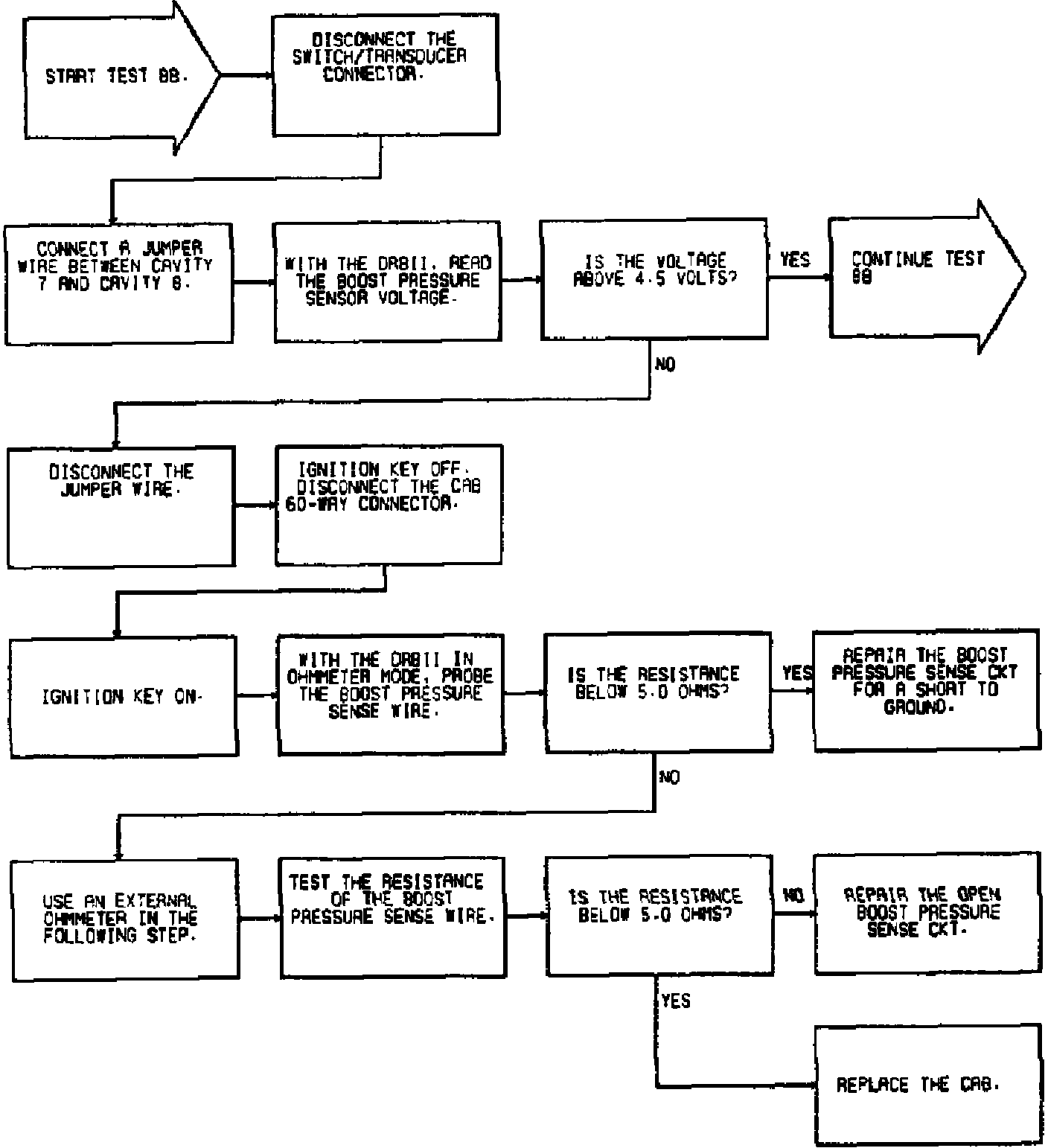

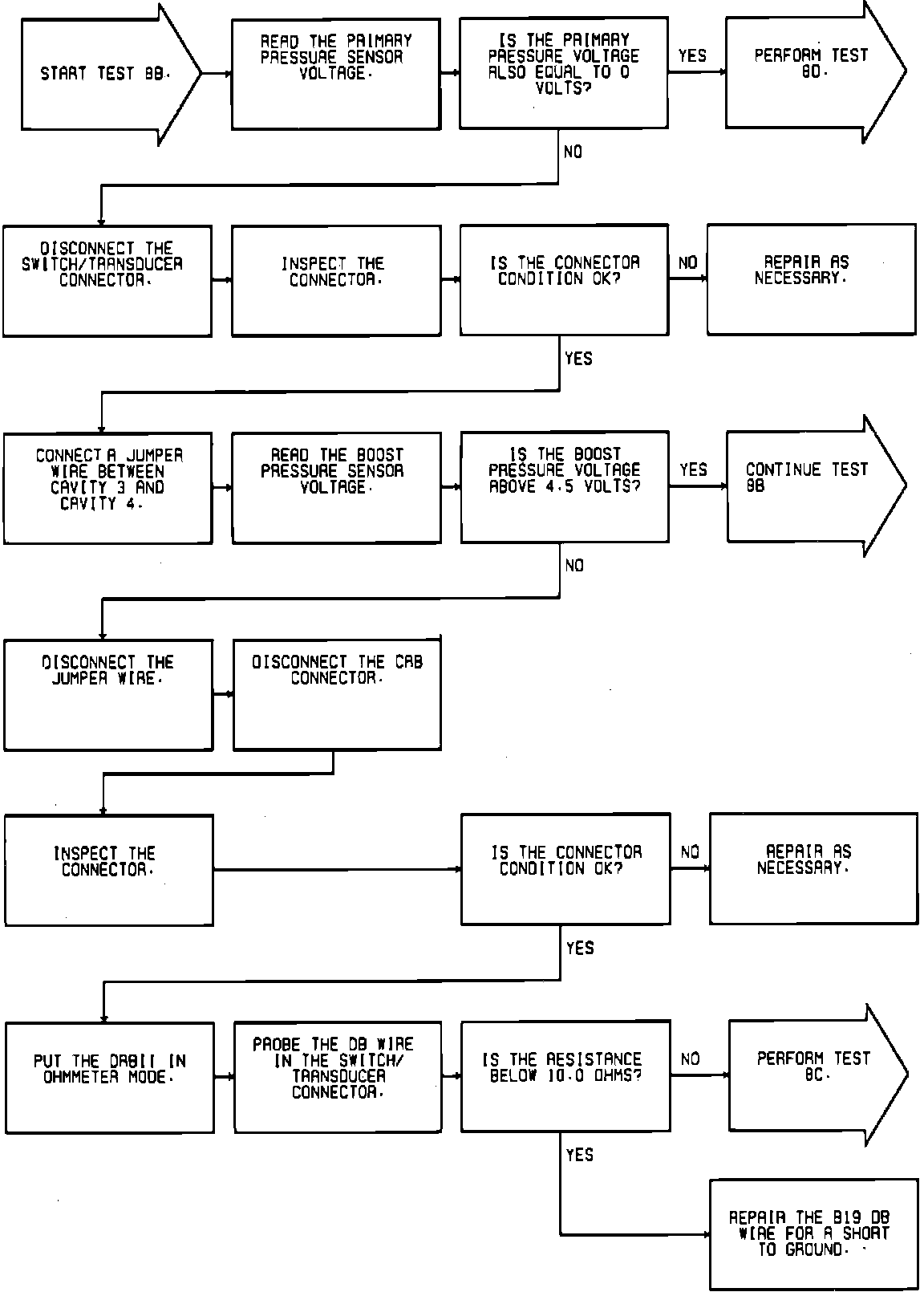

Fig. 55 Test 8B--Boost Pressure Fault (Part 1 Of 3):

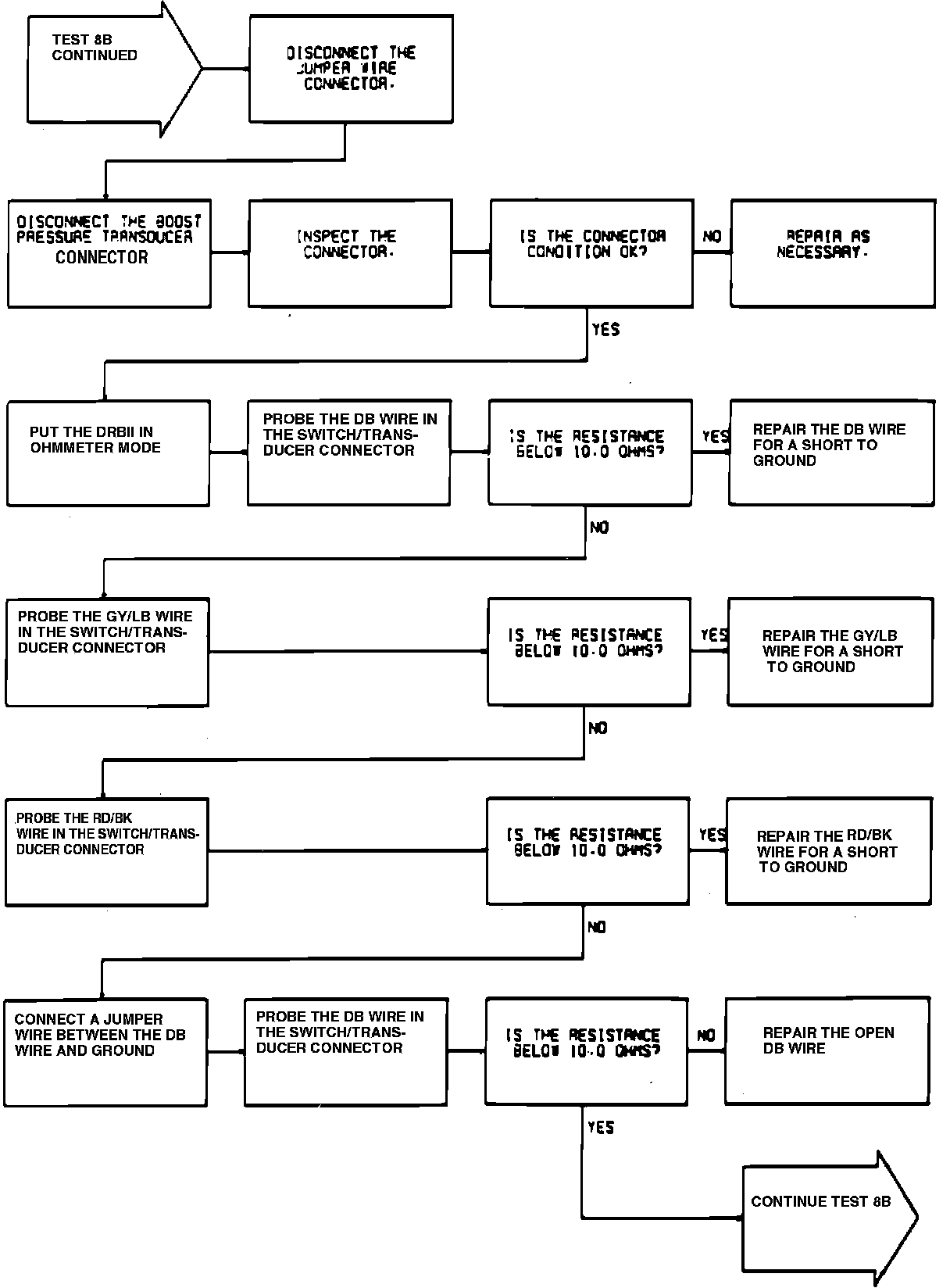

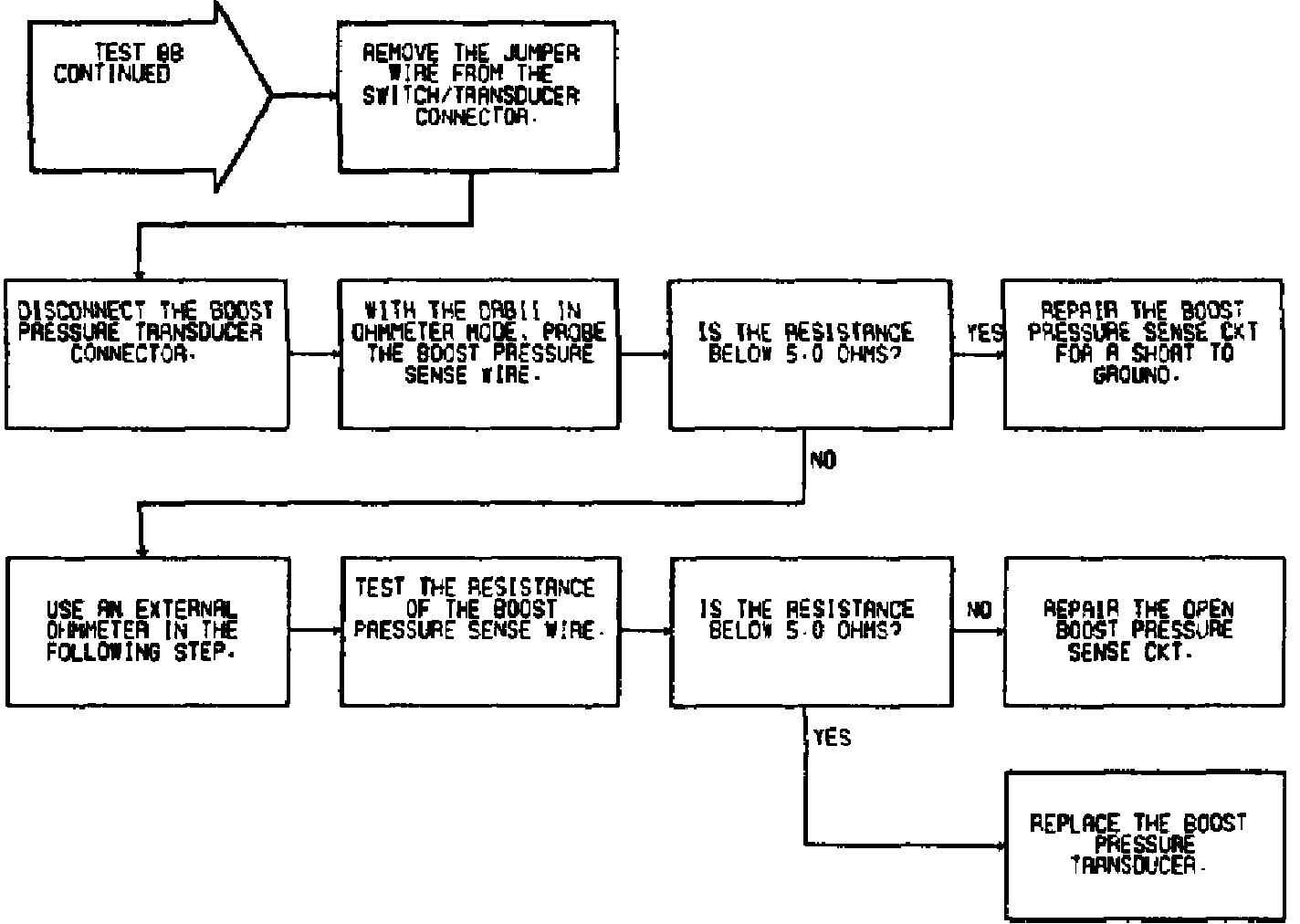

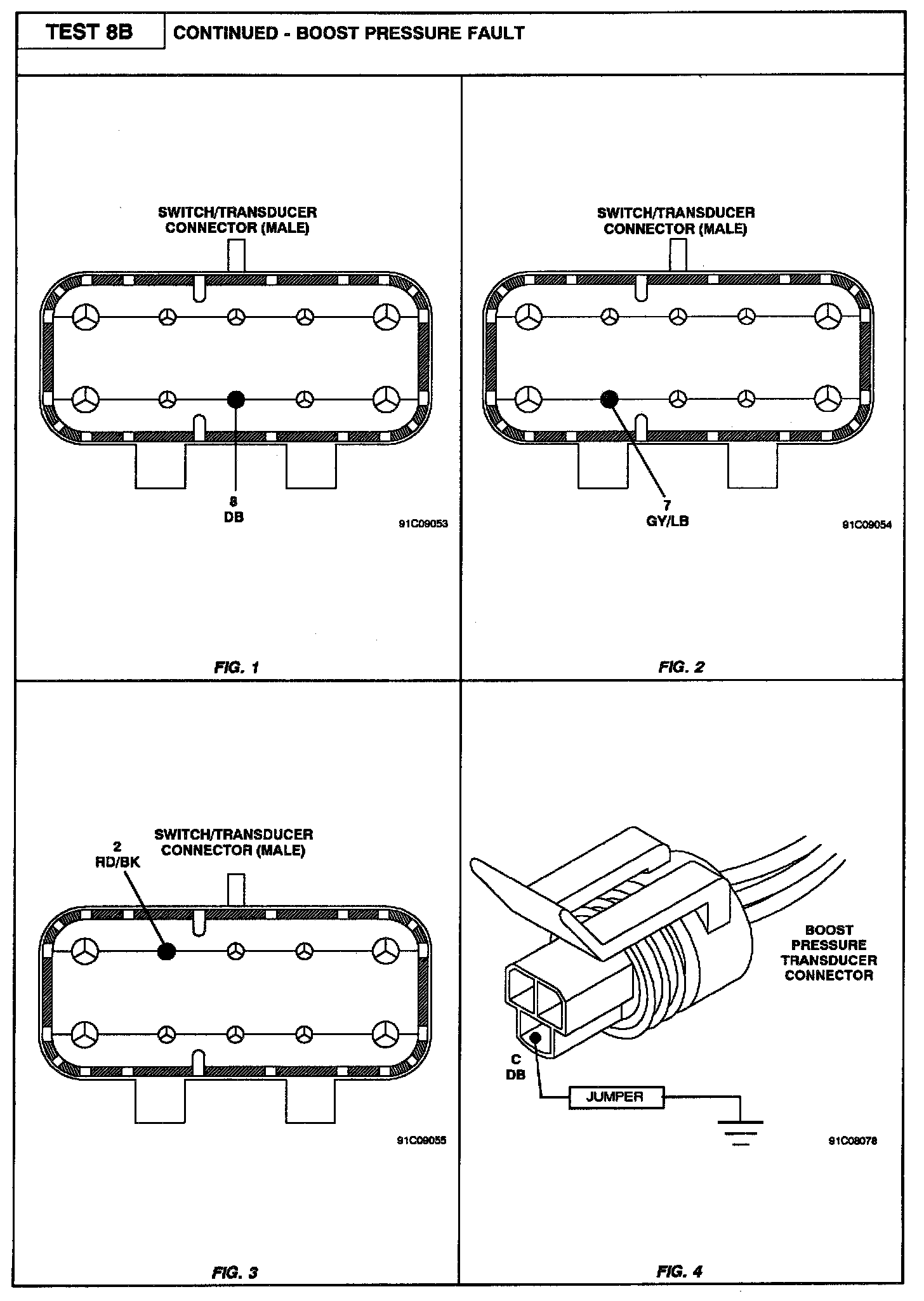

Fig. 55 Test 8B--Boost Pressure Fault (Part 2 Of 3):

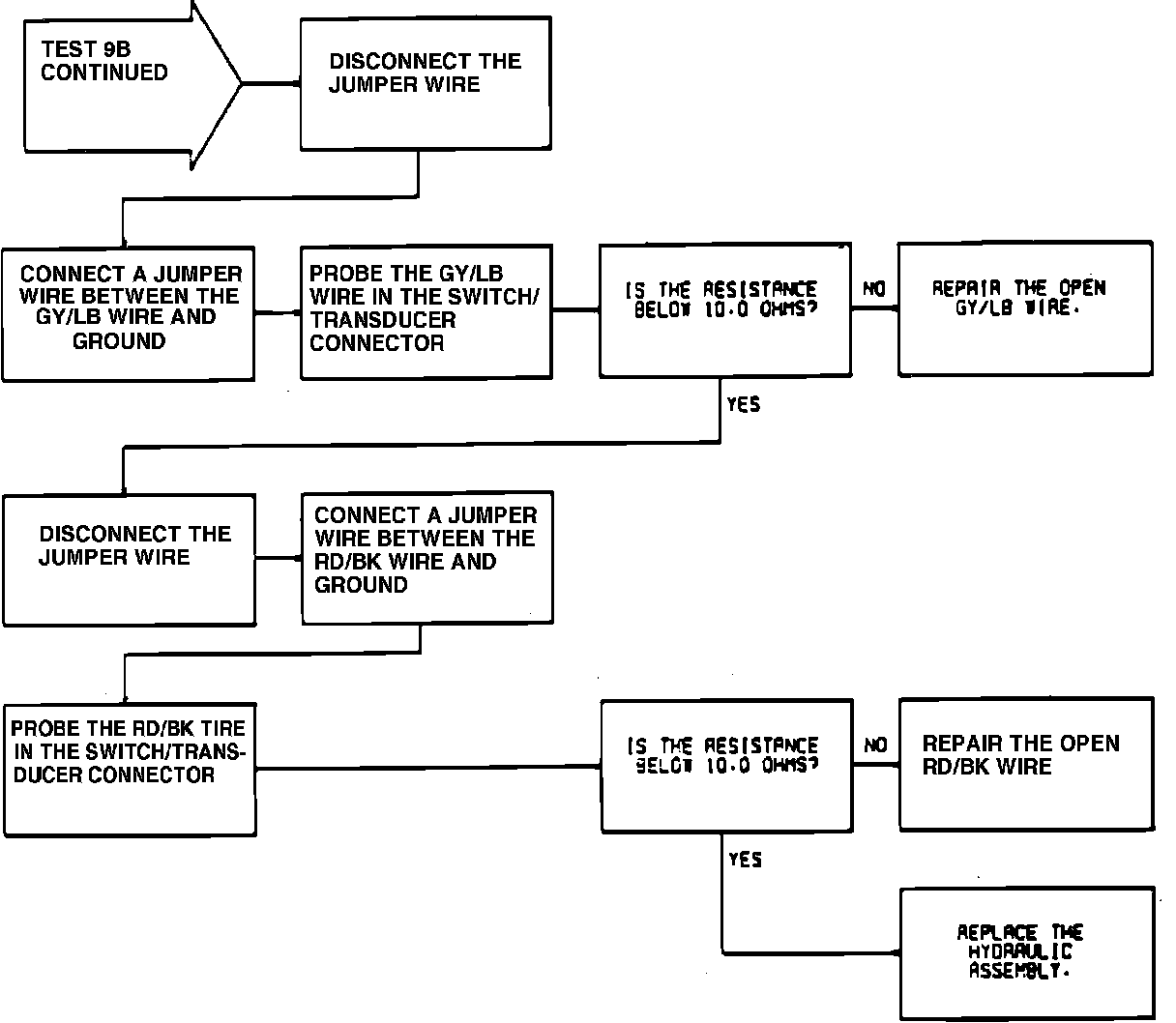

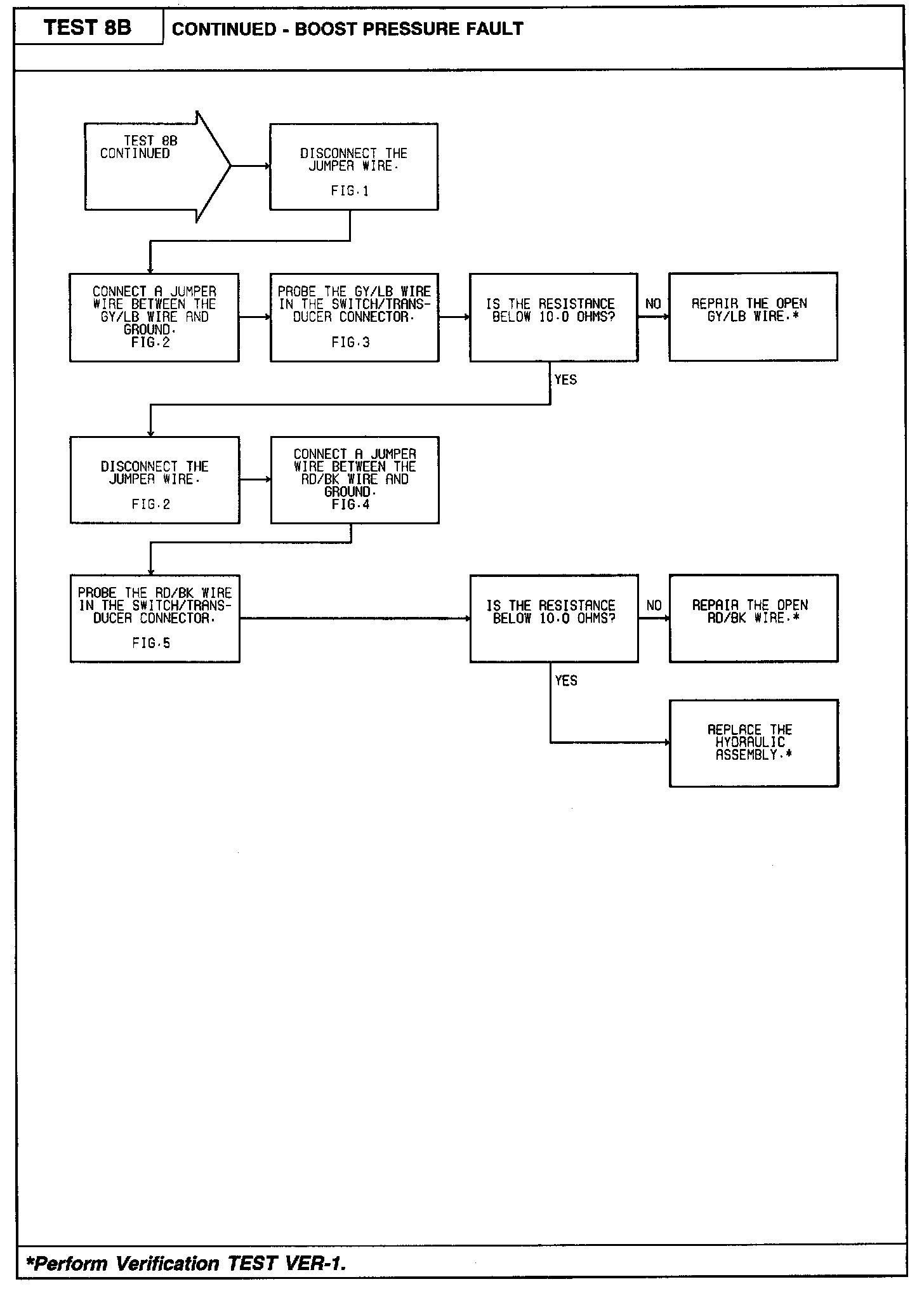

Fig. 55 Test 8B--Boost Pressure Fault (Part 3 Of 3):

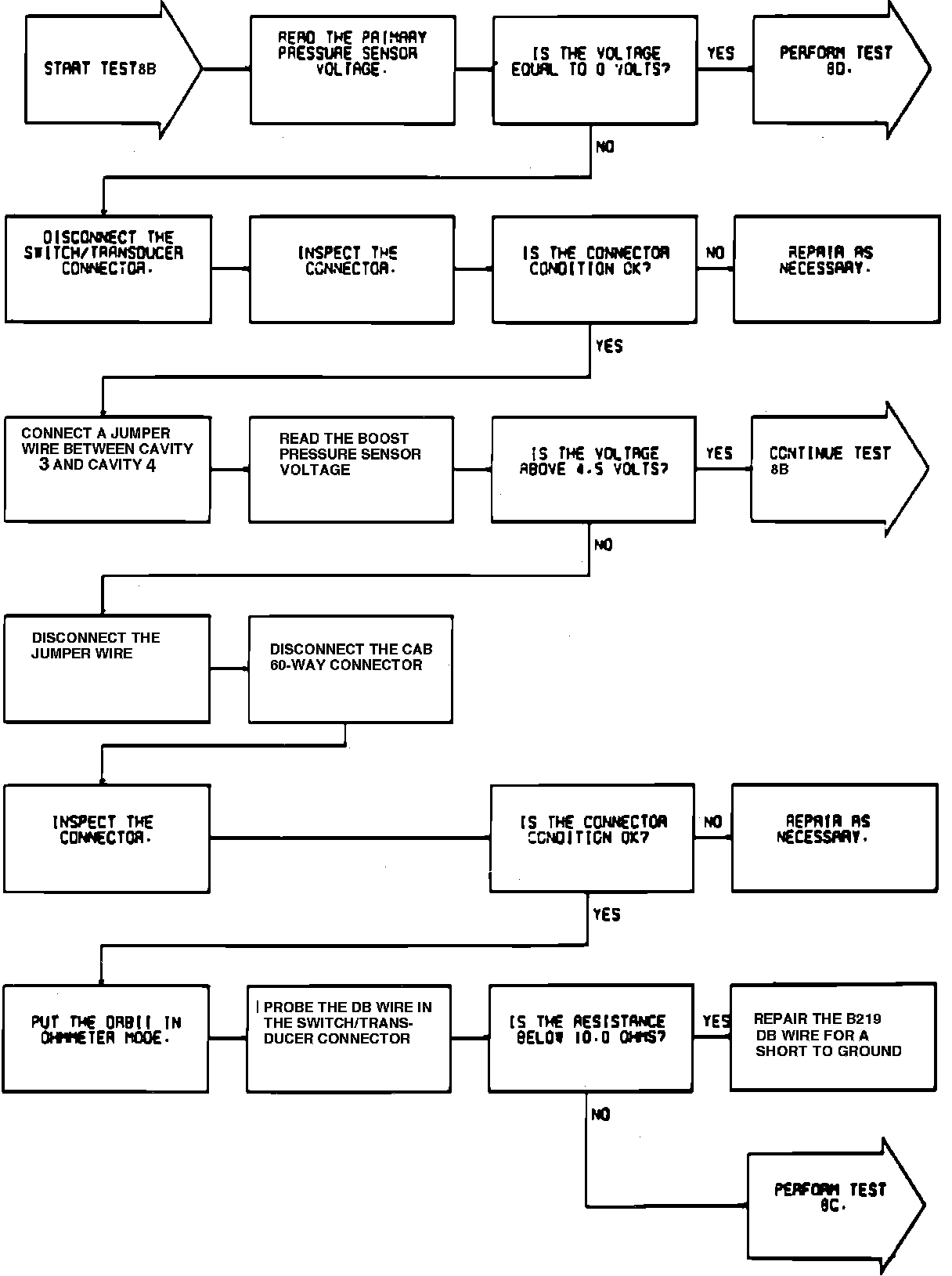

Fig. 56 Test 8B--Boost Pressure Fault (Part 1 Of 3):

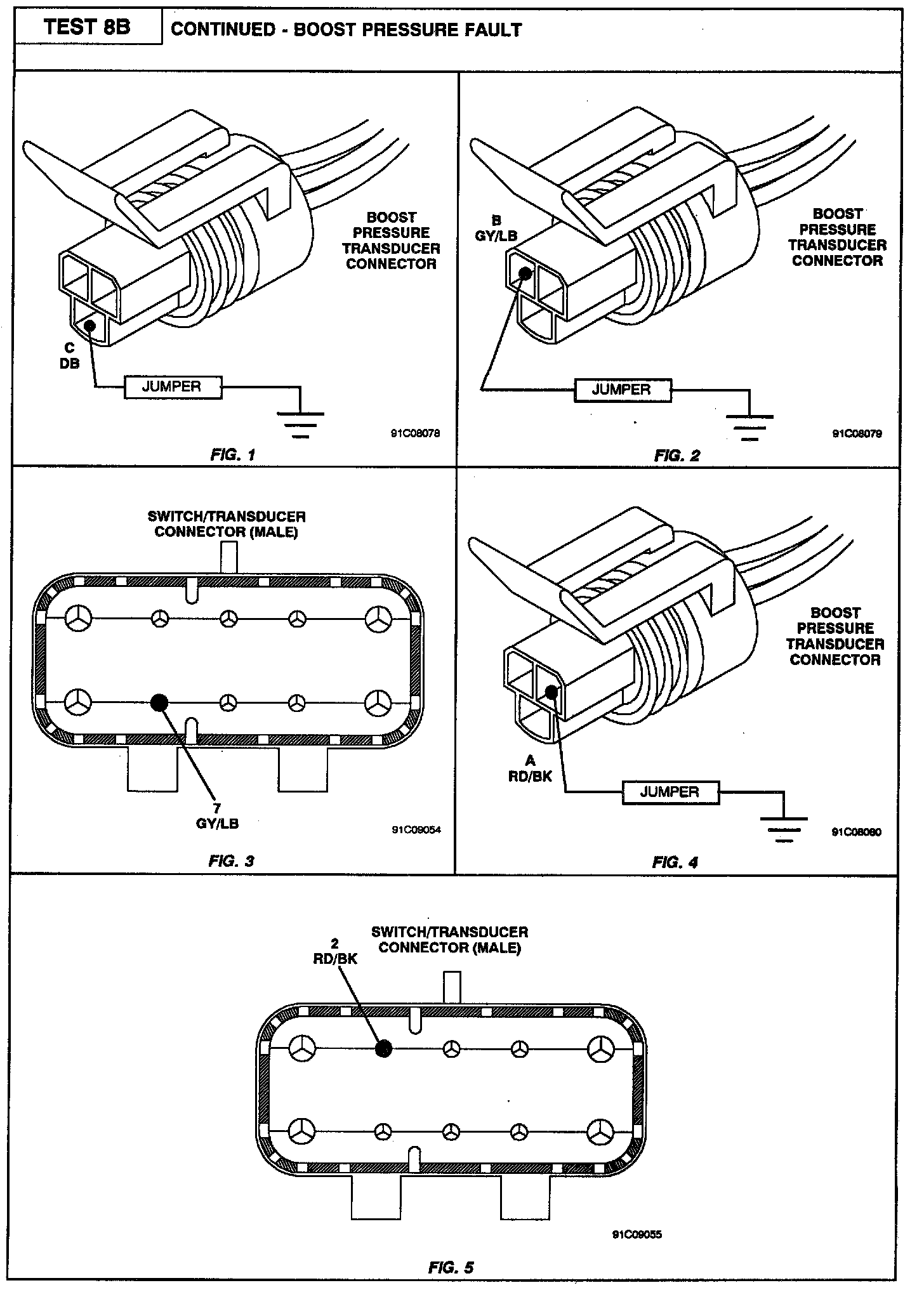

Fig. 56 Test 8B--Boost Pressure Fault (Part 2 Of 3):

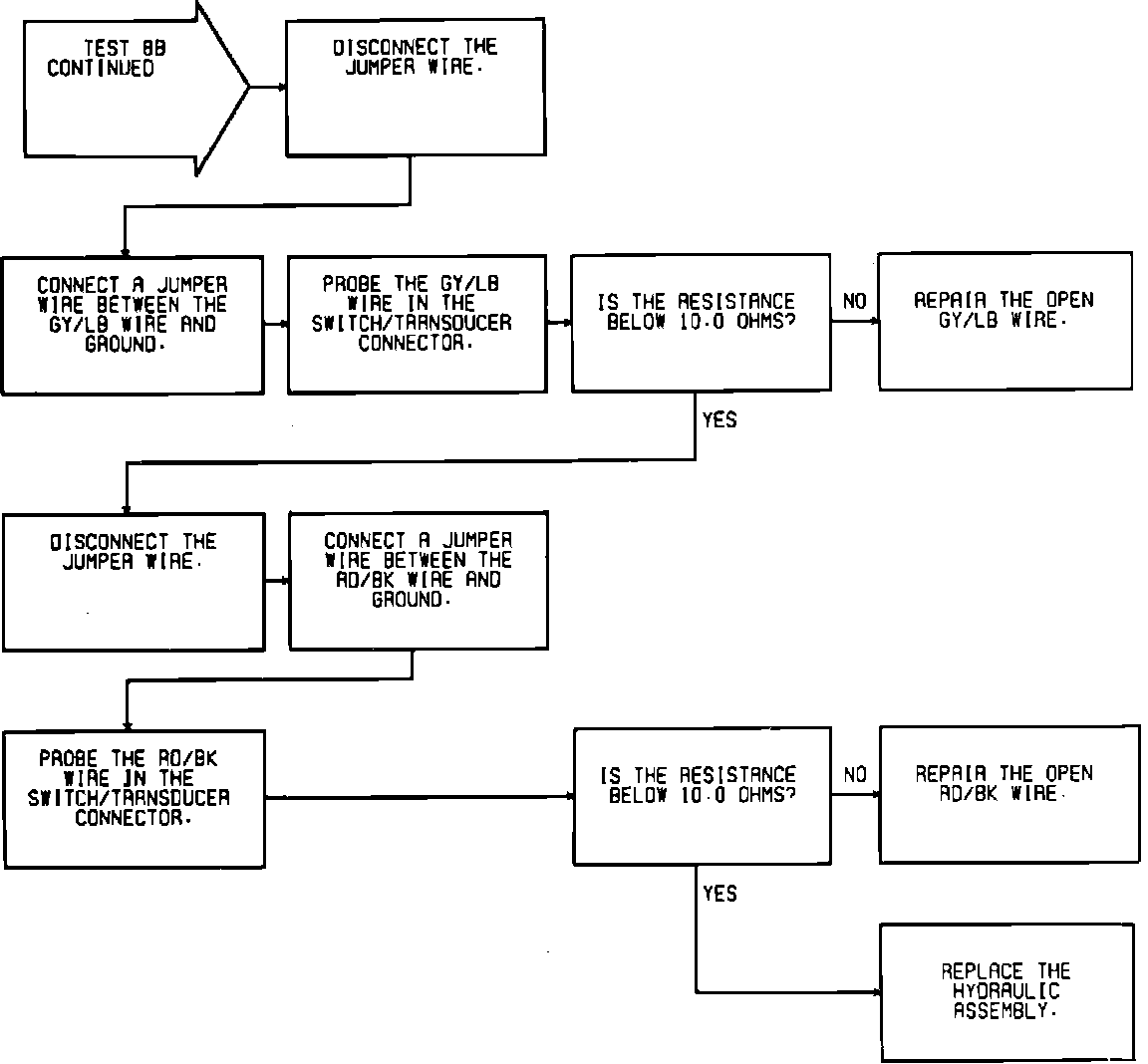

Fig. 56 Test 8B--Boost Pressure Fault (Part 3 Of 3):

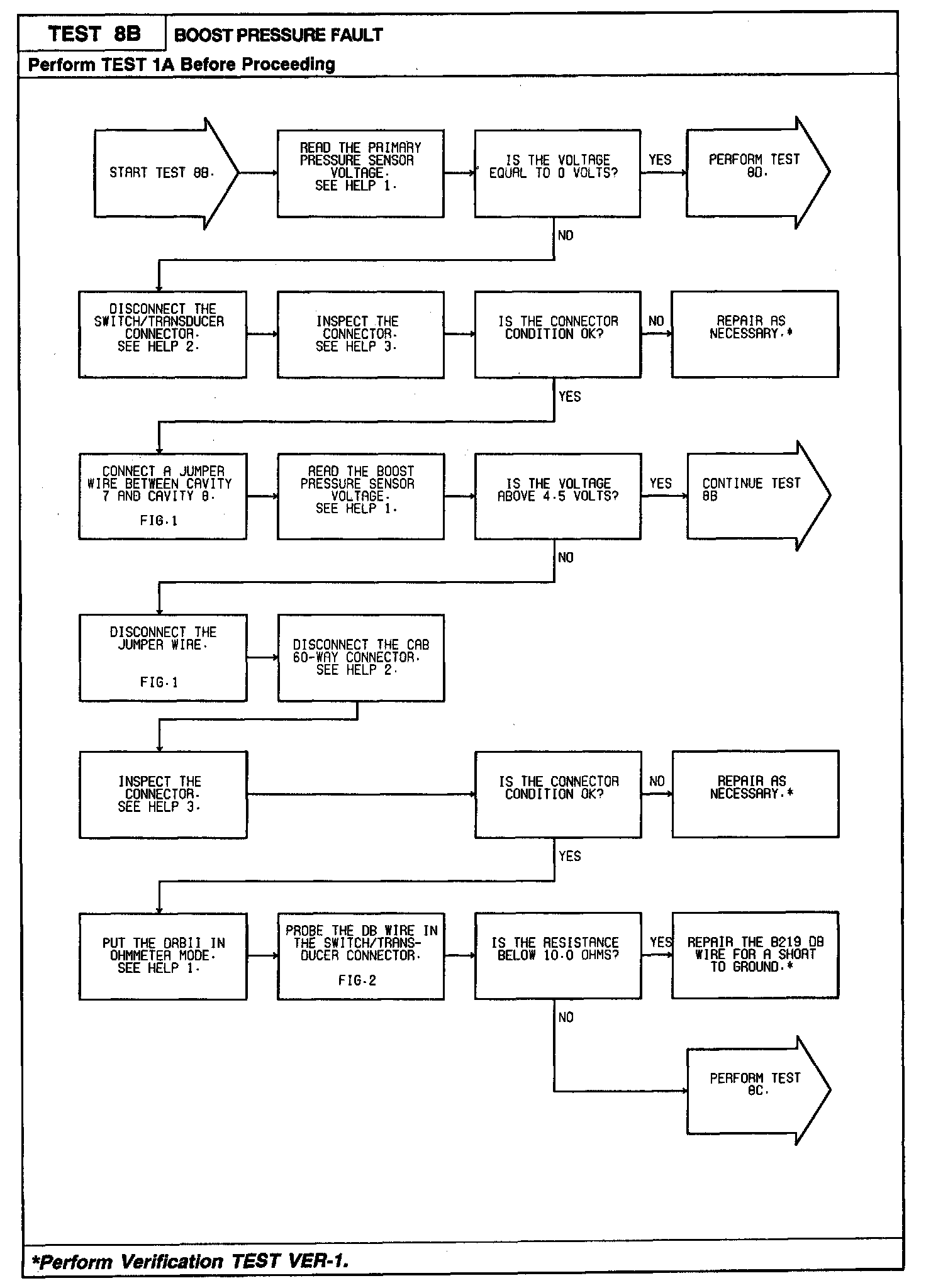

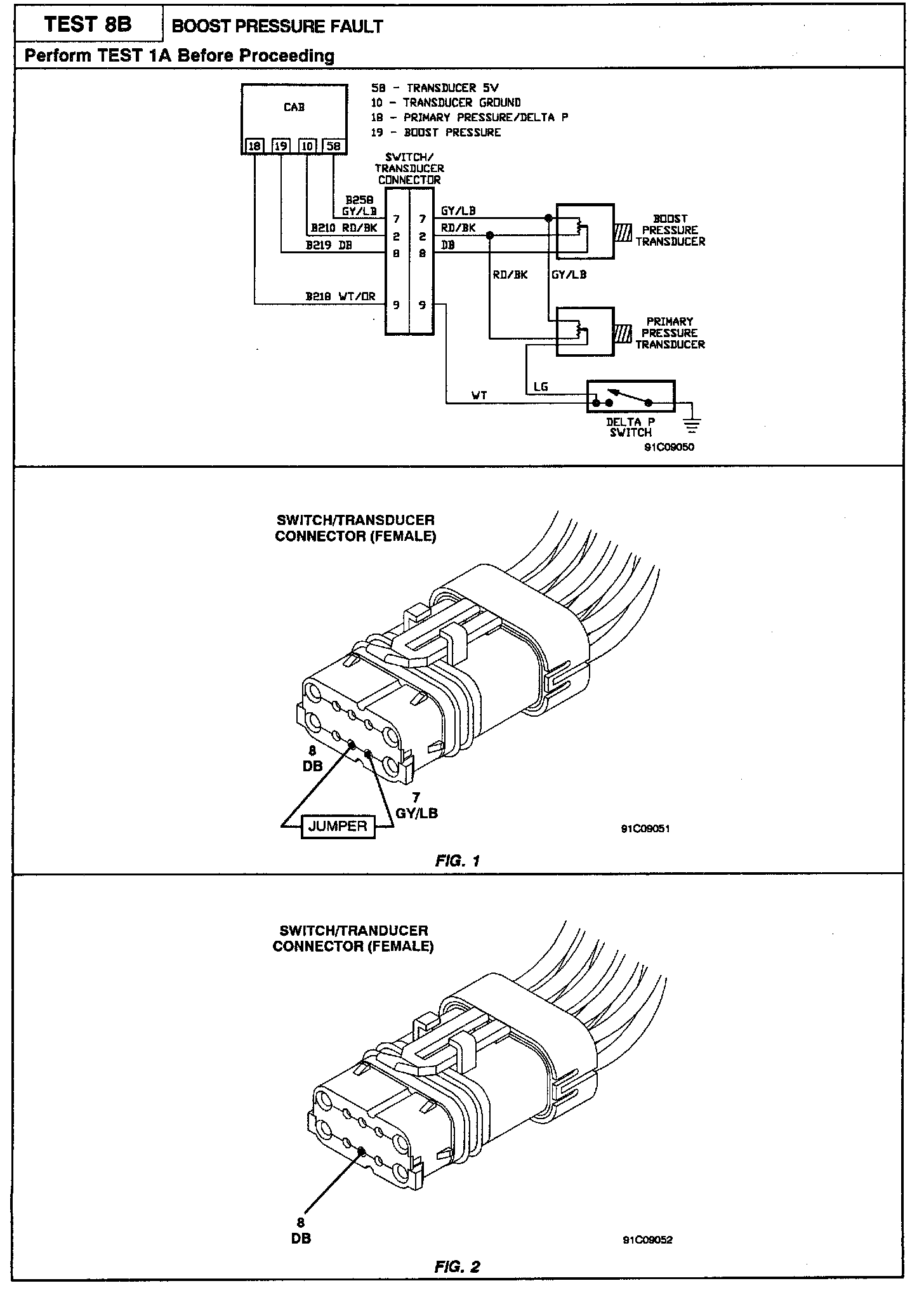

Fig. 114 Test 8B Part 1 Of 2:

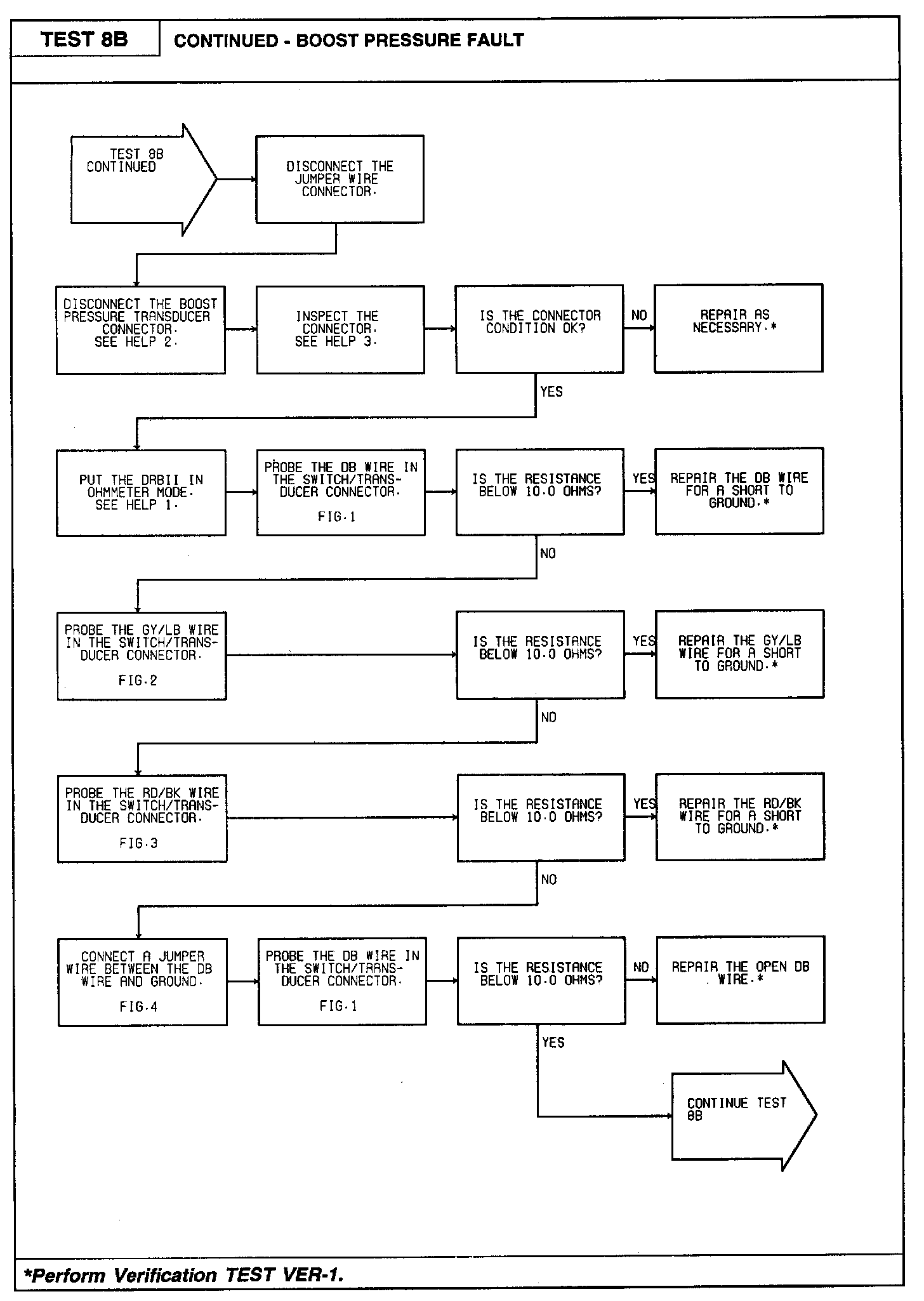

Fig. 114 Test 8B Part 2 Of 2:
