Test 7A - Low Accumulator Fault

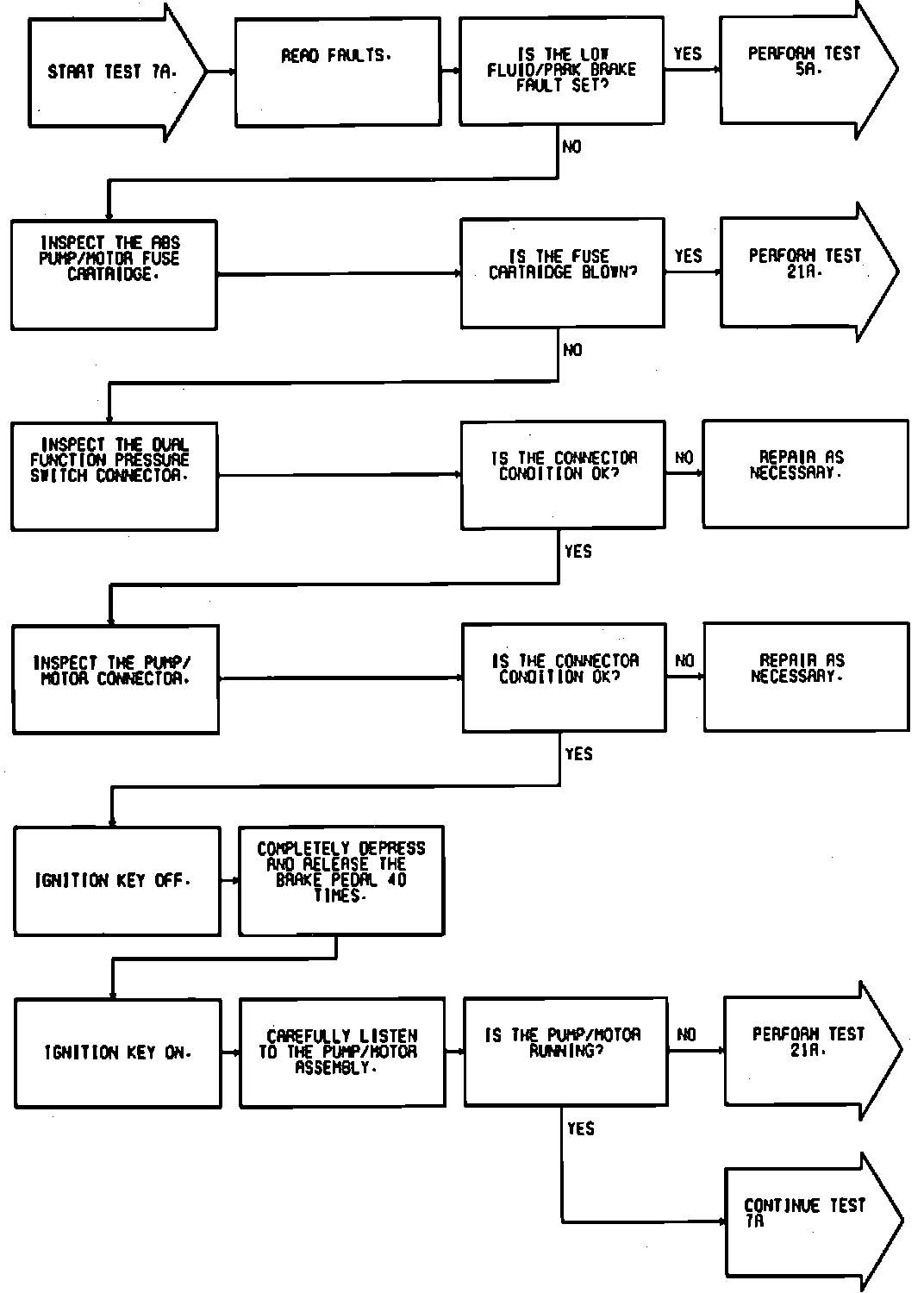

Fig. 52 Test 7A--Low Accumulator Fault (Part 1 Of 2):

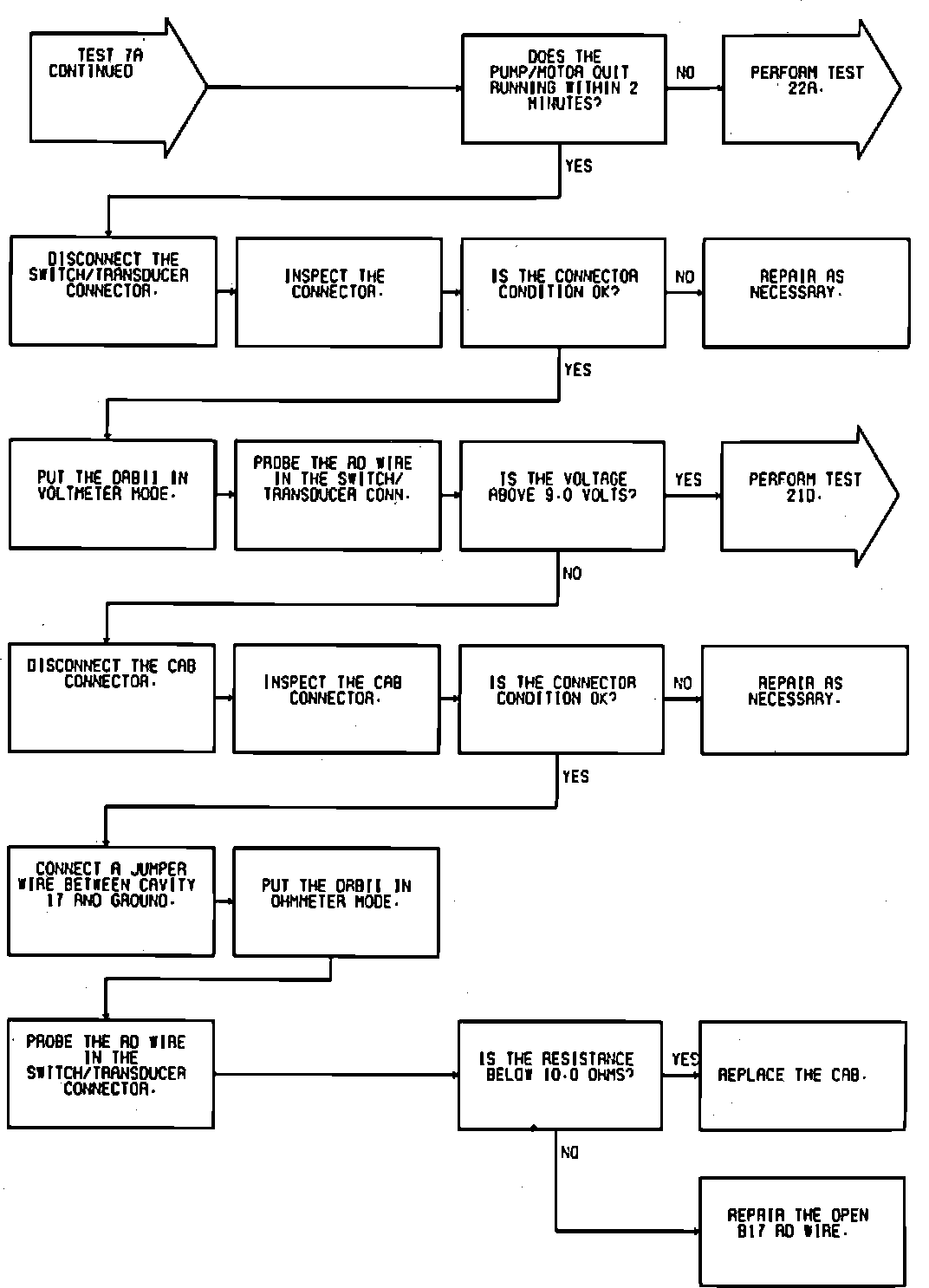

Fig. 52 Test 7A--Low Accumulator Fault (Part 2 Of 2):
