Home >> Chrysler >> 1990 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Diagnostic Charts (By Test or Chart Number) >> Test 5 - Low Fluid/Parking Brake Fault >> Test 5D

Test 5D

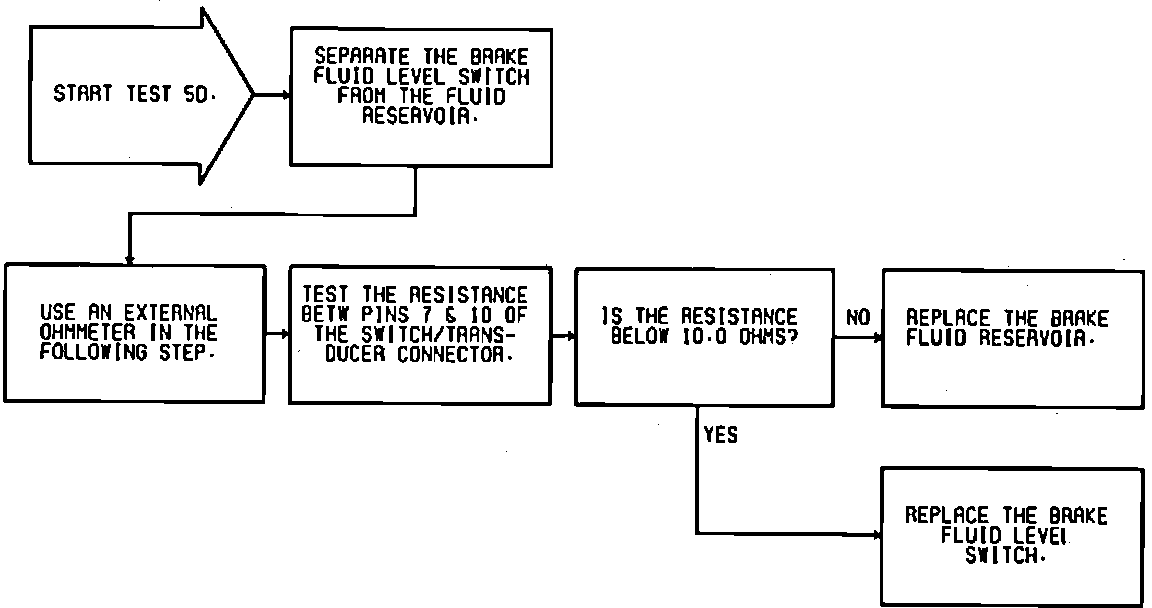

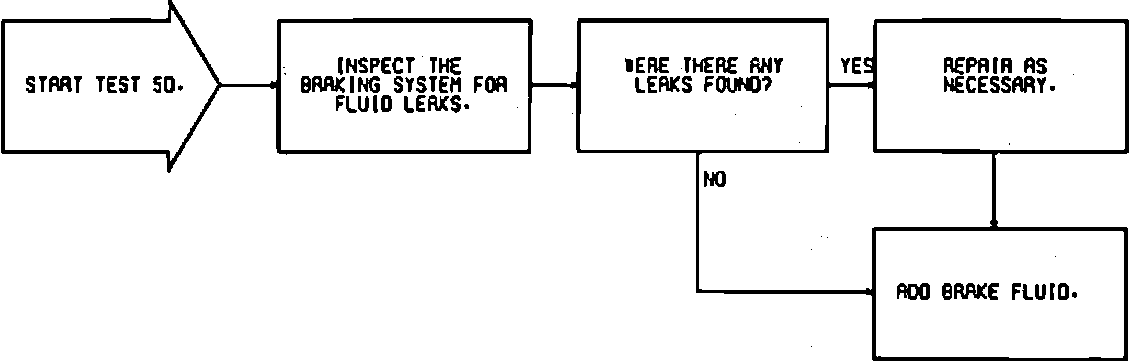

Fig. 44 Test 5D--Low Fluid/Park Brake Fault:

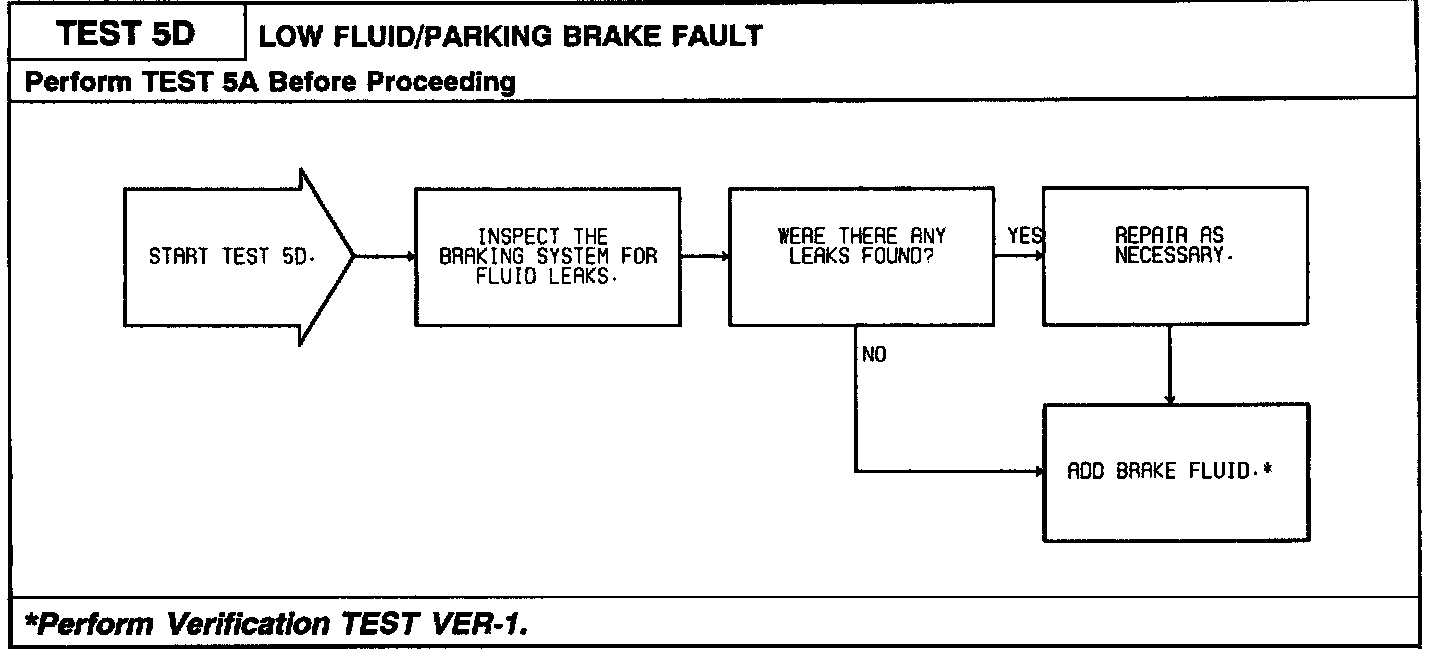

Fig. 45 Test 5D--Low Fluid/Park Brake Fault:
