Test 5C

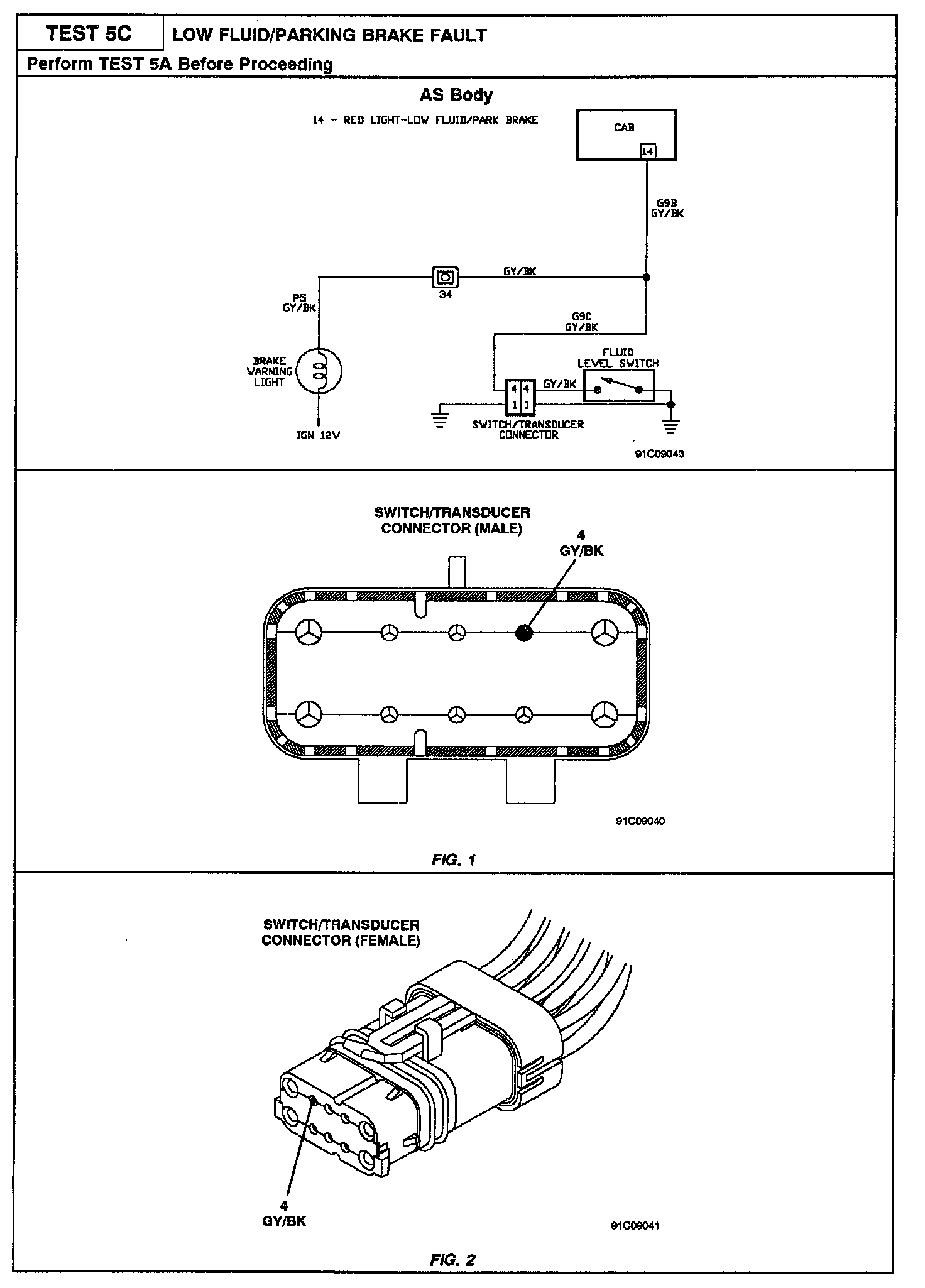

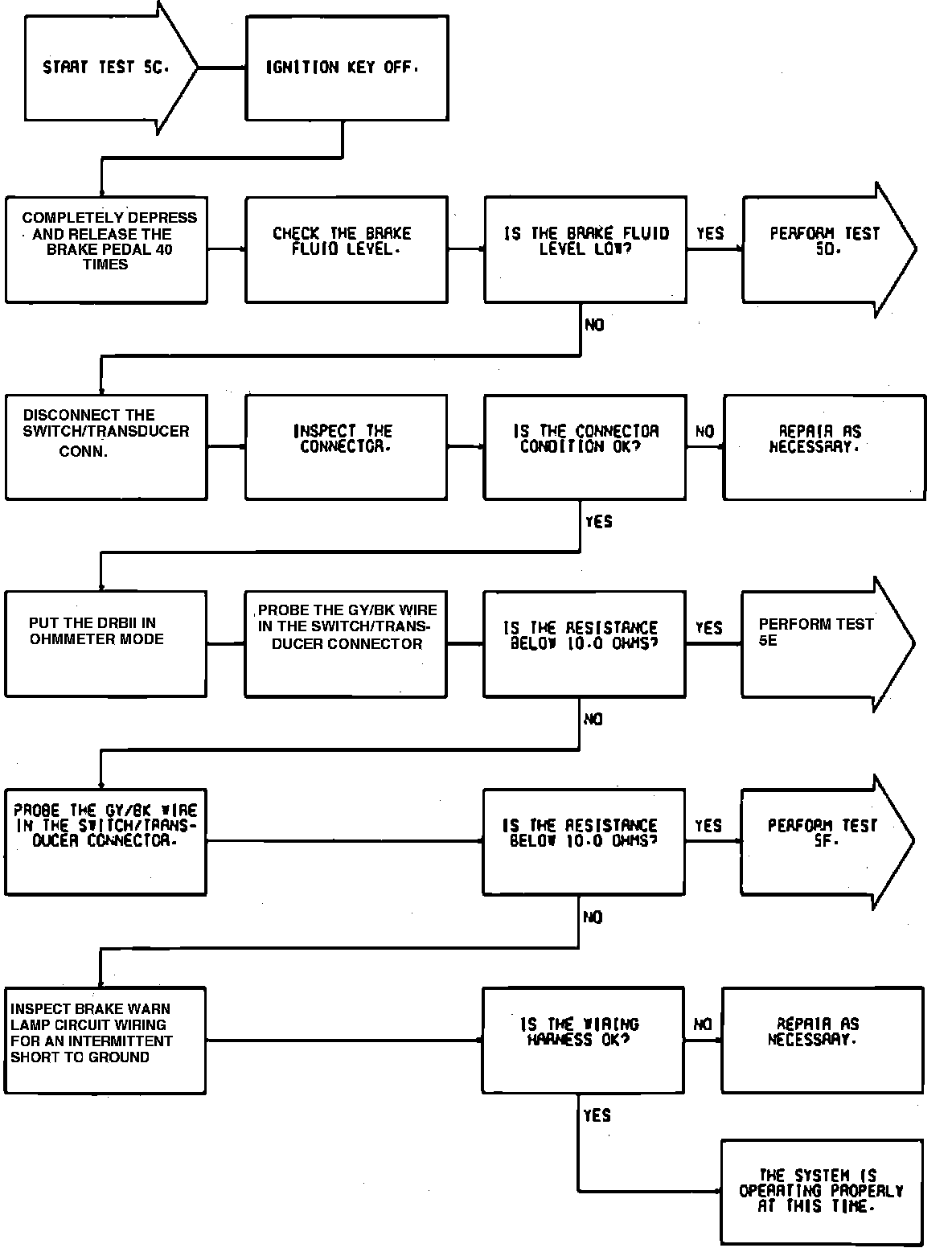

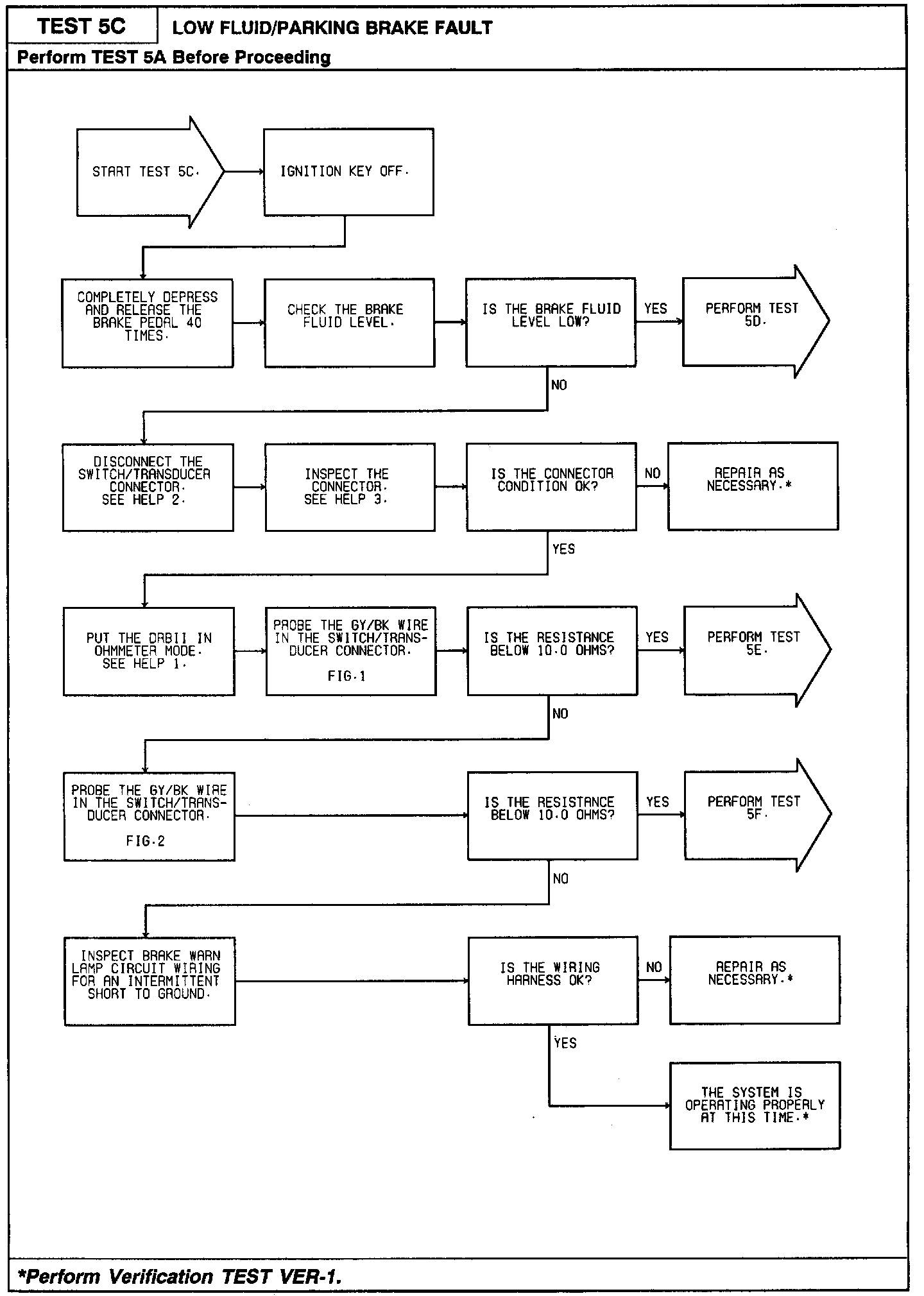

Fig. 42 Test 5C--Low Fluid/Park Brake Fault:



Fig. 43 Test 5C--Low Fluid/Park Brake Fault:
