Test 5B

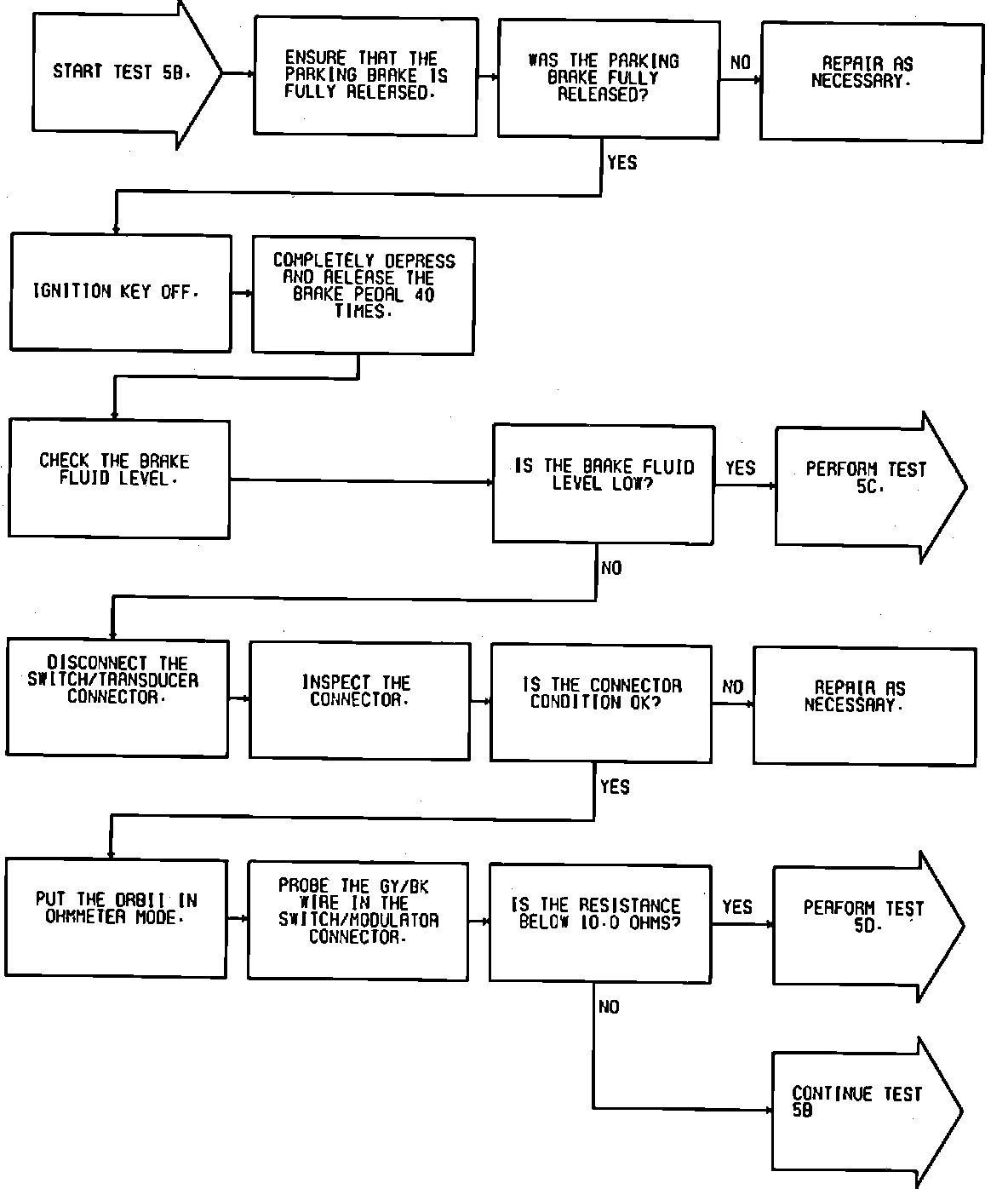

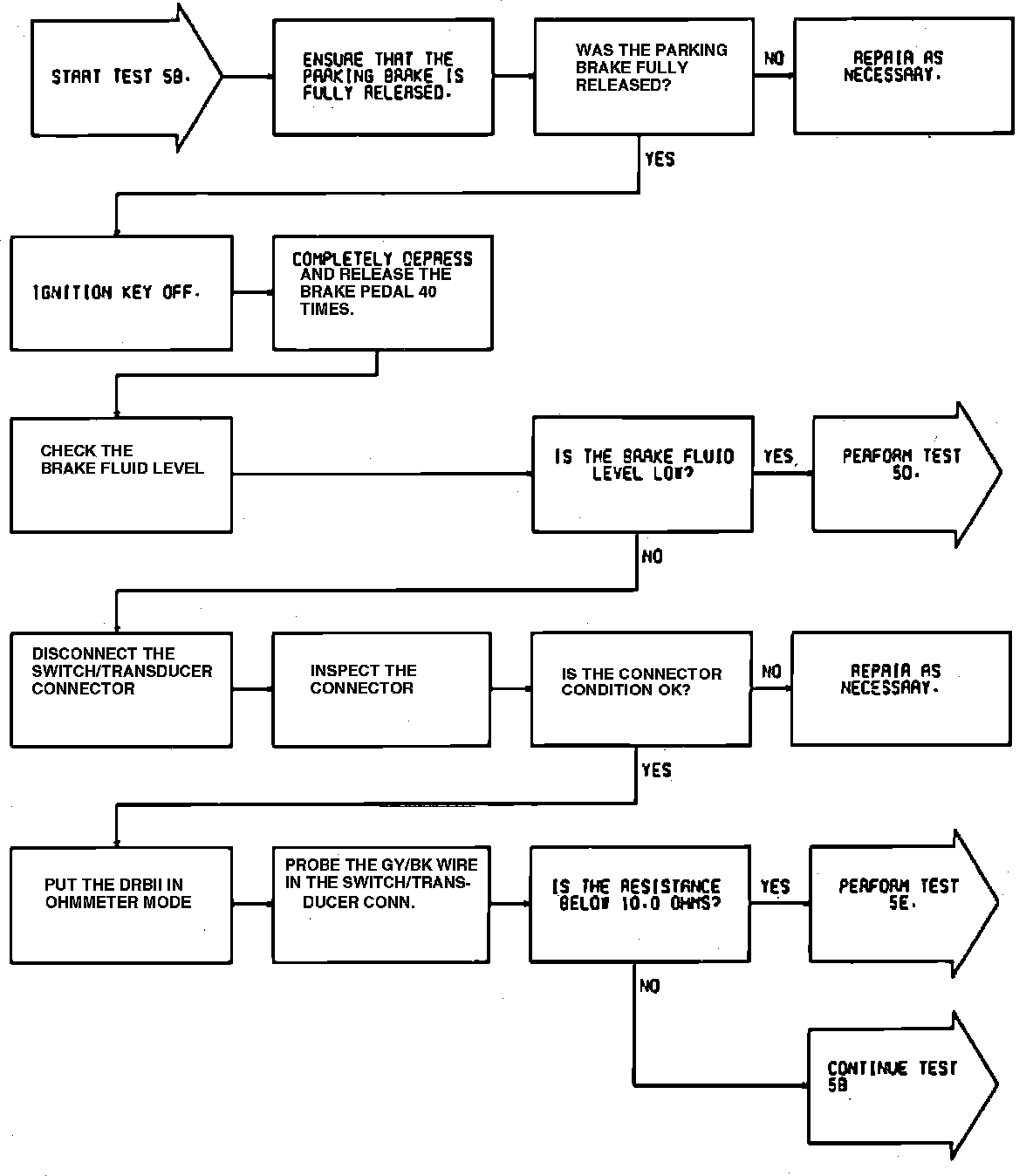

Fig. 40 Test 5B--Low Fluid/Park Brake Fault (Part 1 Of 3):

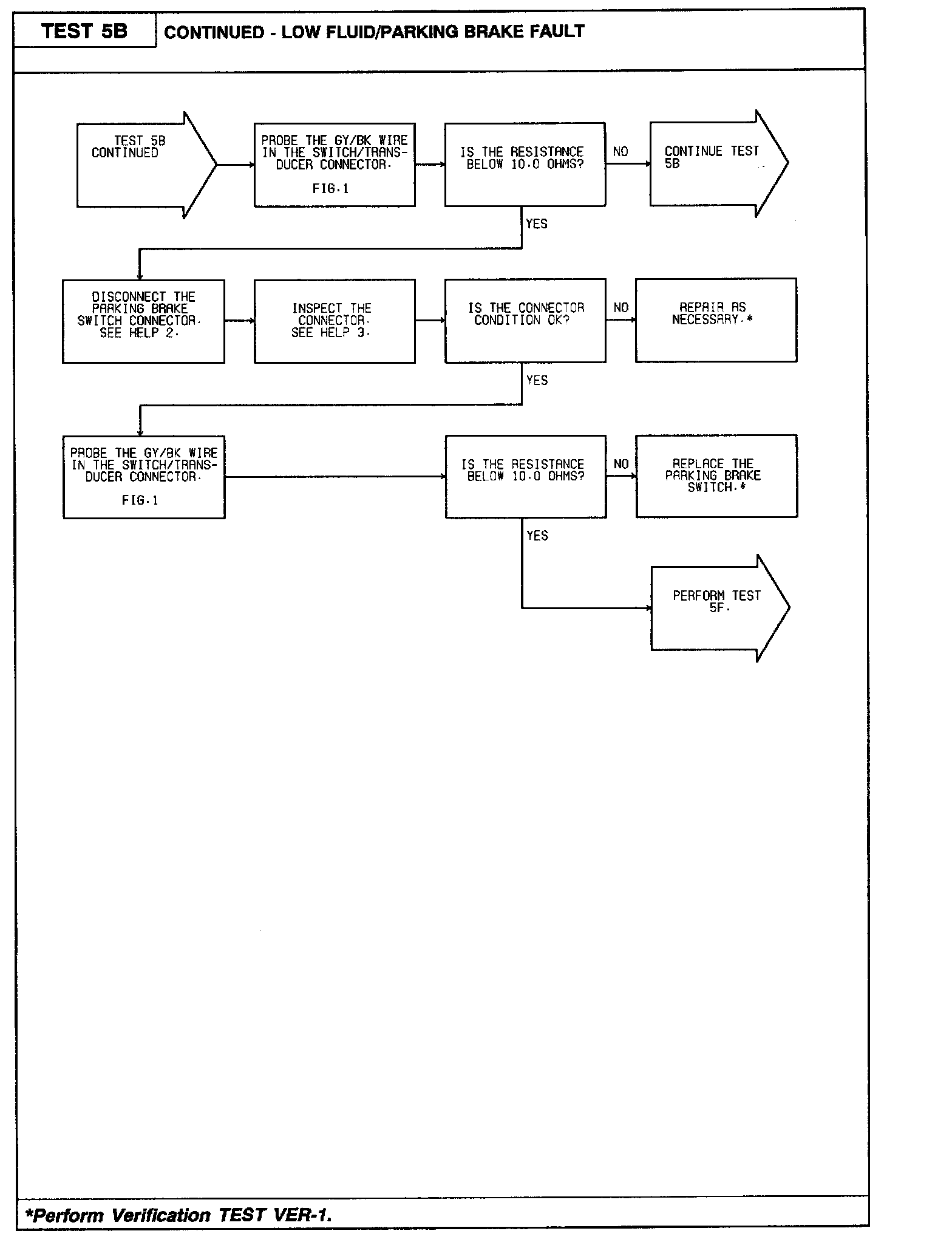

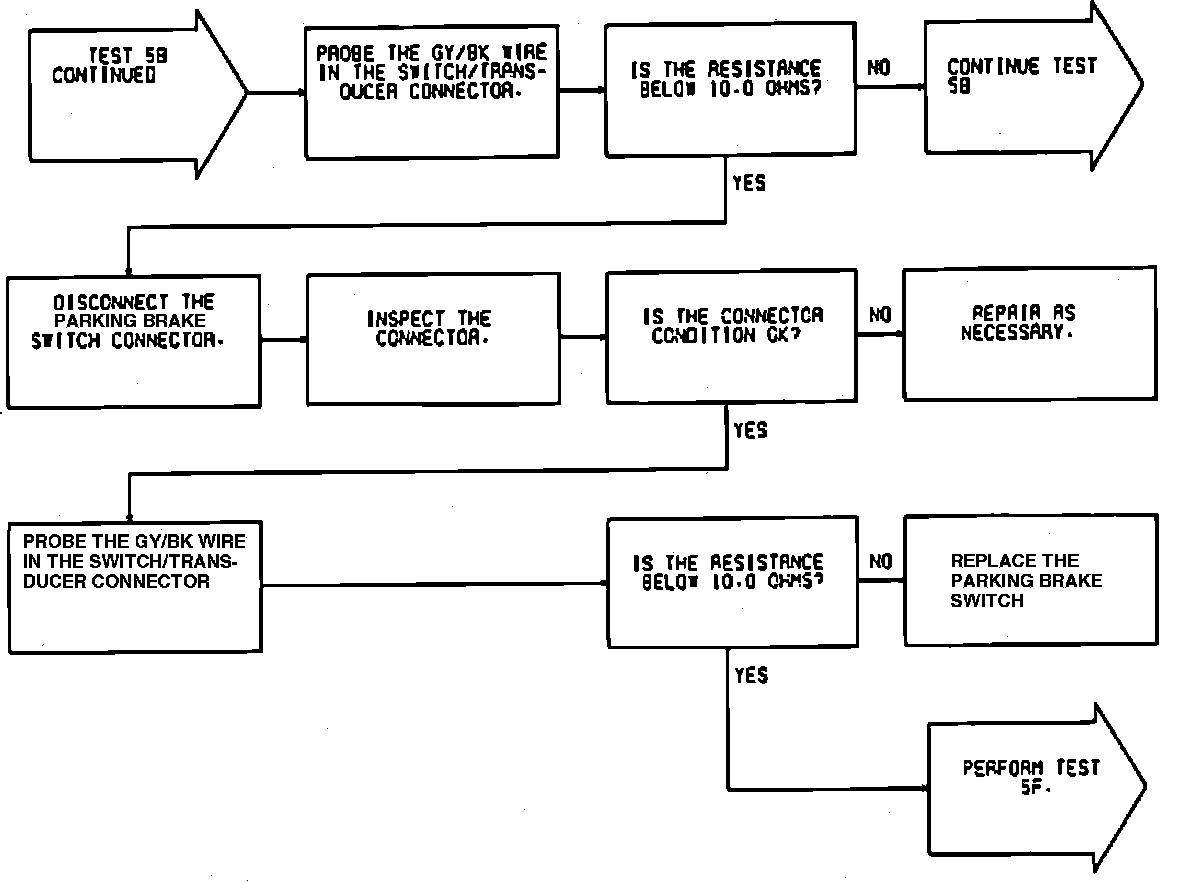

Fig. 40 Test 5B--Low Fluid/Park Brake Fault (Part 2 Of 3):

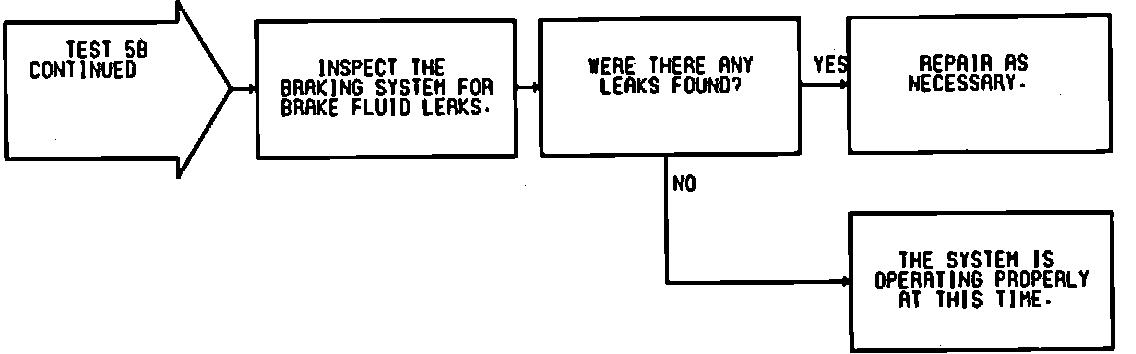

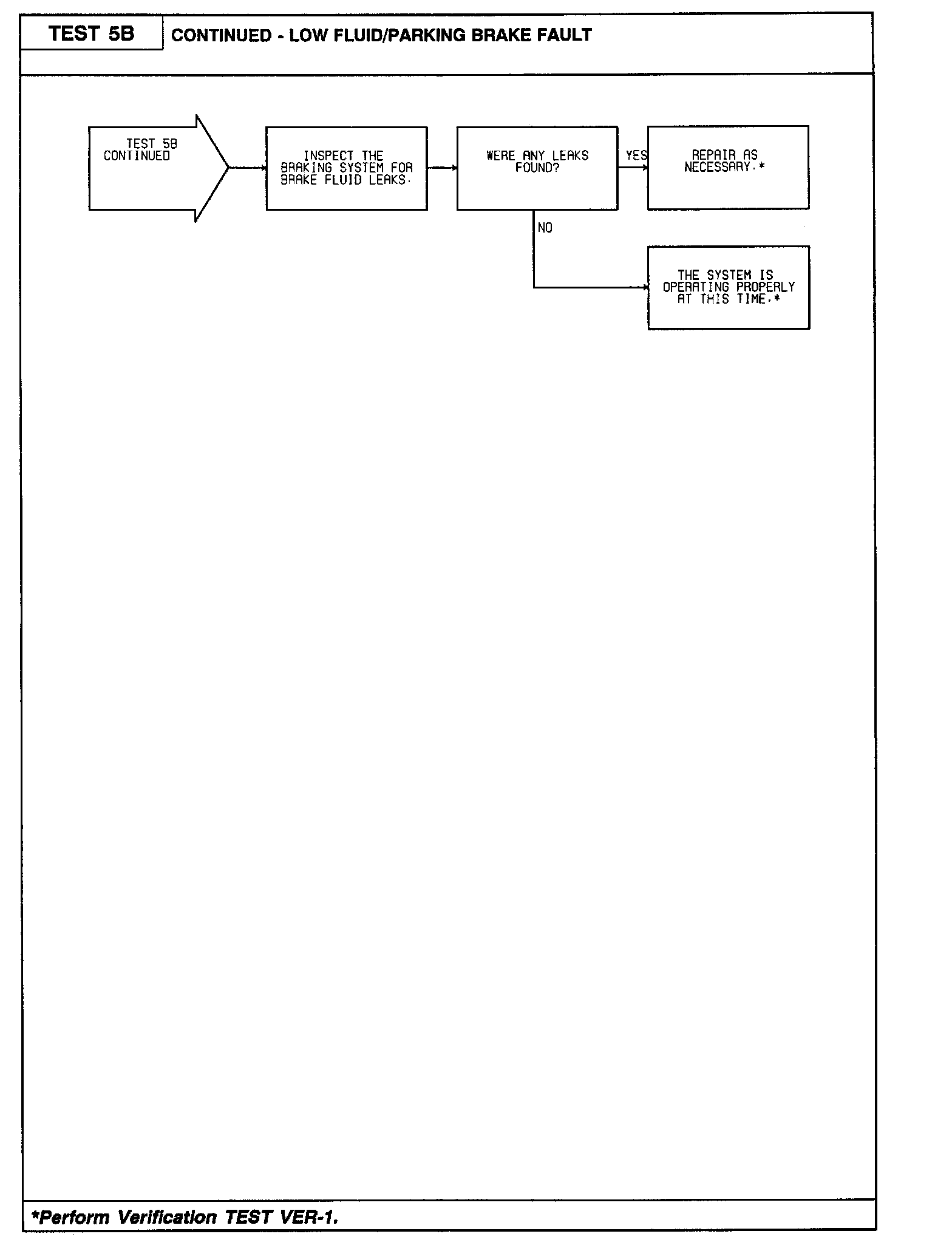

Fig. 40 Test 5B--Low Fluid/Park Brake Fault (Part 3 Of 3):

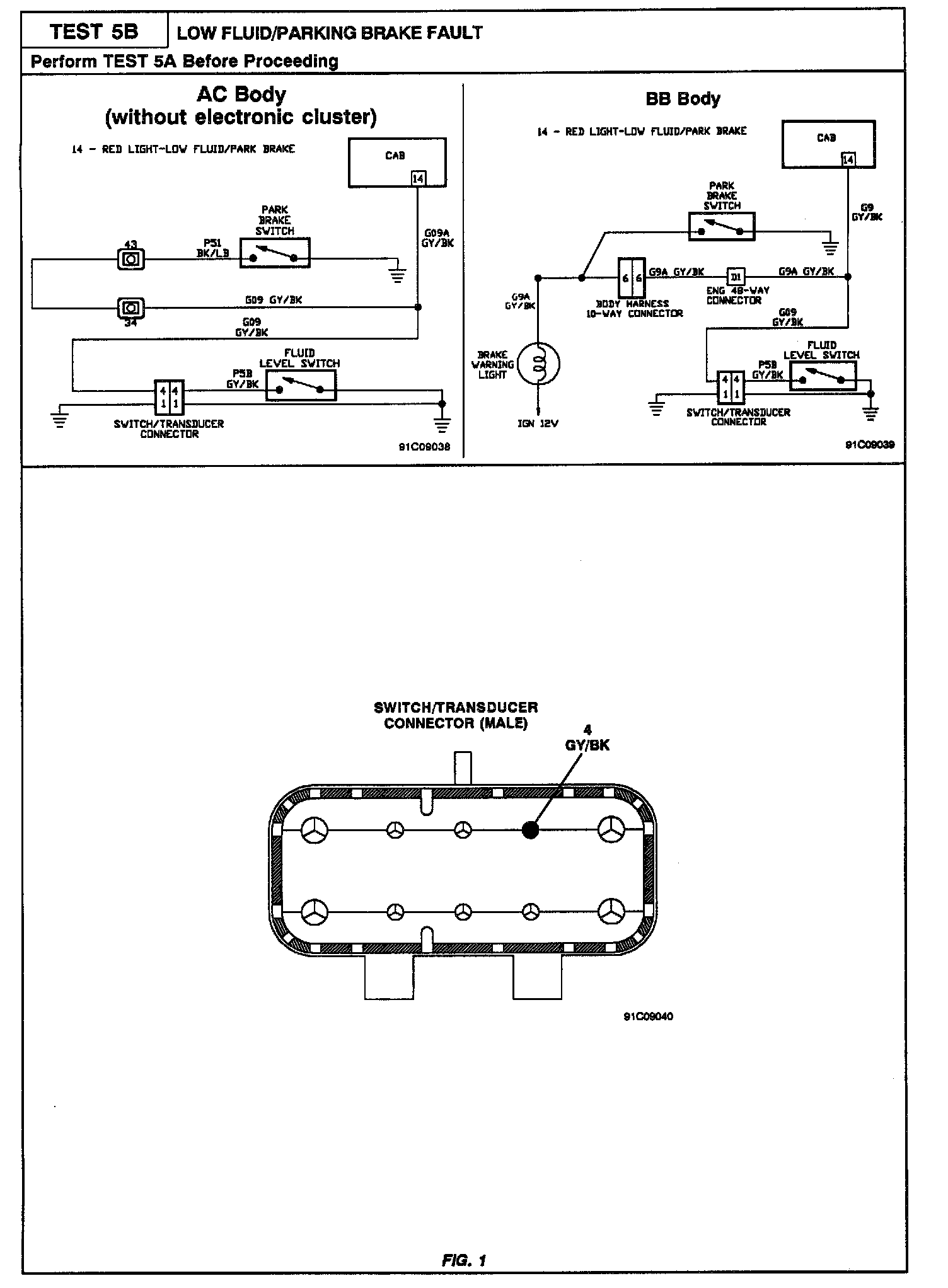

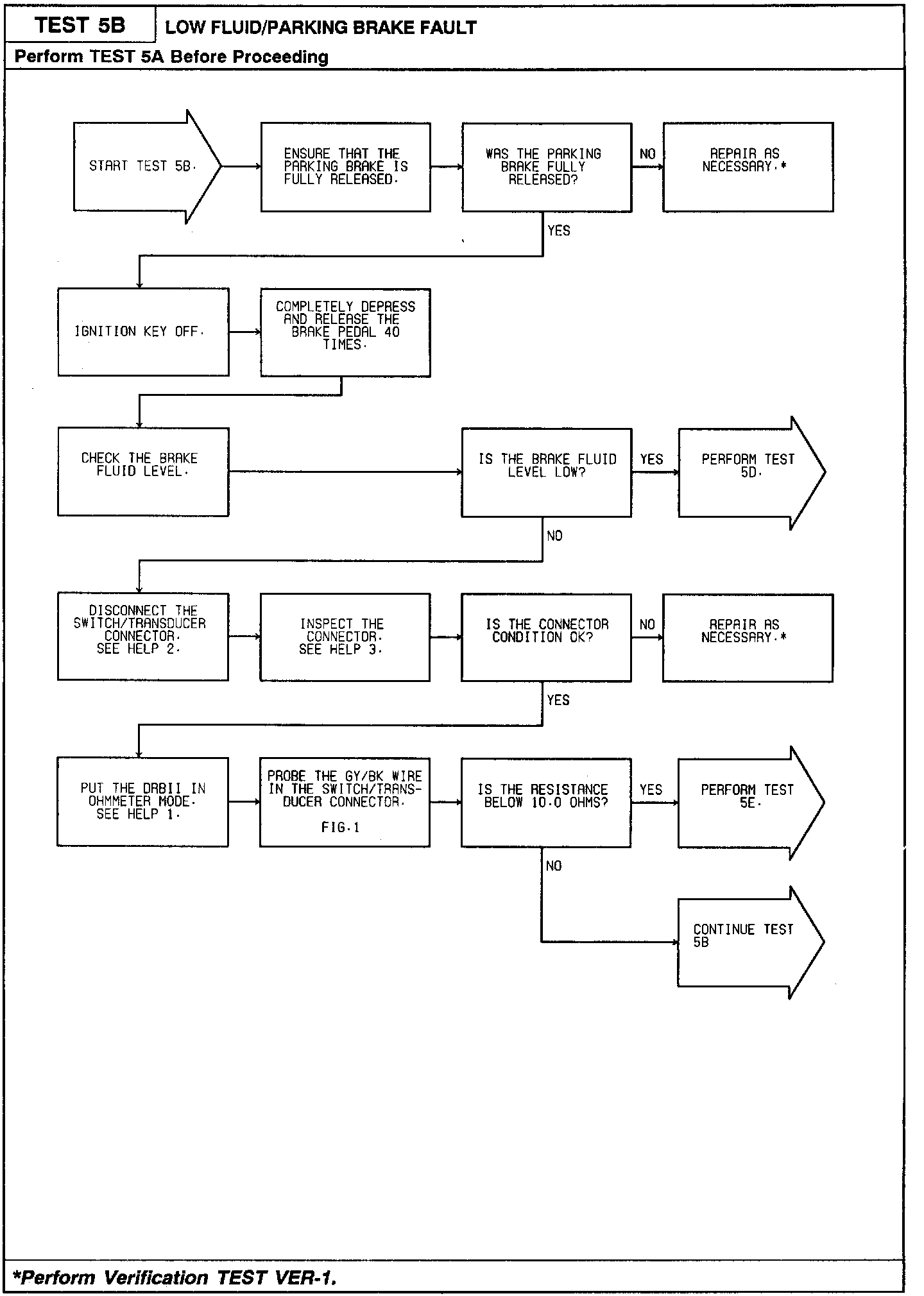

Fig. 41 Test 5B--Low Fluid/Park Brake Fault (Part 1 Of 3):

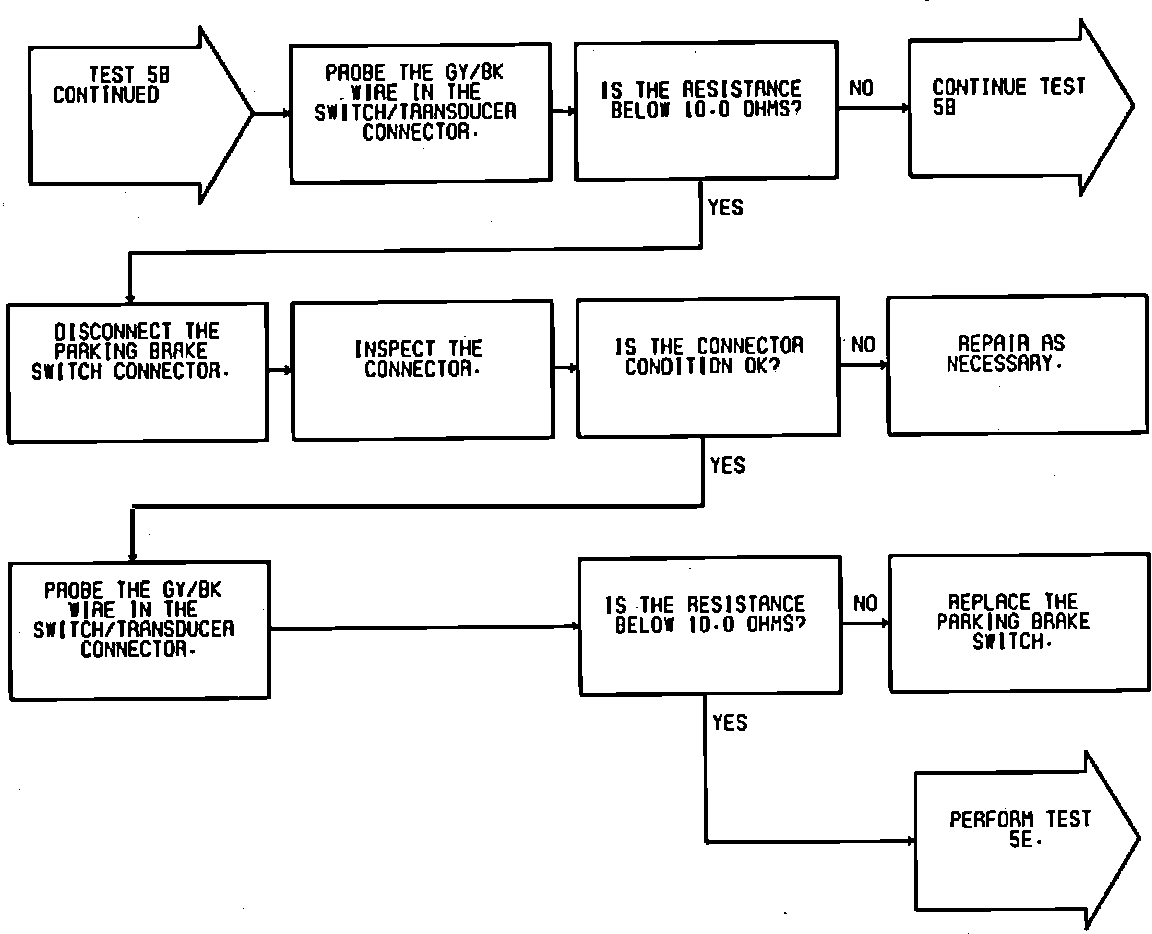

Fig. 41 Test 5B--Low Fluid/Park Brake Fault (Part 2 Of 3):

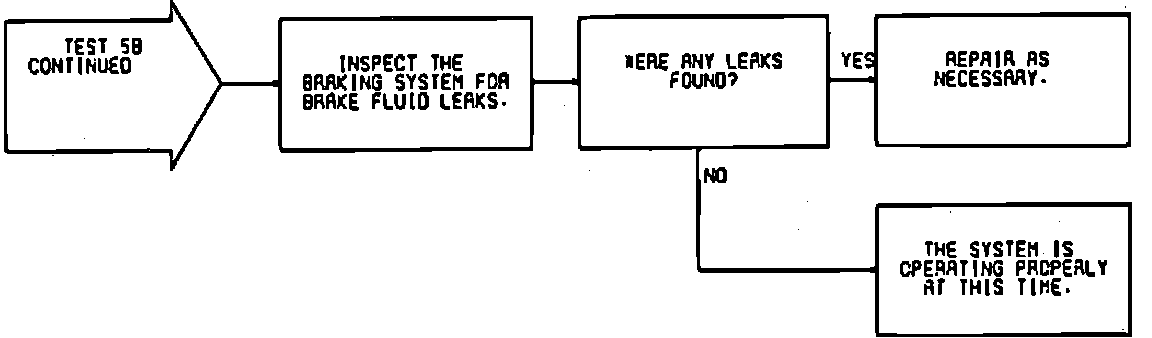

Fig. 41 Test 5B--Low Fluid/Park Brake Fault (Part 3 Of 3):
