Test 3L - Left Front Build Valve
Test 3L - Left Front Build Valve

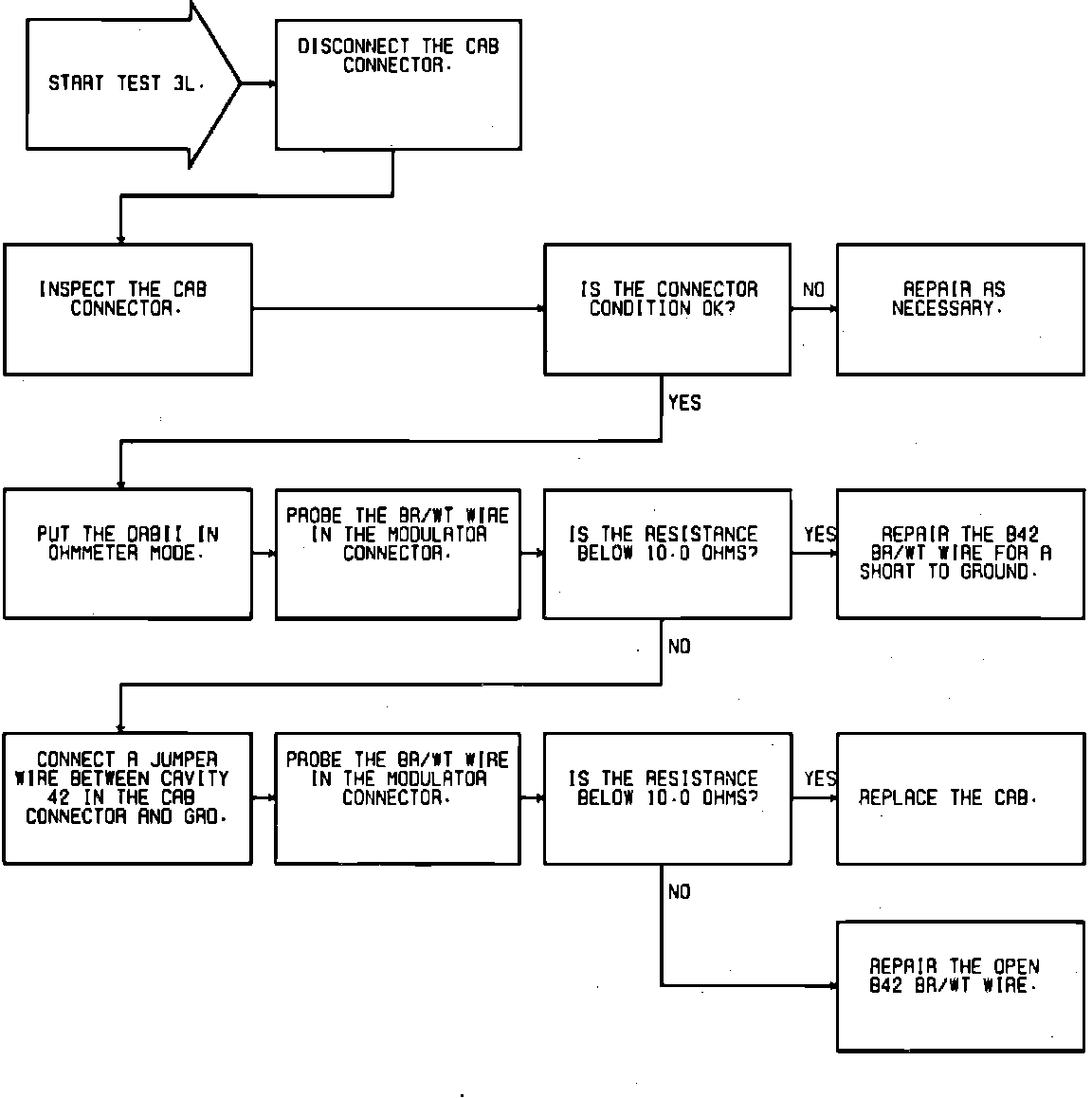

Fig. 32 Test 3L--Left Front Build Valve:
