Test 3D - Right Front Isolation Valve
Test 3D - Right Front Isolation Valve

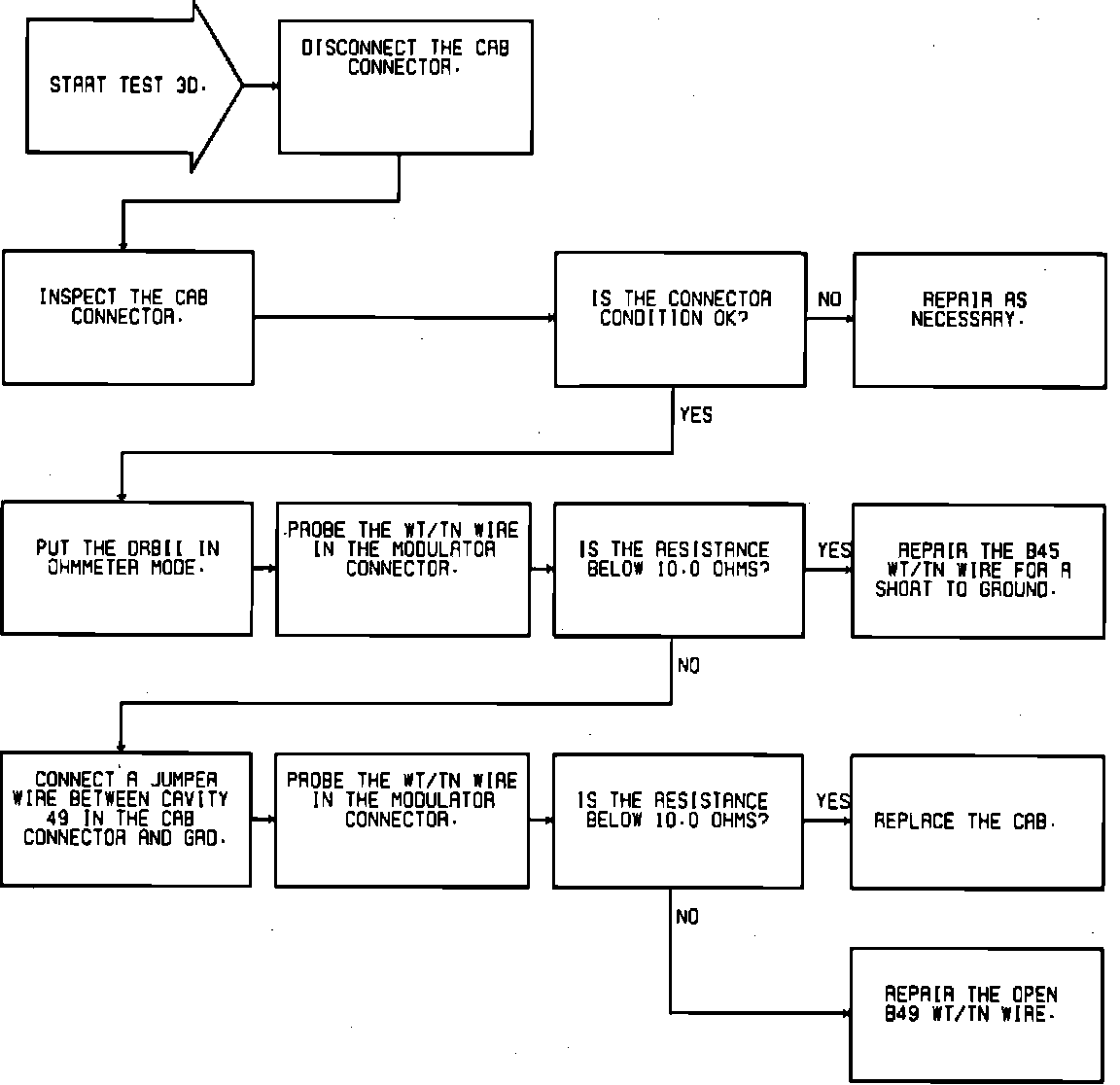

Fig. 18 Test 3D--Right Front Isolation Valve:
