Test 3A - Modulator Fault Message

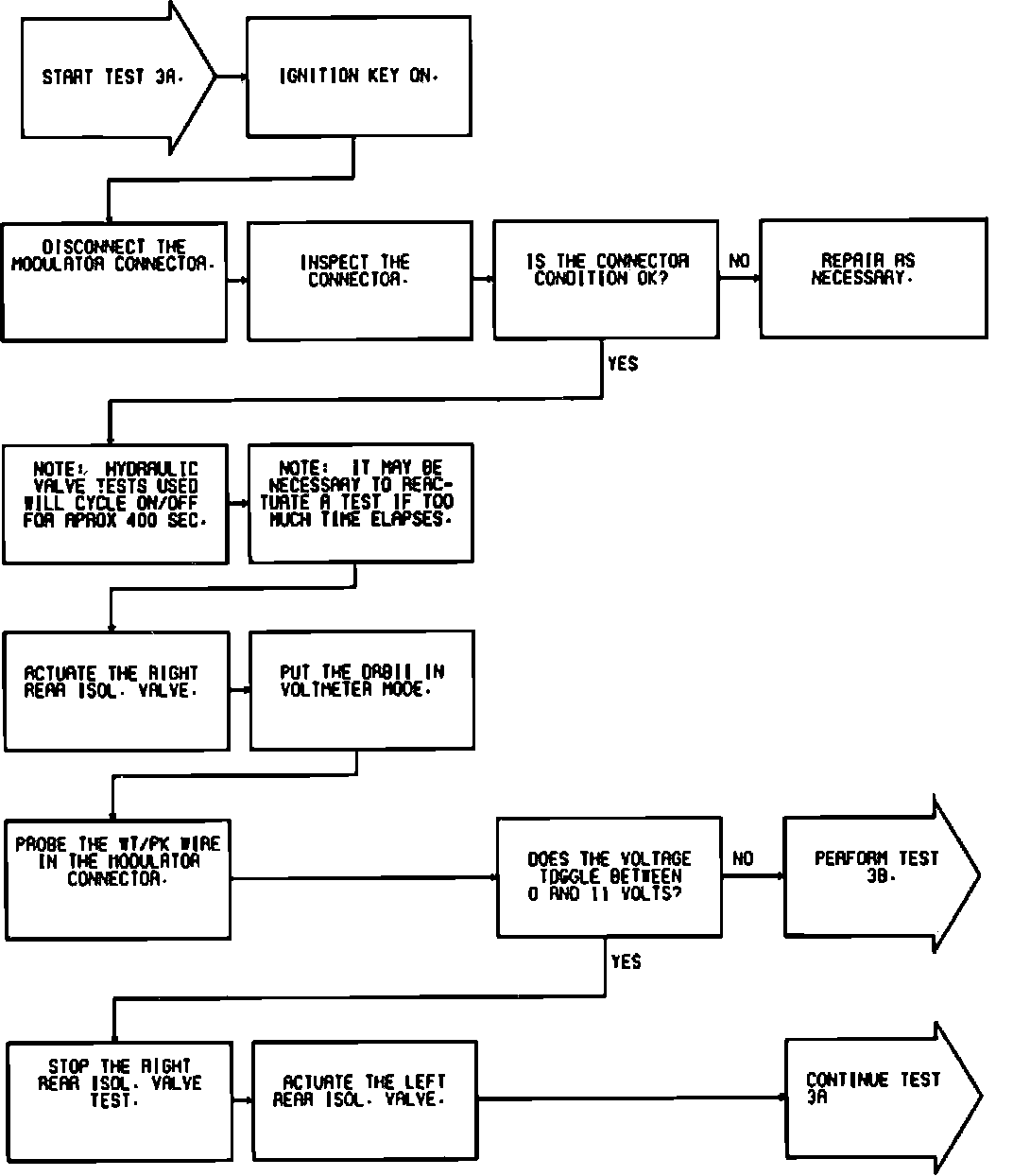

Fig. 12 Test 3A--Modulator Fault Message (Part 1 Of 4):

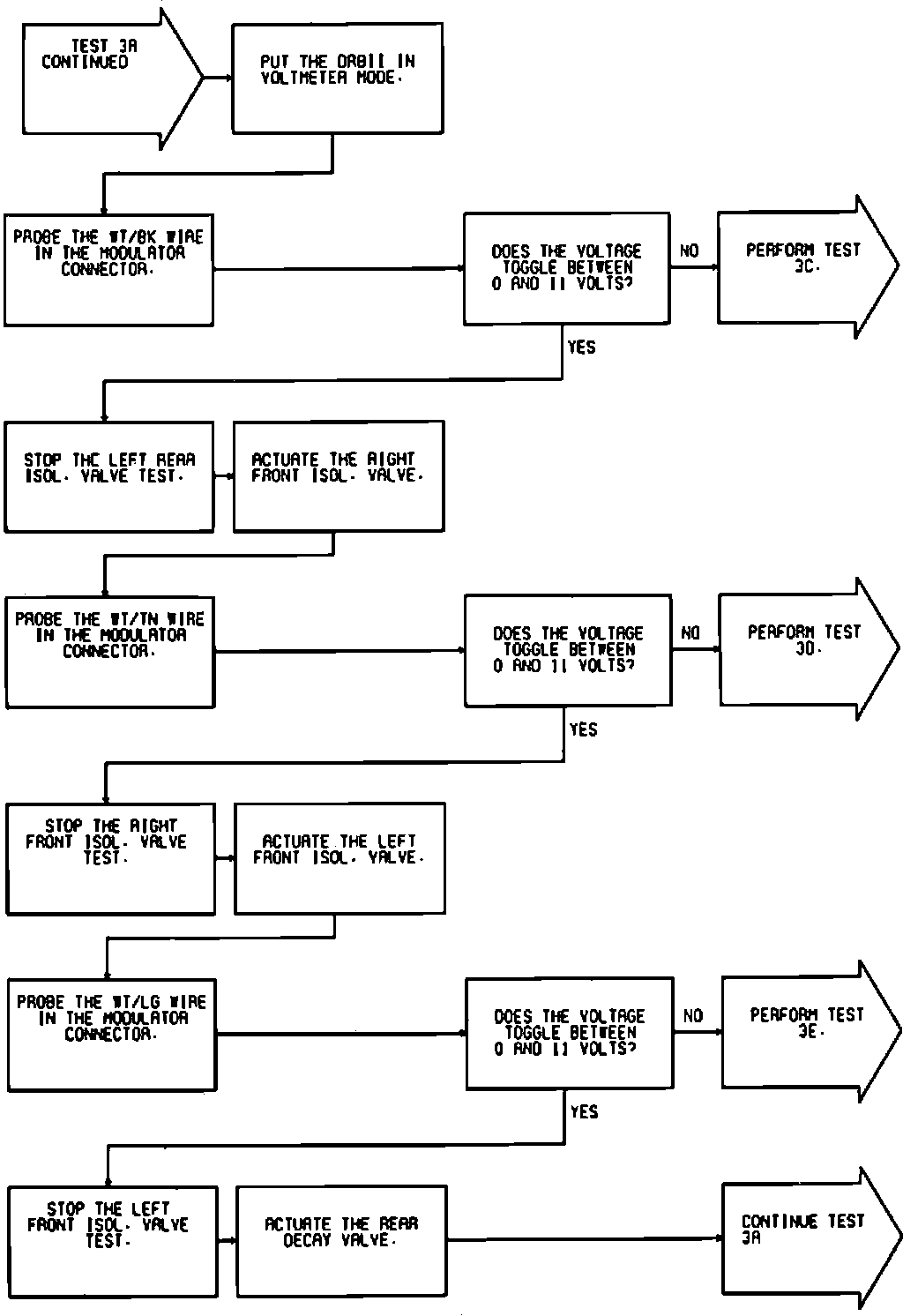

Fig. 12 Test 3A--Modulator Fault Message (Part 2 Of 4):

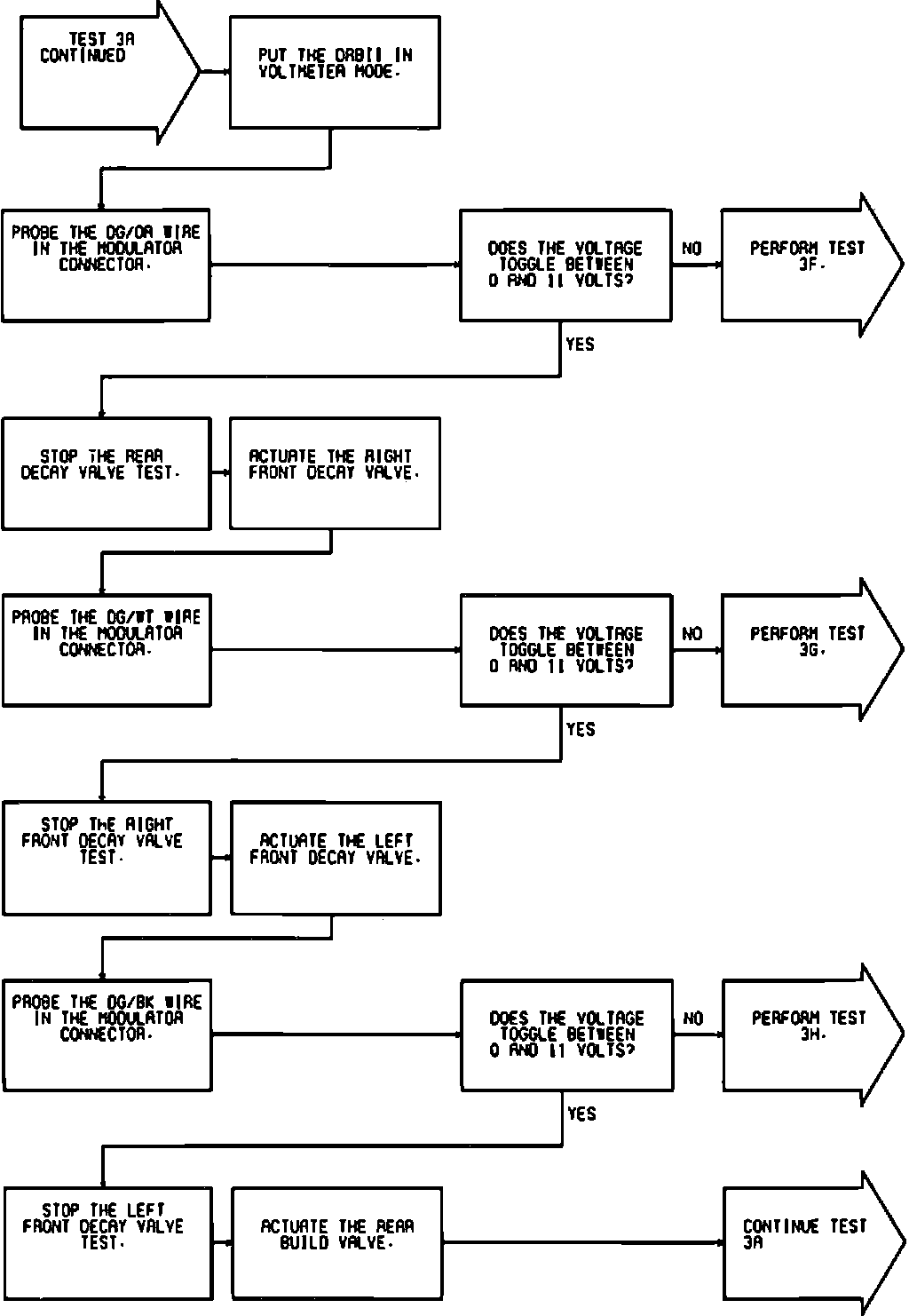

Fig. 12 Test 3A--Modulator Fault Message (Part 3 Of 4):

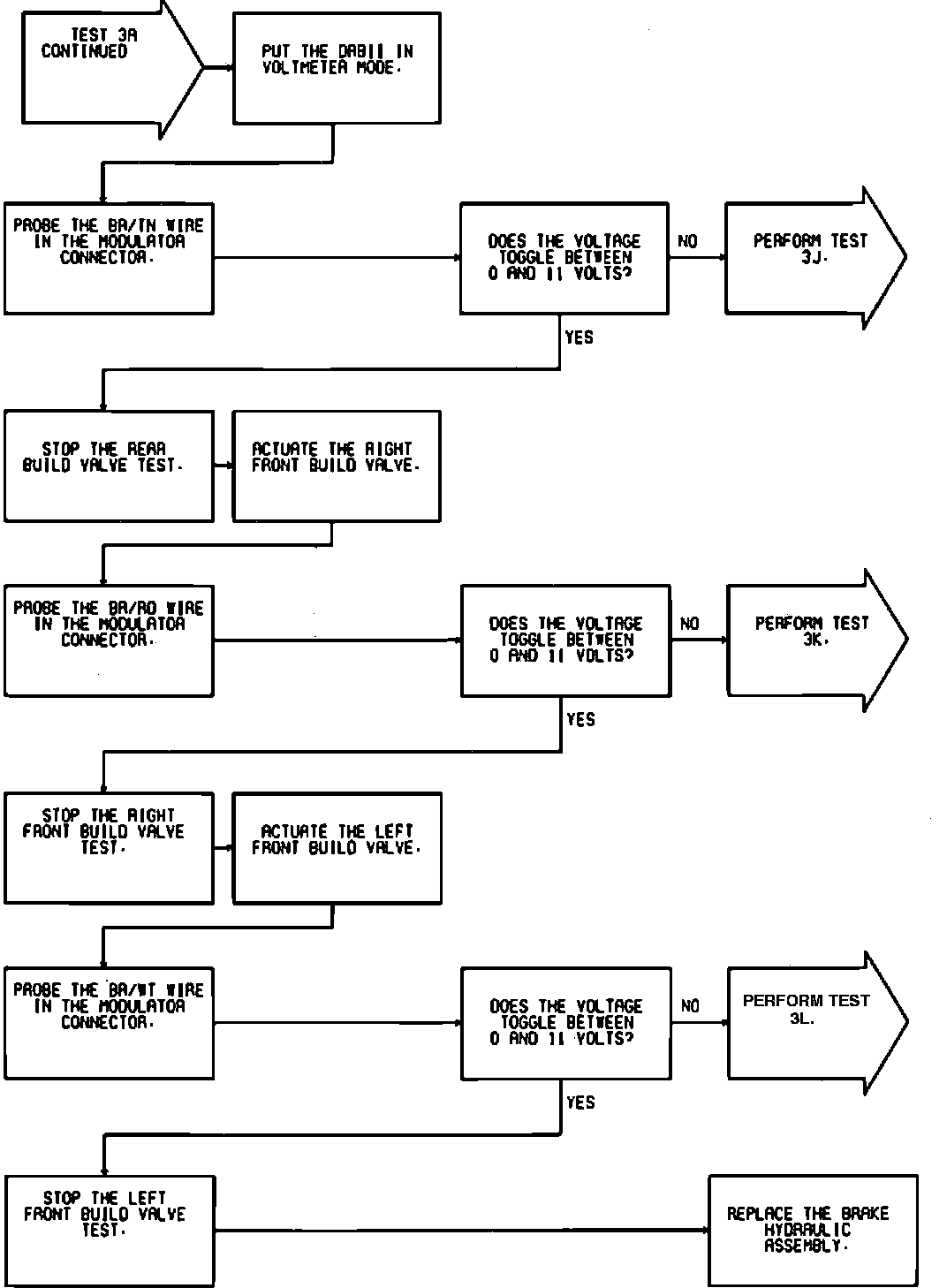

Fig. 12 Test 3A--Modulator Fault Message (Part 4 Of 4):
