Test 3A

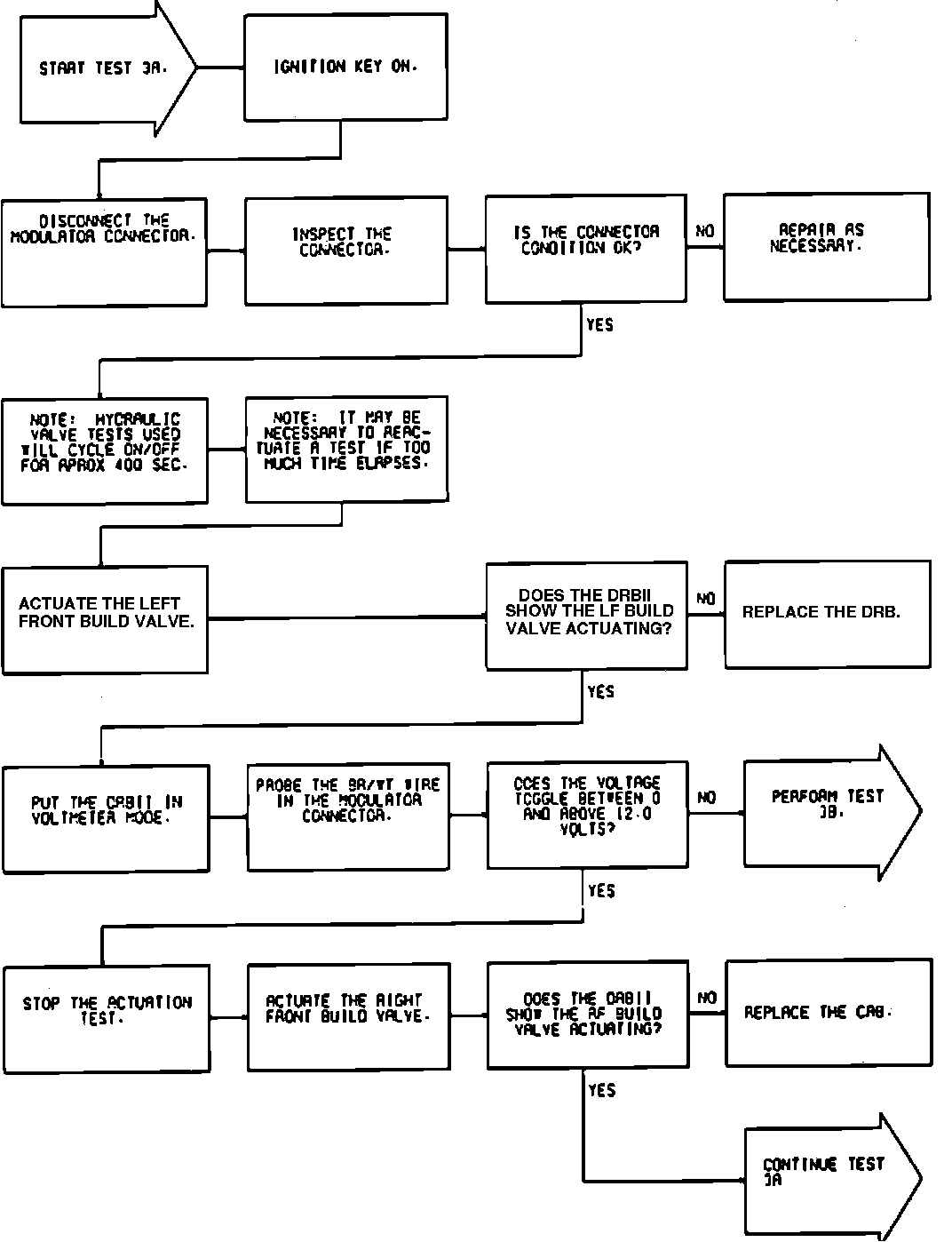

Fig. 13 Test 3A--Modulator Fault (Part 1 Of 5):

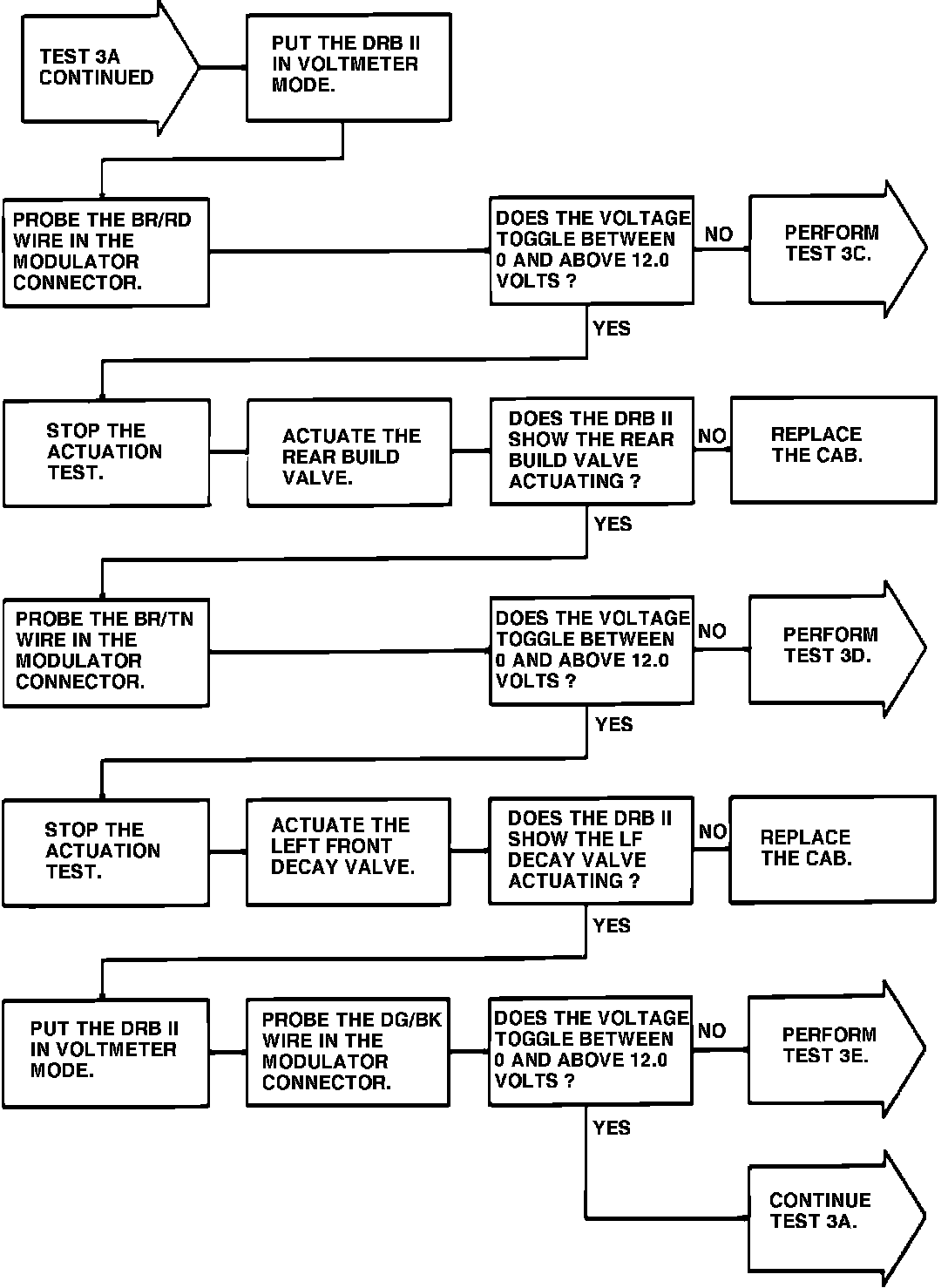

Fig. 13 Test 3A--Modulator Fault (Part 2 Of 5):

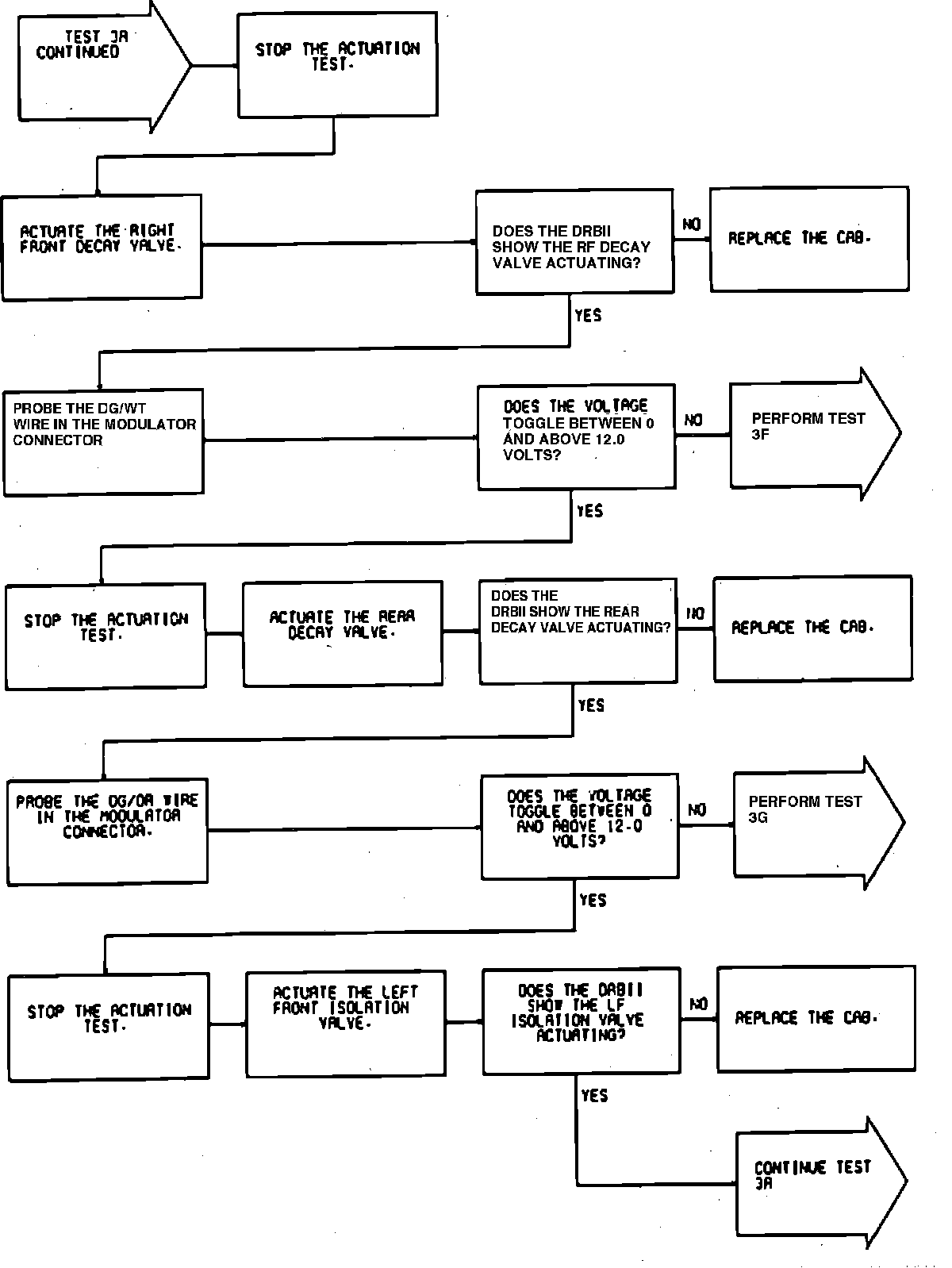

Fig. 13 Test 3A--Modulator Fault (Part 3 Of 5):

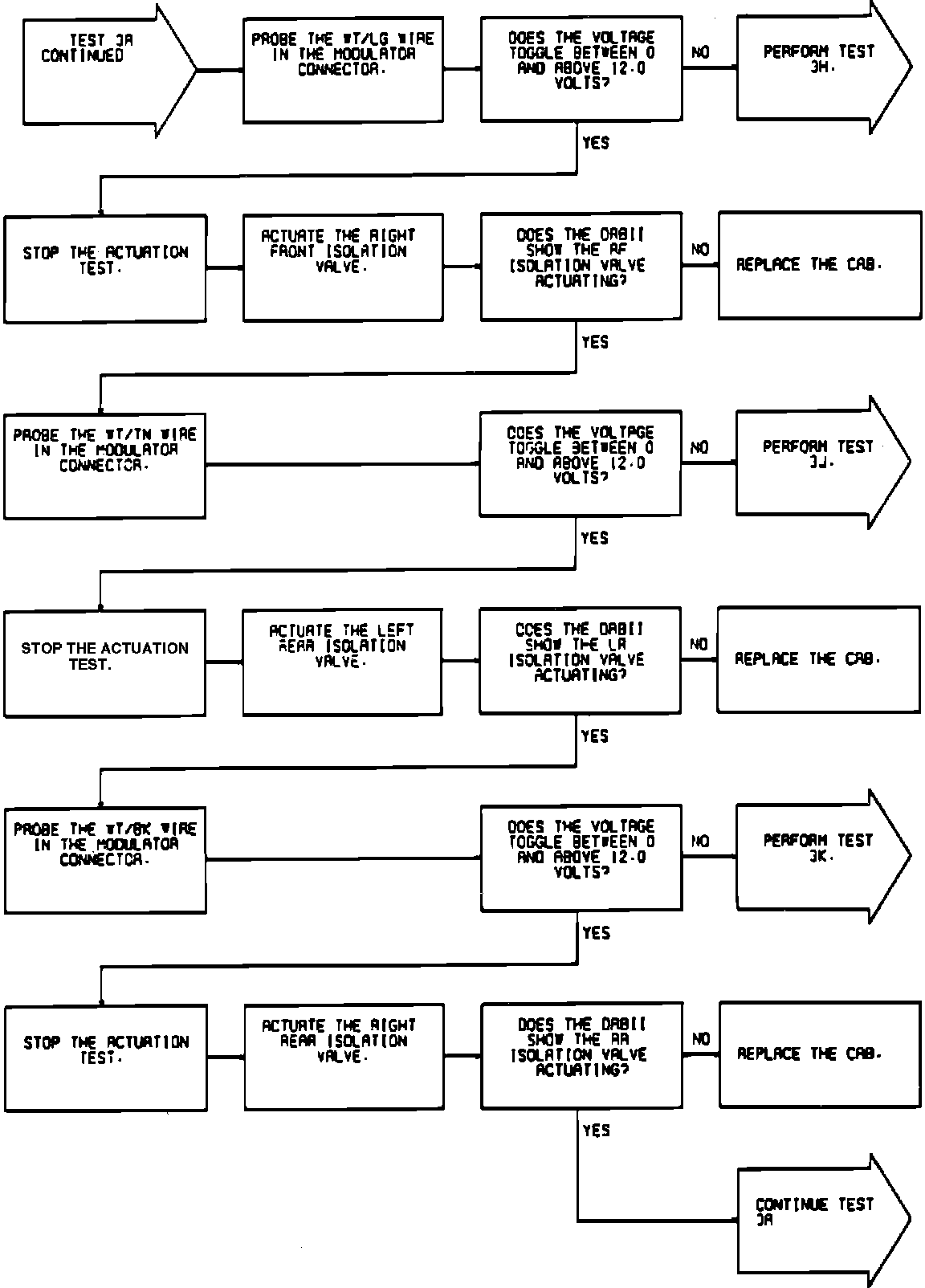

Fig. 13 Test 3A--Modulator Fault (Part 4 Of 5):

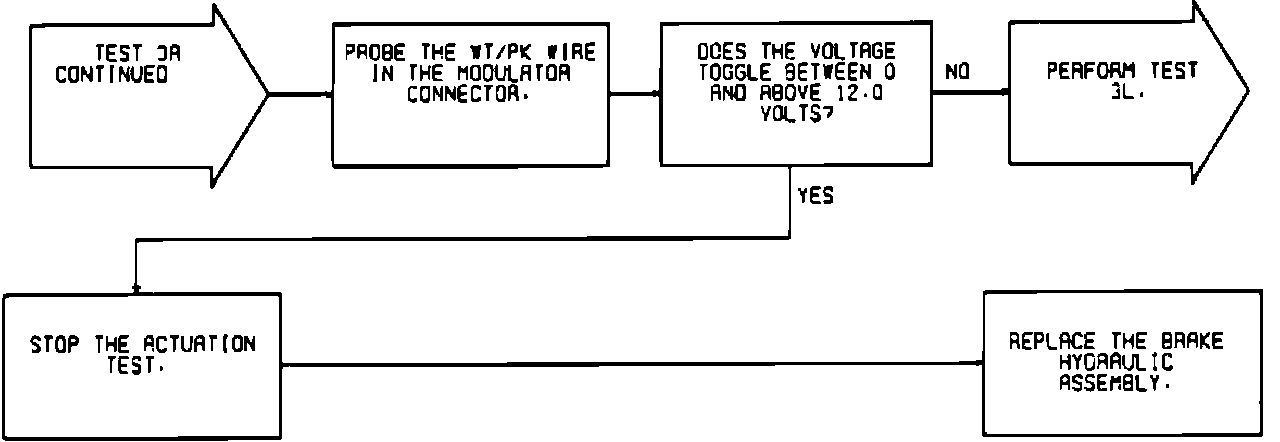

Fig. 13 Test 3A--Modulator Fault (Part 5 Of 5):

Fig. 91 Test 3A Part 1 Of 4:

Fig. 91 Test 3A Part 2 Of 4:

Fig. 91 Test 3A Part 3 Of 4:

Fig. 91 Test 3A Part 4 Of 4:
