Test 25 - DRB II Error Message
>>
Test 25C
Test 25C

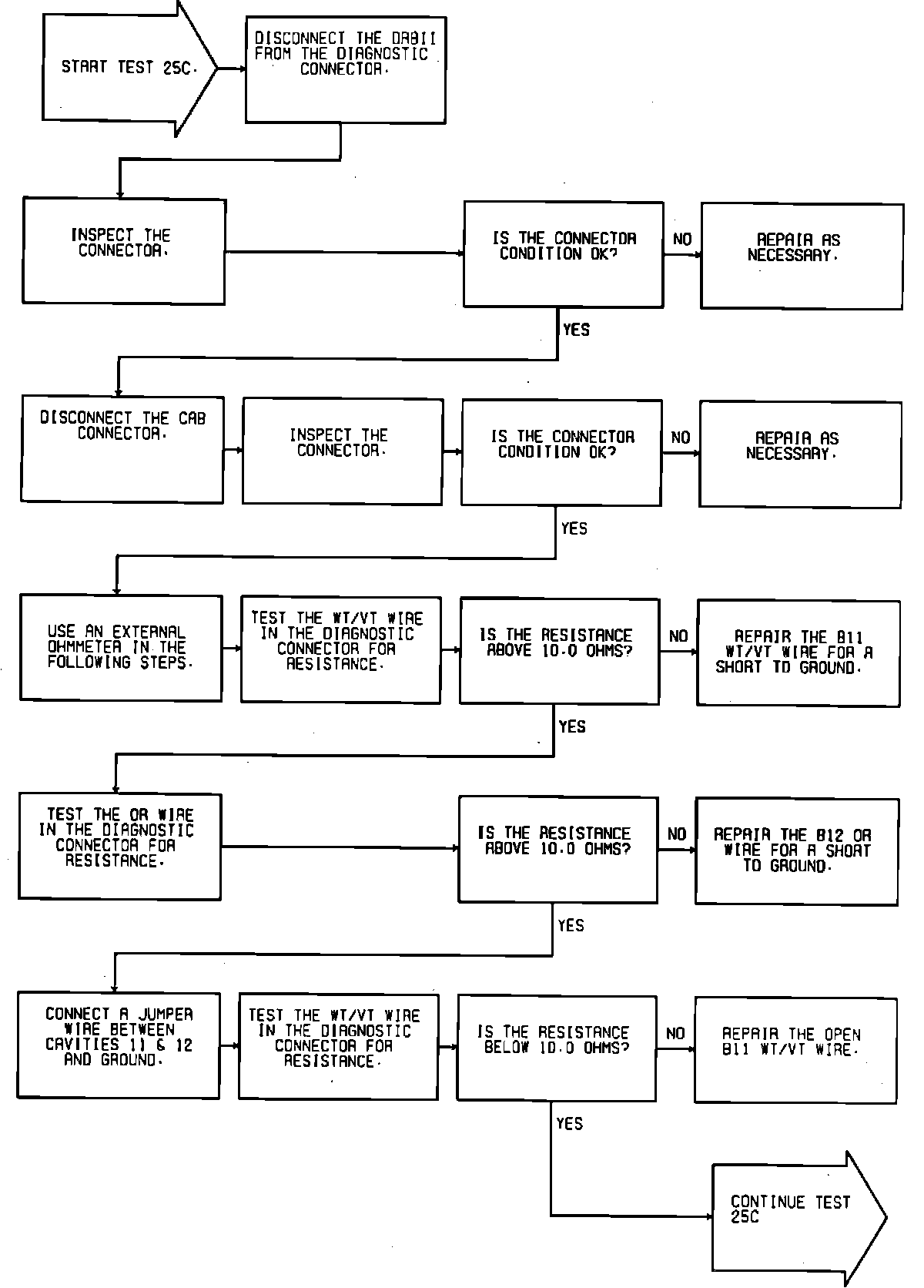

Fig. 132 Test 25C--DRB II Error Messages (Part 1 Of 2):

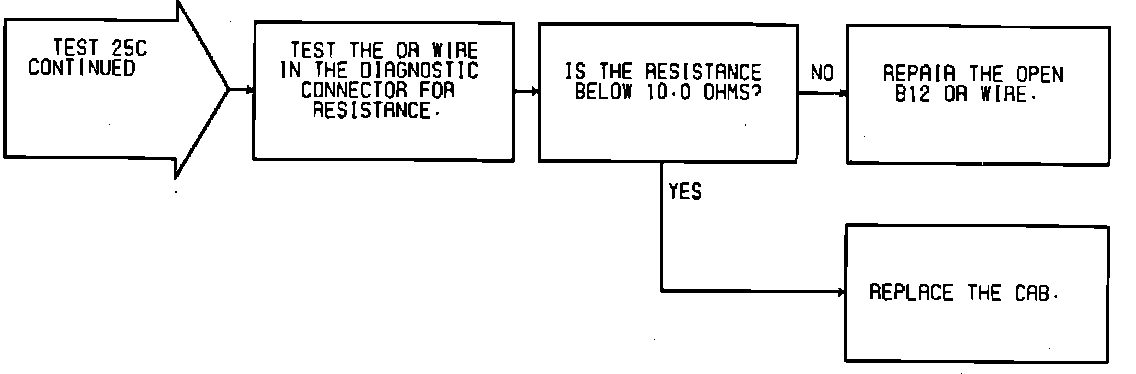

Fig. 132 Test 25C--DRB II Error Messages (Part 2 Of 2):
