Home >> Chrysler >> 1990 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Diagnostic Charts (By Test or Chart Number) >> Test 25 - DRB II Error Message >> Test 25B

Test 25B

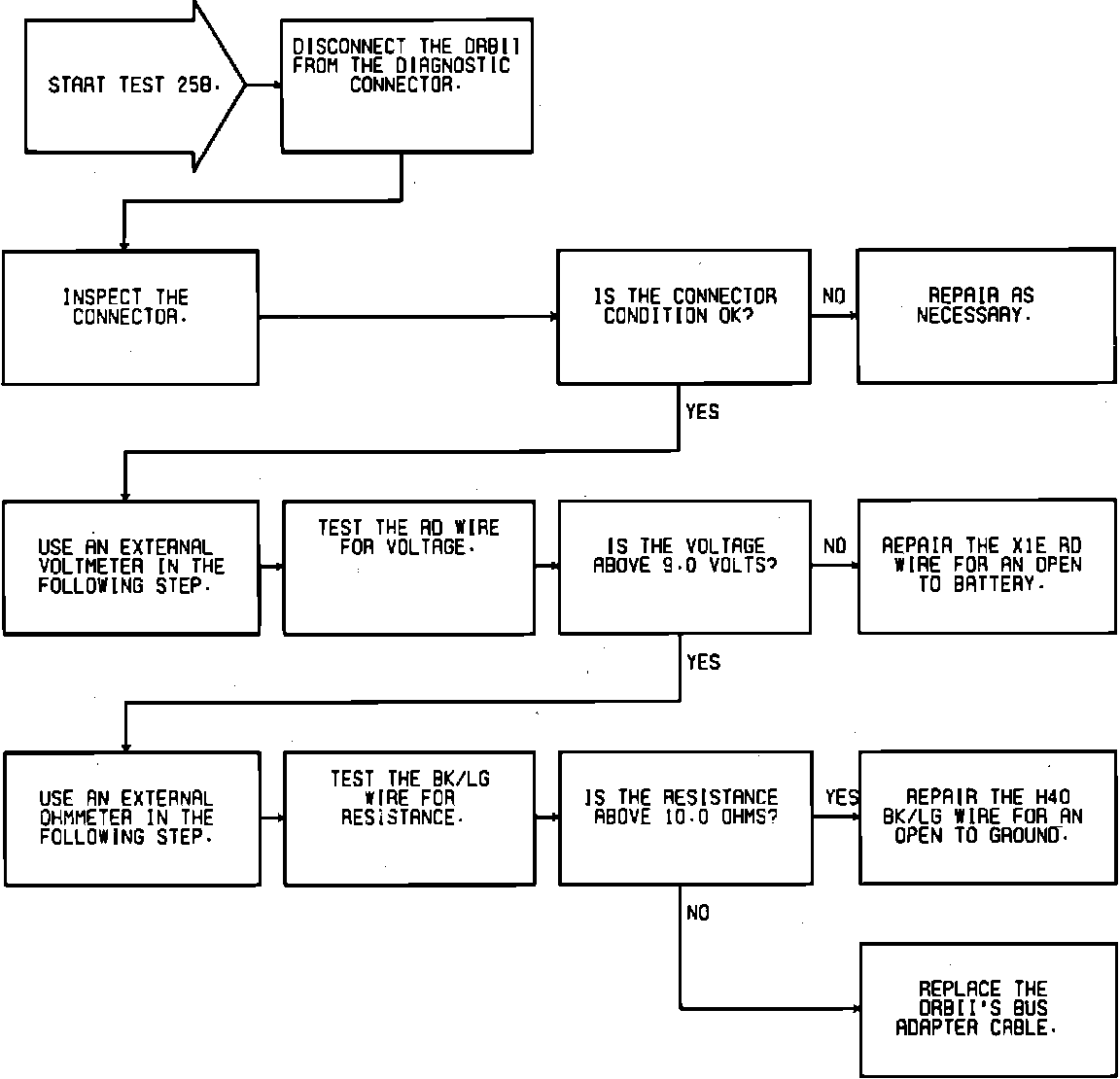

Fig. 131 Test 25B--DRB II Error Messages:
