Home >> Chrysler >> 1990 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Diagnostic Charts (By Test or Chart Number) >> Test 22 - Hydraulic Pressure Performance Test >> Test 22C

Test 22C

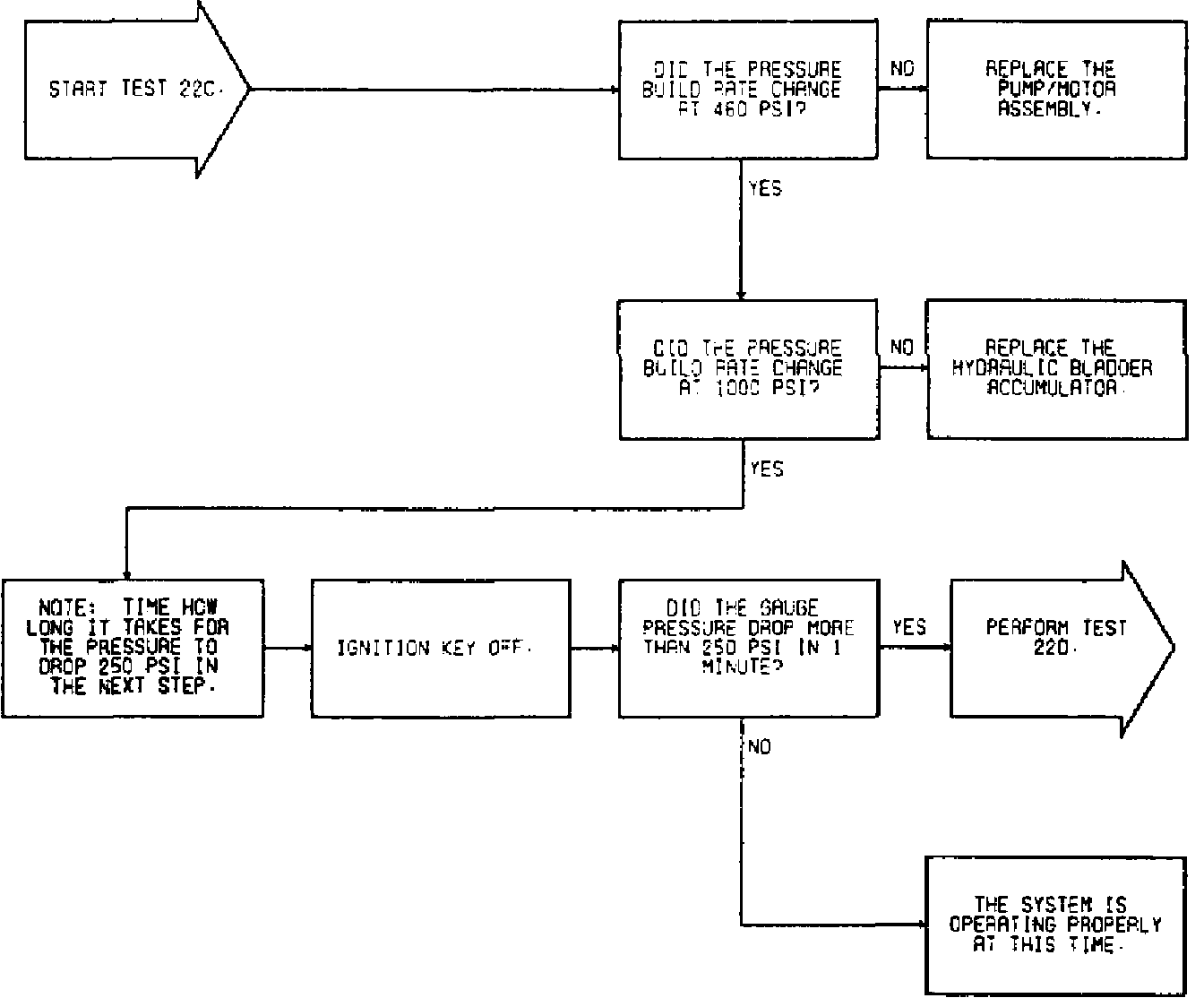

Fig. 148 Test 22C:
