Test 21C

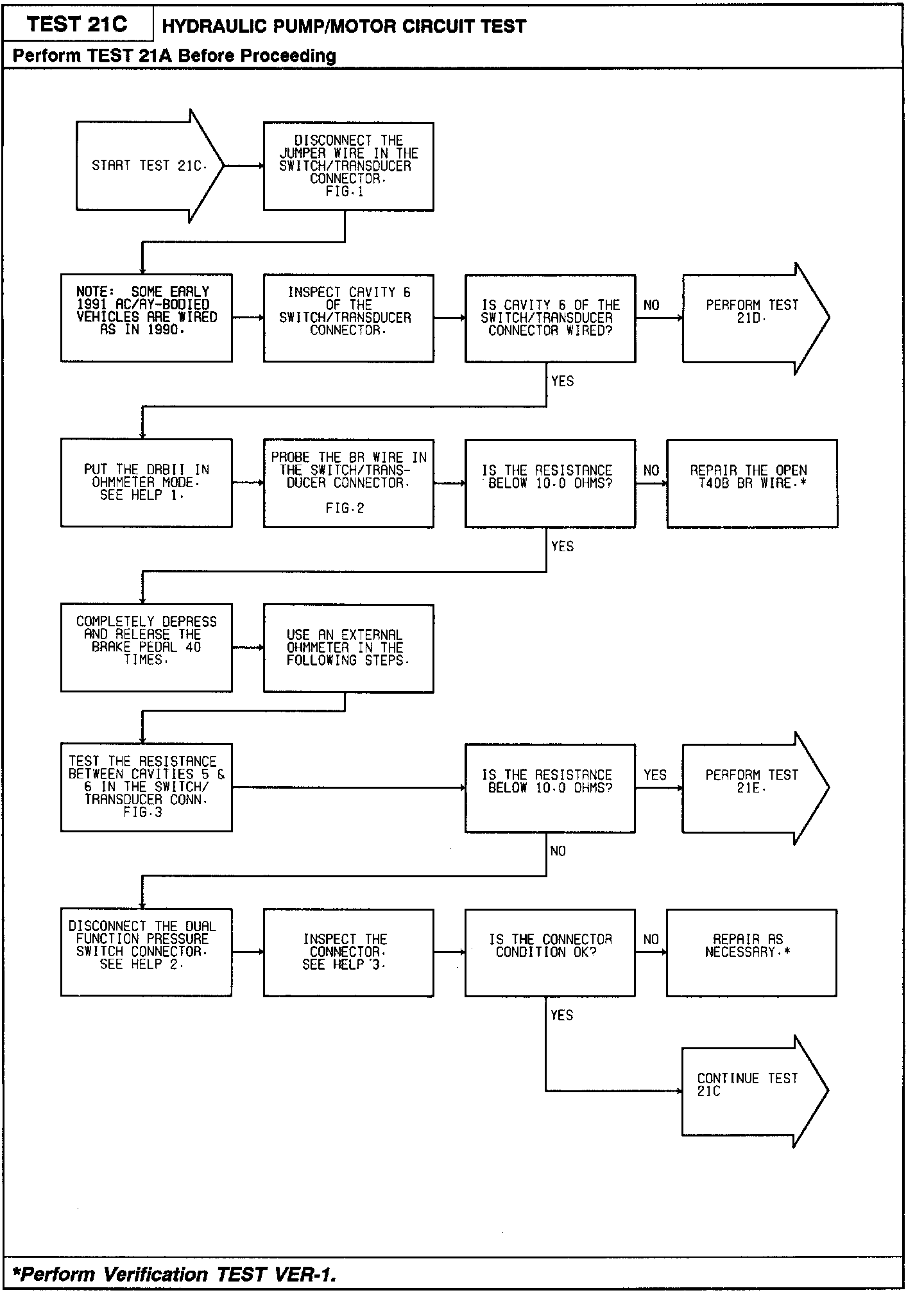

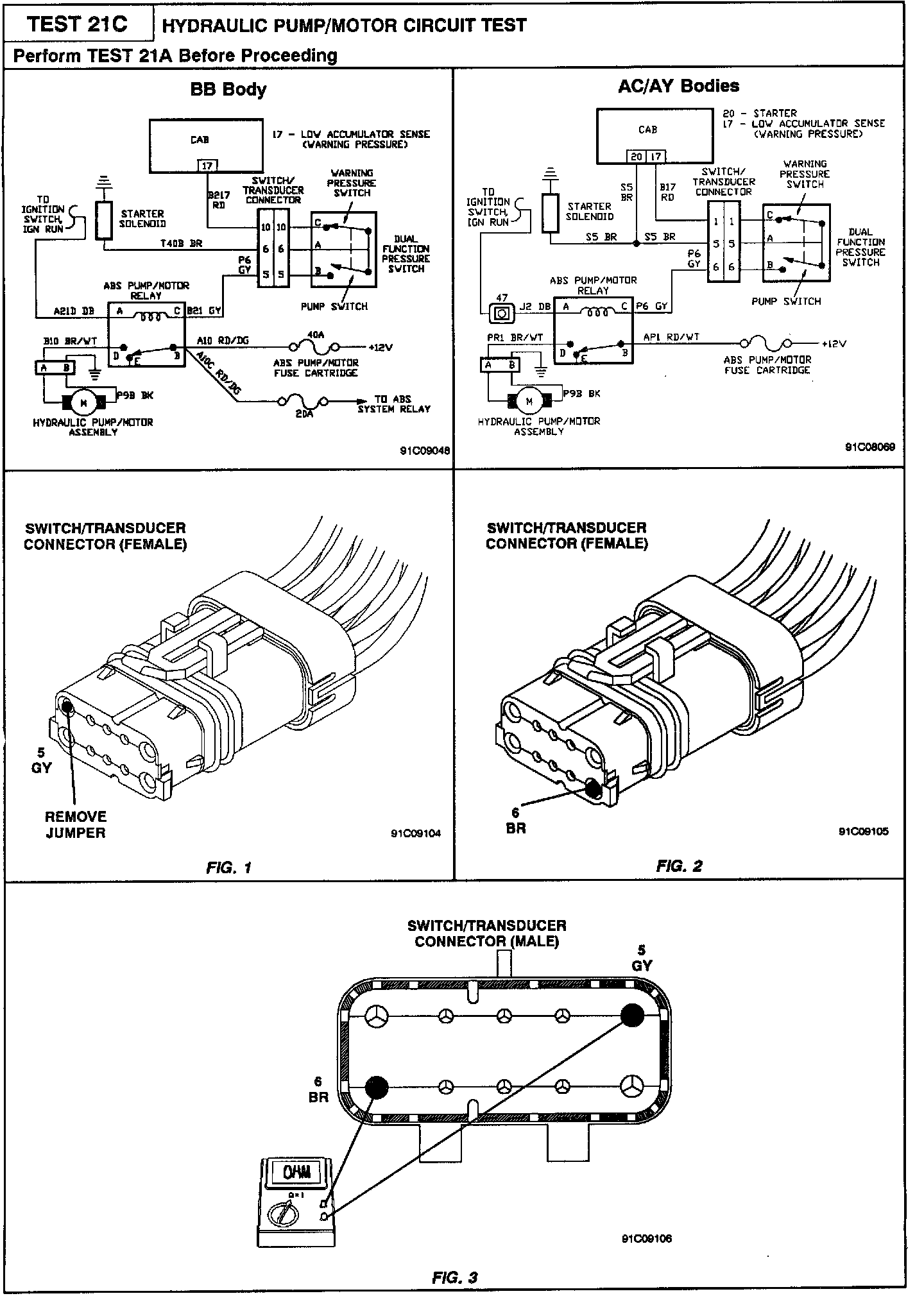

Fig. 121 Test 21C--Hydraulic Pump/Motor Circuit Test (Part 1 Of 2):

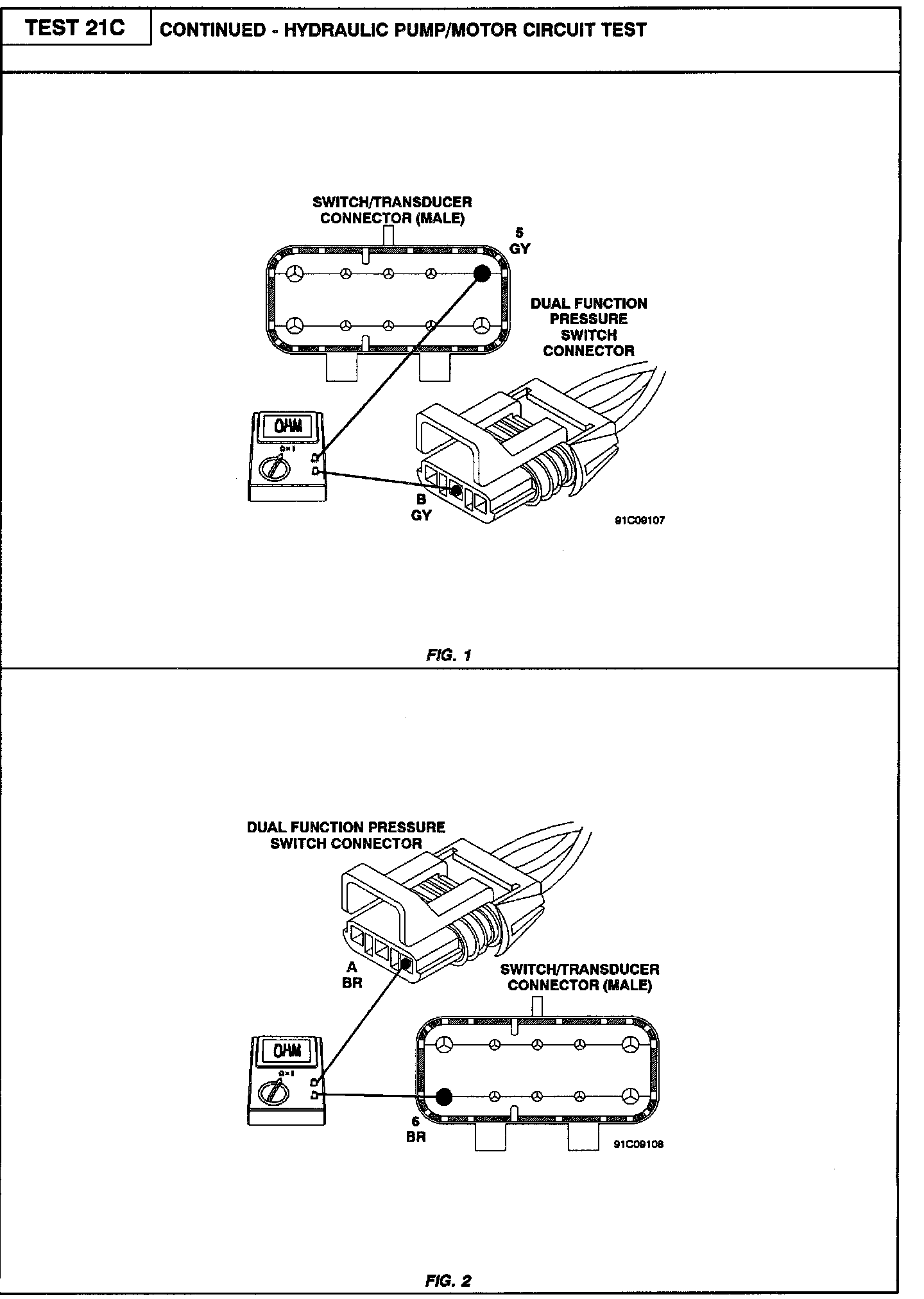

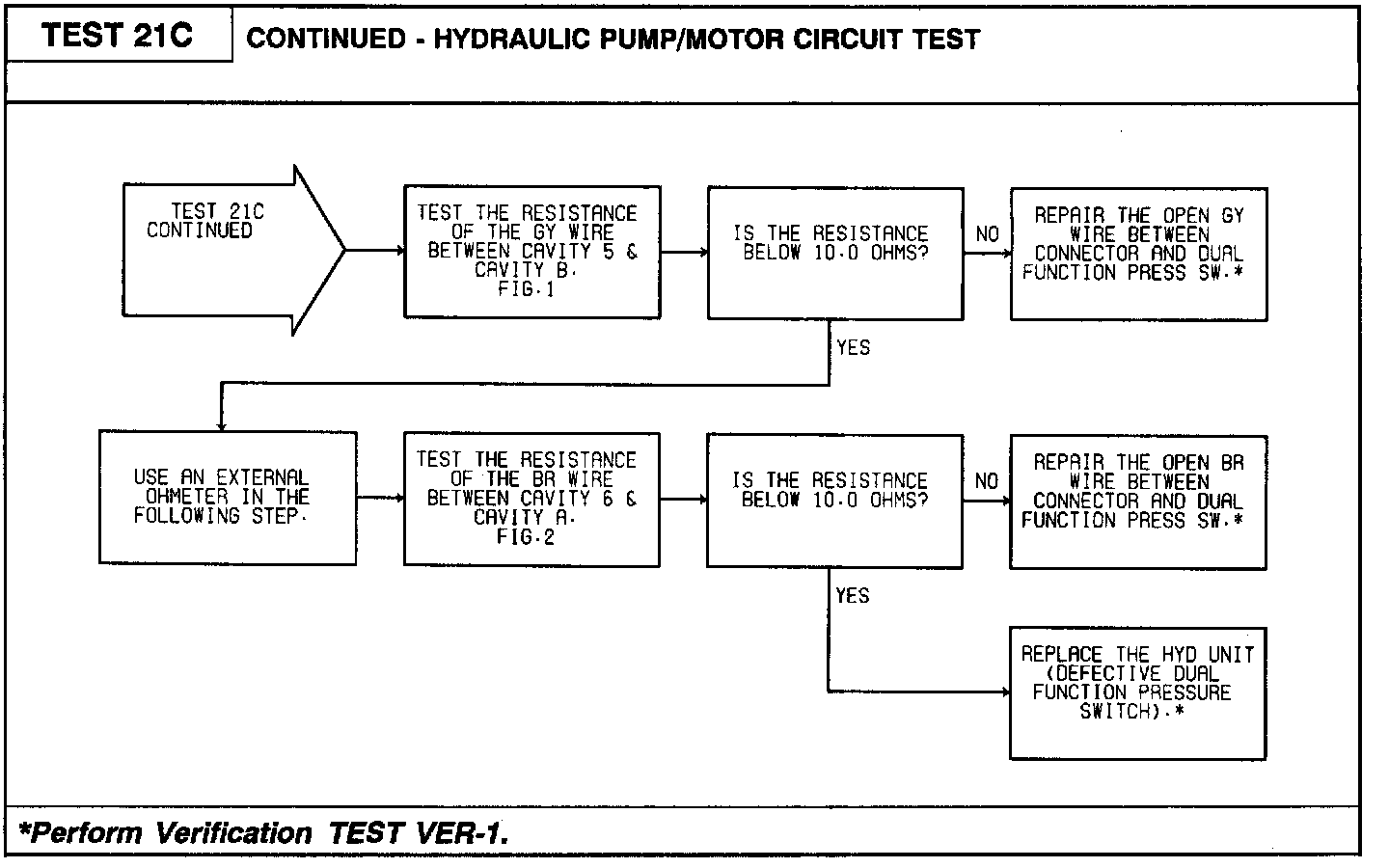

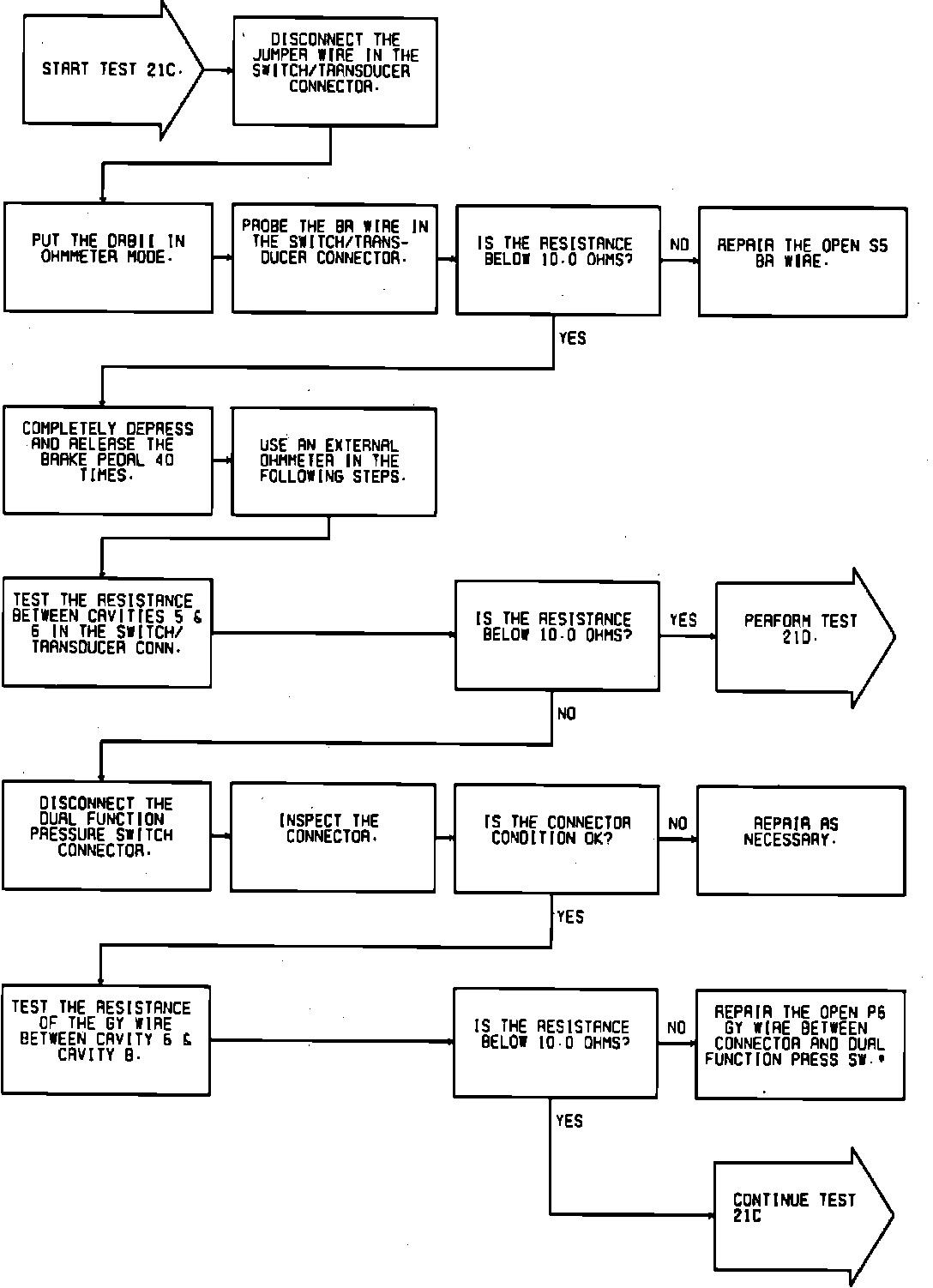

Fig. 121 Test 21C--Hydraulic Pump/Motor Circuit Test (Part 2 Of 2):

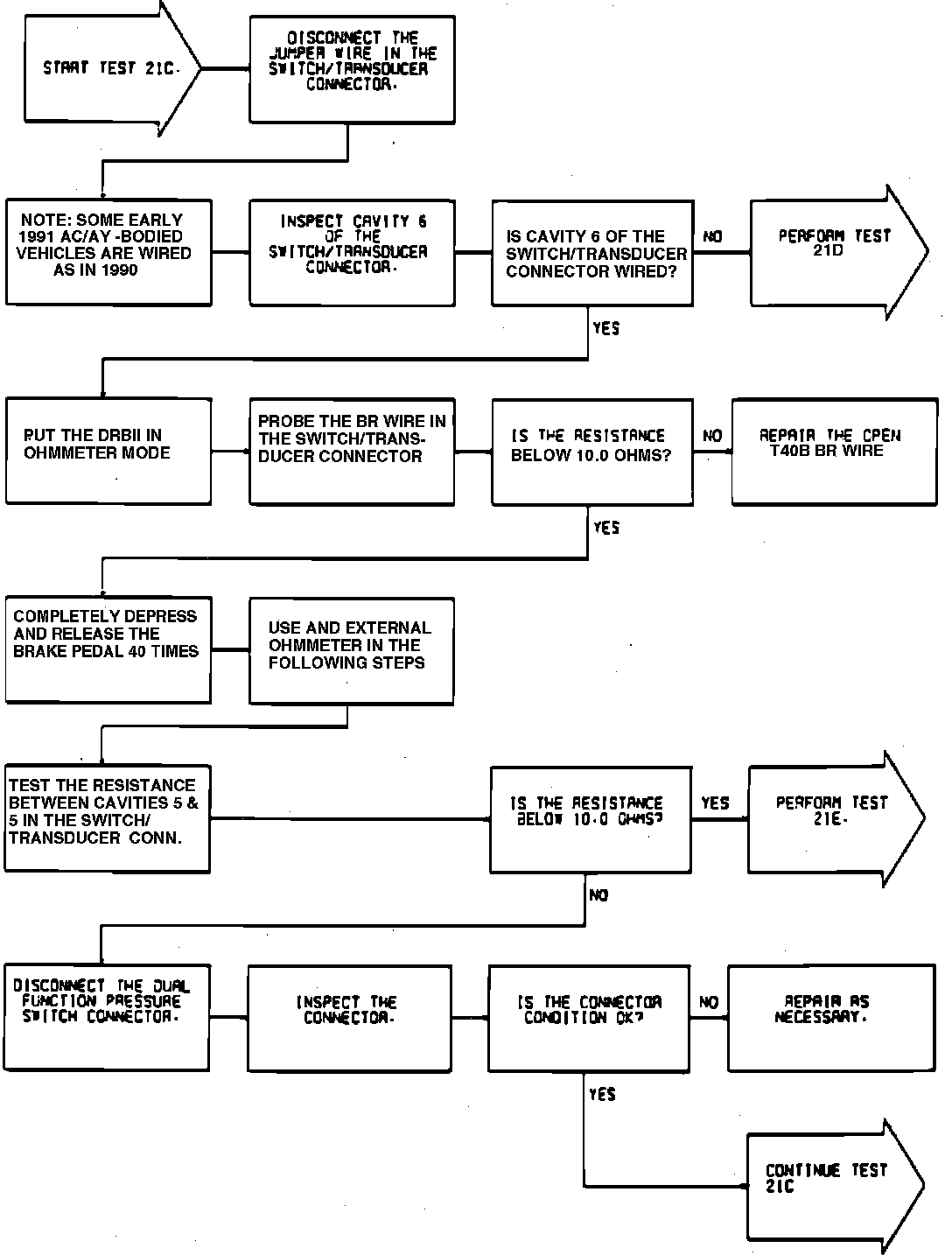

Fig. 122 Test 21C--Hydraulic Pump/Motor Circuit Test (Part 1 Of 2):

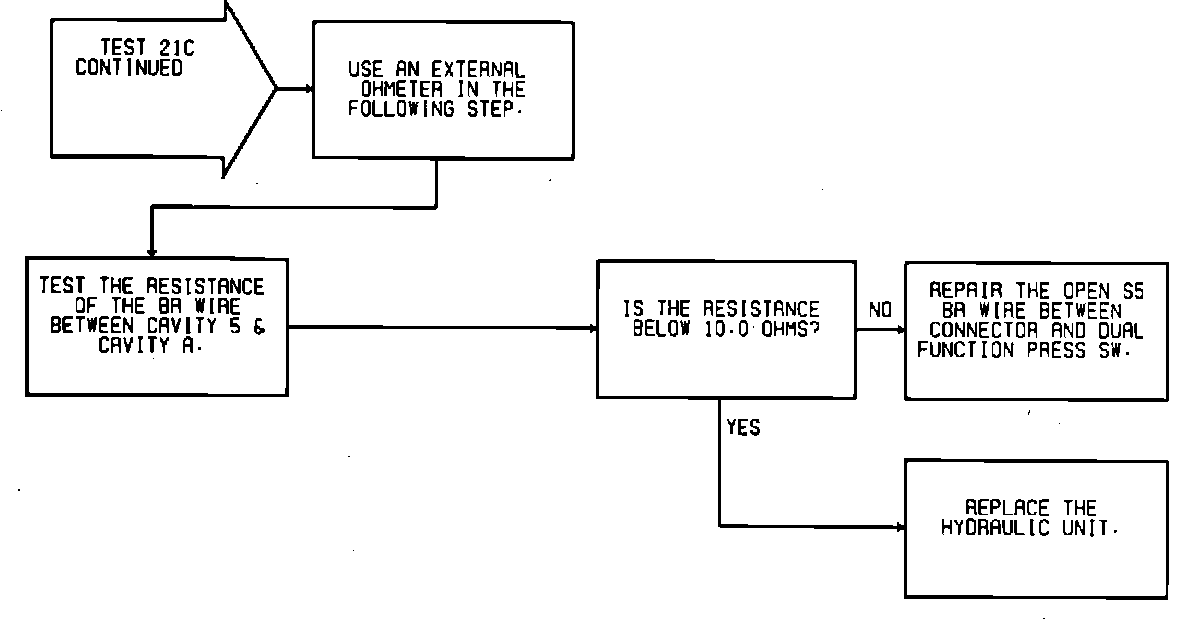

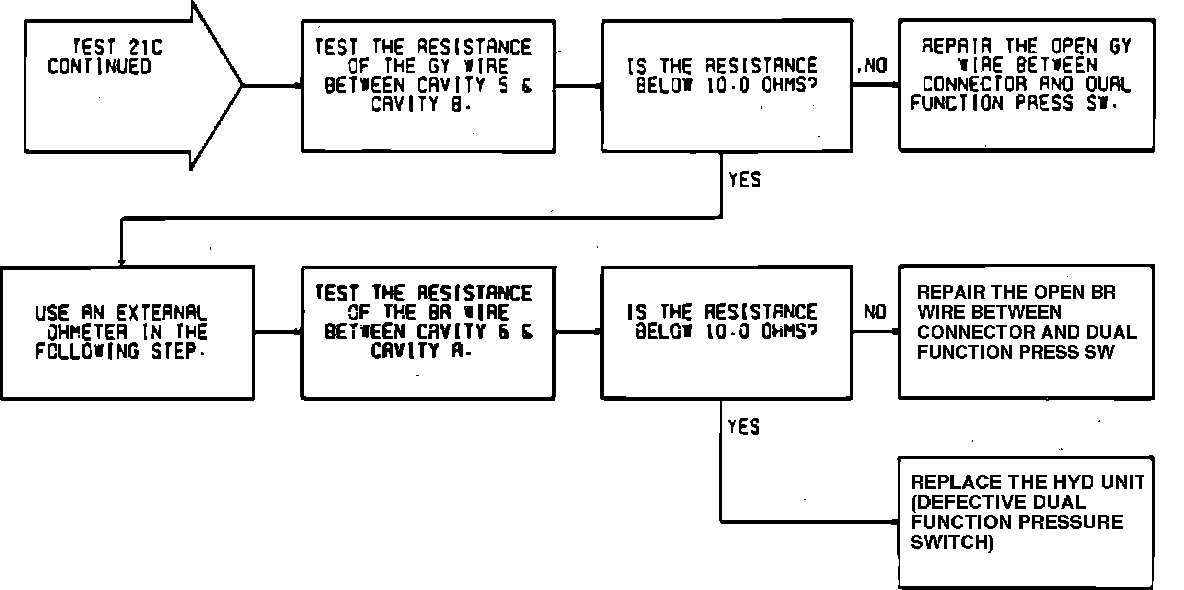

Fig. 122 Test 21C--Hydraulic Pump/Motor Circuit Test (Part 2 Of 2):

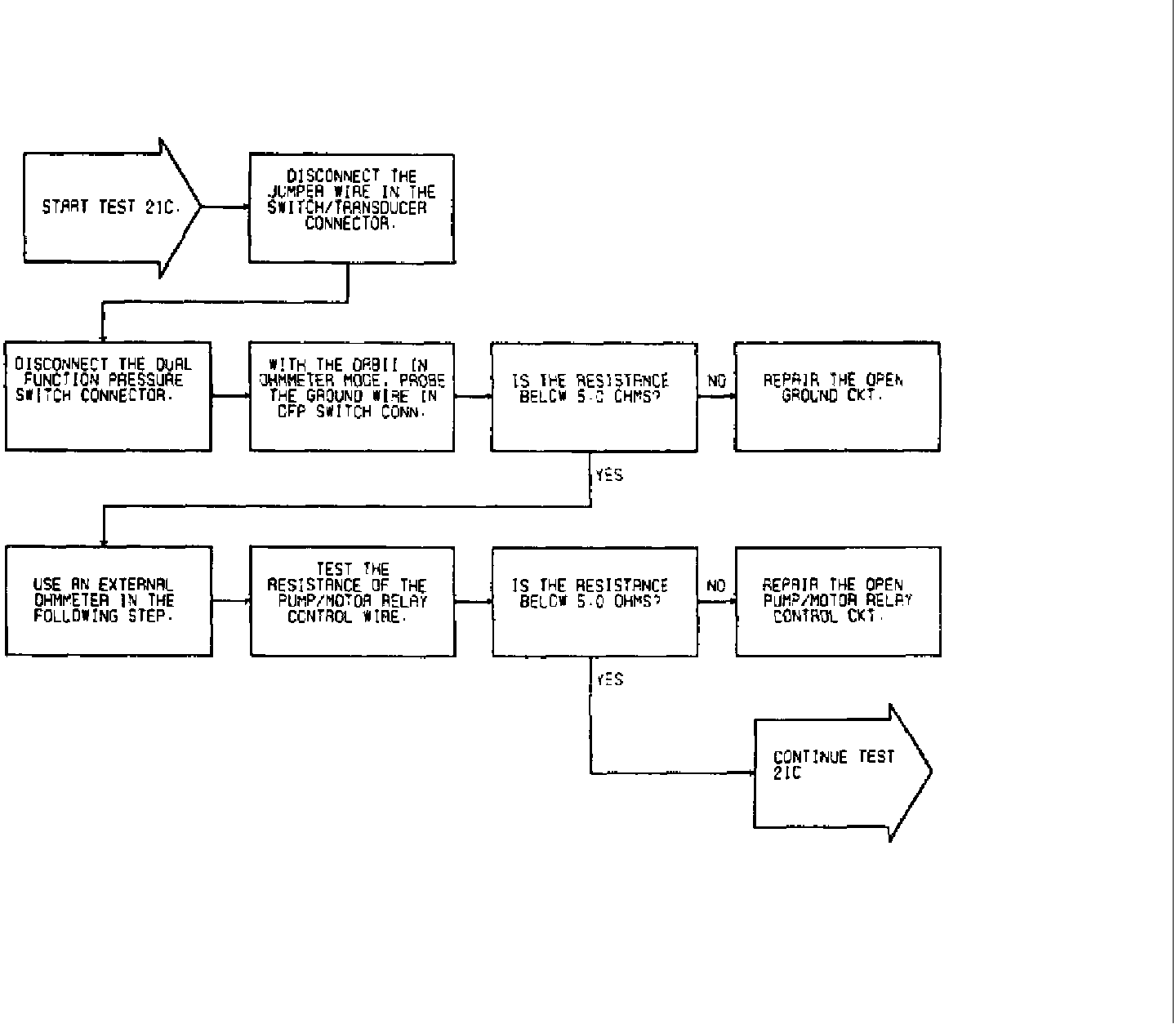

Fig. 145 Test 21C Part 1 Of 2:

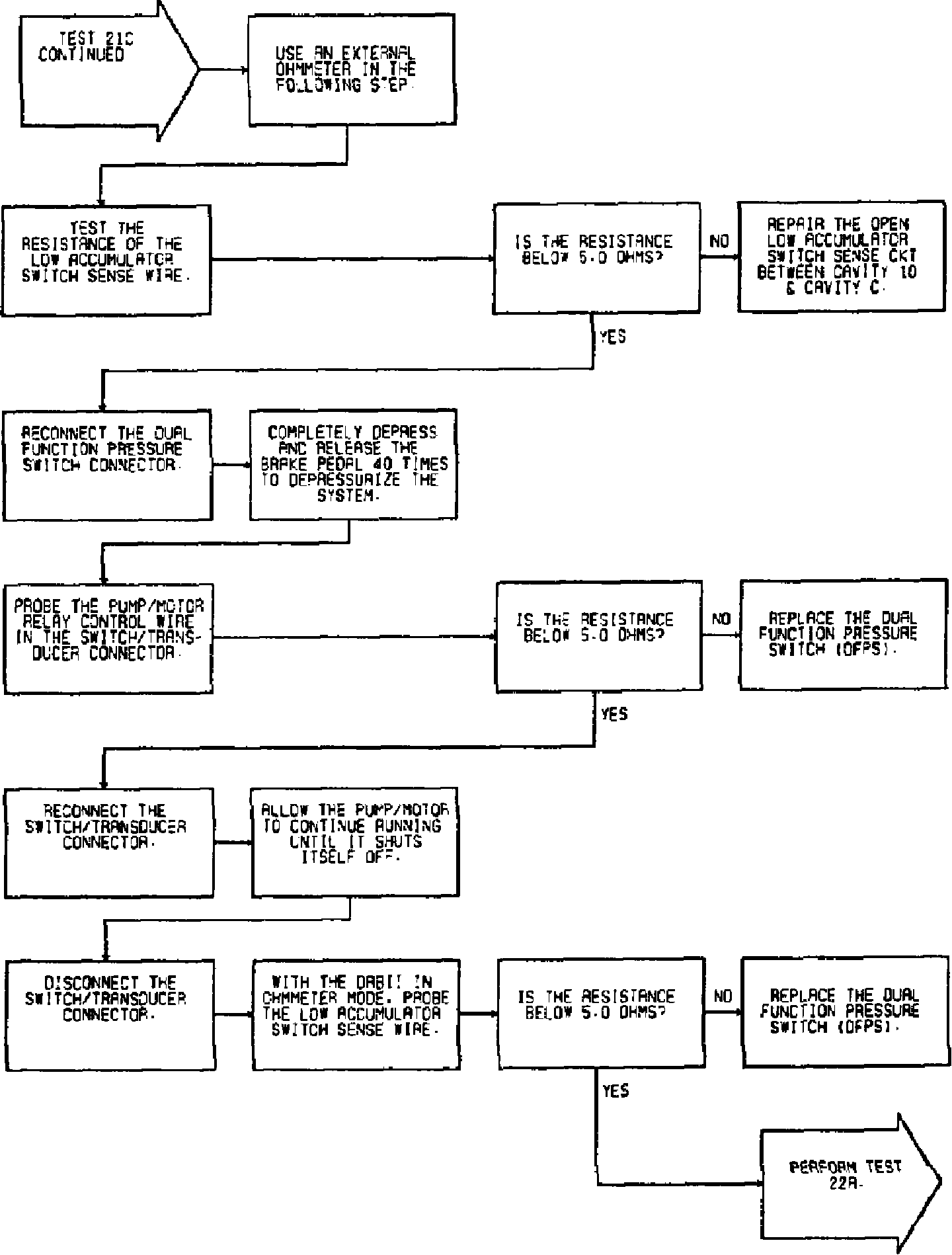

Fig. 145 Test 21C Part 2 Of 2:
