Test 21B

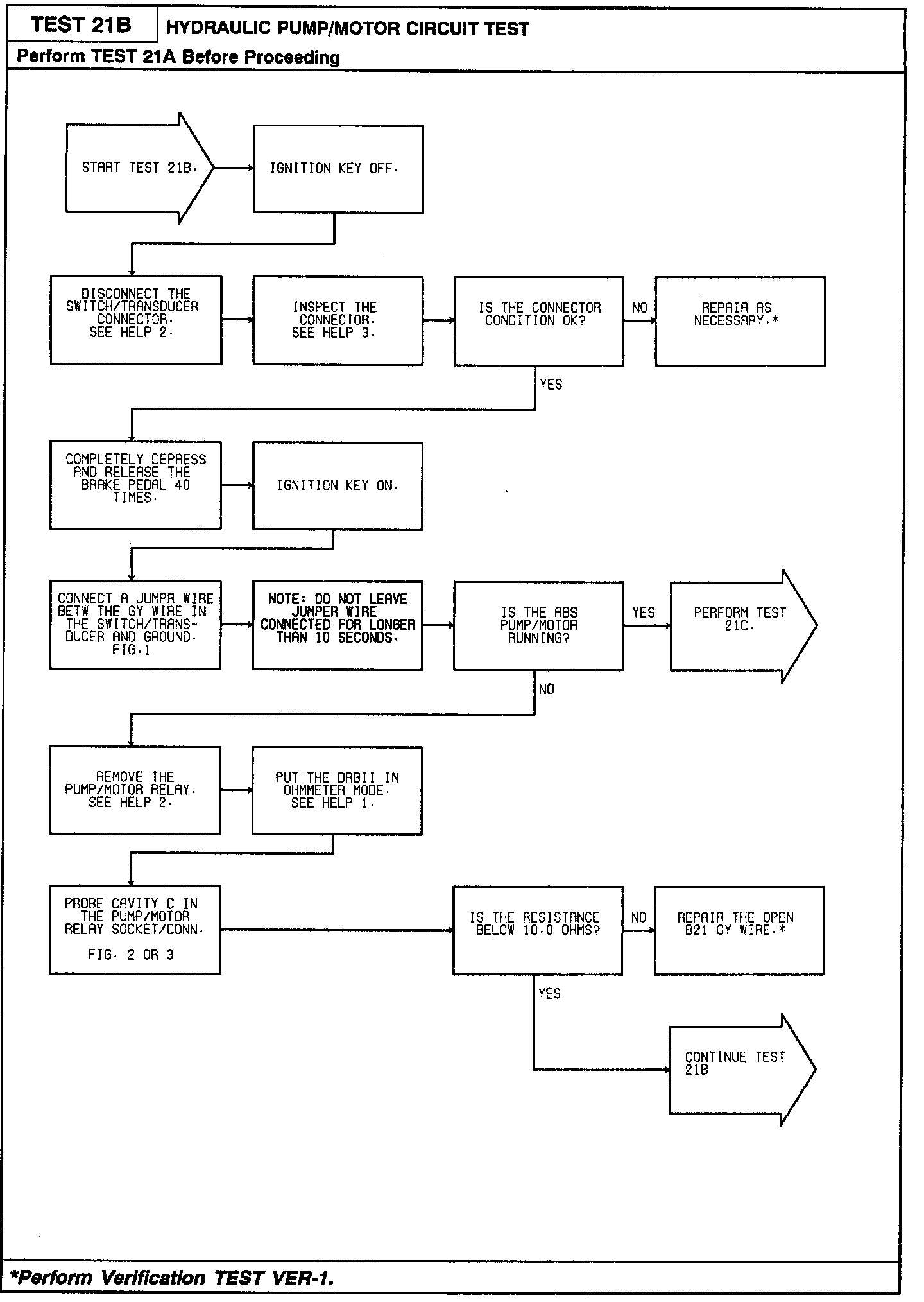

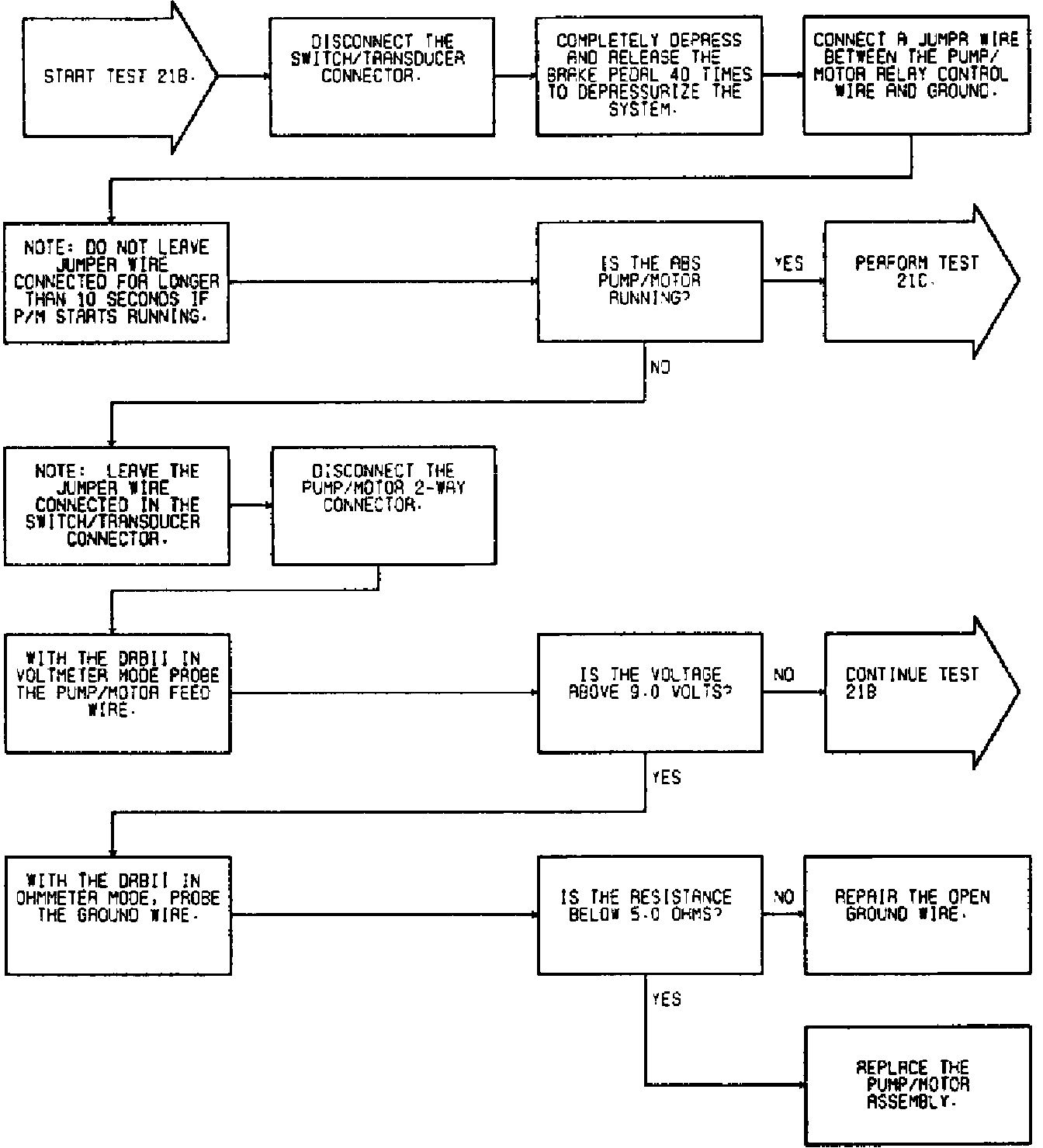

Fig. 120 Test 21B--Hydraulic Pump/Motor Circuit Test (Part 1 Of 3):

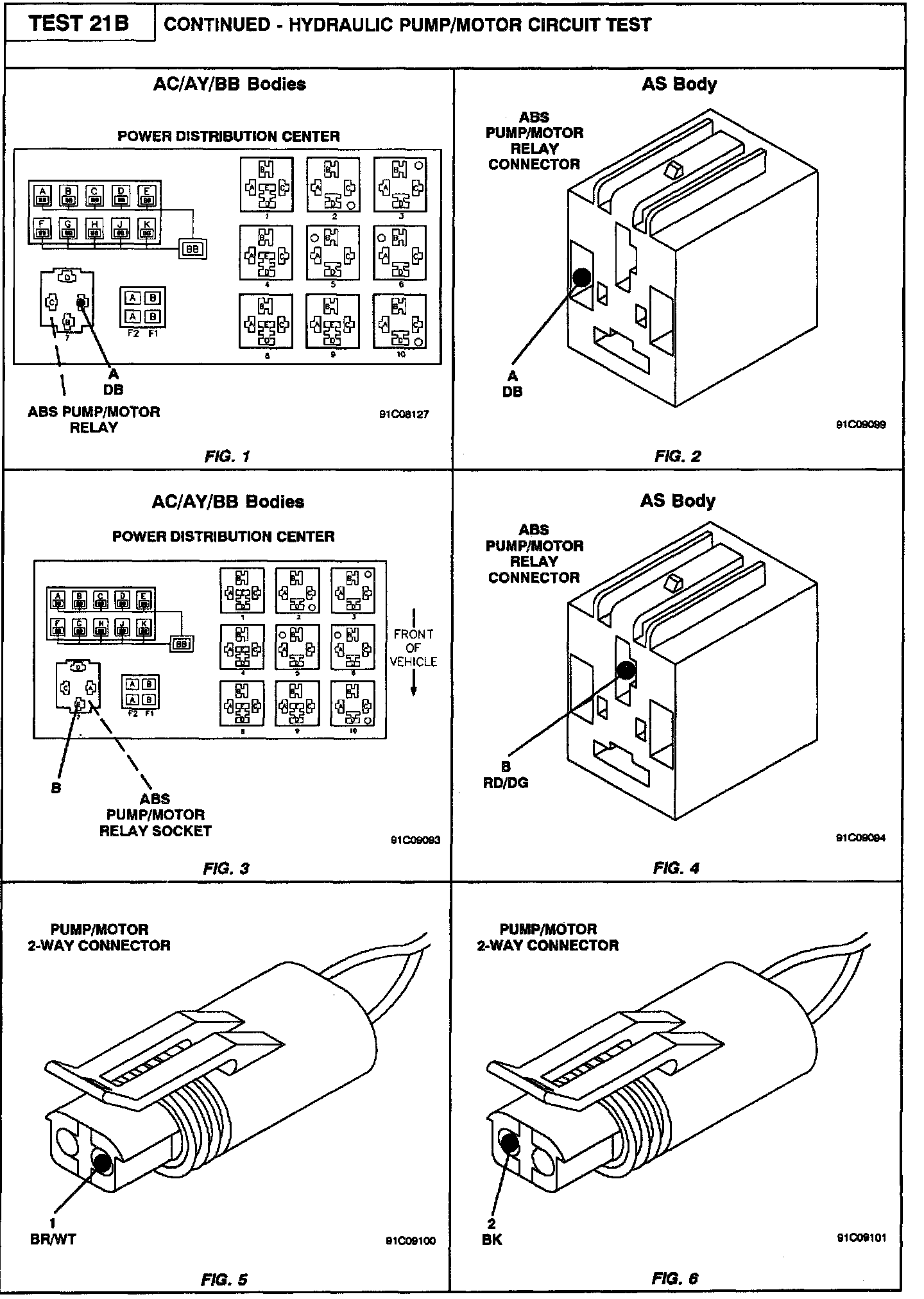

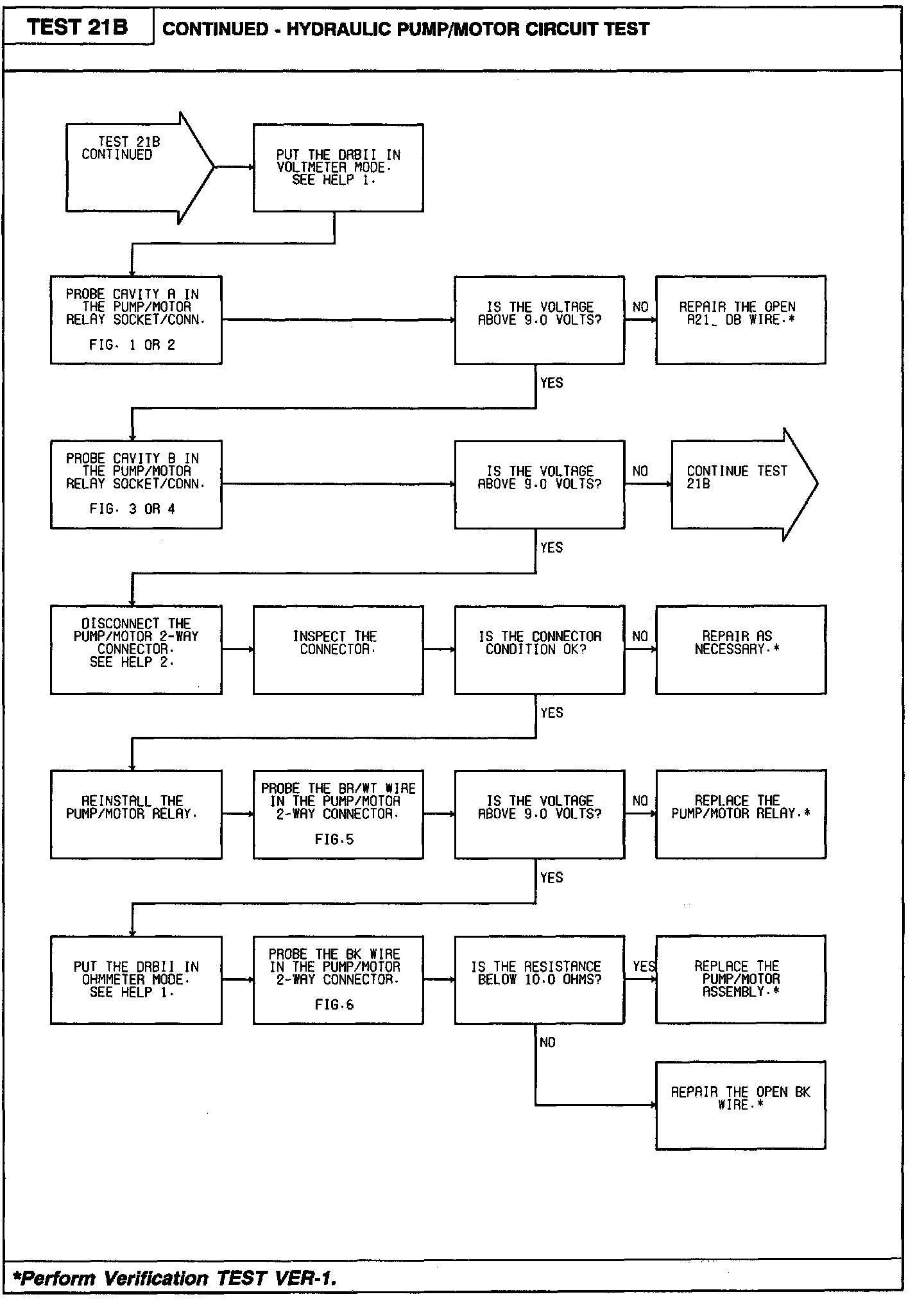

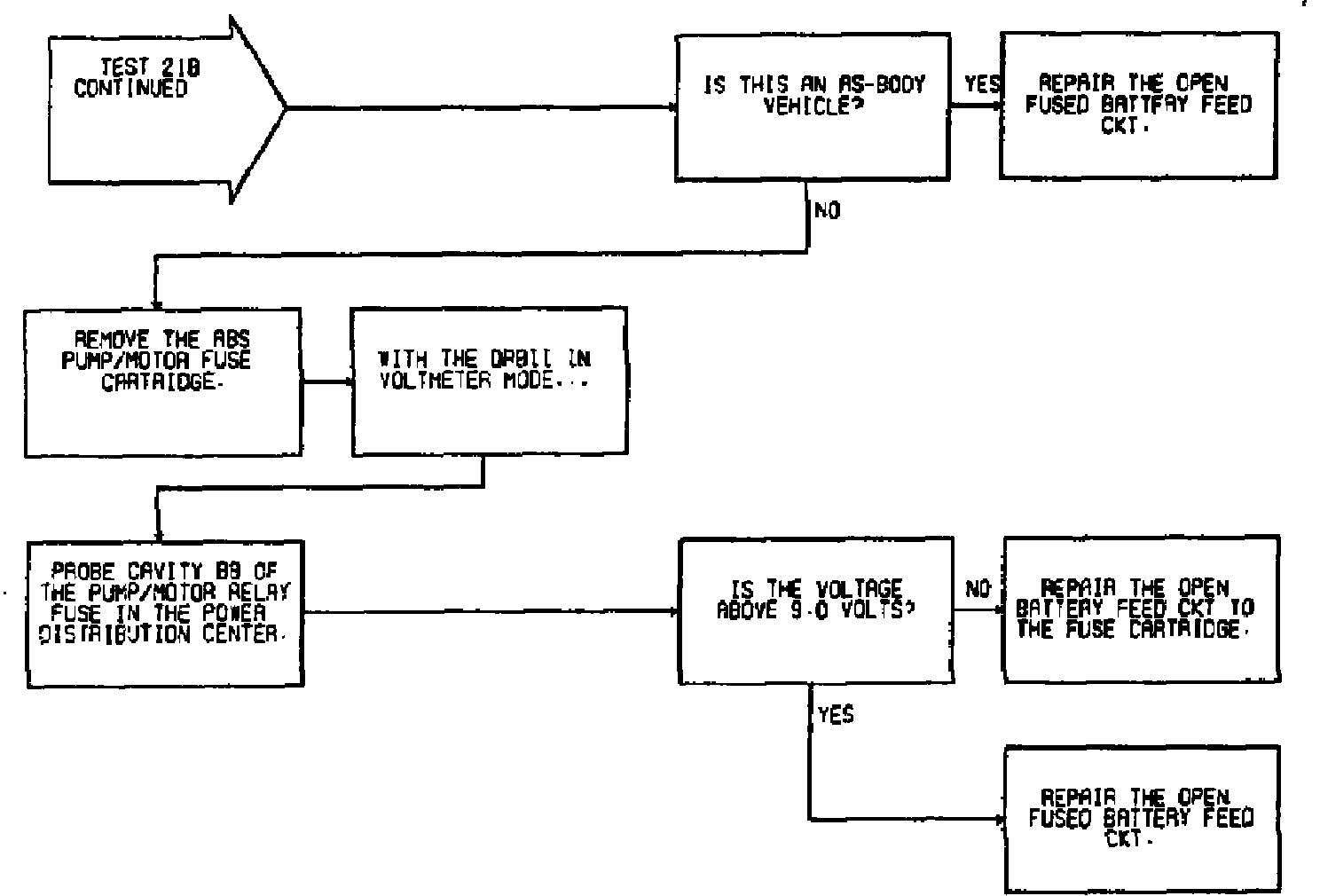

Fig. 120 Test 21B--Hydraulic Pump/Motor Circuit Test (Part 2 Of 3):

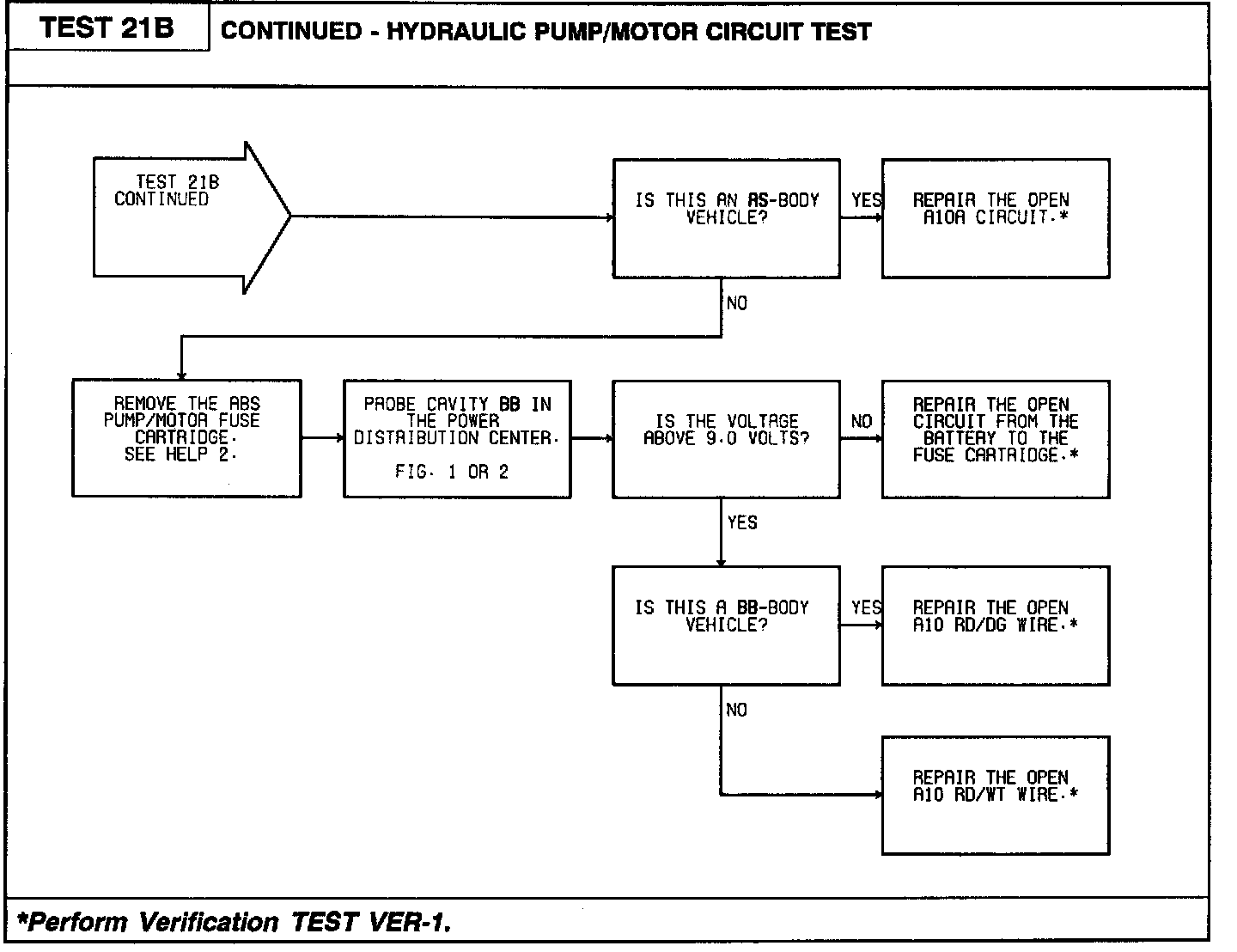

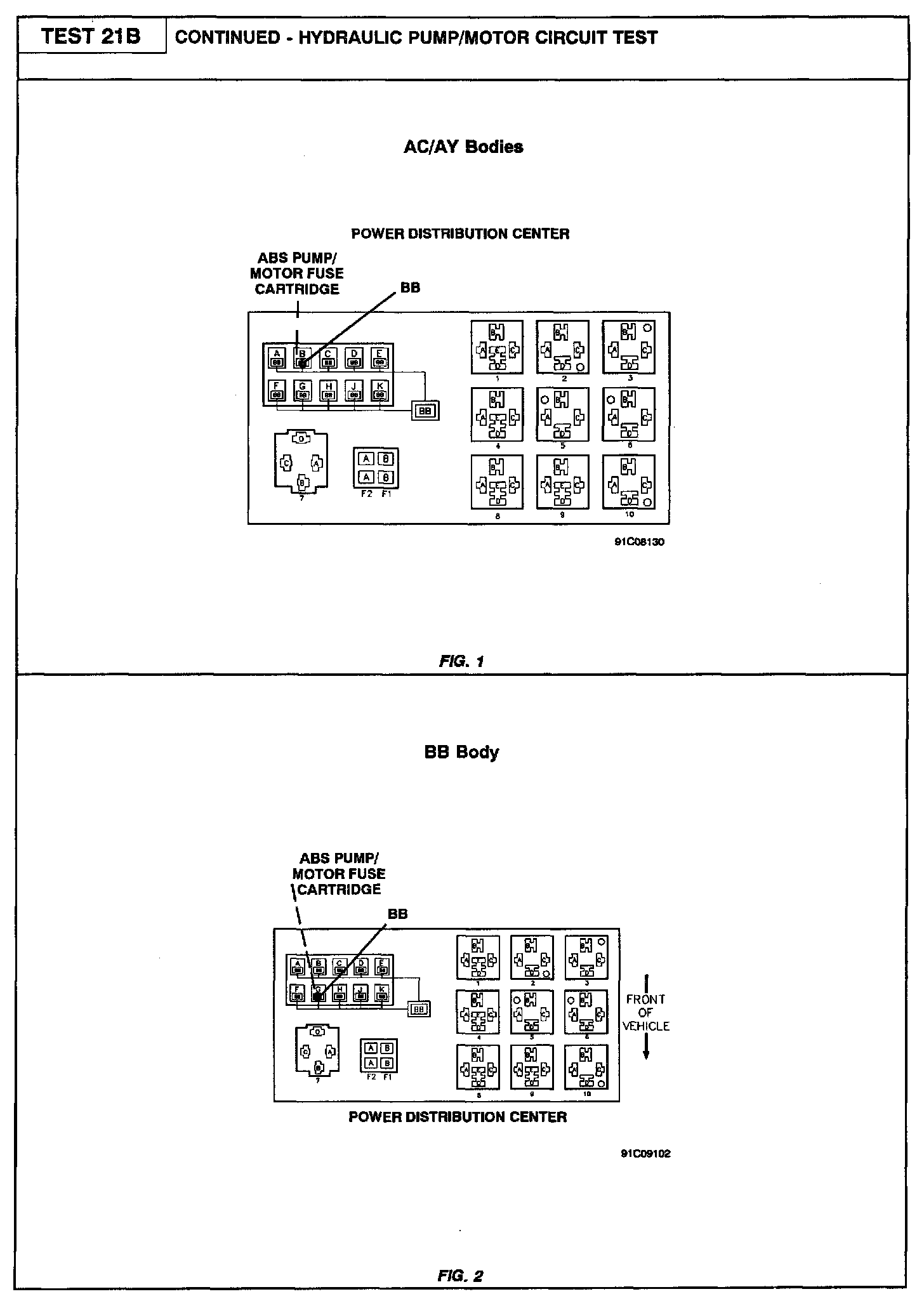

Fig. 120 Test 21B--Hydraulic Pump/Motor Circuit Test (Part 3 Of 3):

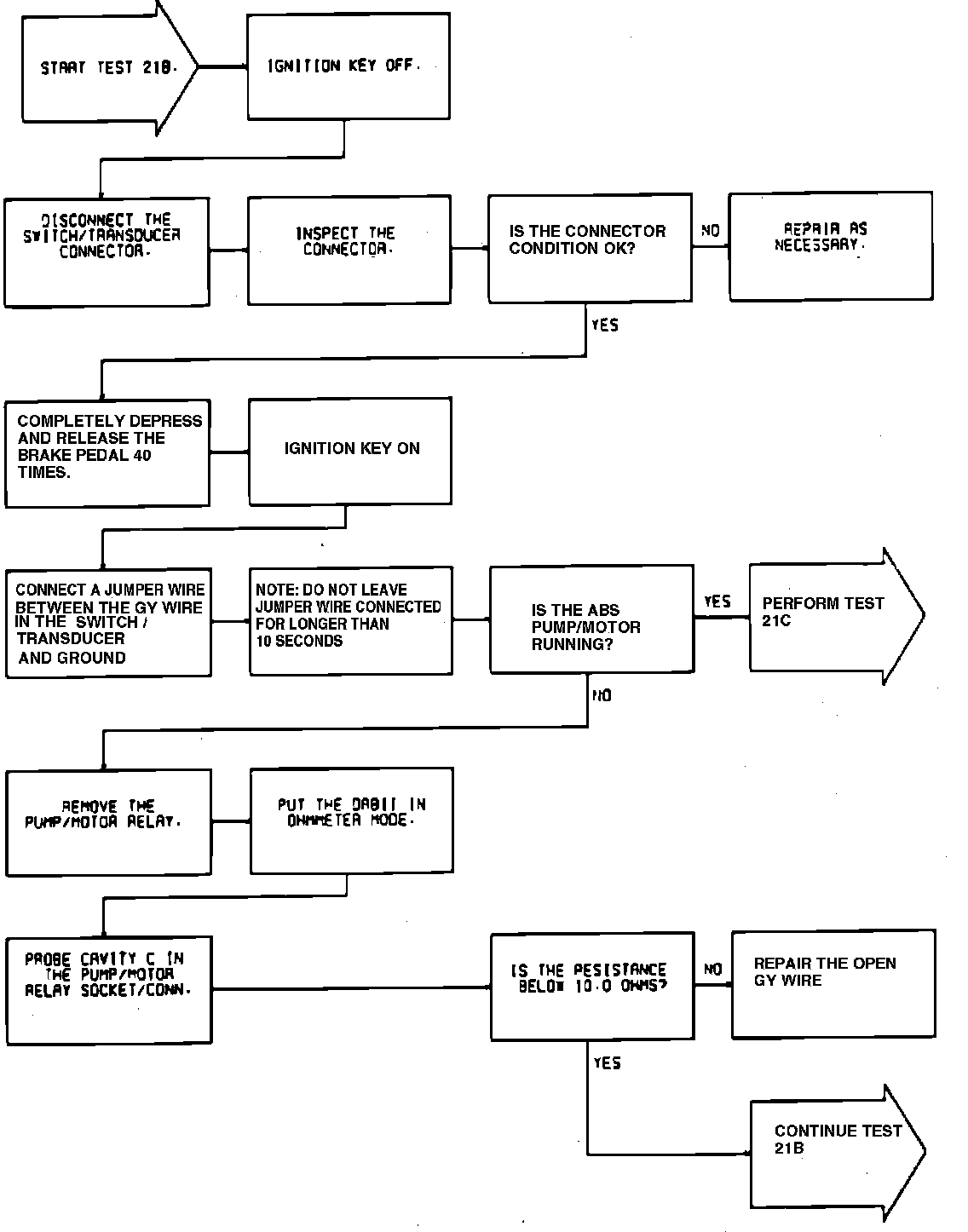

Fig. 144 Test 21B Part 1 Of 3:

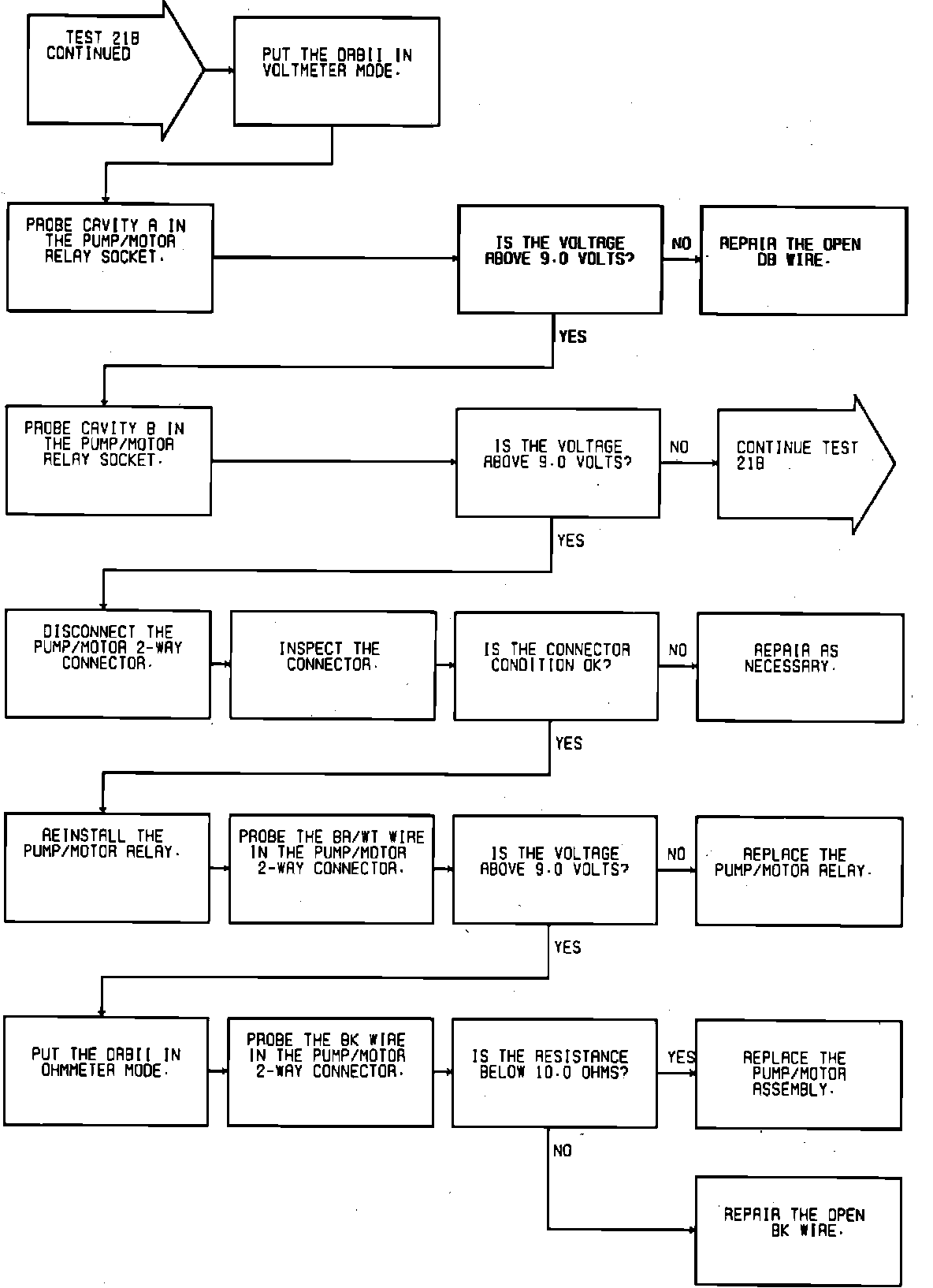

Fig. 144 Test 21B Part 2 Of 3:

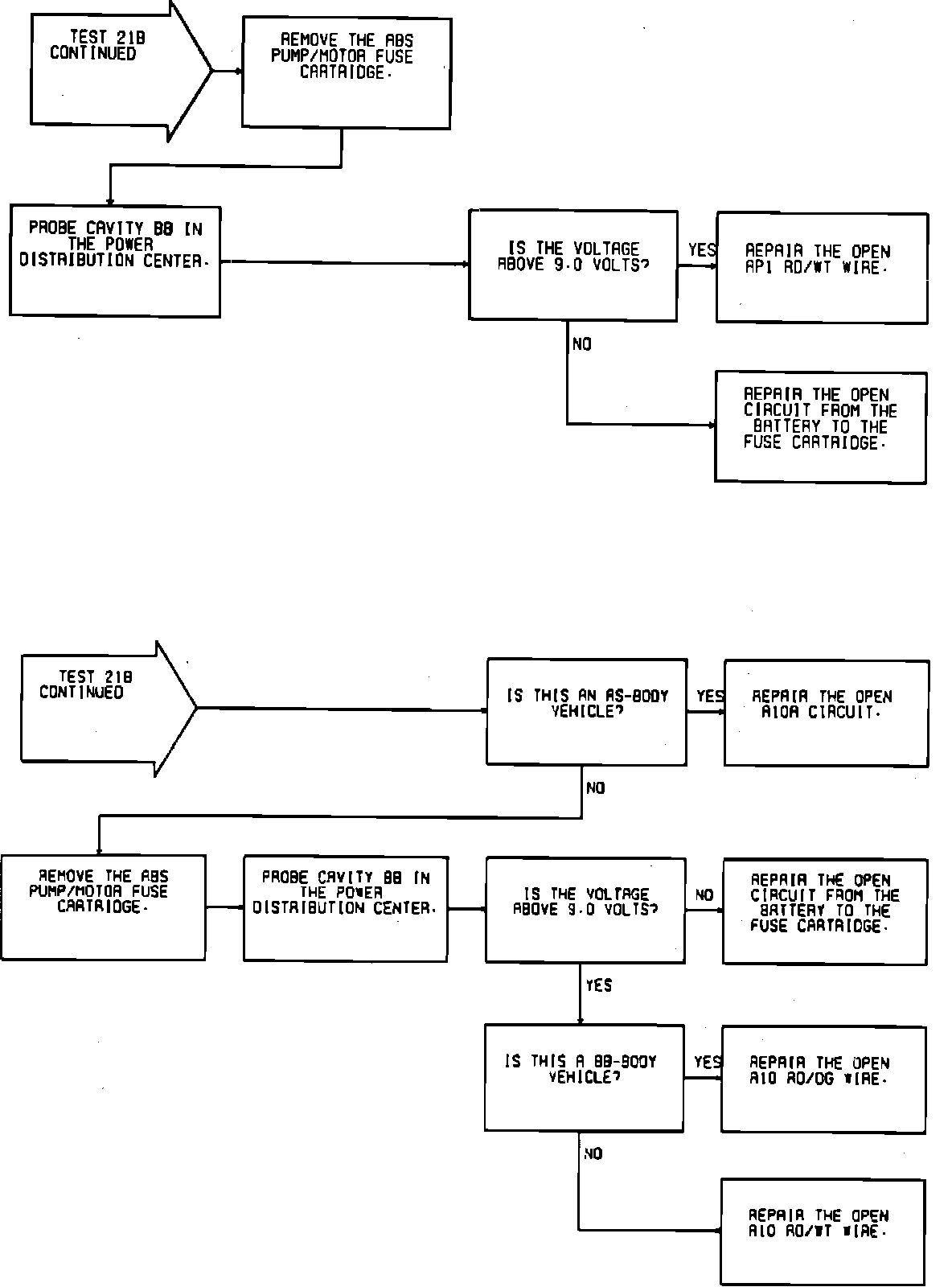

Fig. 144 Test 21B Part 3 Of 3:
