Test 19A

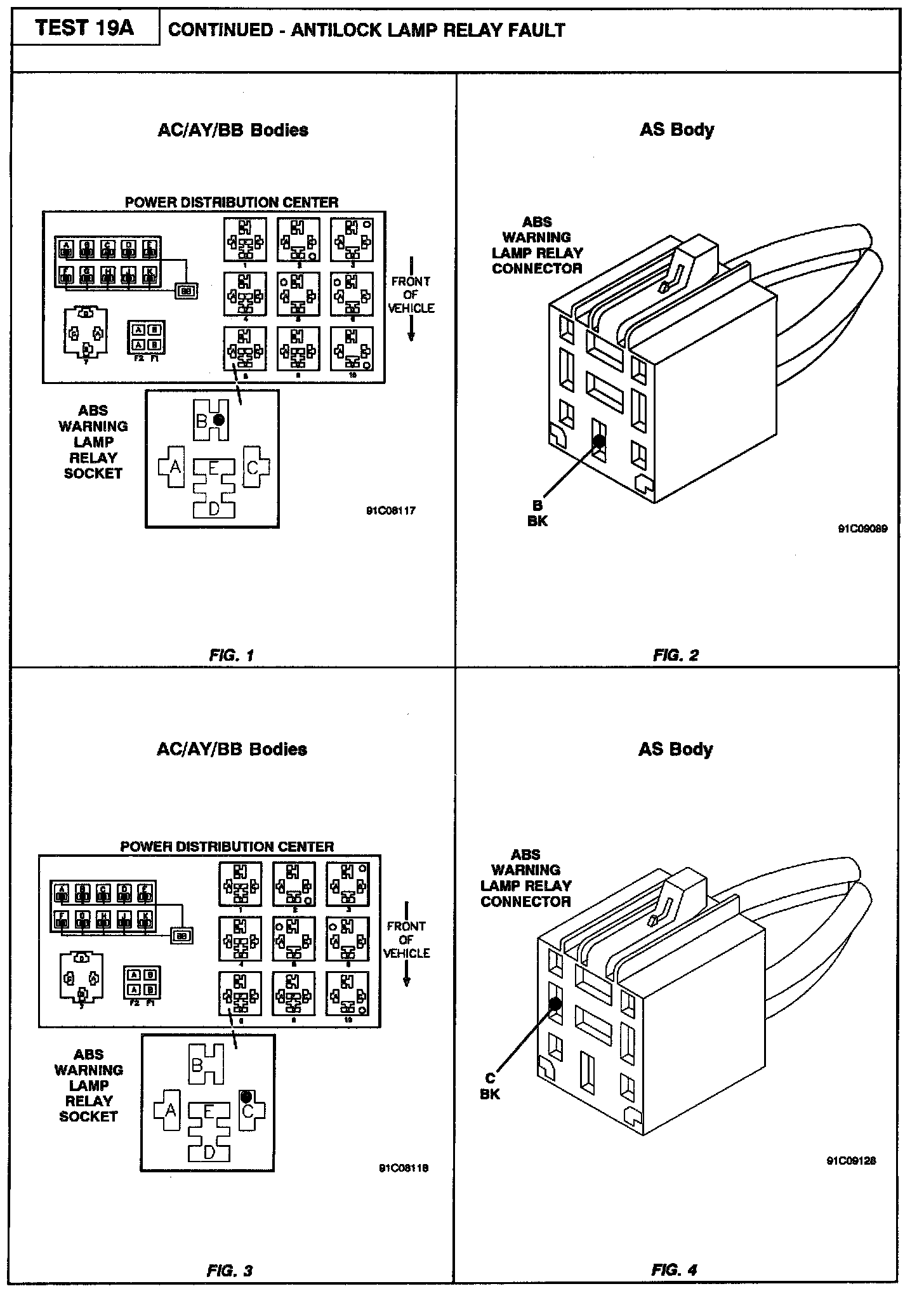

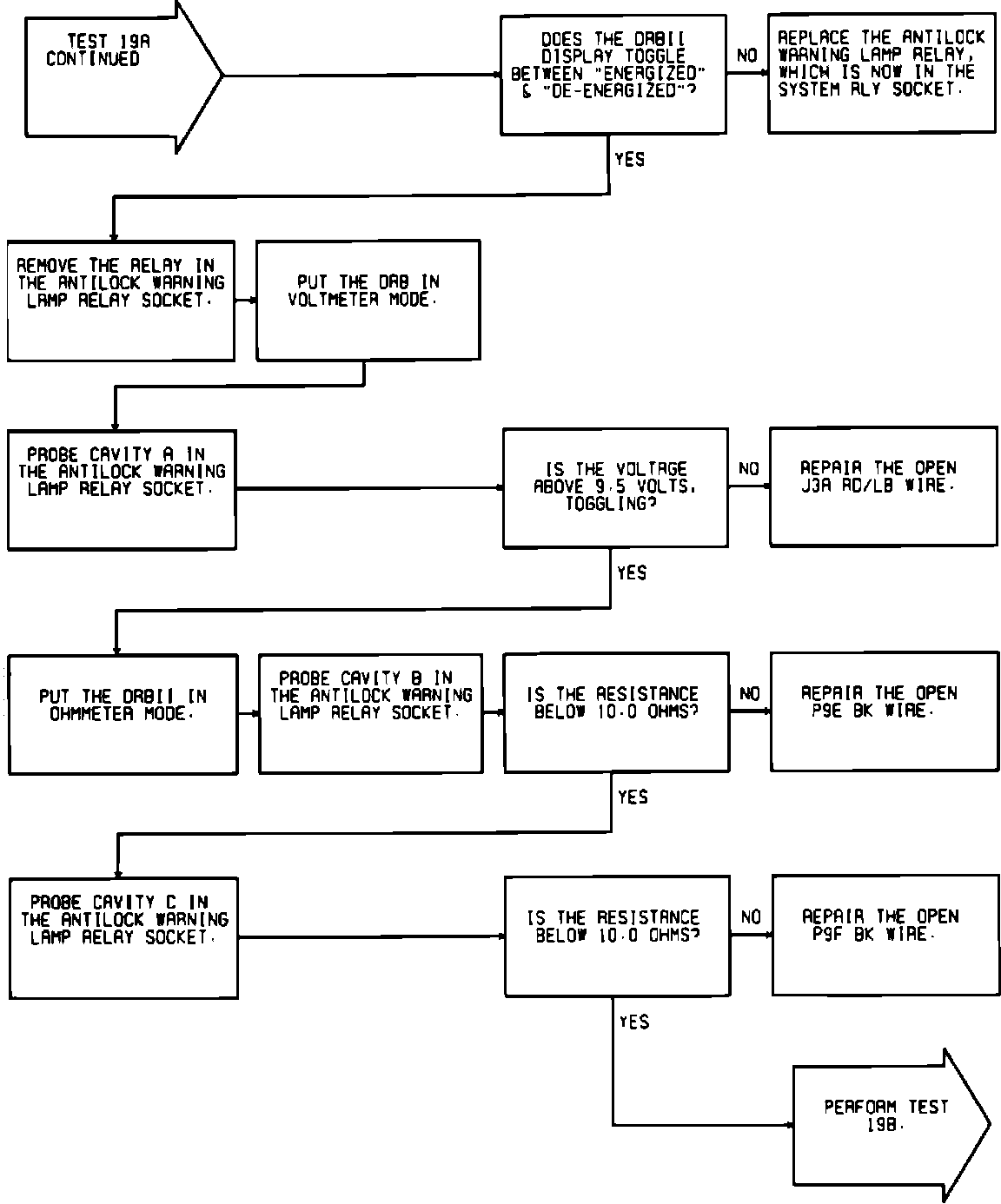

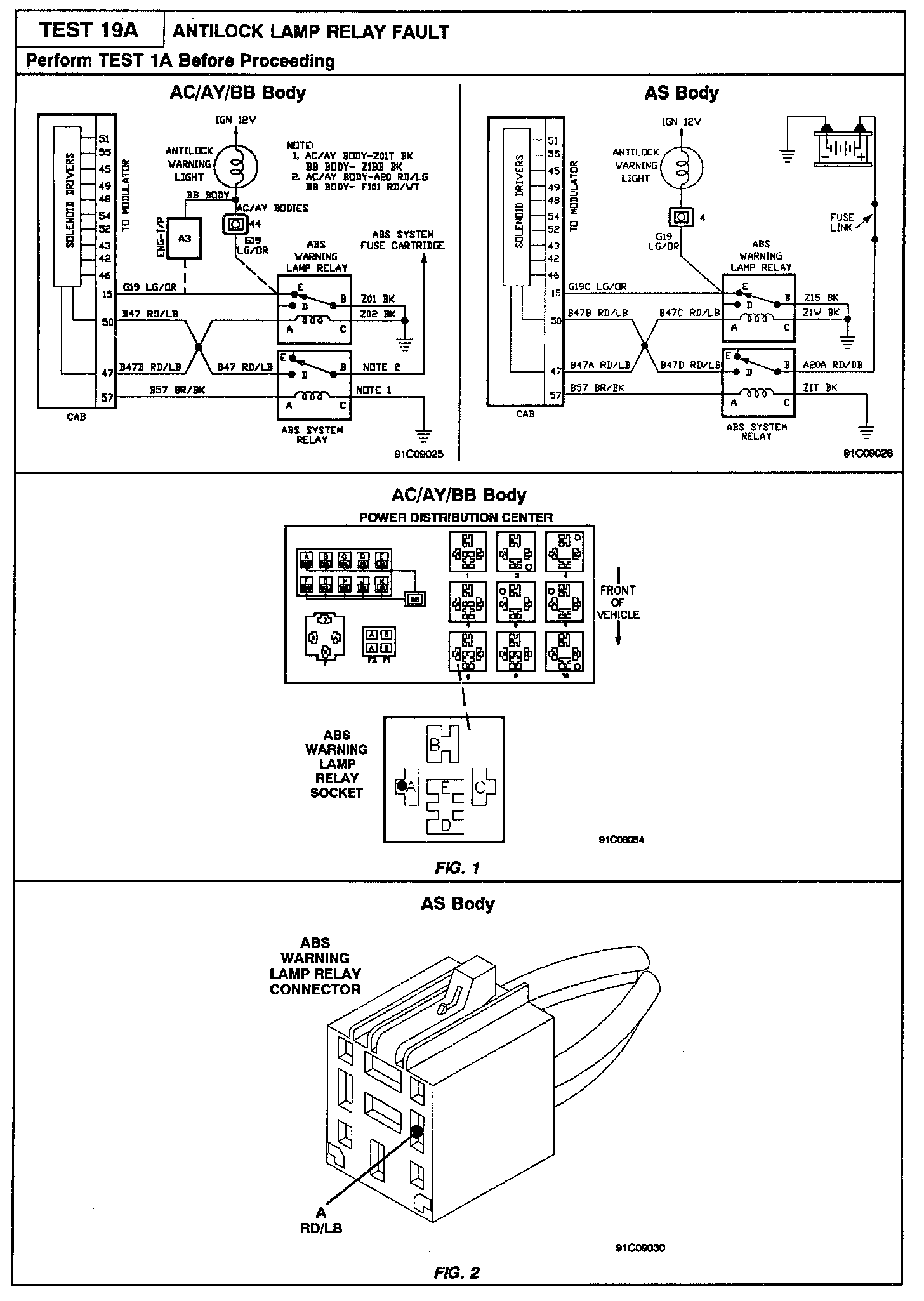

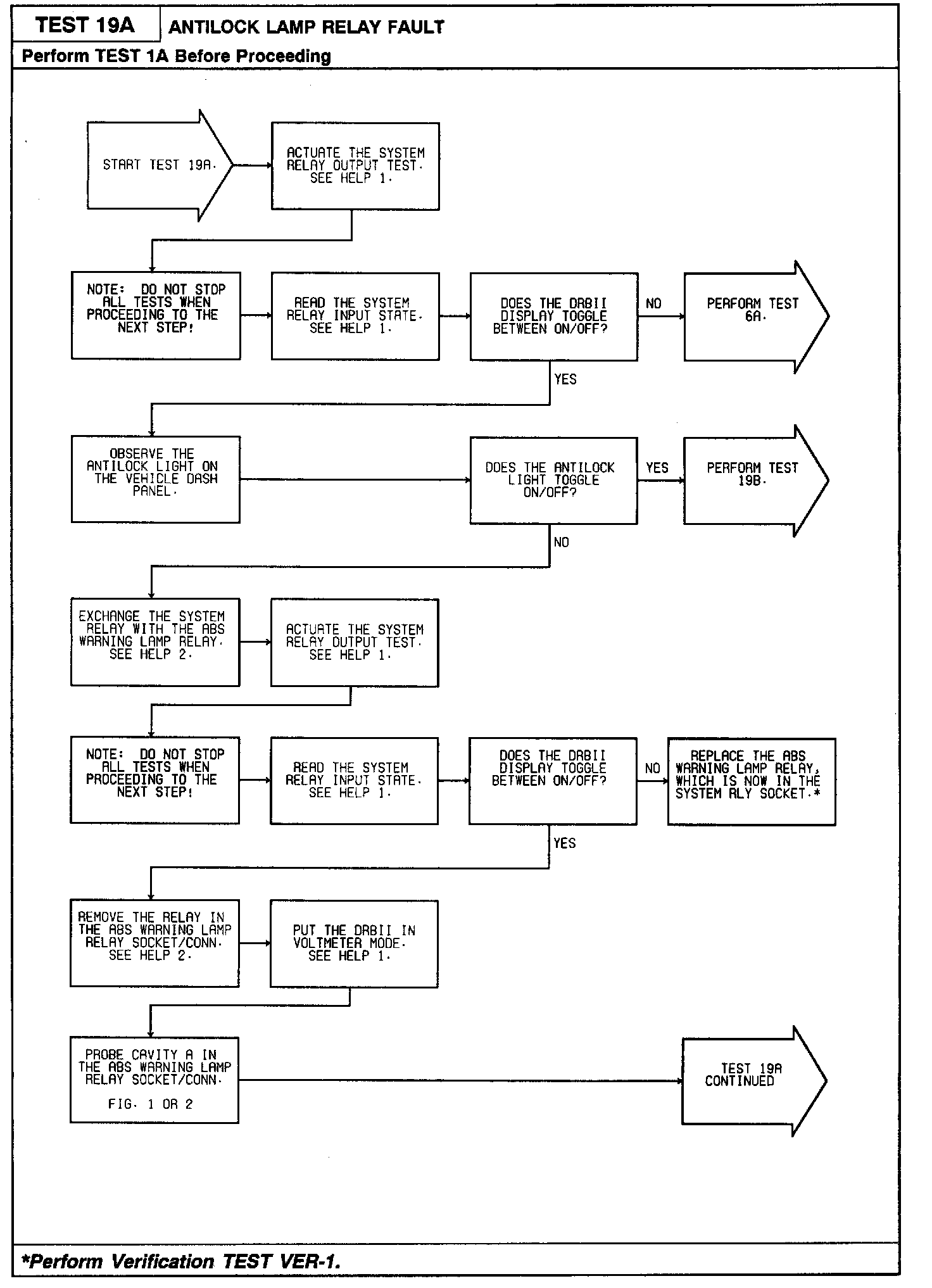

Fig. 113 Test 19A--Anti-Lock Lamp Relay Fault (Part 1 Of 2):

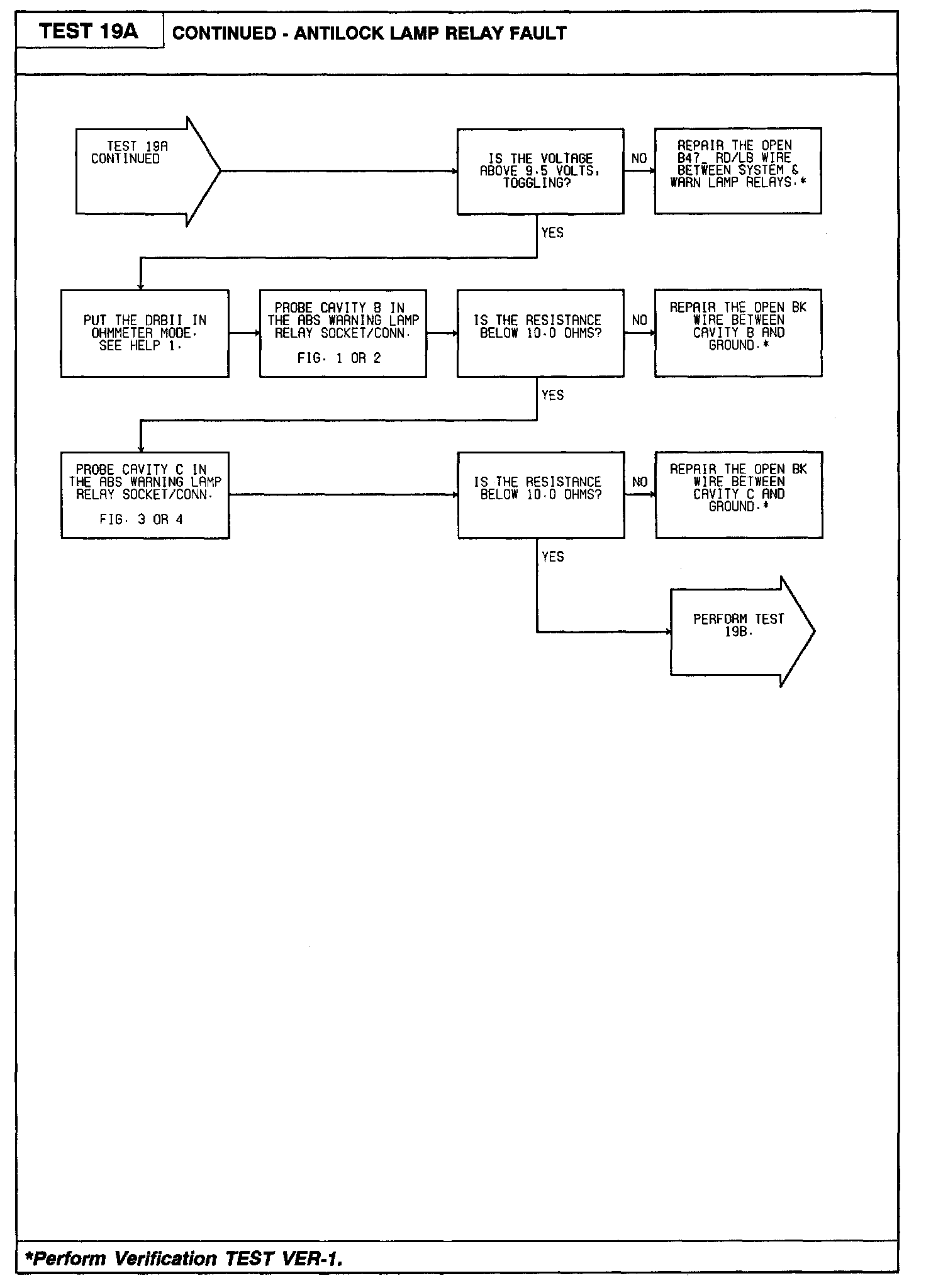

Fig. 113 Test 19A--Anti-Lock Lamp Relay Fault (Part 2 Of 2):

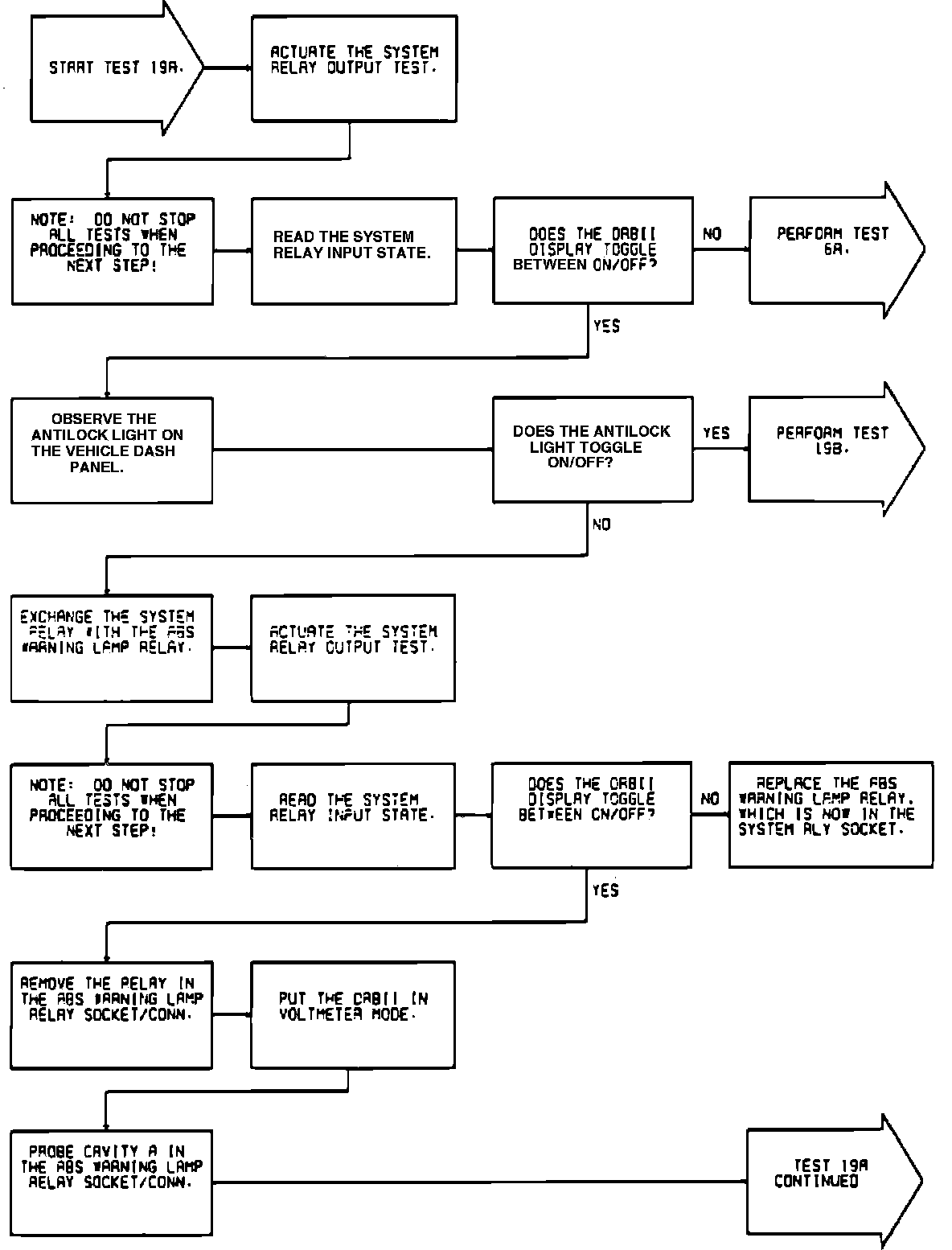

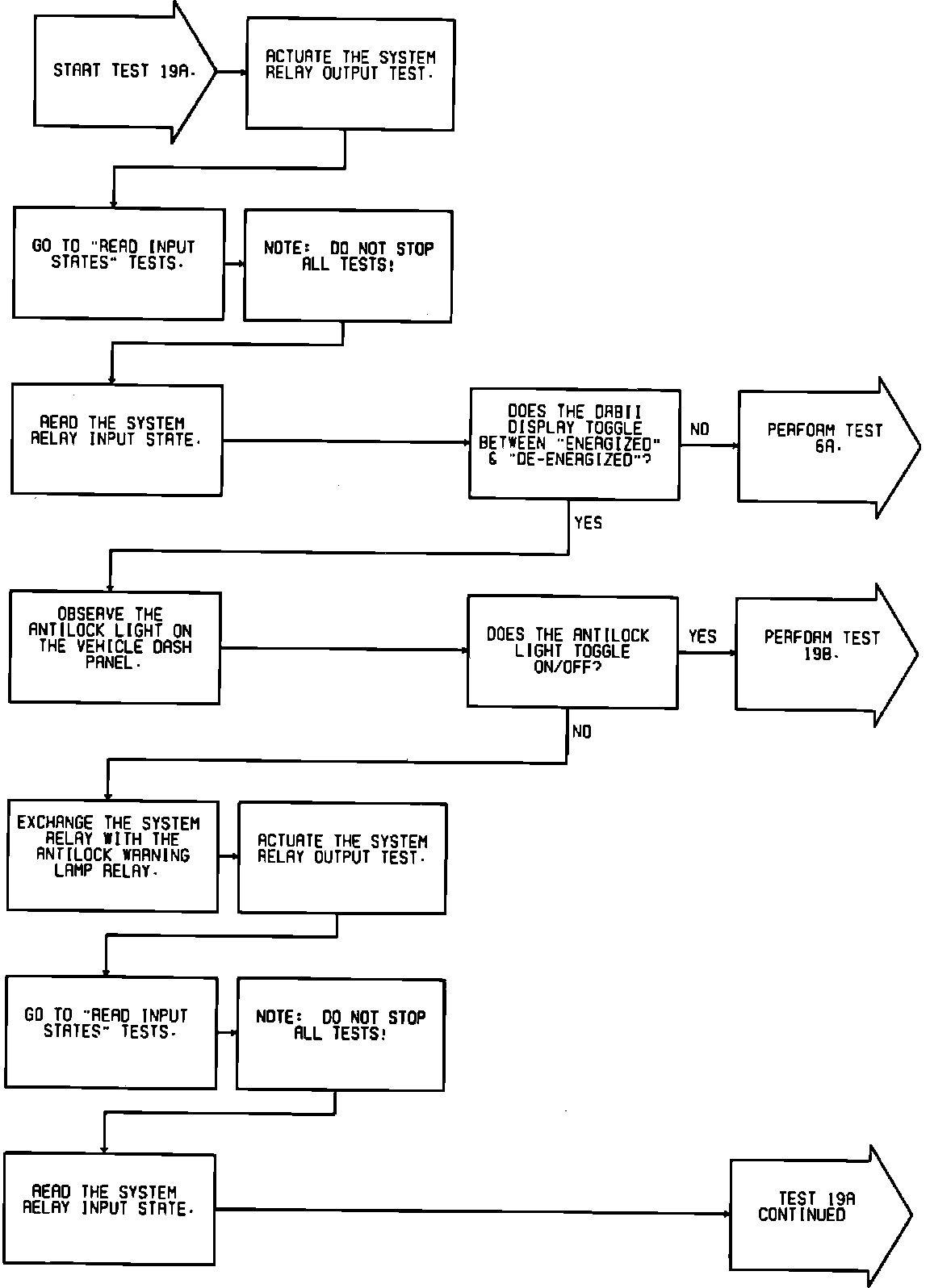

Fig. 114 Test 19A--Anti-Lock Lamp Relay Fault (Part 1 Of 2):

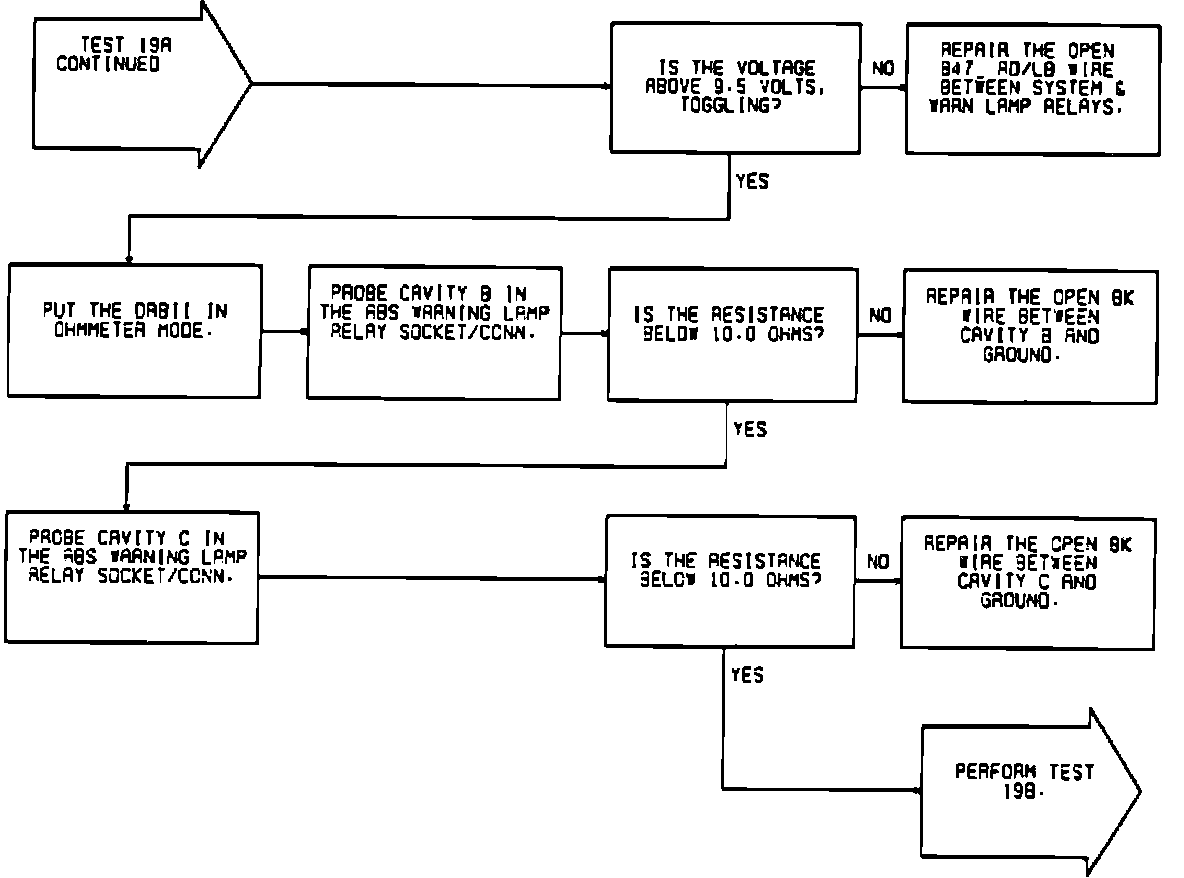

Fig. 114 Test 19A--Anti-Lock Lamp Relay Fault (Part 2 Of 2):
