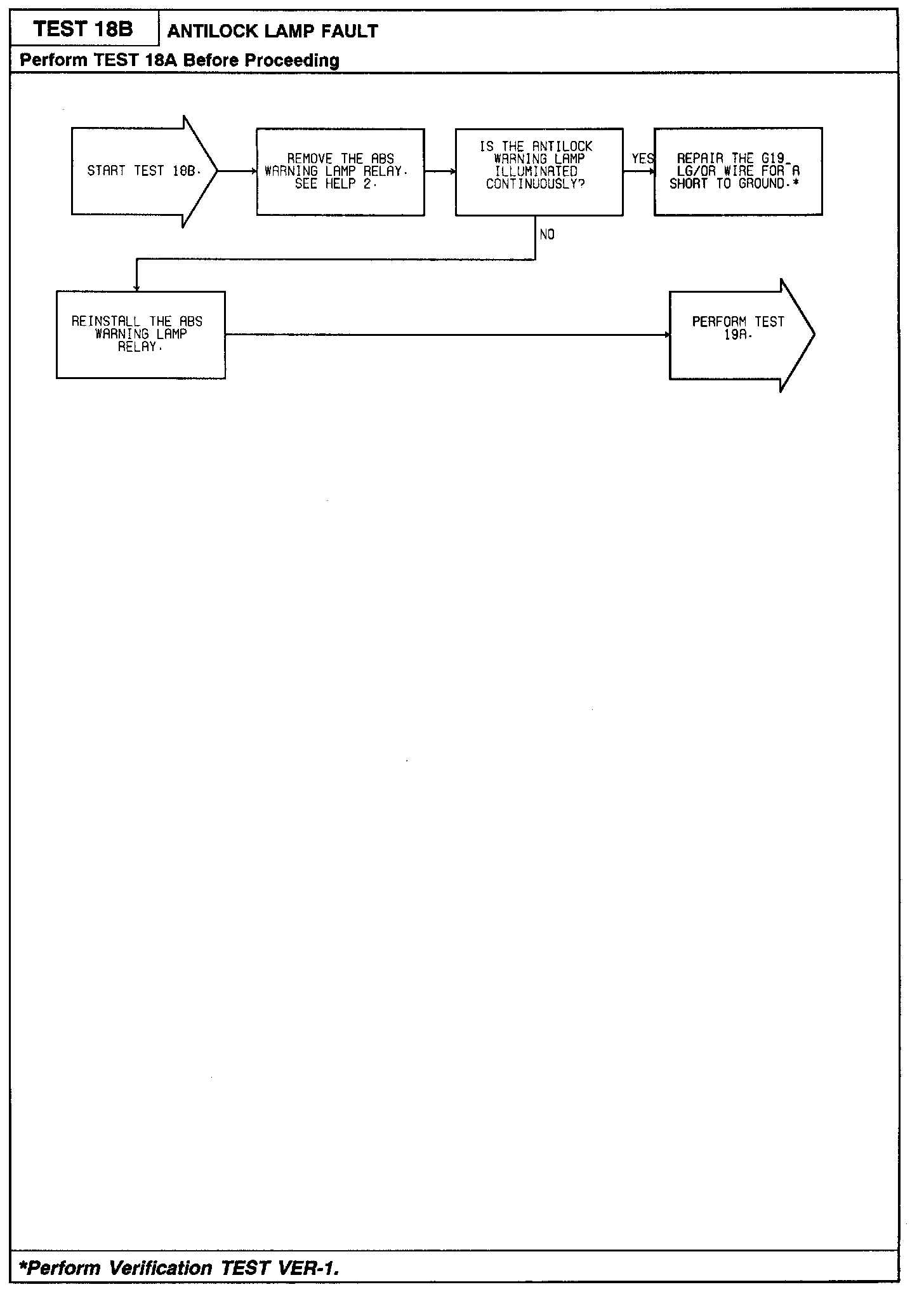

Test 18B

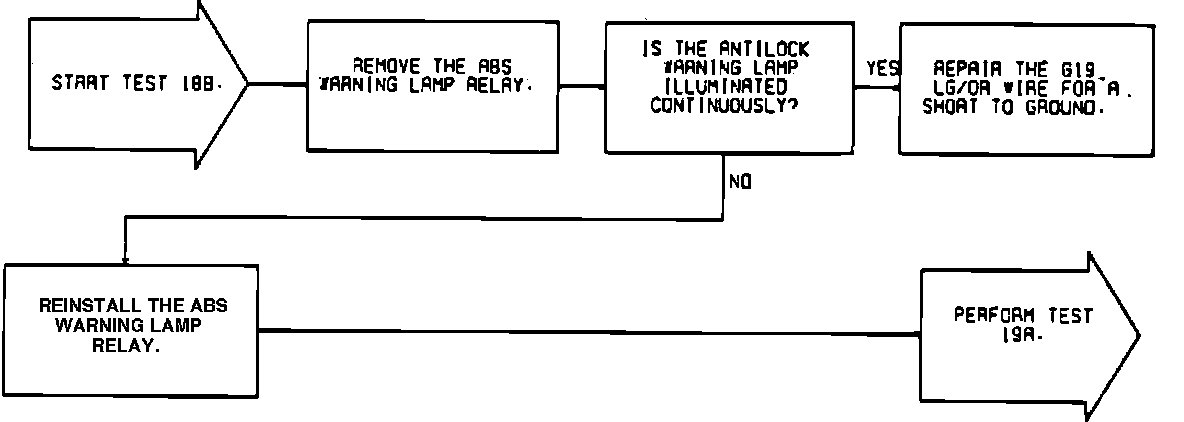

Fig. 140 Test 18B:

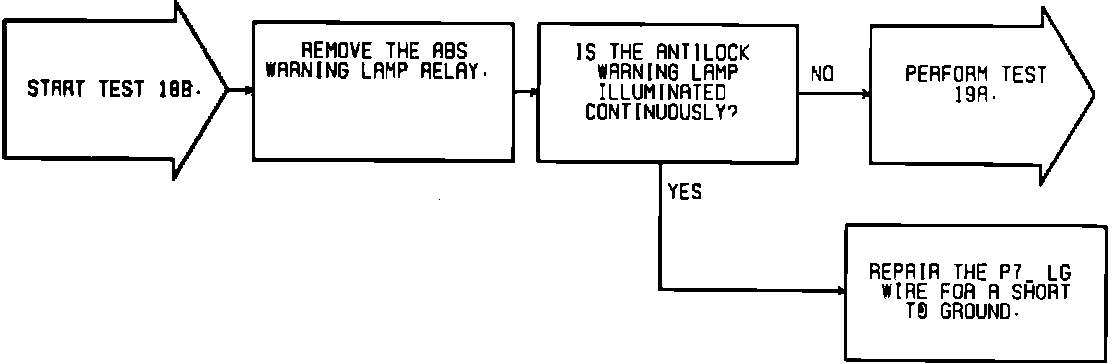

Fig. 111 Test 18B--Anti-Lock Lamp Fault:

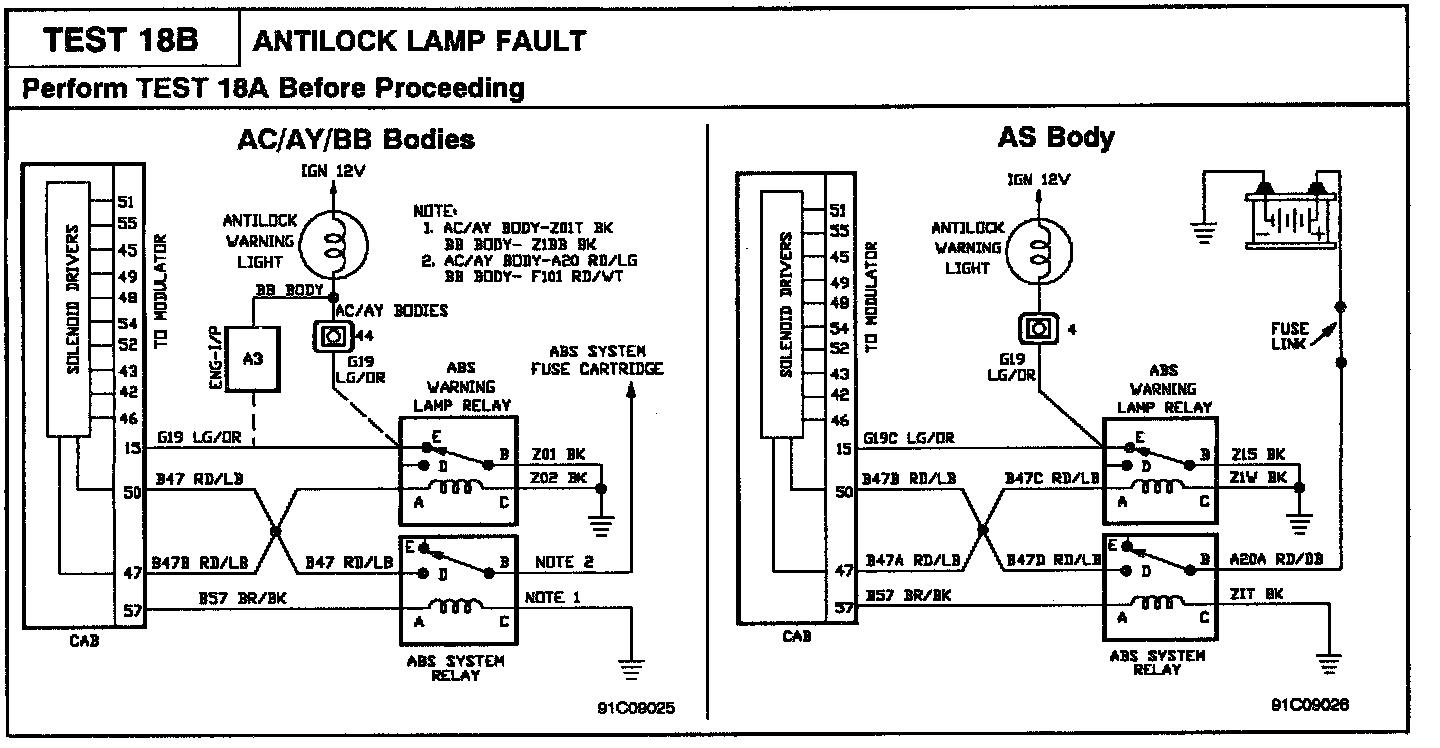

Fig. 112 Test 18B--Anti-Lock Lamp Fault:
