Test 18A

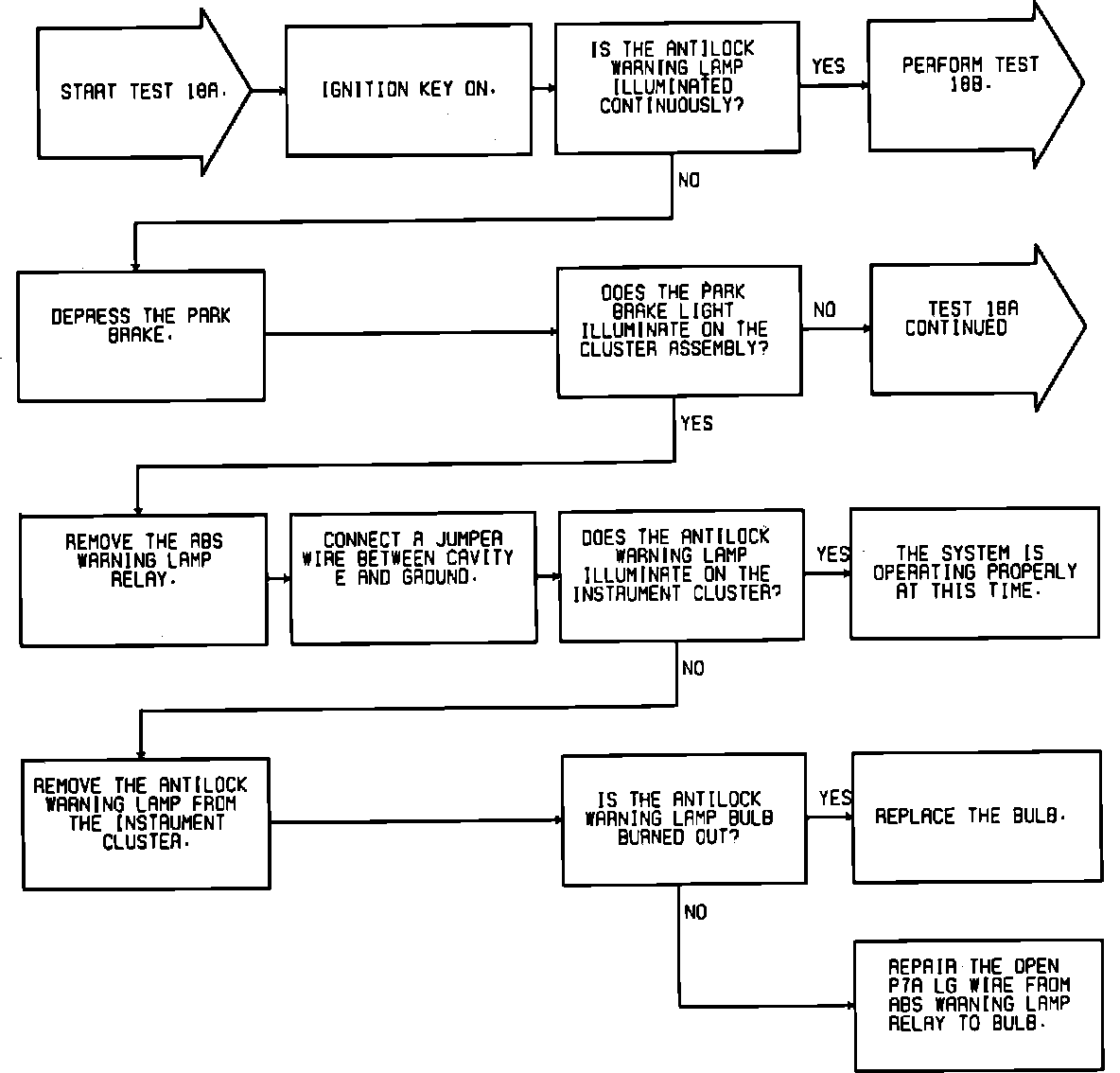

Fig. 109 Test 18A--Anti-Lock Lamp Fault (Part 1 Of 2):

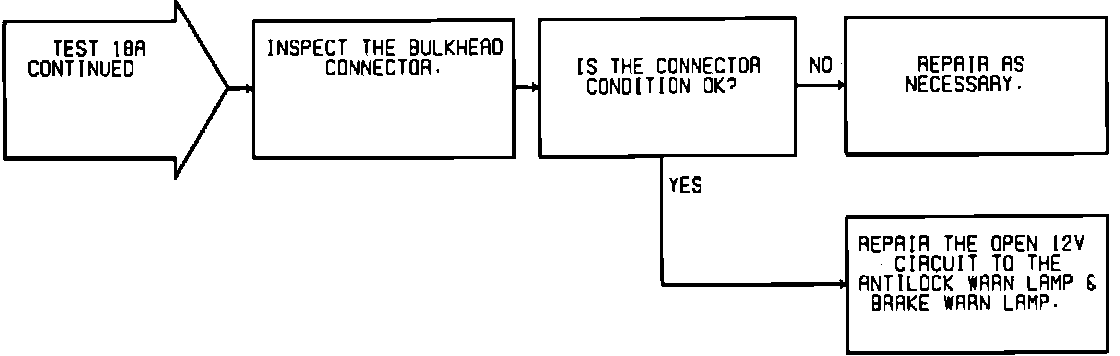

Fig. 109 Test 18A--Anti-Lock Lamp Fault (Part 2 Of 2):
