Test 17D

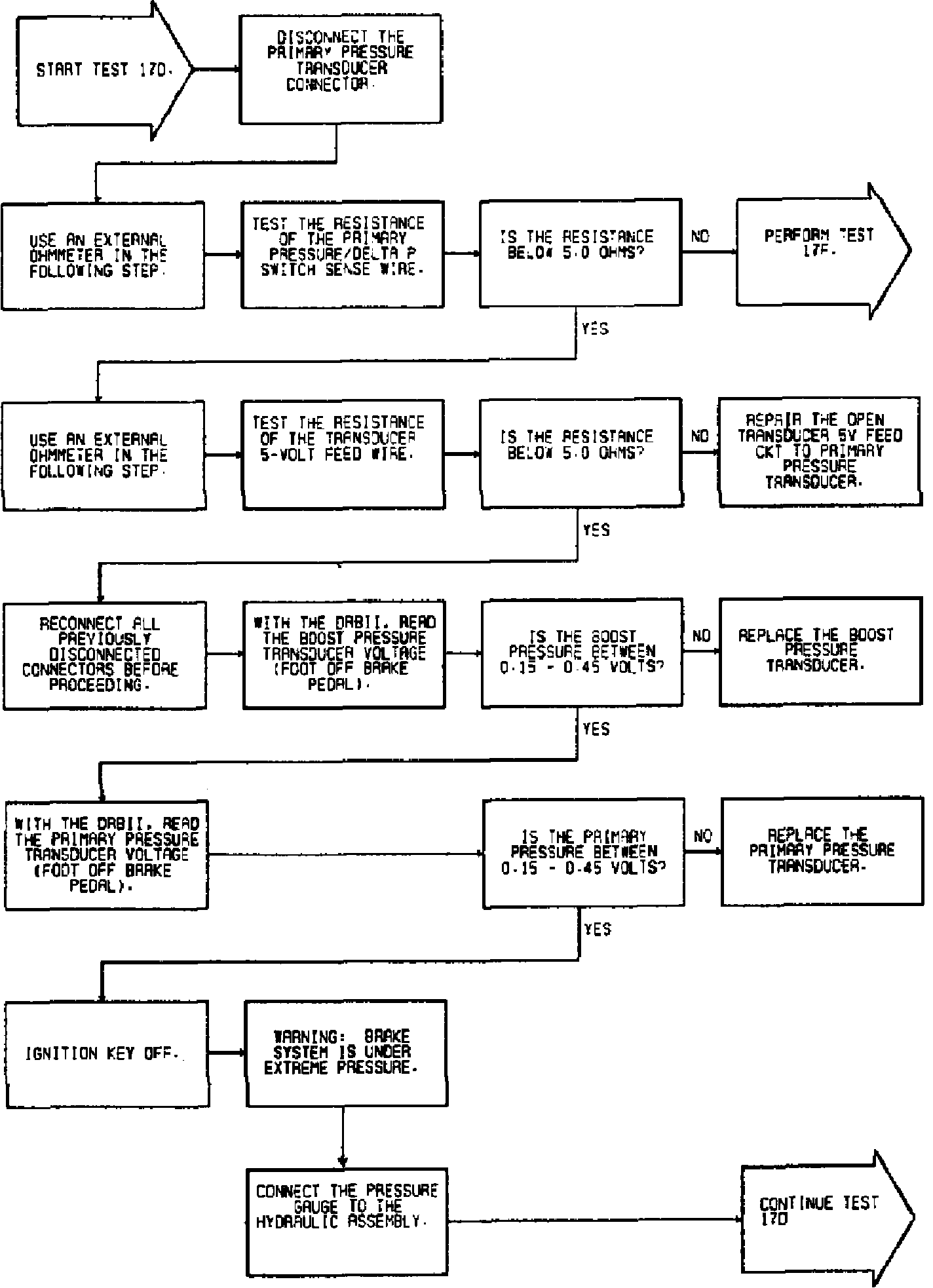

Fig. 107 Test 17D--Primary Pressure/Delta P Fault (Part 1 Of 2):

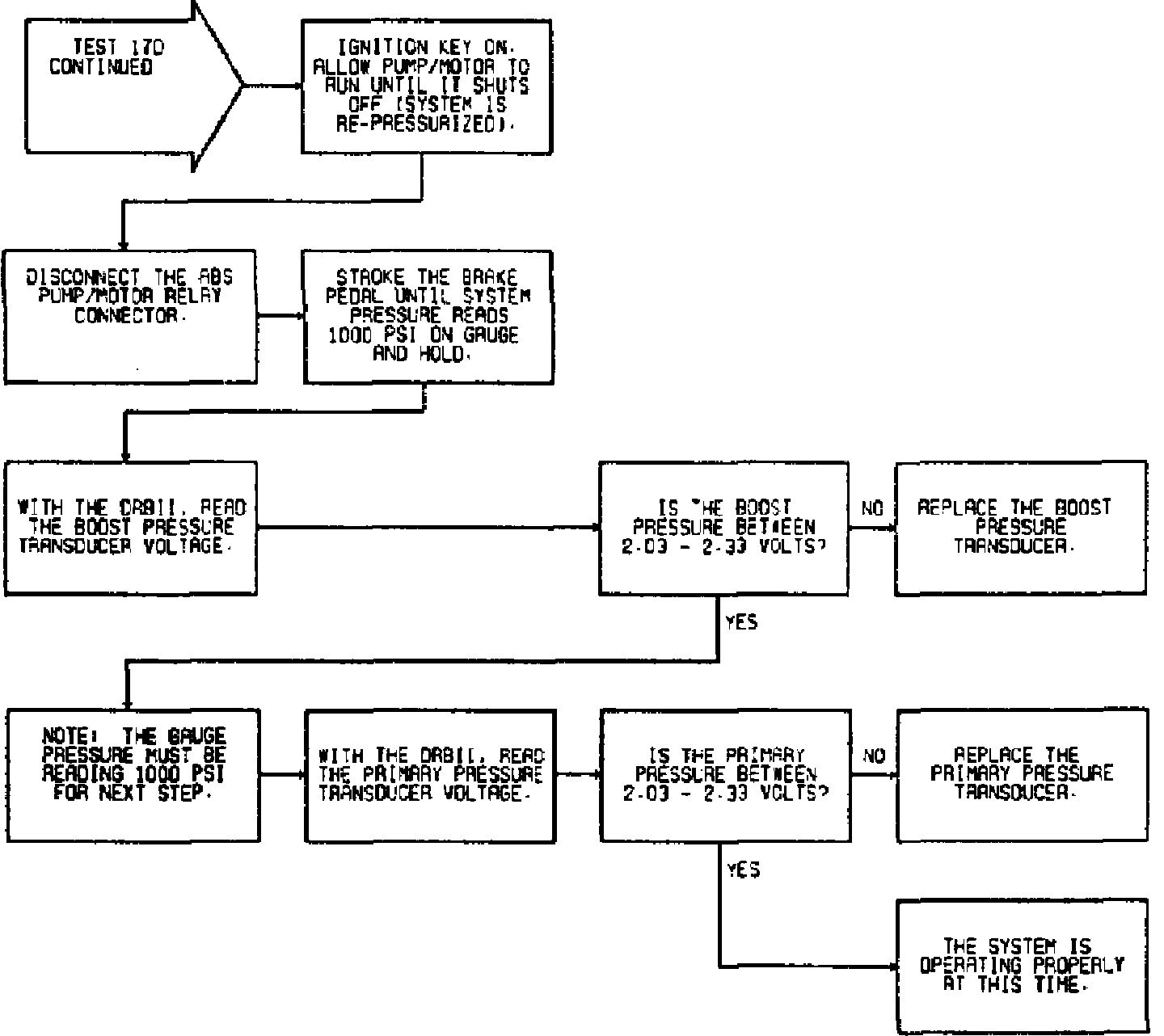

Fig. 107 Test 17D--Primary Pressure/Delta P Fault (Part 2 Of 2):

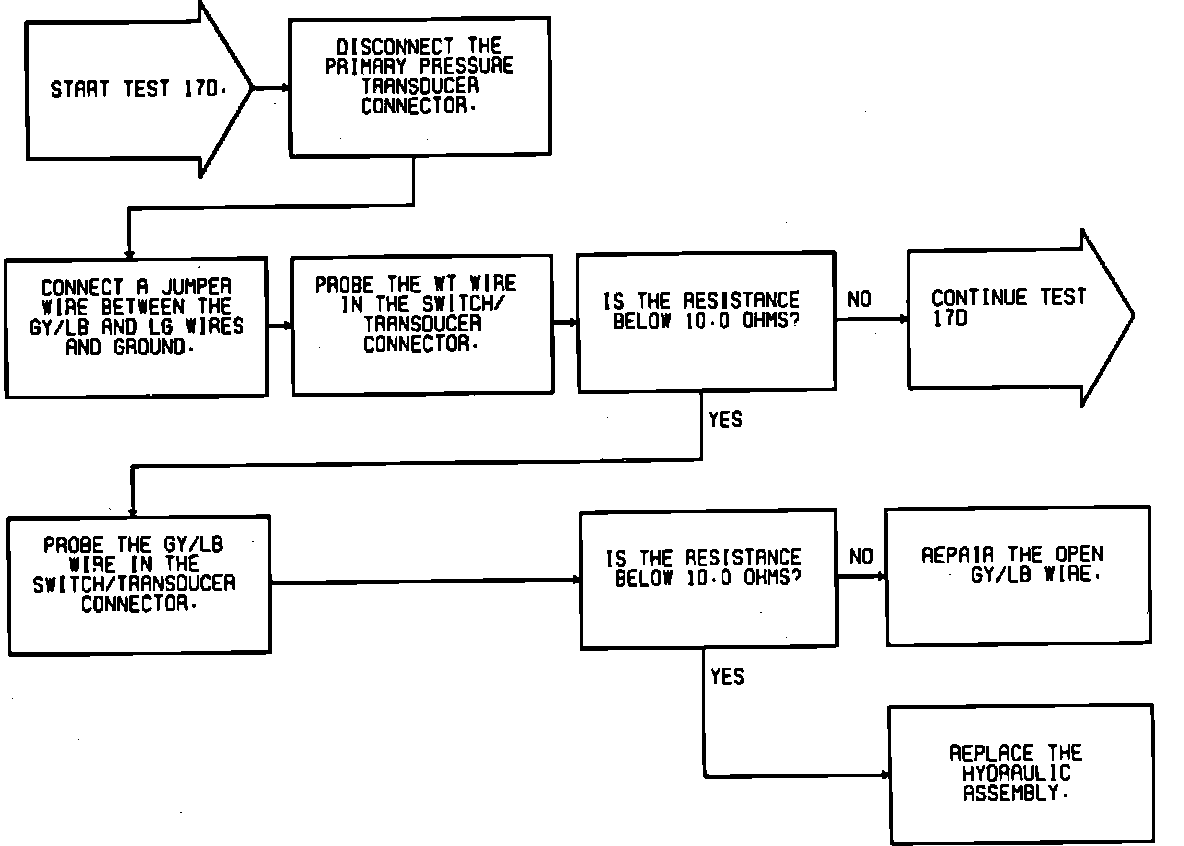

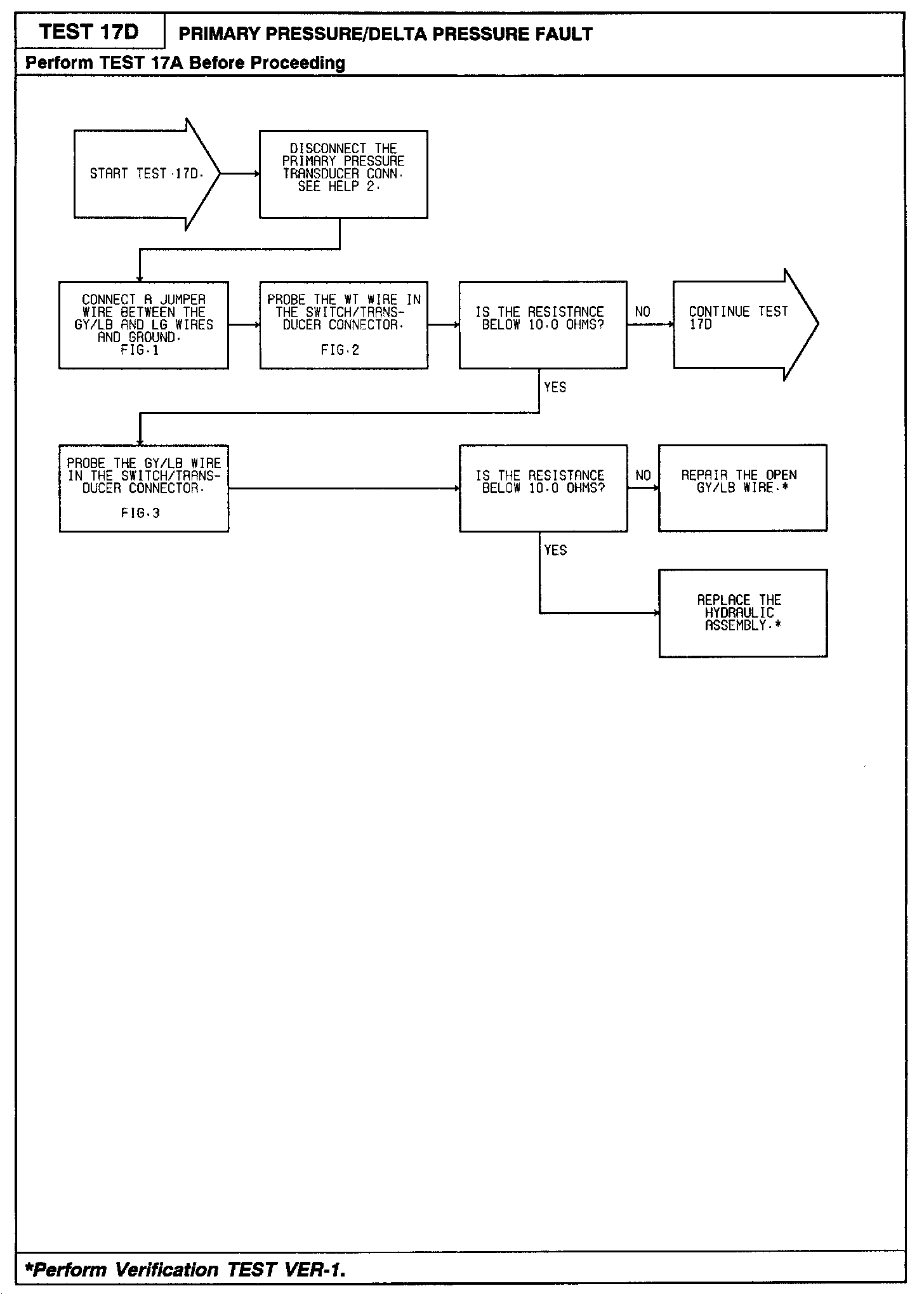

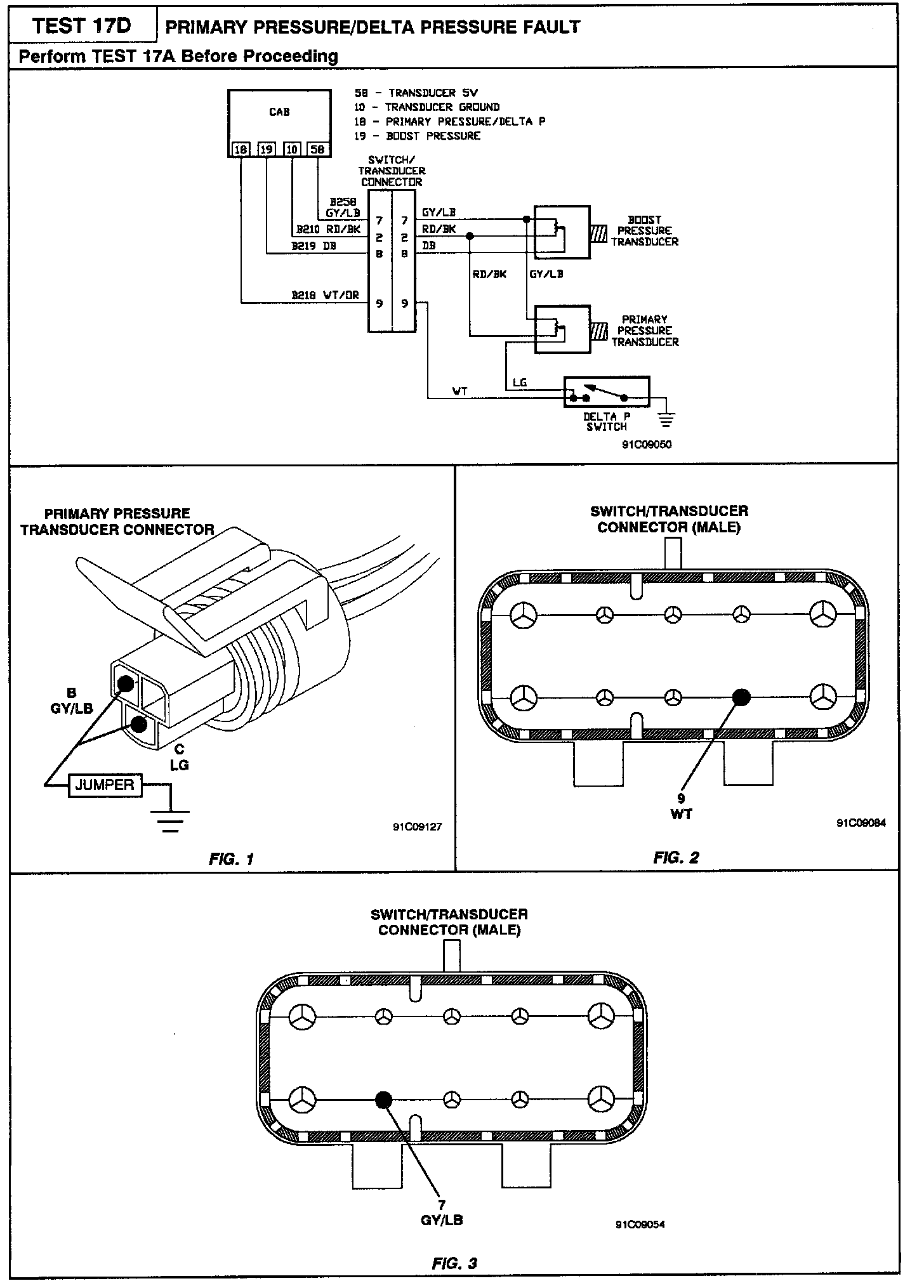

Fig. 136 Test 17D Part 1 Of 2:

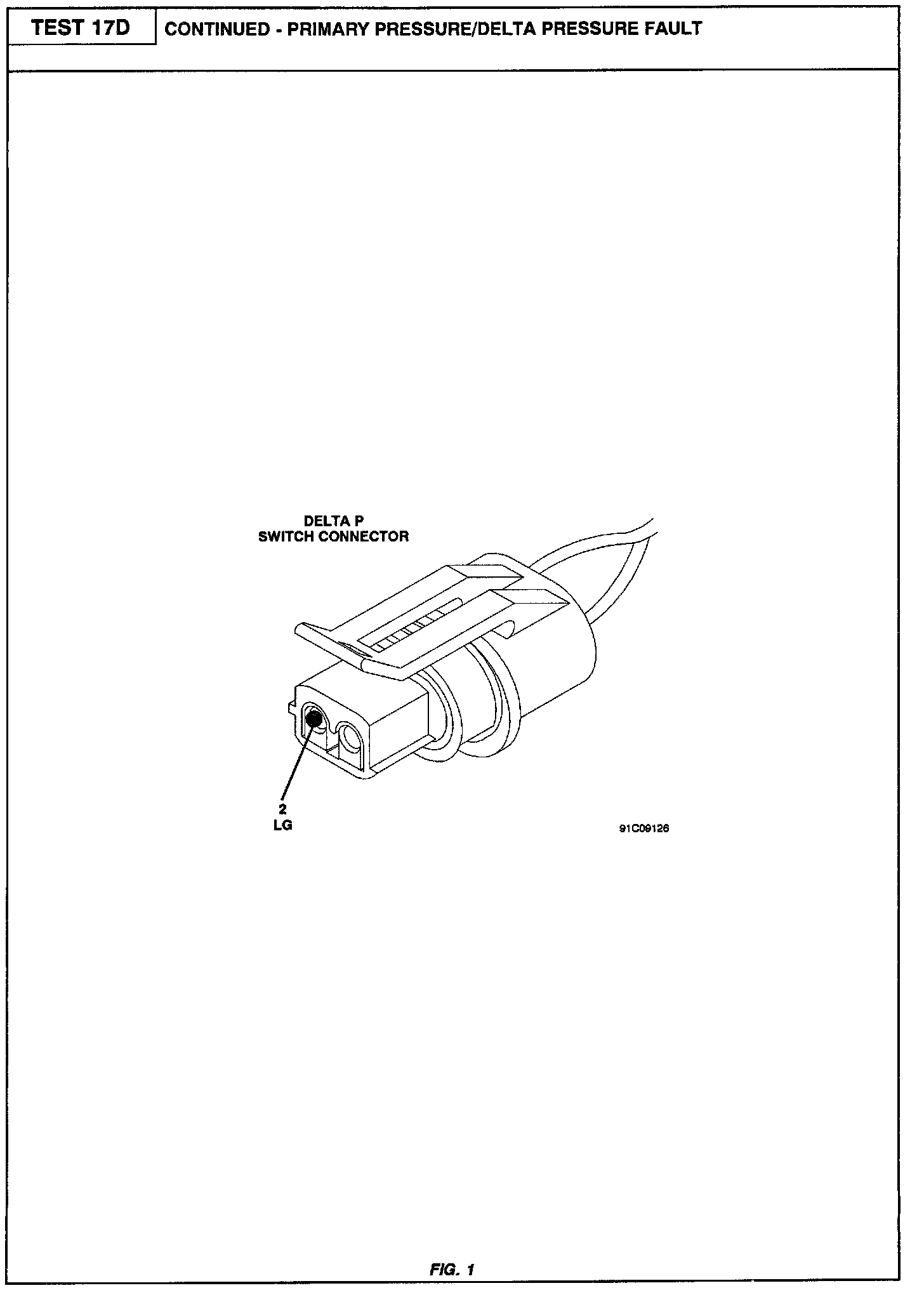

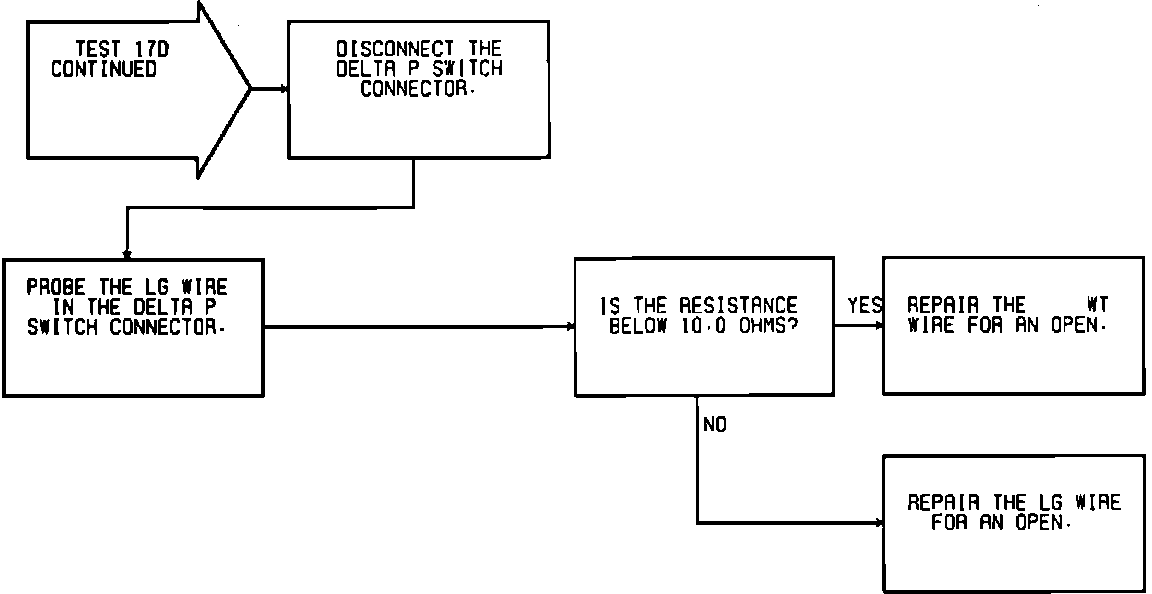

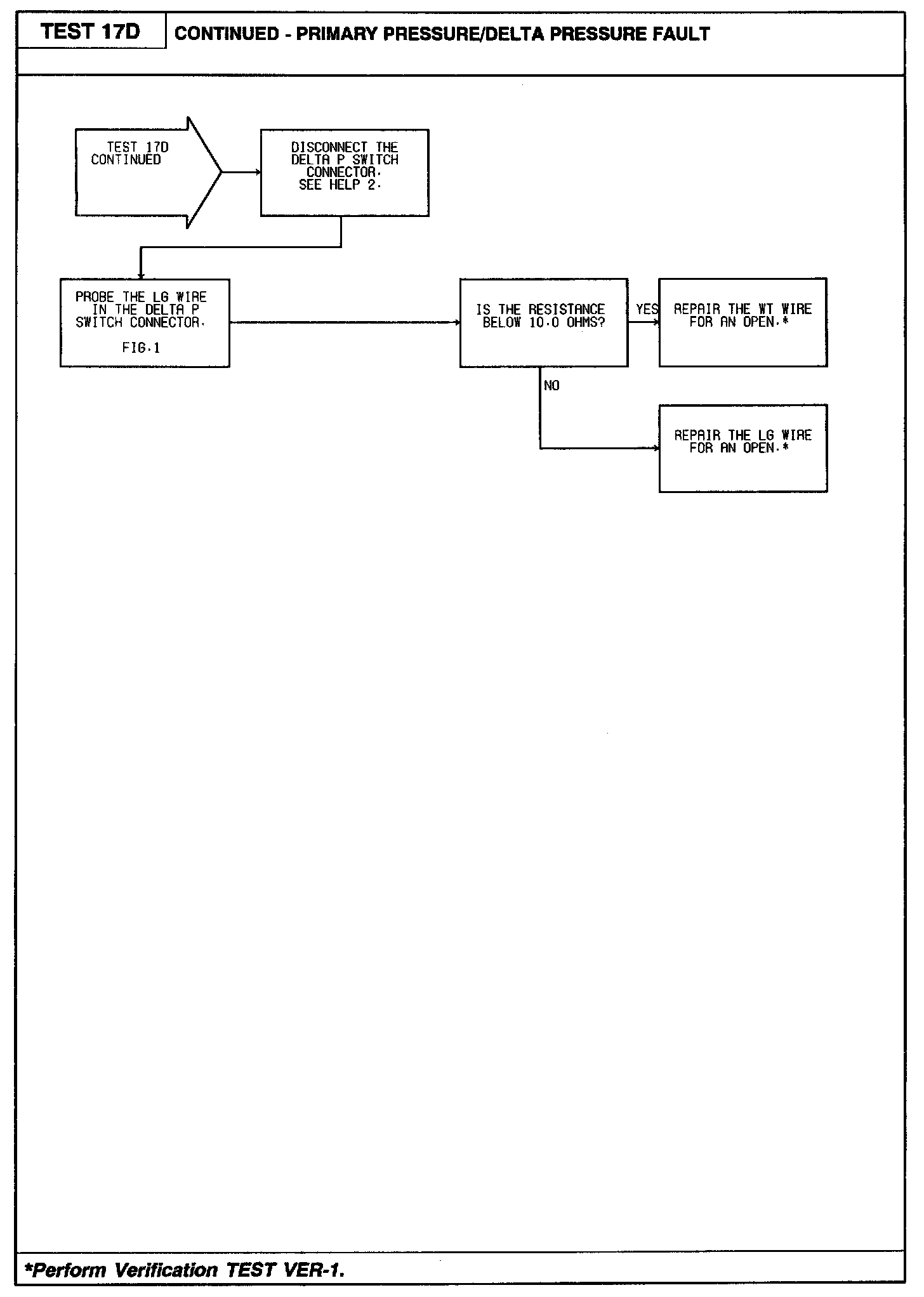

Fig. 136 Test 17D Part 2 Of 2:
