Test 17C

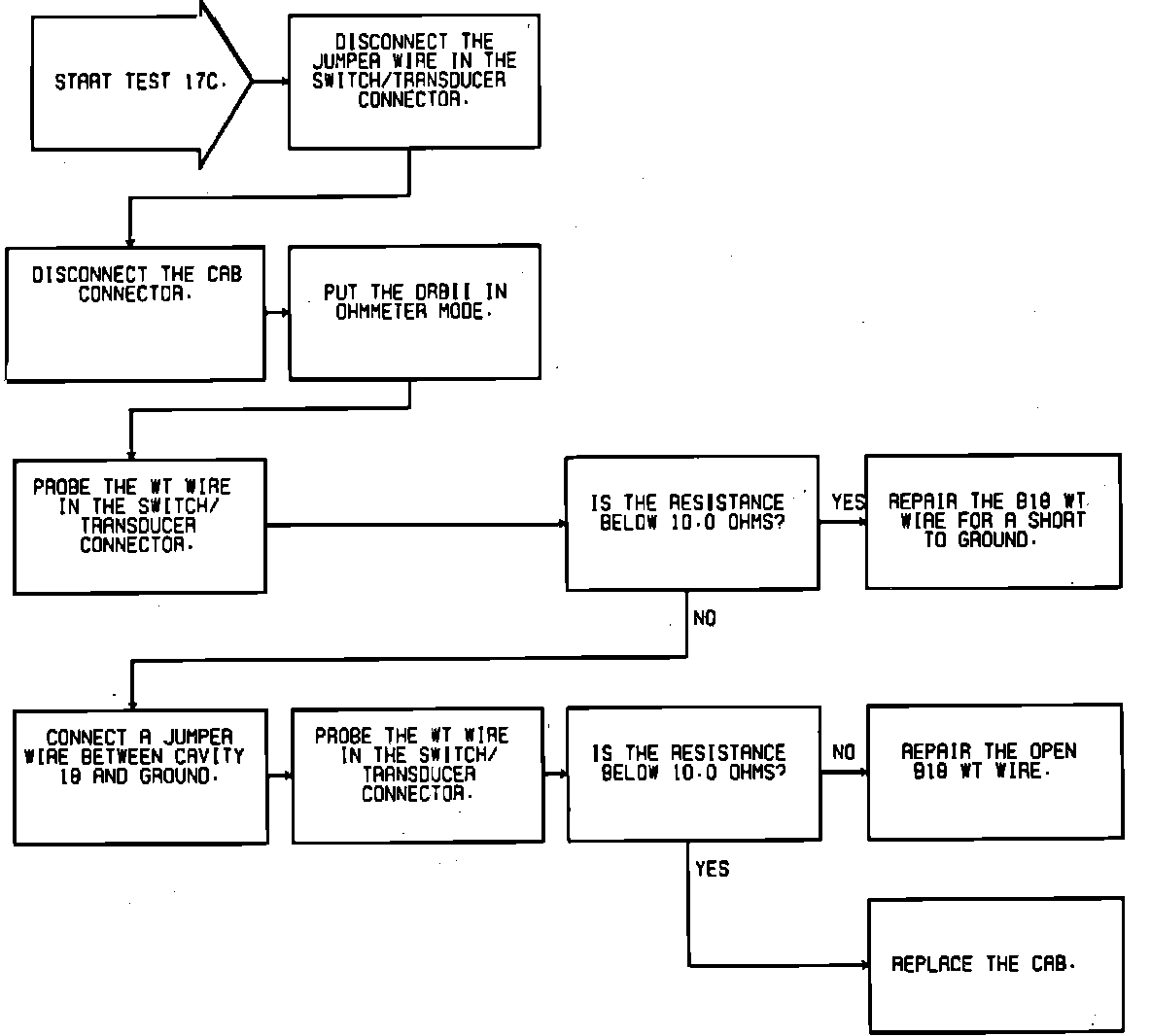

Fig. 105 Test 17C--Primary Pressure/Delta P Fault:

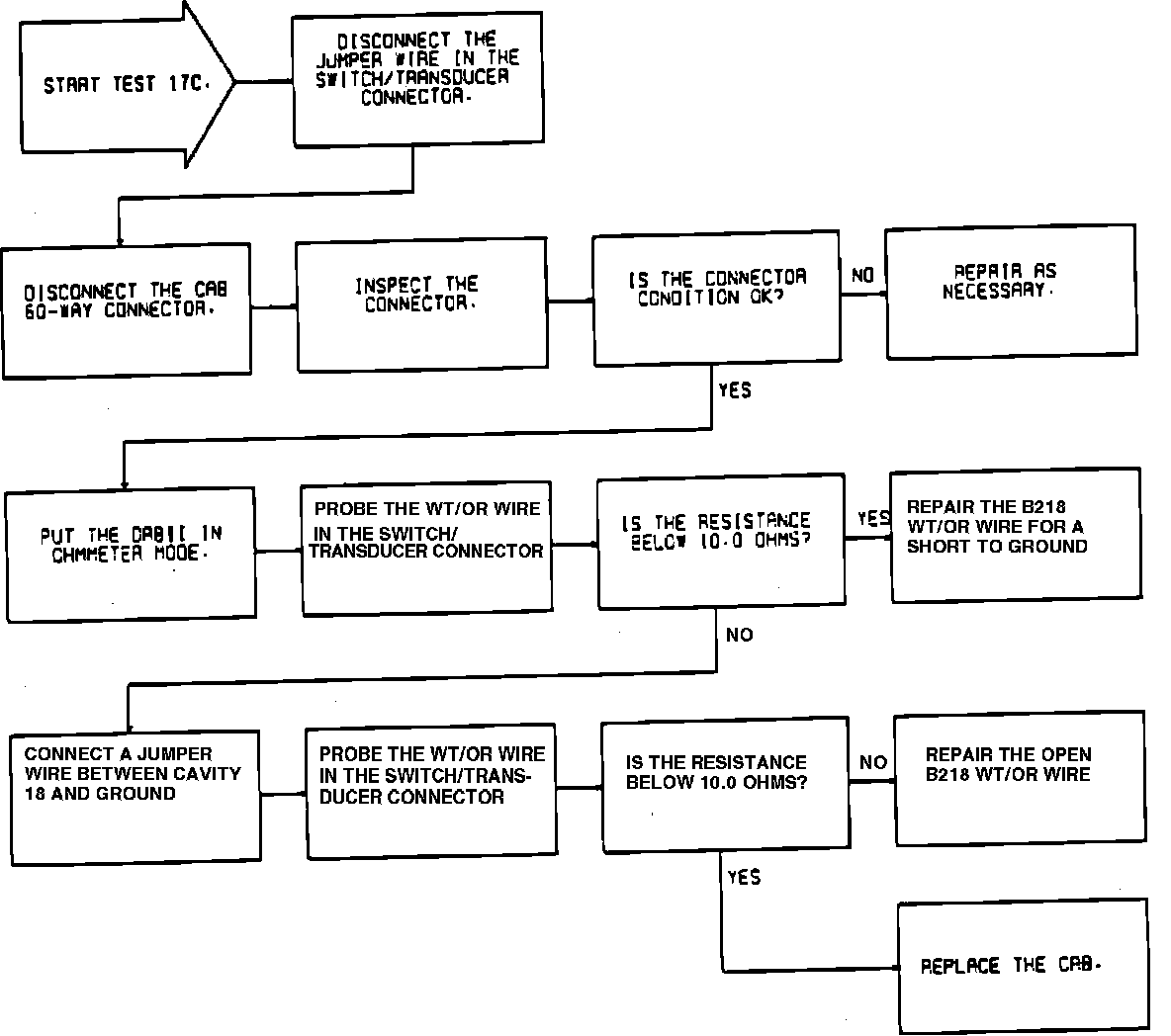

Fig. 106 Test 17C--Primary Pressure/Delta P Fault:

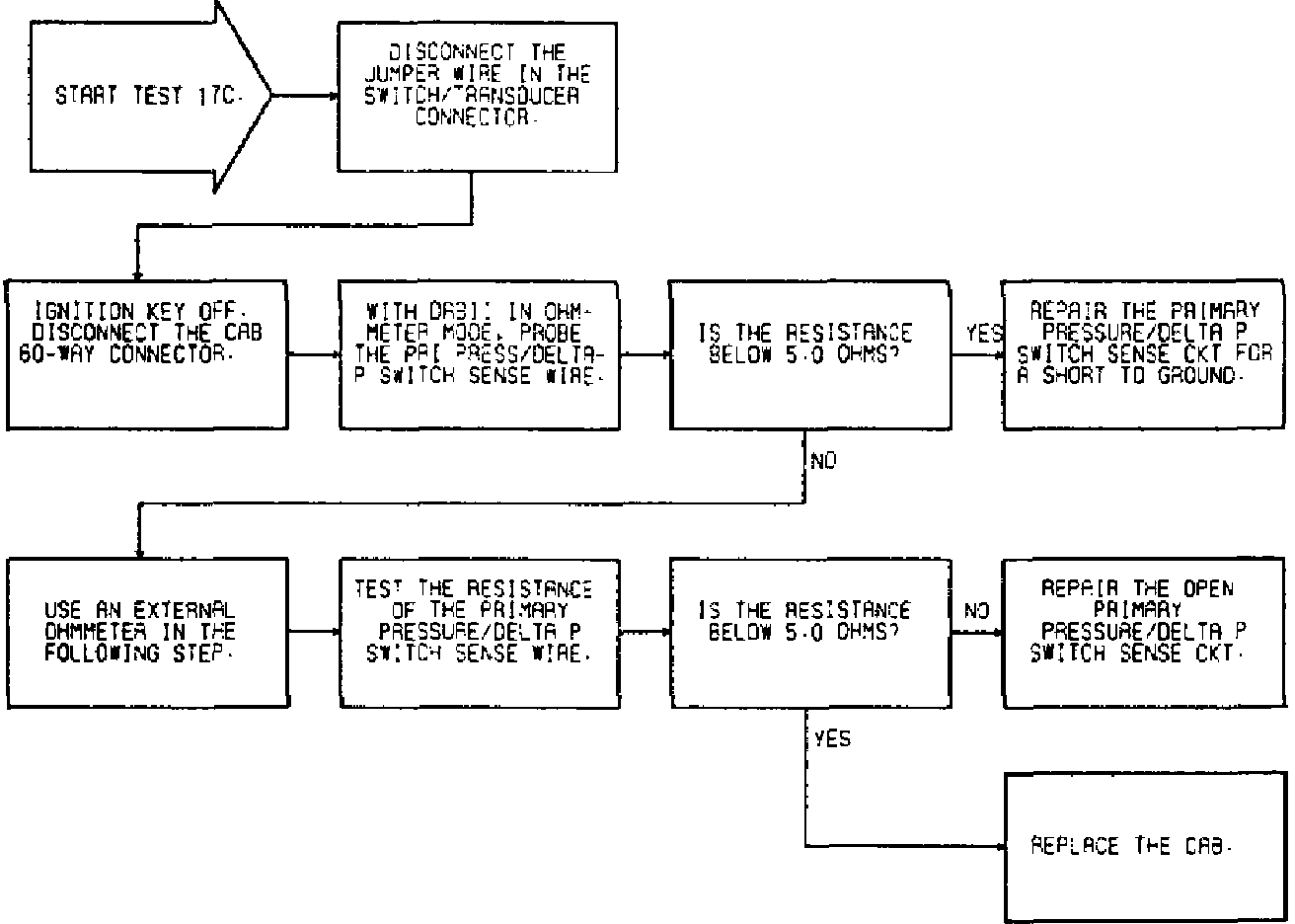

Fig. 135 Test 17C:
