Test 17A

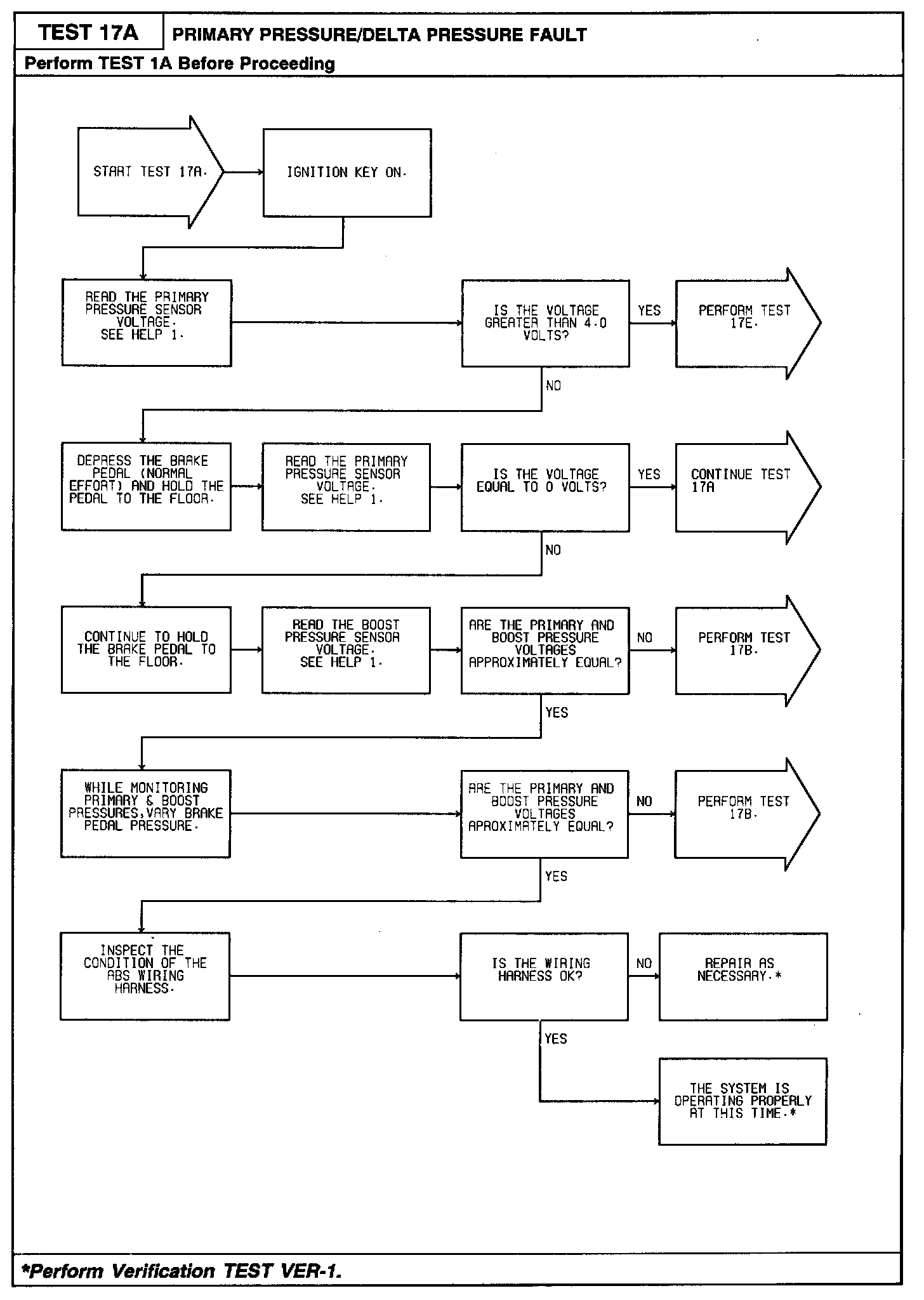

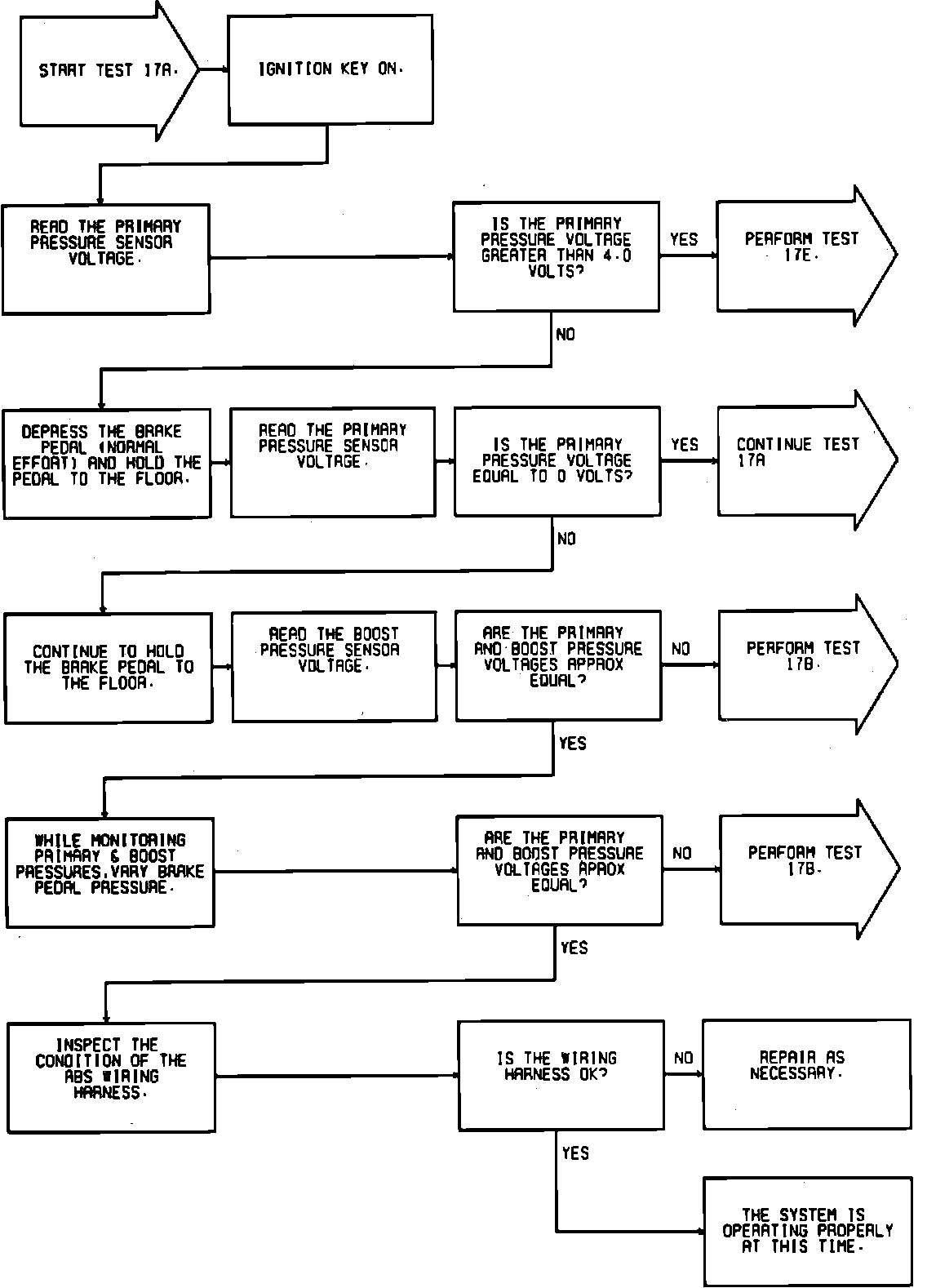

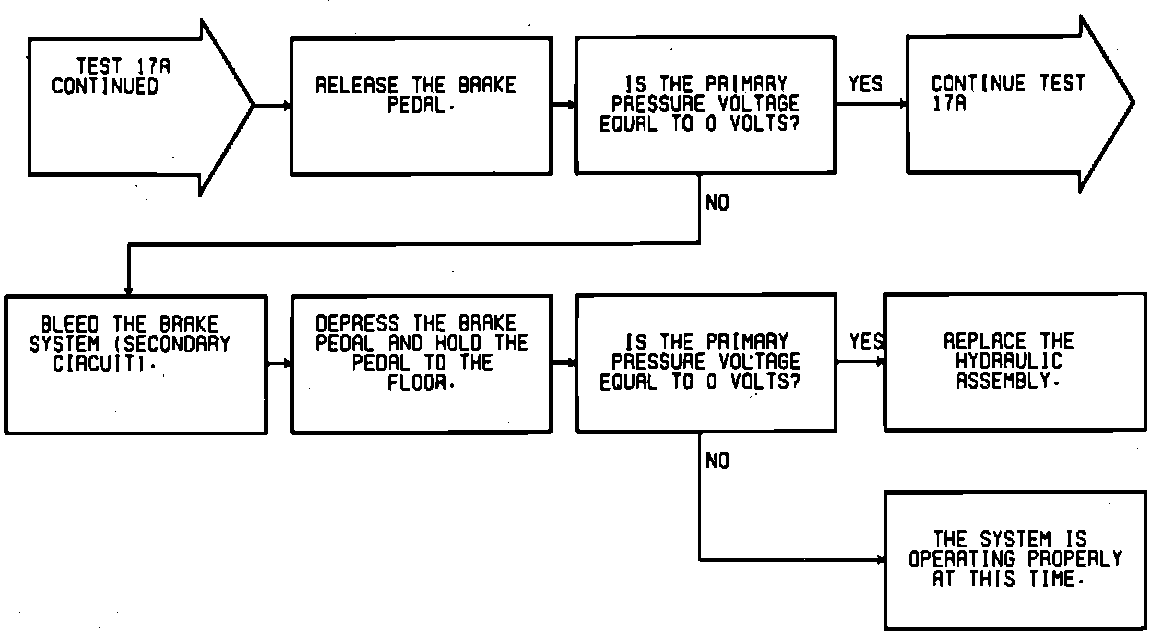

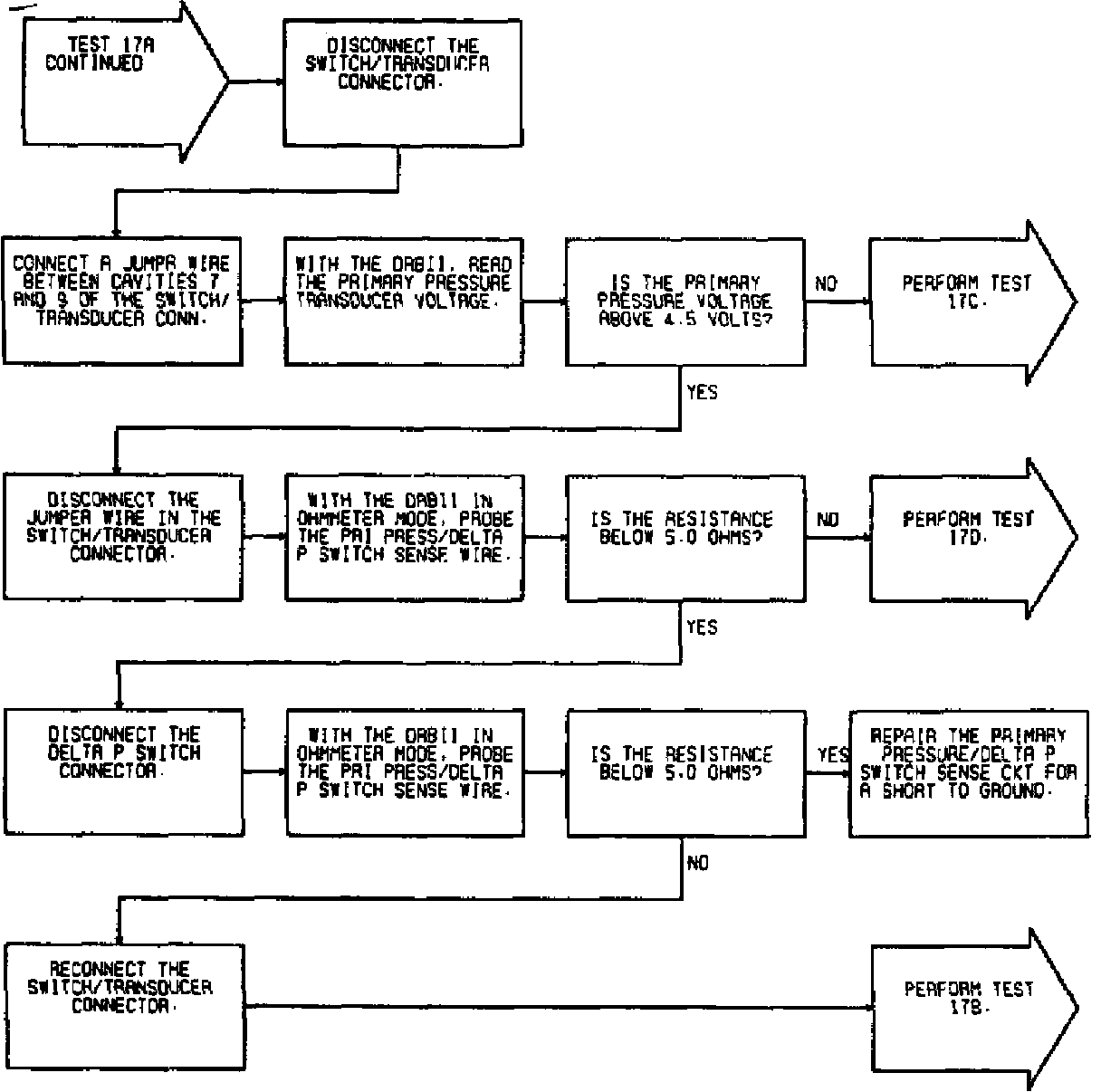

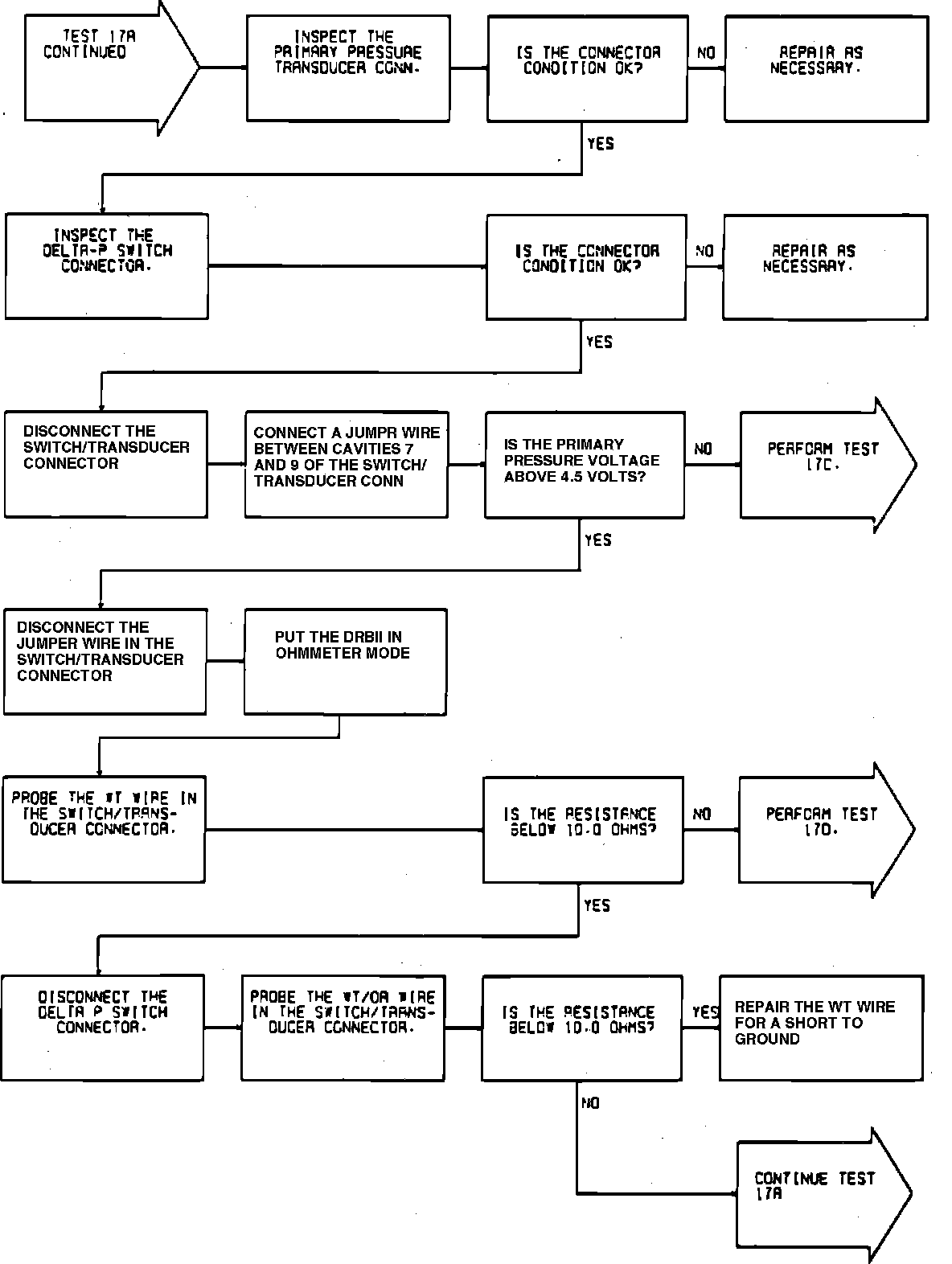

Fig. 103 Test 17A--Primary Pressure/Delta P Fault (Part 1 Of 4):

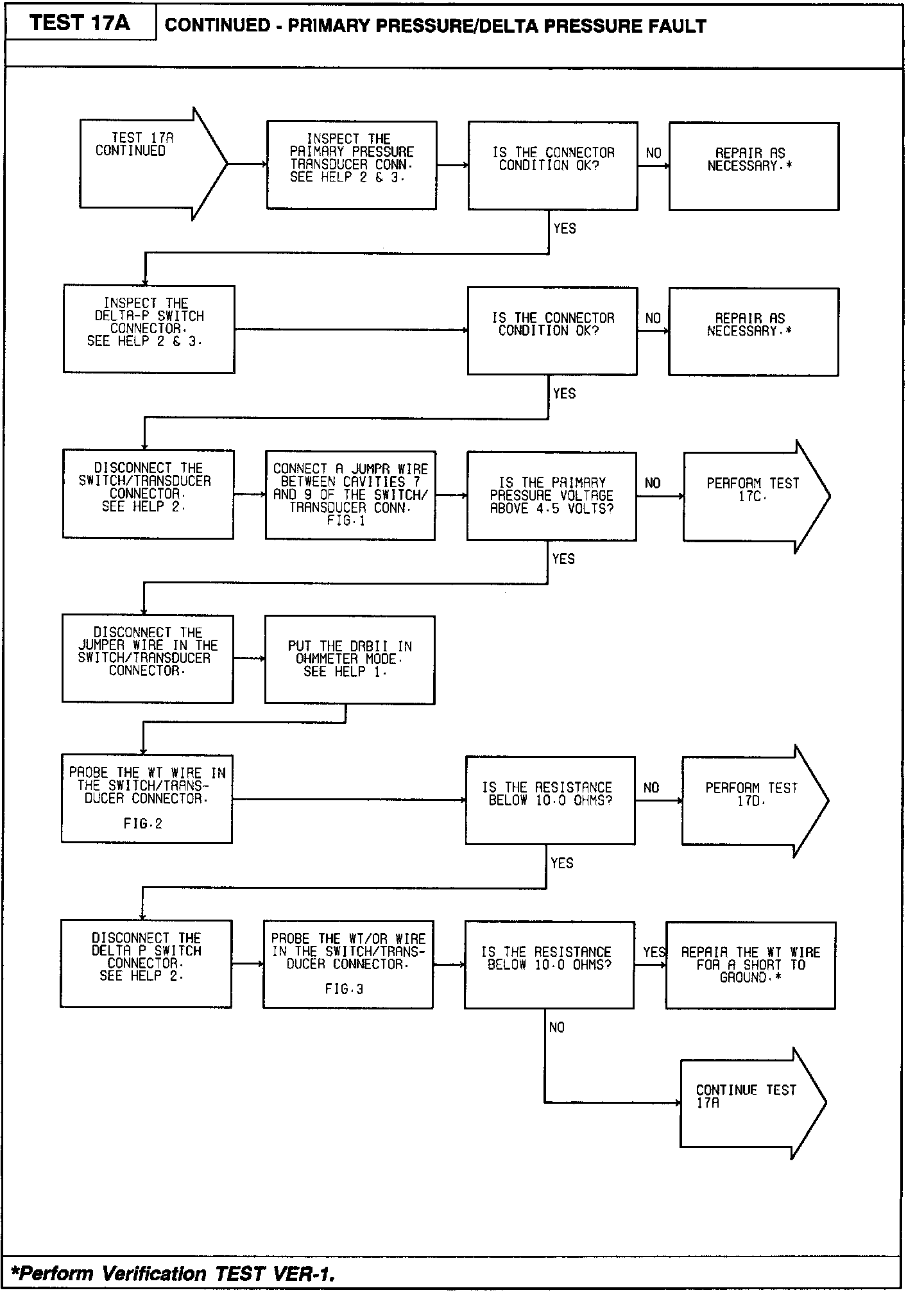

Fig. 103 Test 17A--Primary Pressure/Delta P Fault (Part 2 Of 4):

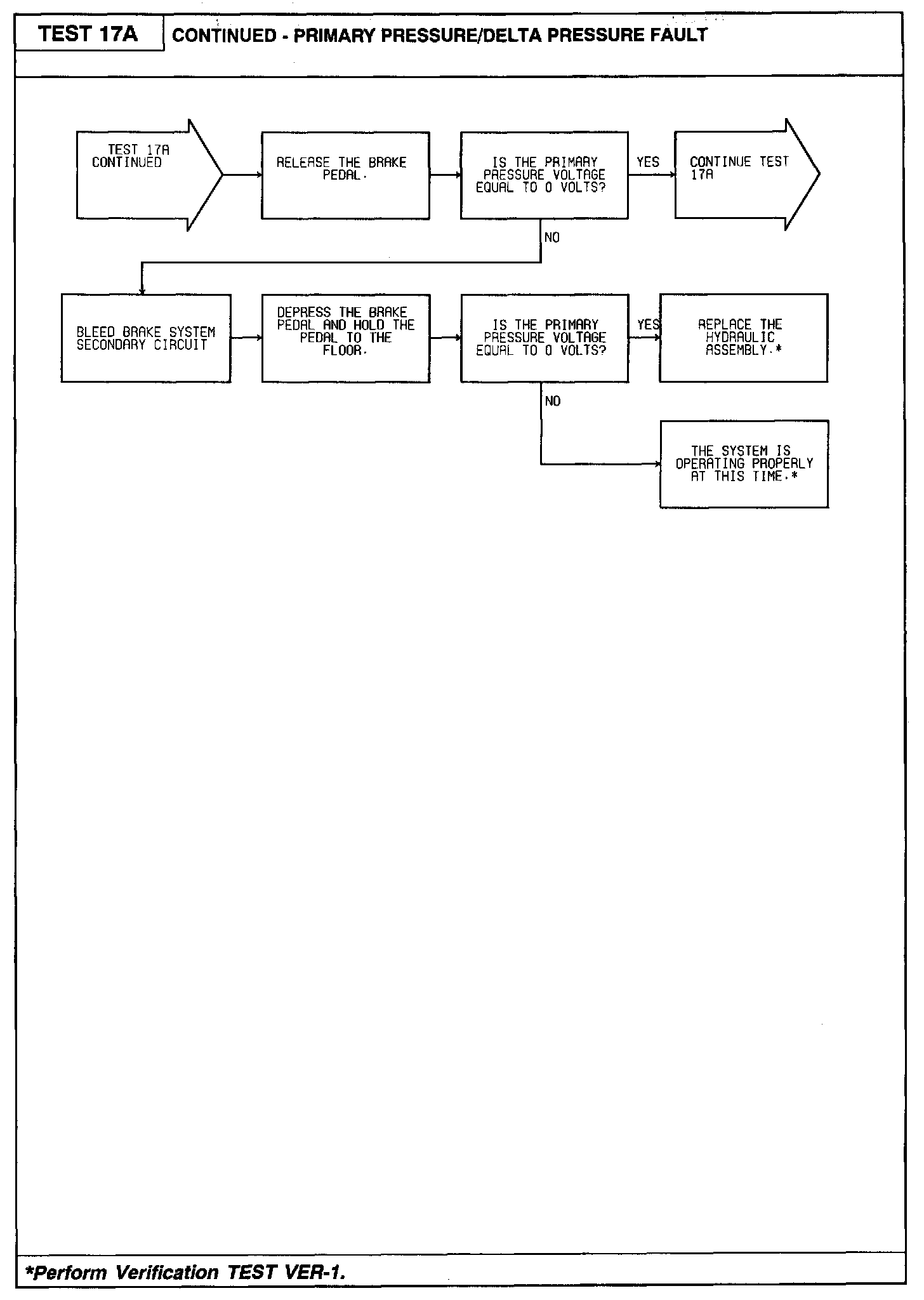

Fig. 103 Test 17A--Primary Pressure/Delta P Fault (Part 3 Of 4):

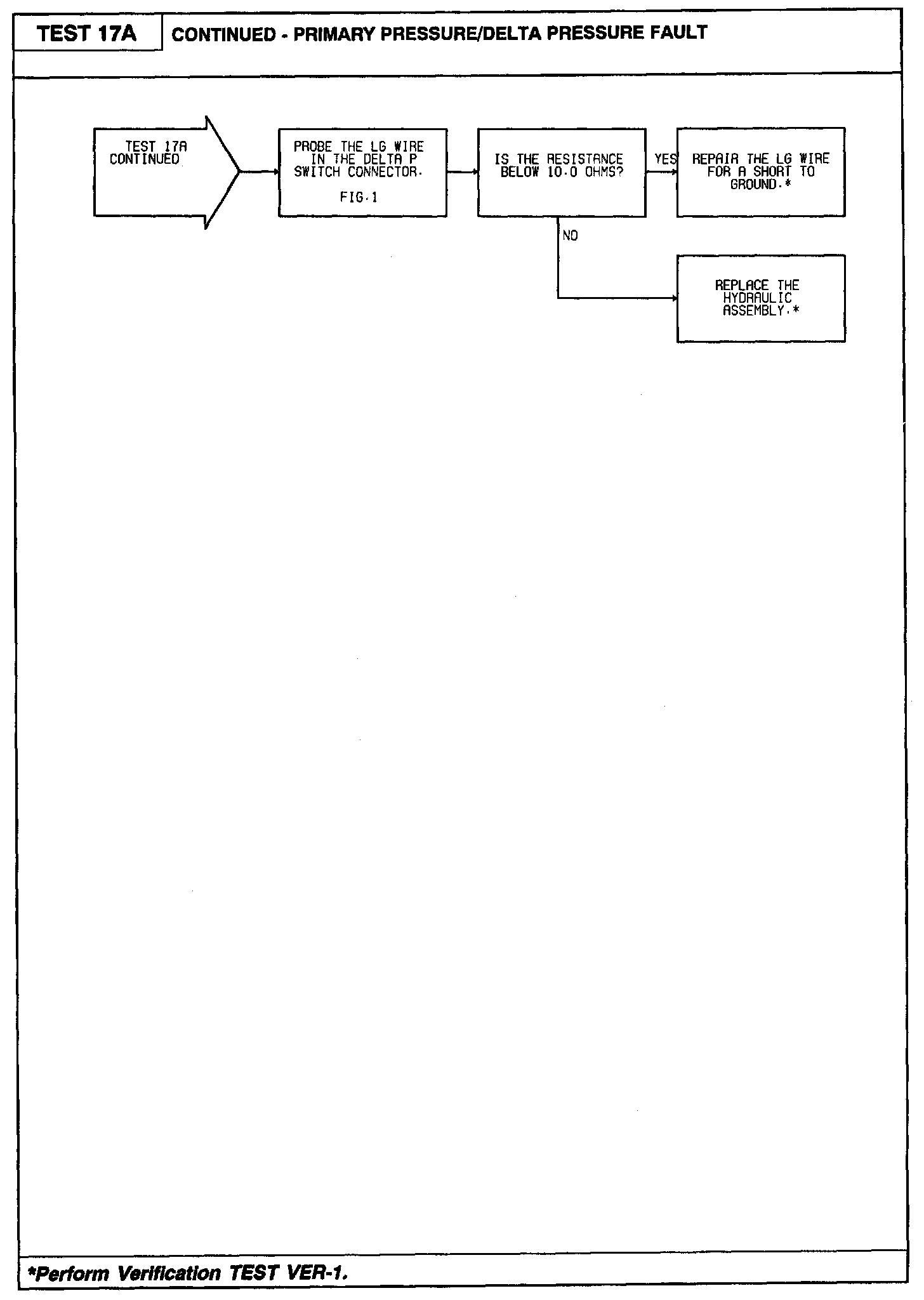

Fig. 103 Test 17A--Primary Pressure/Delta P Fault (Part 4 Of 4):

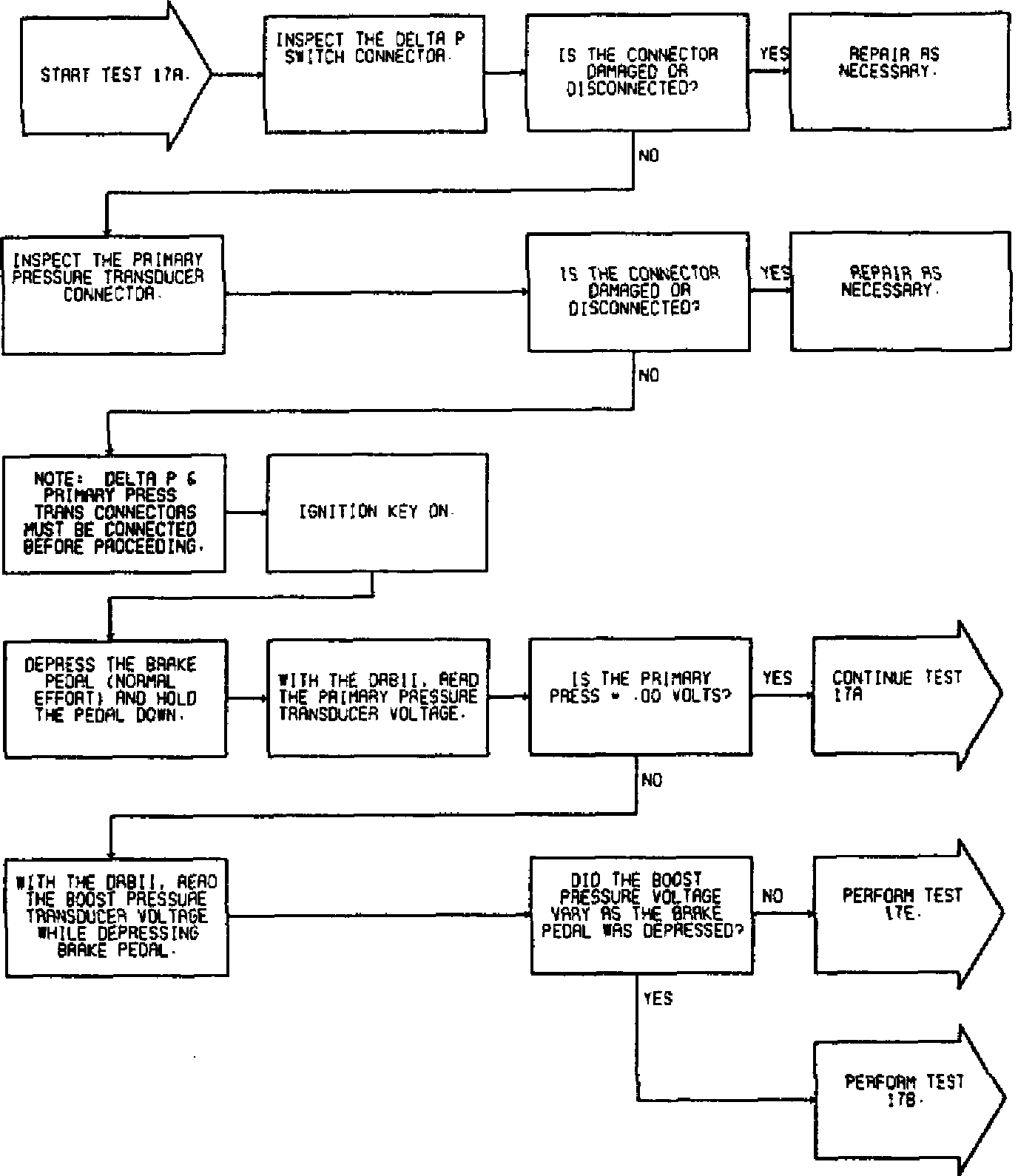

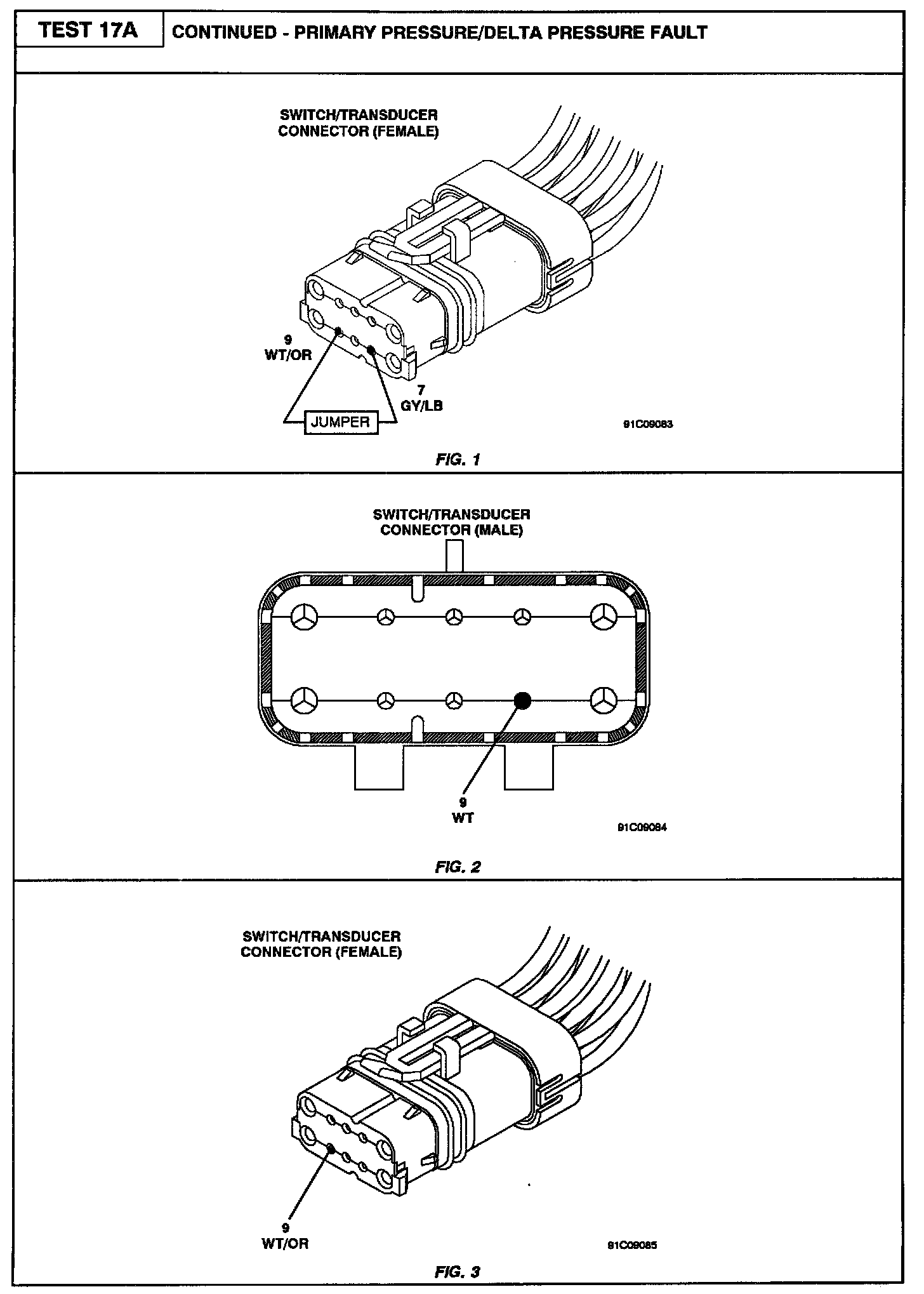

Fig. 133 Test 17A Part 1 Of 2:

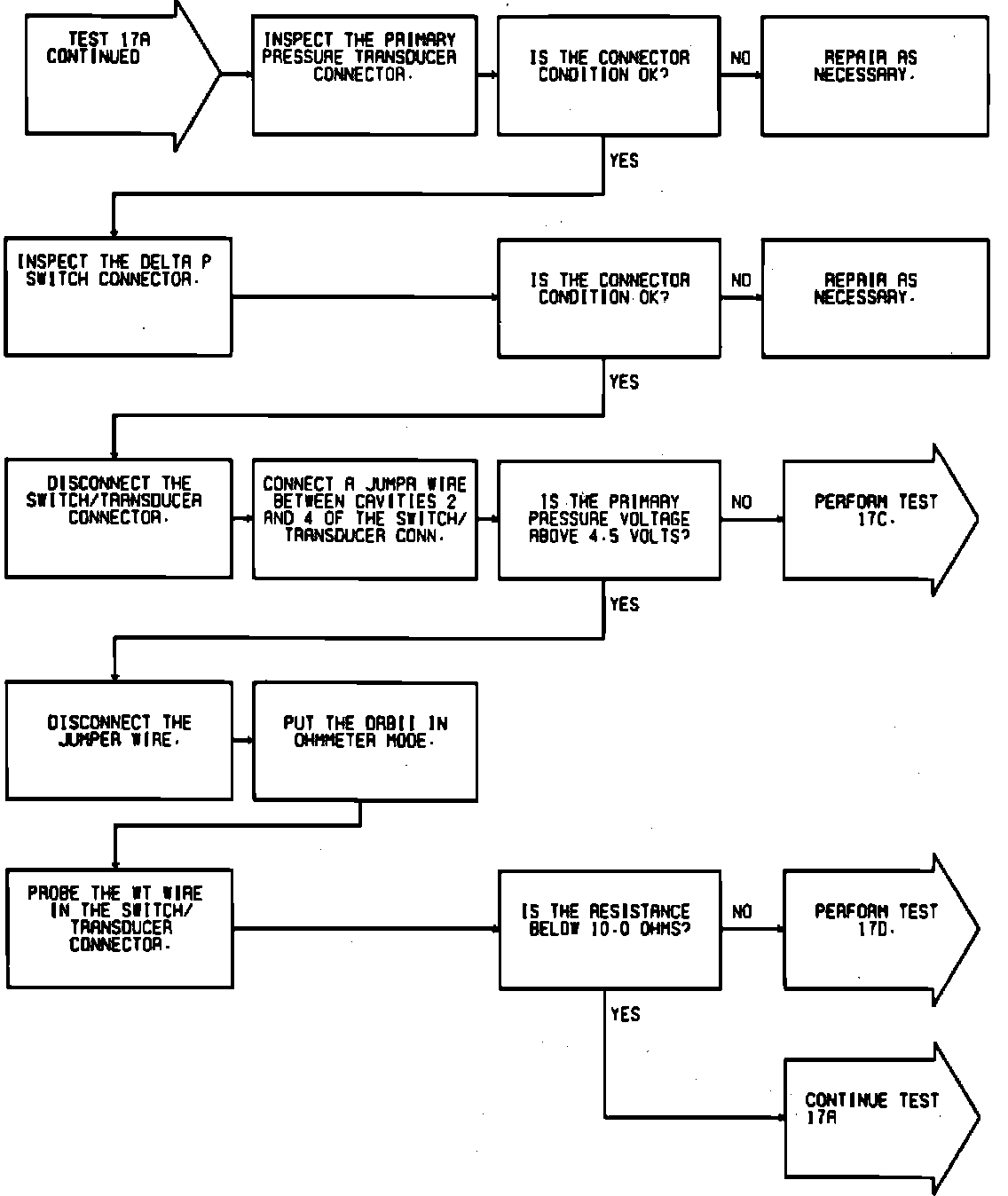

Fig. 133 Test 17A Part 2 Of 2:
